BETO linear blackboard direct
ceiling / suspended system
074-7729138R
Quickinfo
4000 KCRI ≥ 90 / 3 SDCM
92 lm/W
L90 / 50000 h
DALI-2
Reflector
IP20 / PC1 / 220-240 V
Colour
Reflector
General
- Ceiling
- Suspended
- jet black
- Reflector chrome
- RAL 9005
- IP20
- 8400 lm
LED
- 4000 K
- CRI ≥ 90
- L90 / 50000 h
- initial MacAdam ≤ 3 SDCM
-
Rg: 100
-
Rf: 92
-
R{1-15}: 91
-
MR 0.64
-
MDER 0.58
Optical
- Reflector
- wallwasher floor
-
≤ 1.0 1
-
SVM ≤ 0.4 1
Electrical
- DALI-2
- 220-240 V
- system 91 W
- system 92 lm/W 2
- PC1
- 2 DALI Addr.
Physical
- length 3400 mm
- width 42 mm
- height 42 mm
- 4.6 kg
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures

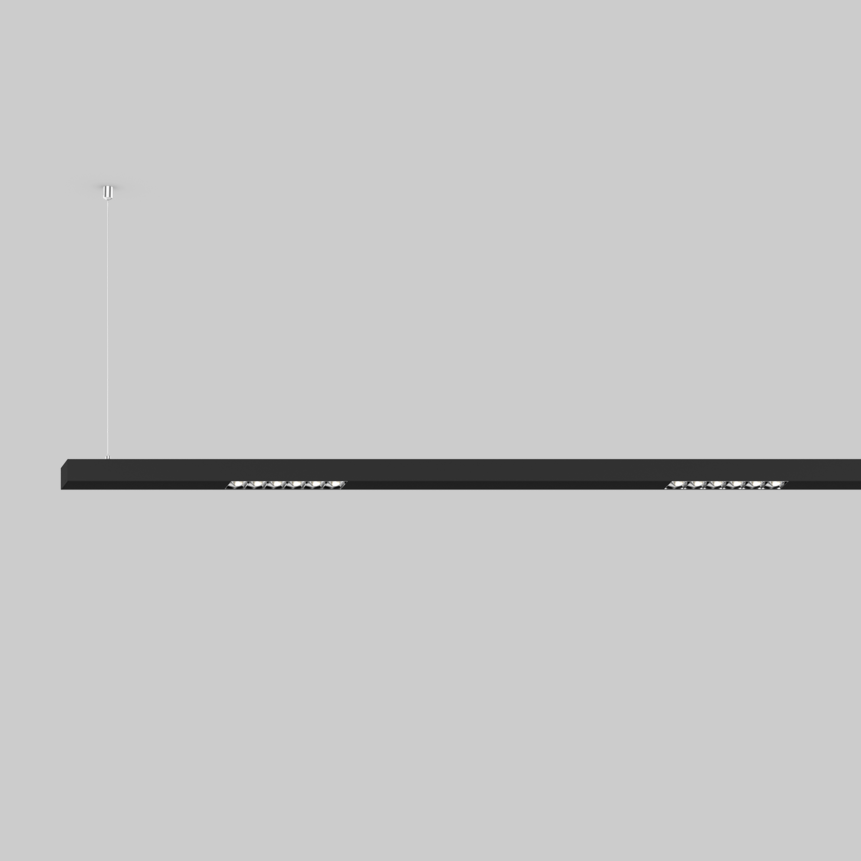

Luminaire housing made of extruded aluminium profile; extremely slim design (only 42 x 42 mm) linear; converter integrated into luminaire housing; no visible screws; angular design; for lighting systems; surface jet black powder coated; for ceiling surface mounting or suspended mounting (1500 mm cable suspension as an accessory); with integrated toolless suspension height adjustment on the luminaire; spring clip attachment to the luminaire; extruded profile for improved thermal management; light colour 4000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; high quality reflector with micro-faceted, aluminum-vaporised surface; asymmetrical light distribution with precise radiation characteristic; degree of protection IP20; PC1; 220-240 V; internal wiring in light halogen free; incl. DALI-2 converter; accessories are listed separately; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
