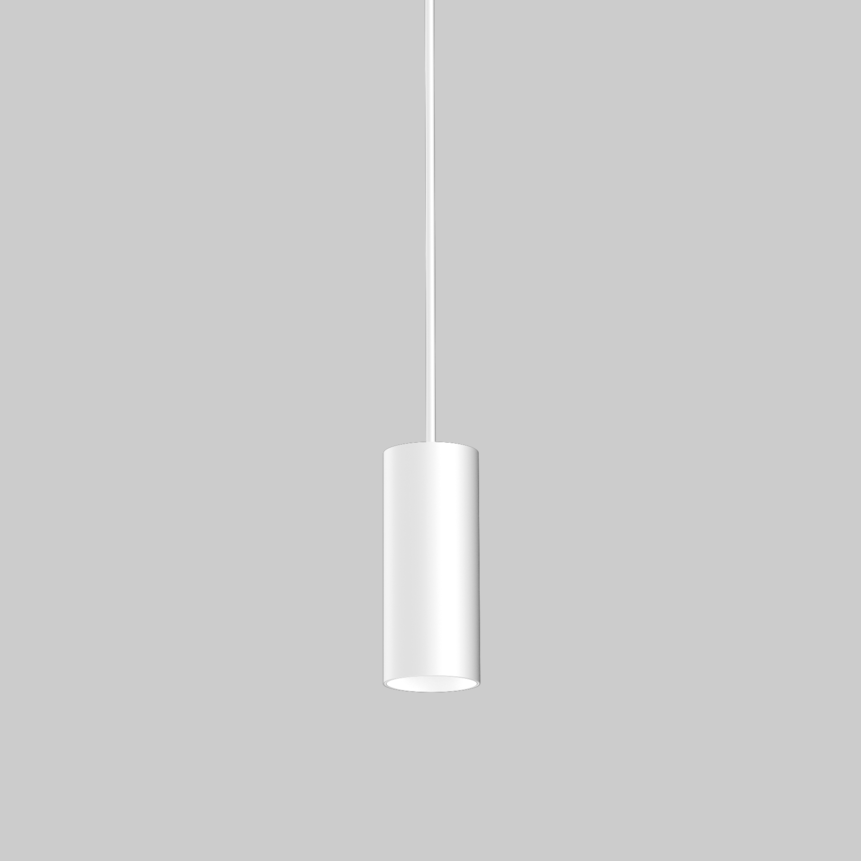

ARY rod suspended MOVE IT 25 / 25 S / 45

ARY rod suspended

MOVE IT 25 / 25 S / 45

050-0621D37F

Quickinfo

tunable white 2200 - 4000 K
CRI ≥ 90 / 3 SDCM (initial MacAdam)
71 lm/W
L95 / 50000 h
DALI-2
IP20 / PC3 / 48 V

Colour

General

  • Ceiling
  • Track Suspended
  • traffic white
  • RAL 9016
  • IP20
  • 285 lm
  • optical inset 71 lm/W 1

LED

  • tunable white
  • 2200 - 4000 K
  • CRI ≥ 90
  • L95 / 50000 h
  • ≤ 3 SDCM (initial MacAdam)
  • MR 0.4
  • MDER 0.37

Optical

  • flood
  • beam angle 46°
  • PstLM ≤ 1.0 2
  • SVM ≤ 0.4 2

Electrical

  • DALI-2
  • DT8
  • 48 V
  • fixture 5.4 W
  • optical inset 4.0 W
  • PC3
  • 1 DALI Addr.

Physical

  • rod 1500 mm with hook (one ring included)
  • diameter 47 mm
  • height 110 mm
  • 0.5 kg
1 incl. consideration of optical losses 2 Value of containing product at full load (undimmed)

Decorative pendant light inset made of aluminium; surface traffic white powder coated; light inset can be installed and moved without tools by means of magnetic holders+locking; power supplied via MOVE IT system track profile; hot plug protection; height adjustable U-profile pendant rod suspension (traffic white) 1500mm, feed 2000mm (1500mm in U-profile), incl. ceiling mounting ring + hook (traffic white) for multiple positioning of the luminaire in the room; passive cooling of the LEDs through improved heat sink geometry; with CSP (Chip-Scale-Packaging) technology for maximum efficiency; no multiple shadows; light colour 2200 - 4000 K tunable white; ≤ 3 SDCM (initial MacAdam); CRI ≥ 90; min. 95% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; good glare control through recessed light point level; incl. high quality lens system; precise radiation characteristic with 46° beam; degree of protection IP20; PC3; 48 V; DALI single control; flicker-free visual comfort through analogue current control (minimum value 1%); light source not replaceable;

Product data & specification documents

Datasheets

Planning files & lighting data

Download all

System products

MOVE IT 25 S

trimless system

MOVE IT 25 S

surface / suspended system

MOVE IT 25 S

suspended indirect system

MOVE IT 25

trimless system

MOVE IT 25

surface / suspended system

MOVE IT 25

suspended indirect system

MOVE IT 45

trimless system

MOVE IT 45

surface / suspended system

MOVE IT 45

suspended indirect system

Accessories

Optical

article number
type
dimensions
WALLWASHER LENS
007-1965780
for ARY | BO 45 | JUST 45 | MOVE IN 45 | TARO 45 | TULA micro
diameter 42 mm
height 3 mm
0.01 kg
OVAL LENS
007-1965880
for BO 45 | JUST 45 | MOVE IN 45 | TARO 45 | TULA micro
diameter 42 mm
height 3 mm
0.03 kg
SOFT LENS
007-1965980
for ARY | BO 45 | JUST 45 | MOVE IN 45 | TARO 45 | TULA micro
diameter 42 mm
height 3 mm
0.03 kg

Mounting

article number
colour
dimensions
RING track mounted
050-0510117
traffic white
RAL 9016
diameter 50 mm
height 91 mm
0.06 kg
RING track mounted
050-0510118
jet black
RAL 9005
diameter 50 mm
height 91 mm
0.07 kg
RING ceiling mounted
050-0510217
traffic white
RAL 9016
diameter 50 mm
height 88 mm
0.03 kg
RING ceiling mounted
050-0510218
jet black
RAL 9005
diameter 50 mm
height 88 mm
0.03 kg
