ARY cable suspended MOVE IT 25 / 25 S / 45;ARY cable suspended MOVE IT 25;ARY cable suspended MOVE IT 25 S

ARY cable suspended

MOVE IT 25 / 25 S / 45

050-0611D38M

Quickinfo

tunable white
CRI ≥ 90 / 3 SDCM
50 lm/W
L95 / 50000 h
DALI-2 DT8
IP20

Colour

General

  • Ceiling
  • Track Suspended
  • black
  • RAL9005 1
  • IP20
  • 269 lm

LED

  • tunable white
  • 2200 K - 4000 K
  • CRI ≥ 90
  • L95 / 50000 h
  • initial MacAdam ≤ 3 SDCM
  • MR 0.4
  • MDER 0.37

Optical

  • medium
  • beam angle 21°

Electrical

  • DALI-2 DT8
  • 5.4 W
  • PC3 48V
  • 50 lm/W
  • 1 DALI Addr.

Physical

  • cable 2000 mm with hook
  • diameter 47 mm
  • height 110 mm
  • 0.4 kg
1 RAL code

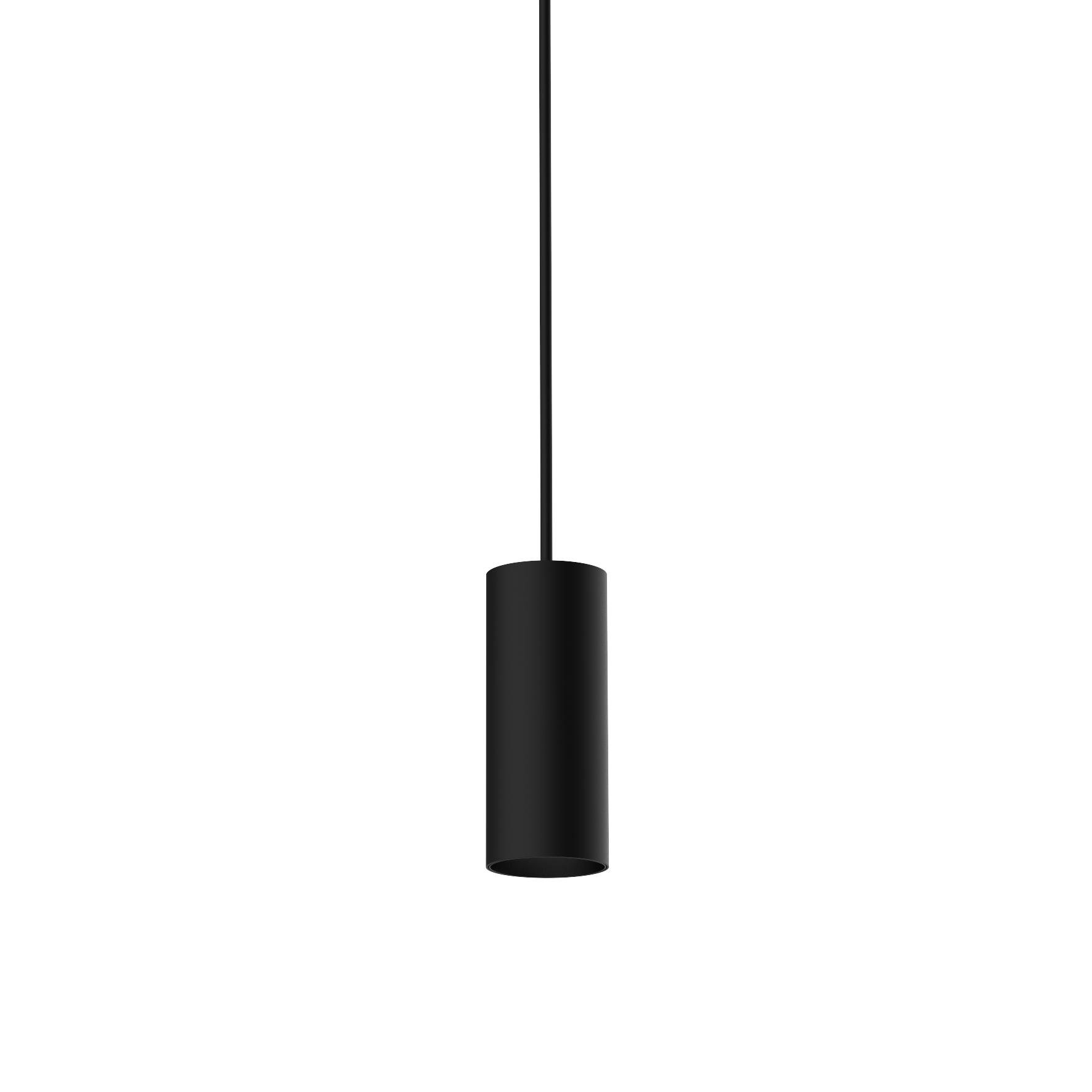

Decorative pendant light inset made of aluminium; surface black powder coated; light inset can be installed and moved without tools by means of magnetic holders+locking; power supplied via MOVE IT system track profile; hot plug protection; pendant fitting with 2000mm suspension, incl. feed (black), can be individually shortened, incl. ceiling mounting ring + hook (black) for multiple positioning of the luminaire in the room; shades available as accessory in RAL colours velvet beige, madeira brown, kingfisher grey, woodpecker olive, signal white or signal black; accessories are listed separately; passive cooling of the LEDs through improved heat sink geometry; with CSP (Chip-Scale-Packaging) technology for maximum efficiency; no multiple shadows; light colour: tunable white diodes (2200-4000 K); binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 95% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; good glare control through recessed light point level; incl. high quality lens system; precise radiation characteristic with 21° beam; degree of protection IP20; PC3 48V; DALI single control; flicker-free visual comfort through analogue current control (minimum value 1%); light source not replaceable;
