SONO 450 surface DIRECT
SONO 600 surface DIRECT
SONO 260 direct surface
SONO 350 surface DIRECT
Grundschule St. Martin

SONO

surface

Quickinfo

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM (initial MacAdam)
up to ↓ 6,170 lm / ↑ 3,010 lm
up to 147 lm/W
L85 / 50000 h
Cover: Opal
DALI-2, non DIM
IP40, IP50, IK07

Colour

Products and codes
Discover family

Simple drawing

Light distribution

Product data & specification documents

Download all
Download all
  • 3DS
  • DWG - 3D
  • Revit BIM data

Description

Round luminaire housing in die-cast aluminium; surface powder coated; suitable for wall or ceiling mounting; completely homogeneously illuminated, satinised PMMA cover; same luminance for all size versions; energy-efficient LEDs with very good colour rendering; luminaire with 2 cable openings and plug-in terminals for through wiring

DiiA® standards 251, 252, 253

easy mounting by click-mechanism

dust & insect protection (IP 40 / IP 50)

tunable white 2700 – 6500 K (optional)

Products and codes

Filter
131
lm/W
147
lm/W
950
lm
6170
lm
1130
lm
3010
lm
7
W
65
W
0.54
0.72
0.49
0.66

Colour

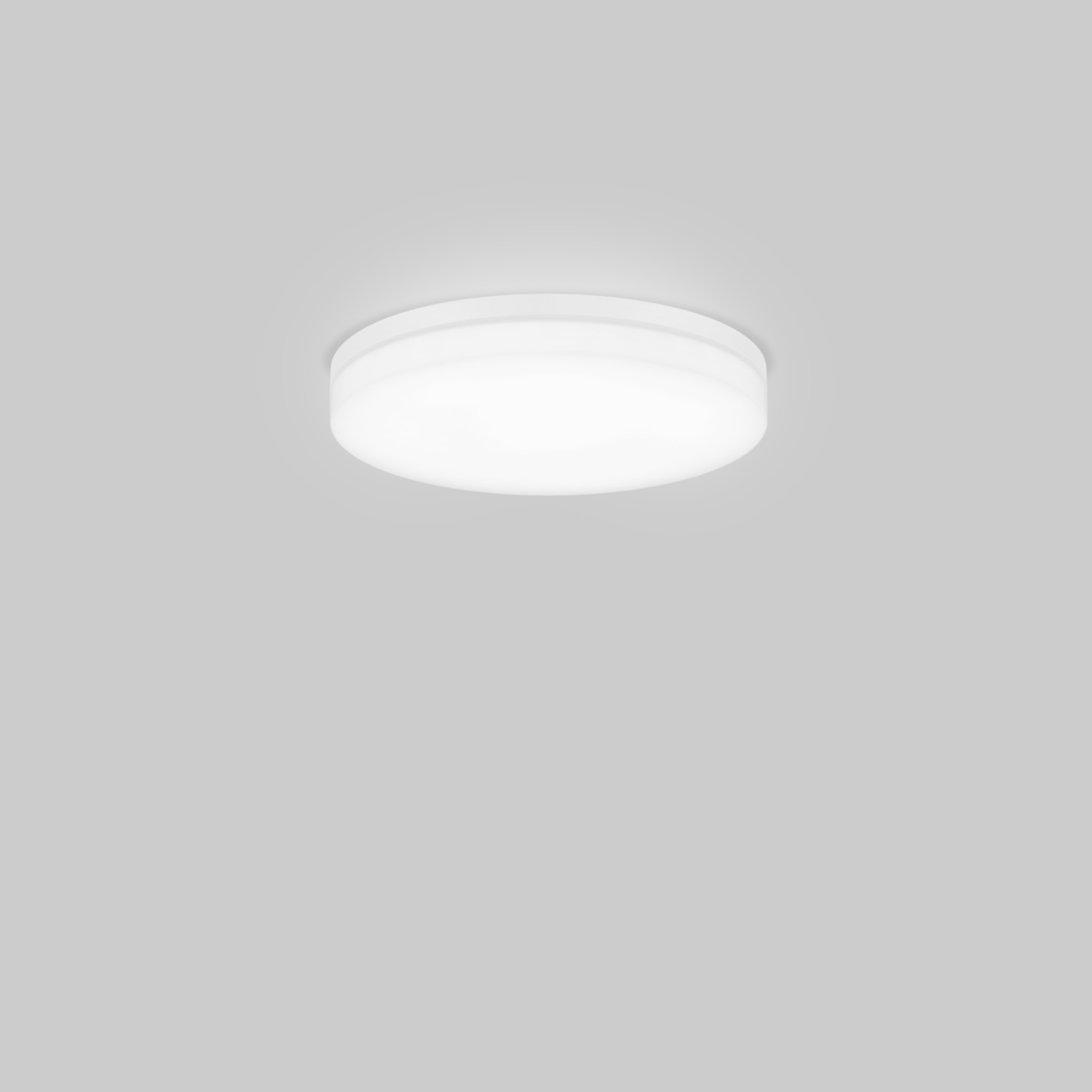

SONO 260 direct surface

SONO 260 direct surface

SONO 260 direct surface

Status
Article number(s)
Type
Dimming
3000 K, system 7 W, 136 lm/W
non DIM
3000 K, system 7 W, 136 lm/W
DALI-2
4000 K, system 7 W, 144 lm/W
non DIM
4000 K, system 7 W, 144 lm/W
DALI-2

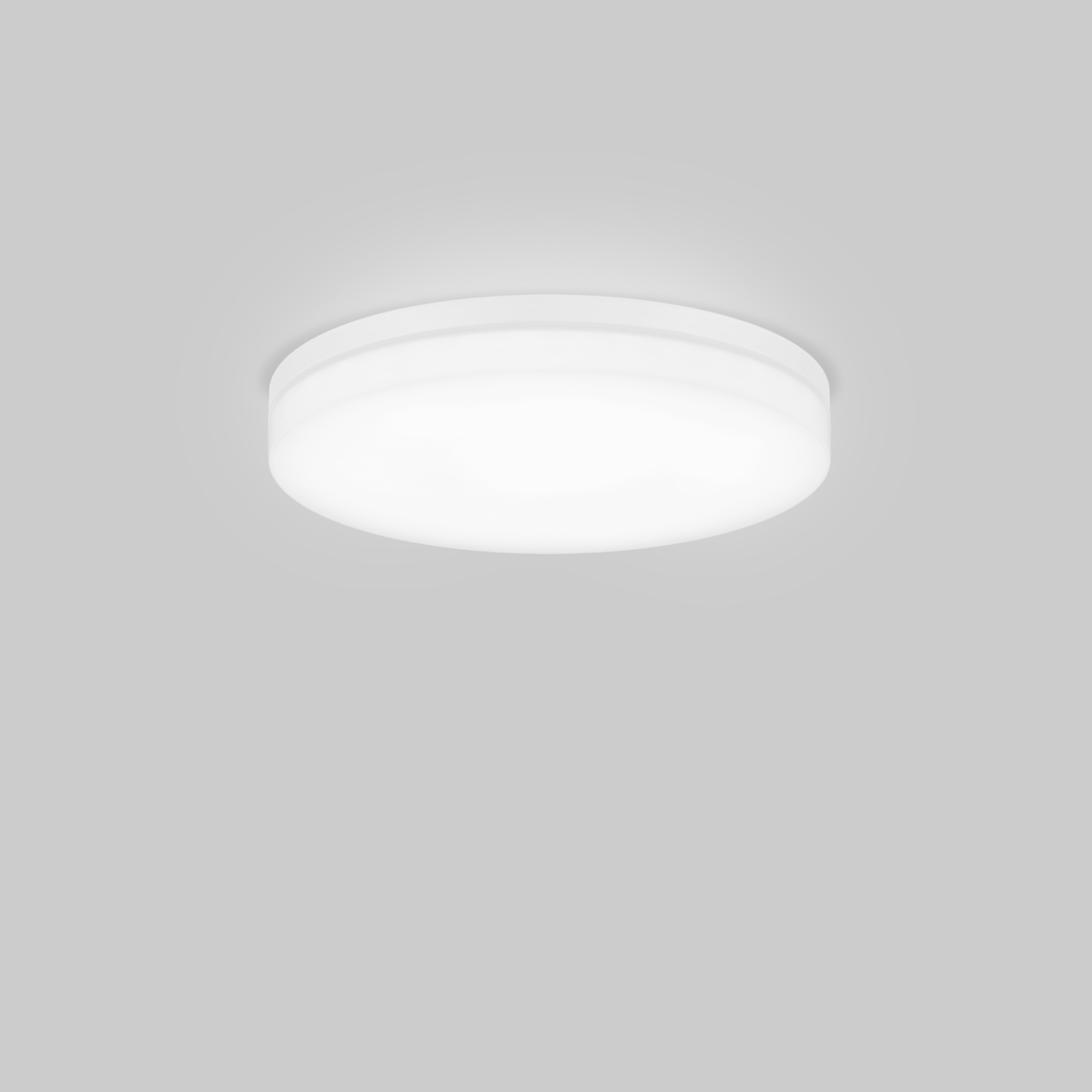

SONO 350 surface DIRECT

SONO 350 direct surface

SONO 350 direct surface

Status
Article number(s)
Type
Dimming
3000 K, no emergency light, system 15.9 W, 131 lm/W
non DIM
3000 K, 3h accupack, system 15.9 W, 131 lm/W
non DIM
3000 K, no emergency light, system 15.9 W, 131 lm/W
DALI-2
3000 K, 3h accupack, system 15.9 W, 131 lm/W
DALI-2
4000 K, no emergency light, system 15.9 W, 139 lm/W
non DIM
4000 K, 3h accupack, system 15.9 W, 139 lm/W
non DIM
4000 K, no emergency light, system 15.9 W, 139 lm/W
DALI-2
4000 K, 3h accupack, system 15.9 W, 139 lm/W
DALI-2

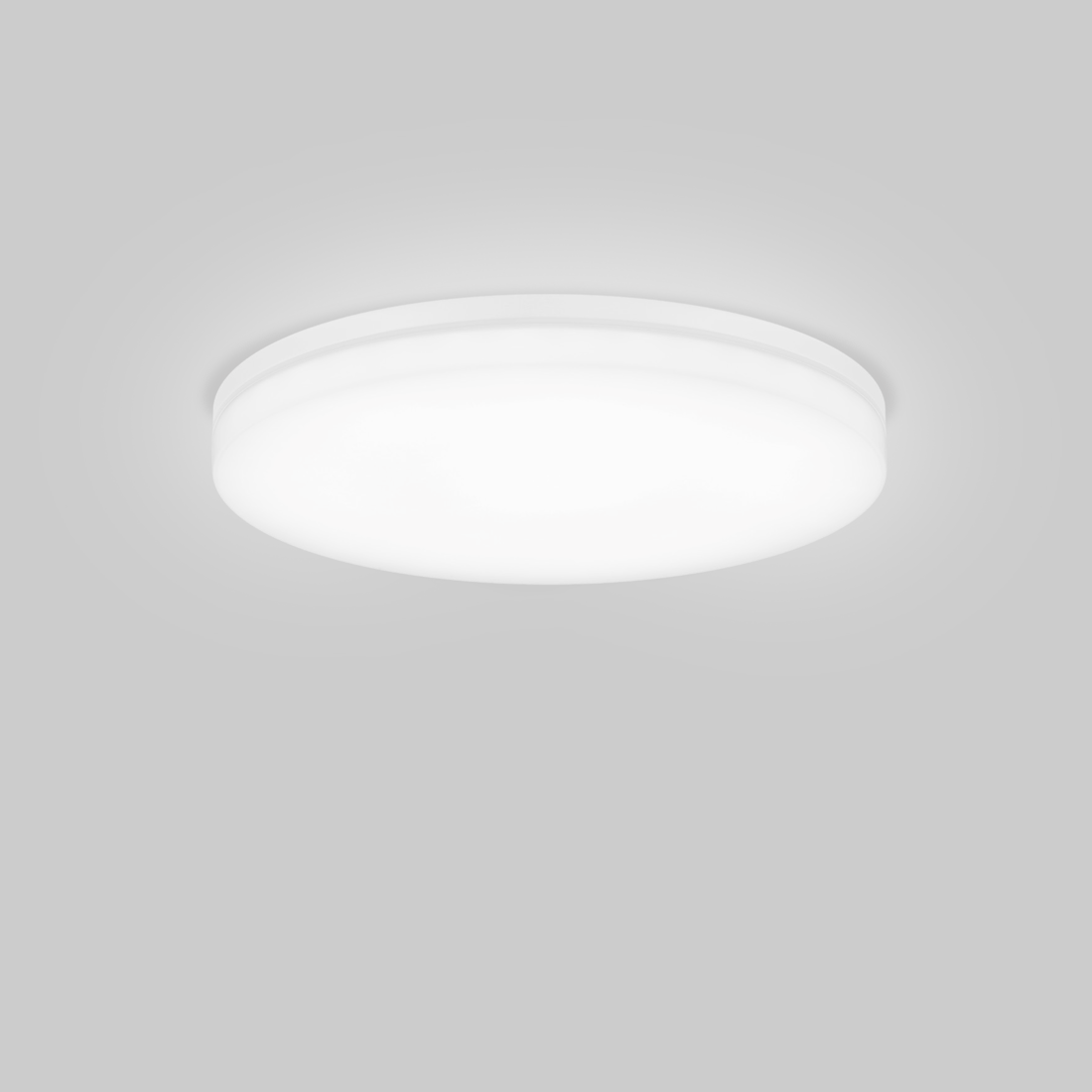

SONO 450 surface DIRECT

SONO 450 direct / indirect surface

SONO 450 direct / indirect surface

Status
Article number(s)
Type
Dimming
3000 K, system 33 W, e2 LED, 134 lm/W
non DIM
3000 K, system 33 W, 134 lm/W
DALI-2
4000 K, system 33 W, e2 LED, 142 lm/W
non DIM
4000 K, system 33 W, 142 lm/W
DALI-2
SONO 450 surface DIRECT

SONO 450 direct surface

SONO 450 direct surface

Status
Article number(s)
Type
Dimming
3000 K, no emergency light, system 23.2 W, 132 lm/W
non DIM
3000 K, 3h accupack, system 23.2 W, 132 lm/W
non DIM
3000 K, no emergency light, system 23.2 W, 132 lm/W
DALI-2
3000 K, 3h accupack, system 23.2 W, 132 lm/W
DALI-2
4000 K, no emergency light, system 23.2 W, 140 lm/W
non DIM
4000 K, 3h accupack, system 23.2 W, 140 lm/W
non DIM
4000 K, no emergency light, system 23.2 W, 140 lm/W
DALI-2
4000 K, 3h accupack, system 23.2 W, 140 lm/W
DALI-2

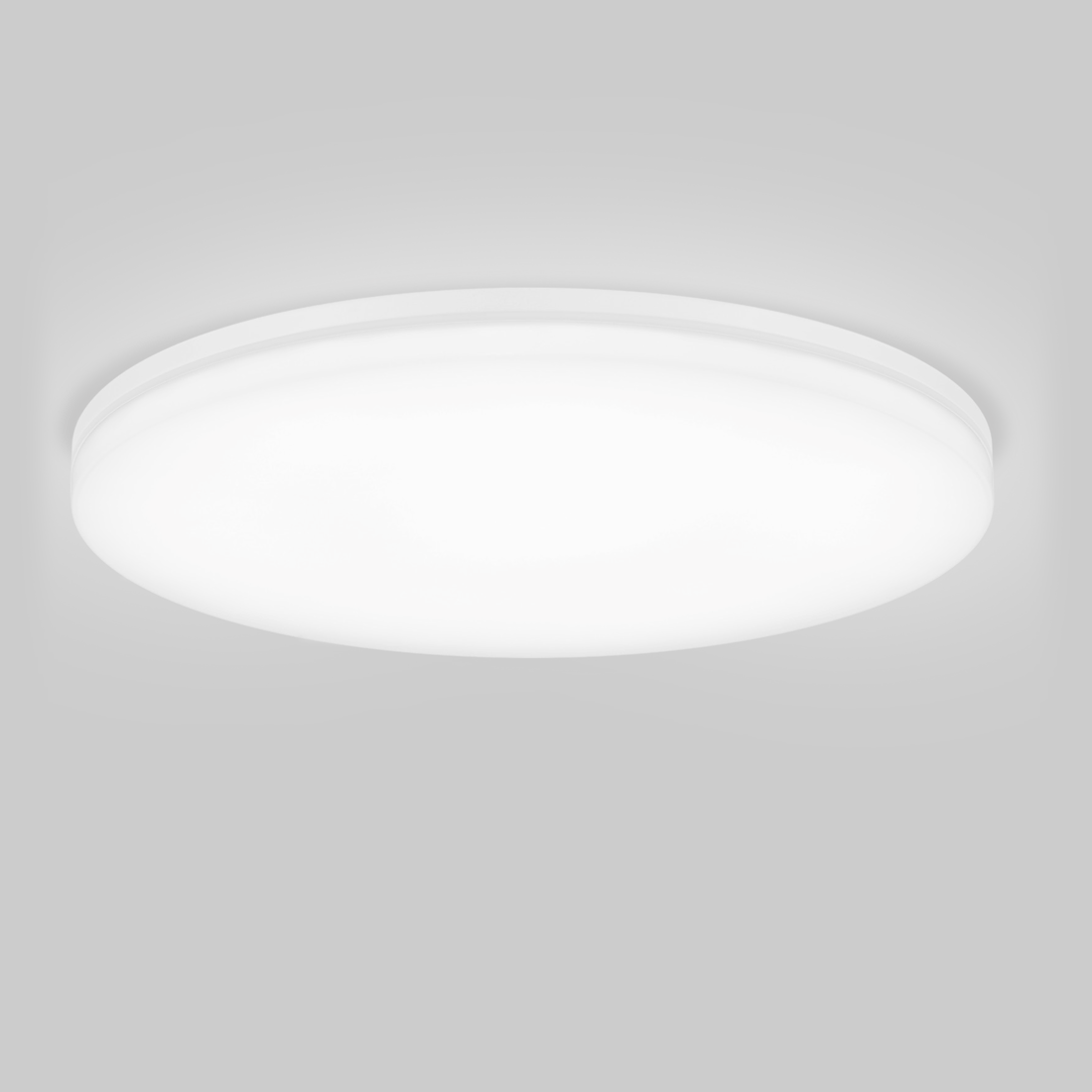

SONO 600 surface DIRECT

SONO 600 direct / indirect surface

SONO 600 direct / indirect surface

Status
Article number(s)
Type
Dimming
3000 K, system 65 W, e2 LED, 134 lm/W
non DIM
3000 K, system 65 W, 134 lm/W
DALI-2
4000 K, system 65 W, e2 LED, 141 lm/W
non DIM
4000 K, system 65 W, 141 lm/W
DALI-2
SONO 600 surface DIRECT

SONO 600 direct surface

SONO 600 direct surface

Status
Article number(s)
Type
Dimming
3000 K, system 42 W, 139 lm/W
non DIM
3000 K, system 42 W, 139 lm/W
DALI-2
4000 K, system 42 W, 147 lm/W
non DIM
4000 K, system 42 W, 147 lm/W
DALI-2

Accessories

Mounting tools

article number
type
dimensions
DISMOUNTING TOOL
086-30000
vacuum cup
0.08 kg
