PARO

ceiling

New

Quickinfo

3000 K, 4000 K
CRI ≥ 80, CRI ≥ 90 / 3 SDCM (initial MacAdam)
UGR ≤ 16, UGR ≤ 19
up to 175 lm/W
L90 / 50000 h
DALI-2, DALI-2 ESSENTIAL sensor
IP20

Colour

traffic white

jet black

Inset

chrome

traffic white

jet black

black

Products and codes

Discover family

Simple drawing

Light distribution

Downloads & links

Product data & specification documents

Datasheet product line

Download all

Aggregated downloads

ROLF
ULD

Description

Rectangular luminaire housing in die-cast aluminium; ultra low-profile design (only 15 mm); no visible screws; surface powder coated; suitable for ceiling mounting; convenient quick mounting system without tools; luminaire housing set away from ceiling; electronic operating unit installed in the surface mounted housing; 2 separate, square light insets made of plastic; fitted with single LED light points; good glare reduction due to recessed light point plane; despite this increased efficiency through special lens technology; inserted lenses with wide flood radiation characteristic; or high quality reflector with micro-faceted, aluminum-vaporised surface; precise radiation characteristic with symmetrical light distribution; either with direct or direct / indirect light distribution; indirect light component for additional accentuation of the ceiling, switchable via DIP switch; optionally with sensor

up to 170 lm/W (high efficiency)

DIN EN 12464-1 UGR ≤ 19 65° ≤ 1500 cd/m2

dip switch for indirect

optional sensor integration

Products and codes

Filter

Colour

traffic white

jet black

Inset

chrome

traffic white

jet black

black

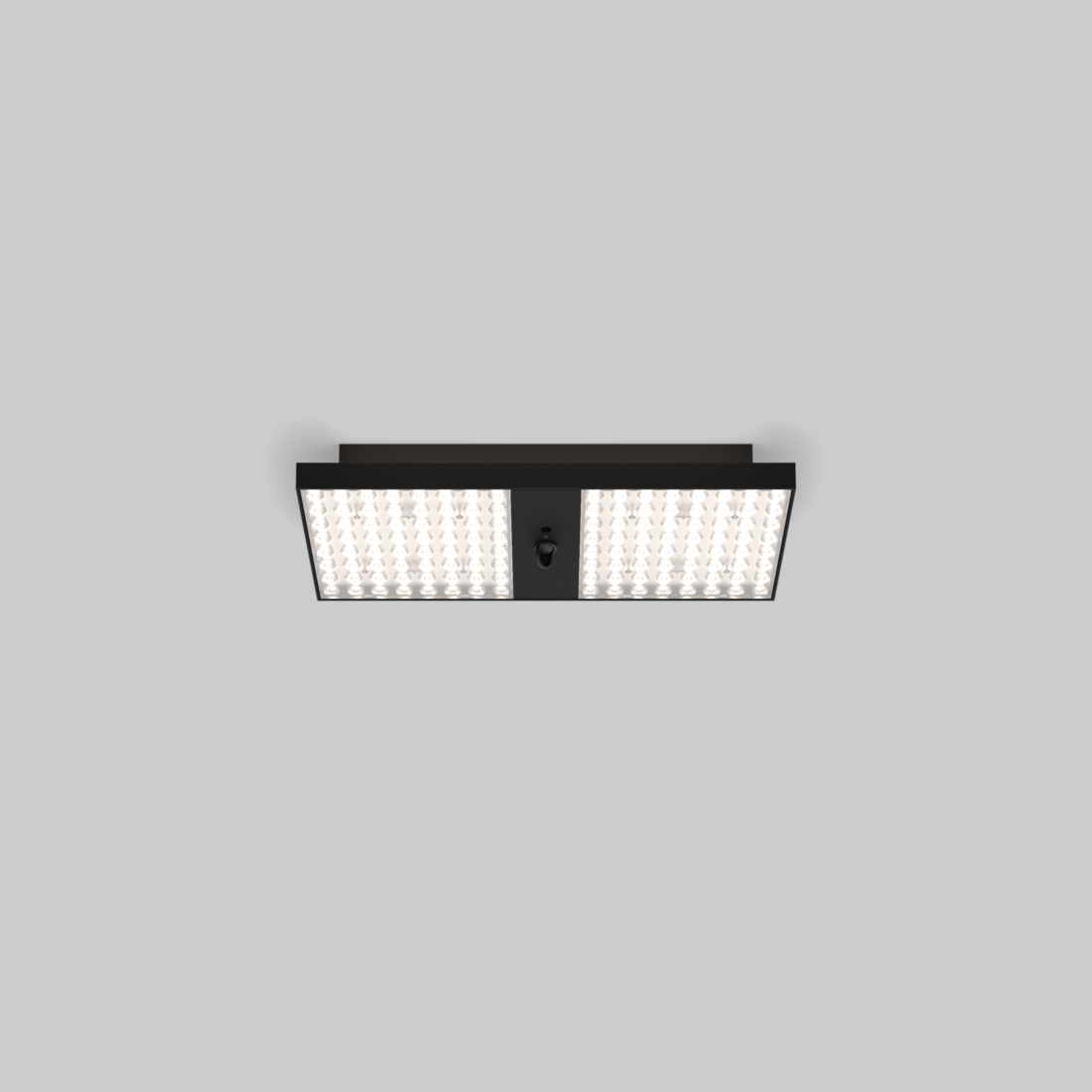

PARO medium lens wide ceiling

Status

Article number(s)

Type

Dimming

traffic white, 3000 K, CRI ≥ 90, system 17.3 W, 132 lm/W

DALI-2

traffic white, 3000 K, CRI ≥ 90, system 17.3 W, 132 lm/W

DALI-2 ESSENTIAL sensor

traffic white, 4000 K, CRI ≥ 90, system 17.3 W, 143 lm/W

DALI-2

traffic white, 4000 K, CRI ≥ 90, system 17.3 W, 143 lm/W

DALI-2 ESSENTIAL sensor

traffic white, 3000 K, CRI ≥ 80, system 17.3 W, 154 lm/W

DALI-2

traffic white, 3000 K, CRI ≥ 80, system 17.3 W, 154 lm/W

DALI-2 ESSENTIAL sensor

traffic white, 4000 K, CRI ≥ 80, system 17.3 W, 175 lm/W

DALI-2

traffic white, 4000 K, CRI ≥ 80, system 17.3 W, 175 lm/W

DALI-2 ESSENTIAL sensor

traffic white, 3000 K, CRI ≥ 90, system 37 W, 129 lm/W

DALI-2

traffic white, 3000 K, CRI ≥ 90, system 37 W, 129 lm/W

DALI-2 ESSENTIAL sensor

traffic white, 4000 K, CRI ≥ 90, system 37 W, 139 lm/W

DALI-2

traffic white, 4000 K, CRI ≥ 90, system 37 W, 139 lm/W

DALI-2 ESSENTIAL sensor

traffic white, 3000 K, CRI ≥ 80, system 37 W, 149 lm/W

DALI-2

traffic white, 3000 K, CRI ≥ 80, system 37 W, 149 lm/W

DALI-2 ESSENTIAL sensor

traffic white, 4000 K, CRI ≥ 80, system 37 W, 170 lm/W

DALI-2

traffic white, 4000 K, CRI ≥ 80, system 37 W, 170 lm/W

DALI-2 ESSENTIAL sensor

PARO medium lens wide ceiling

Status

Article number(s)

Type

Dimming

jet black, 3000 K, CRI ≥ 90, system 17.3 W, 132 lm/W

DALI-2

jet black, 3000 K, CRI ≥ 90, system 17.3 W, 132 lm/W

DALI-2 ESSENTIAL sensor

jet black, 4000 K, CRI ≥ 90, system 17.3 W, 143 lm/W

DALI-2

jet black, 4000 K, CRI ≥ 90, system 17.3 W, 143 lm/W

DALI-2 ESSENTIAL sensor

jet black, 3000 K, CRI ≥ 80, system 17.3 W, 154 lm/W

DALI-2

jet black, 3000 K, CRI ≥ 80, system 17.3 W, 154 lm/W

DALI-2 ESSENTIAL sensor

jet black, 4000 K, CRI ≥ 80, system 17.3 W, 175 lm/W

DALI-2

jet black, 4000 K, CRI ≥ 80, system 17.3 W, 175 lm/W

DALI-2 ESSENTIAL sensor

jet black, 3000 K, CRI ≥ 90, system 37 W, 129 lm/W

DALI-2

jet black, 3000 K, CRI ≥ 90, system 37 W, 129 lm/W

DALI-2 ESSENTIAL sensor

jet black, 4000 K, CRI ≥ 90, system 37 W, 139 lm/W

DALI-2

jet black, 4000 K, CRI ≥ 90, system 37 W, 139 lm/W

DALI-2 ESSENTIAL sensor

jet black, 3000 K, CRI ≥ 80, system 37 W, 149 lm/W

DALI-2

jet black, 3000 K, CRI ≥ 80, system 37 W, 149 lm/W

DALI-2 ESSENTIAL sensor

jet black, 4000 K, CRI ≥ 80, system 37 W, 170 lm/W

DALI-2

jet black, 4000 K, CRI ≥ 80, system 37 W, 170 lm/W

DALI-2 ESSENTIAL sensor

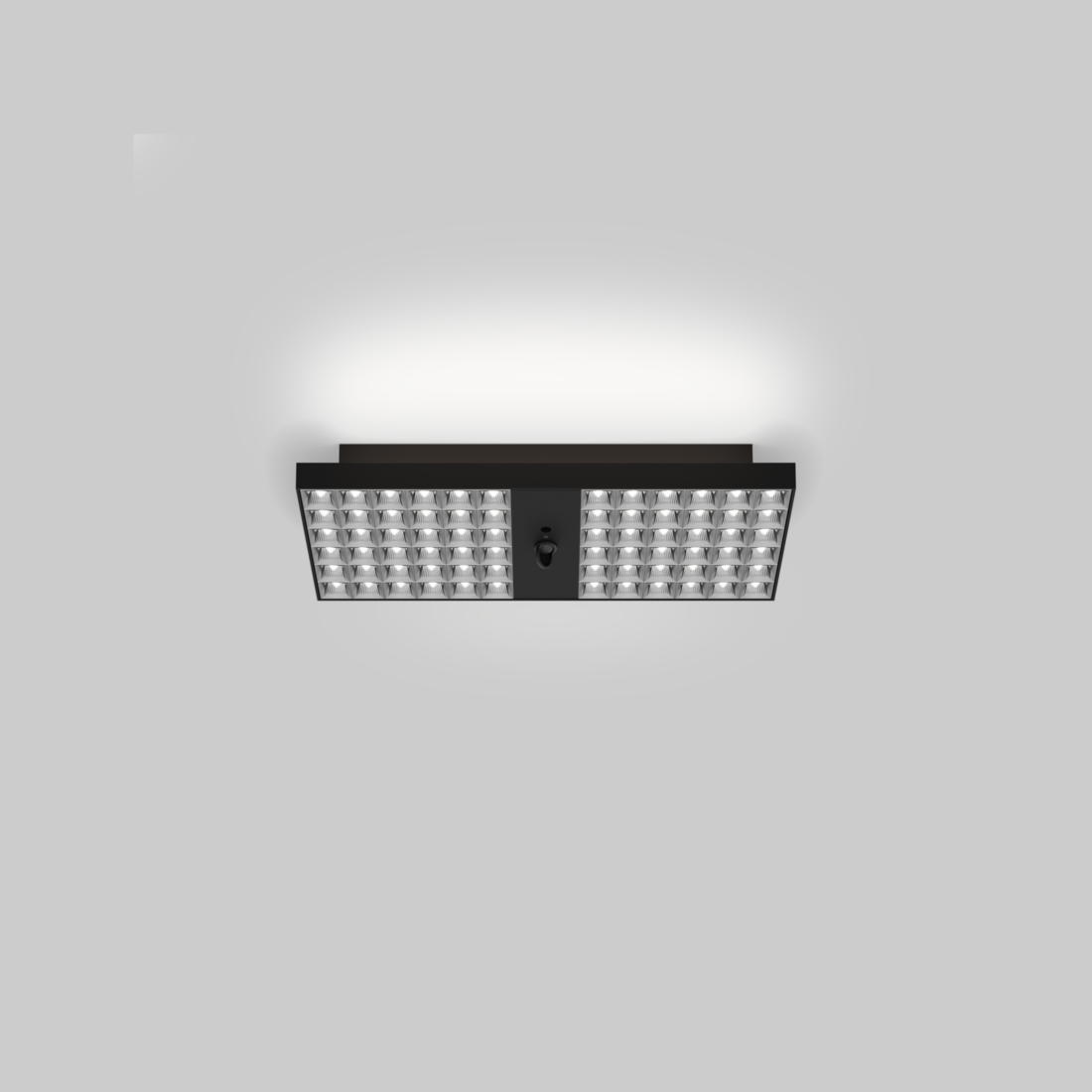

PARO medium louver wide ceiling

Status

Article number(s)

Type

Dimming

traffic white, Inset black reflector, 3000 K, CRI ≥ 90, system 17.5 W, 129 lm/W

DALI-2

traffic white, Inset black reflector, 3000 K, CRI ≥ 90, system 17.5 W, 129 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset black reflector, 4000 K, CRI ≥ 90, system 17.5 W, 139 lm/W

DALI-2

traffic white, Inset black reflector, 4000 K, CRI ≥ 90, system 17.5 W, 139 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset black reflector, 3000 K, CRI ≥ 80, system 17.5 W, 149 lm/W

DALI-2

traffic white, Inset black reflector, 3000 K, CRI ≥ 80, system 17.5 W, 149 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset black reflector, 4000 K, CRI ≥ 80, system 17.5 W, 170 lm/W

DALI-2

traffic white, Inset black reflector, 4000 K, CRI ≥ 80, system 17.5 W, 170 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset black reflector, 3000 K, CRI ≥ 90, system 40 W, 121 lm/W

DALI-2

traffic white, Inset black reflector, 3000 K, CRI ≥ 90, system 40 W, 121 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset black reflector, 4000 K, CRI ≥ 90, system 40 W, 130 lm/W

DALI-2

traffic white, Inset black reflector, 4000 K, CRI ≥ 90, system 40 W, 130 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset black reflector, 3000 K, CRI ≥ 80, system 40 W, 140 lm/W

DALI-2

traffic white, Inset black reflector, 3000 K, CRI ≥ 80, system 40 W, 140 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset black reflector, 4000 K, CRI ≥ 80, system 40 W, 159 lm/W

DALI-2

traffic white, Inset black reflector, 4000 K, CRI ≥ 80, system 40 W, 159 lm/W

DALI-2 ESSENTIAL sensor

PARO medium louver wide ceiling

Status

Article number(s)

Type

Dimming

traffic white, Inset chrome reflector, 3000 K, CRI ≥ 90, system 17.5 W, 129 lm/W

DALI-2

traffic white, Inset chrome reflector, 3000 K, CRI ≥ 90, system 17.5 W, 129 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset chrome reflector, 4000 K, CRI ≥ 90, system 17.5 W, 139 lm/W

DALI-2

traffic white, Inset chrome reflector, 4000 K, CRI ≥ 90, system 17.5 W, 139 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset chrome reflector, 3000 K, CRI ≥ 80, system 17.5 W, 149 lm/W

DALI-2

traffic white, Inset chrome reflector, 3000 K, CRI ≥ 80, system 17.5 W, 149 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset chrome reflector, 4000 K, CRI ≥ 80, system 17.5 W, 170 lm/W

DALI-2

traffic white, Inset chrome reflector, 4000 K, CRI ≥ 80, system 17.5 W, 170 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset chrome reflector, 3000 K, CRI ≥ 90, system 40 W, 121 lm/W

DALI-2

traffic white, Inset chrome reflector, 3000 K, CRI ≥ 90, system 40 W, 121 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset chrome reflector, 4000 K, CRI ≥ 90, system 40 W, 130 lm/W

DALI-2

traffic white, Inset chrome reflector, 4000 K, CRI ≥ 90, system 40 W, 130 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset chrome reflector, 3000 K, CRI ≥ 80, system 40 W, 140 lm/W

DALI-2

traffic white, Inset chrome reflector, 3000 K, CRI ≥ 80, system 40 W, 140 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset chrome reflector, 4000 K, CRI ≥ 80, system 40 W, 159 lm/W

DALI-2

traffic white, Inset chrome reflector, 4000 K, CRI ≥ 80, system 40 W, 159 lm/W

DALI-2 ESSENTIAL sensor

PARO medium louver wide ceiling

Status

Article number(s)

Type

Dimming

jet black, Inset black reflector, 3000 K, CRI ≥ 90, system 17.5 W, 129 lm/W

DALI-2

jet black, Inset black reflector, 3000 K, CRI ≥ 90, system 17.5 W, 129 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset black reflector, 4000 K, CRI ≥ 90, system 17.5 W, 139 lm/W

DALI-2

jet black, Inset black reflector, 4000 K, CRI ≥ 90, system 17.5 W, 139 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset black reflector, 3000 K, CRI ≥ 80, system 17.5 W, 149 lm/W

DALI-2

jet black, Inset black reflector, 3000 K, CRI ≥ 80, system 17.5 W, 149 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset black reflector, 4000 K, CRI ≥ 80, system 17.5 W, 170 lm/W

DALI-2

jet black, Inset black reflector, 4000 K, CRI ≥ 80, system 17.5 W, 170 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset black reflector, 3000 K, CRI ≥ 90, system 40 W, 121 lm/W

DALI-2

jet black, Inset black reflector, 3000 K, CRI ≥ 90, system 40 W, 121 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset black reflector, 4000 K, CRI ≥ 90, system 40 W, 130 lm/W

DALI-2

jet black, Inset black reflector, 4000 K, CRI ≥ 90, system 40 W, 130 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset black reflector, 3000 K, CRI ≥ 80, system 40 W, 140 lm/W

DALI-2

jet black, Inset black reflector, 3000 K, CRI ≥ 80, system 40 W, 140 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset black reflector, 4000 K, CRI ≥ 80, system 40 W, 159 lm/W

DALI-2

jet black, Inset black reflector, 4000 K, CRI ≥ 80, system 40 W, 159 lm/W

DALI-2 ESSENTIAL sensor

PARO medium louver wide ceiling

Status

Article number(s)

Type

Dimming

jet black, Inset chrome reflector, 3000 K, CRI ≥ 90, system 17.5 W, 129 lm/W

DALI-2

jet black, Inset chrome reflector, 3000 K, CRI ≥ 90, system 17.5 W, 129 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset chrome reflector, 4000 K, CRI ≥ 90, system 17.5 W, 139 lm/W

DALI-2

jet black, Inset chrome reflector, 4000 K, CRI ≥ 90, system 17.5 W, 139 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset chrome reflector, 3000 K, CRI ≥ 80, system 17.5 W, 149 lm/W

DALI-2

jet black, Inset chrome reflector, 3000 K, CRI ≥ 80, system 17.5 W, 149 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset chrome reflector, 4000 K, CRI ≥ 80, system 17.5 W, 170 lm/W

DALI-2

jet black, Inset chrome reflector, 4000 K, CRI ≥ 80, system 17.5 W, 170 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset chrome reflector, 3000 K, CRI ≥ 90, system 40 W, 121 lm/W

DALI-2

jet black, Inset chrome reflector, 3000 K, CRI ≥ 90, system 40 W, 121 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset chrome reflector, 4000 K, CRI ≥ 90, system 40 W, 130 lm/W

DALI-2

jet black, Inset chrome reflector, 4000 K, CRI ≥ 90, system 40 W, 130 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset chrome reflector, 3000 K, CRI ≥ 80, system 40 W, 140 lm/W

DALI-2

jet black, Inset chrome reflector, 3000 K, CRI ≥ 80, system 40 W, 140 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset chrome reflector, 4000 K, CRI ≥ 80, system 40 W, 159 lm/W

DALI-2

jet black, Inset chrome reflector, 4000 K, CRI ≥ 80, system 40 W, 159 lm/W

DALI-2 ESSENTIAL sensor

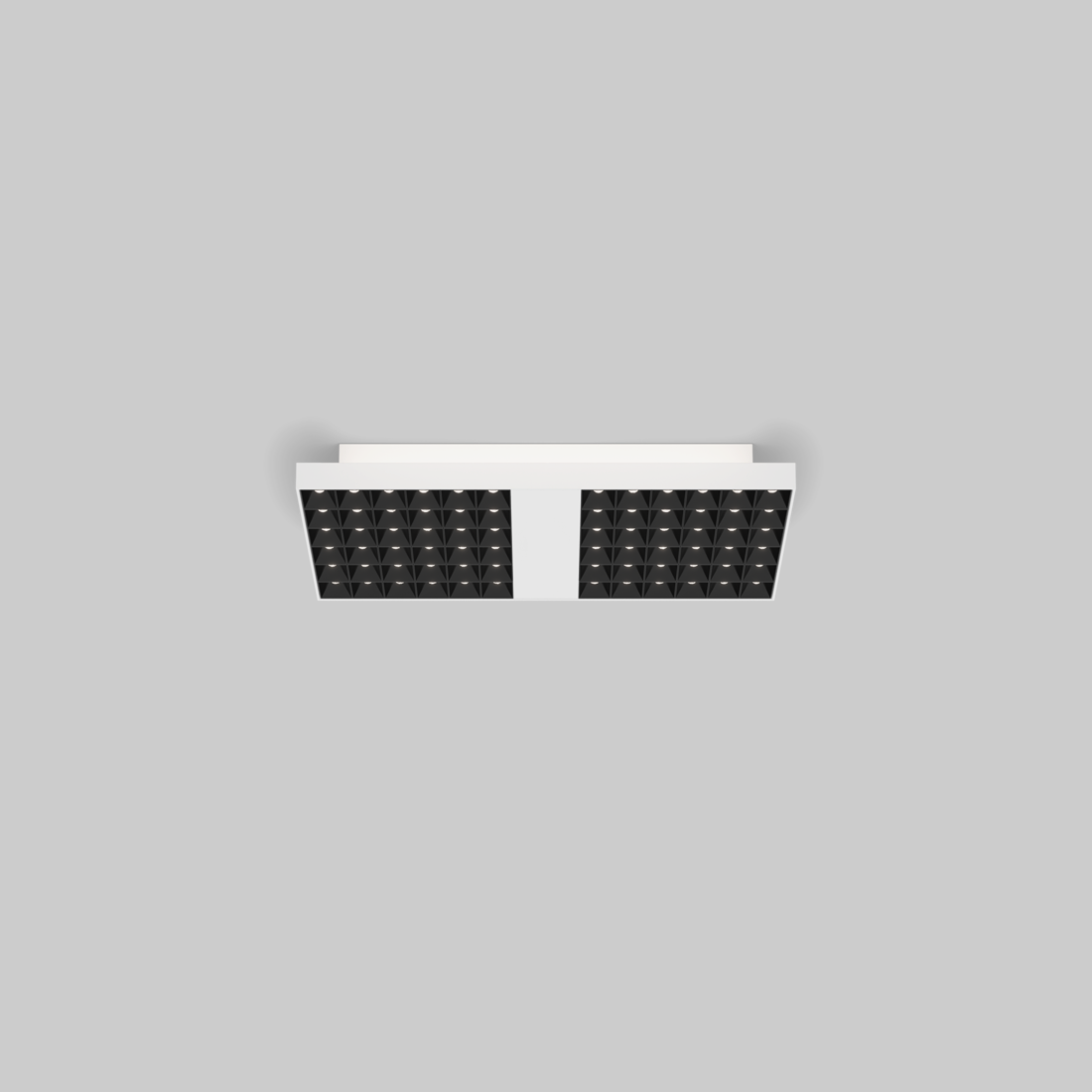

PARO medium spotline ceiling

Status

Article number(s)

Type

Dimming

traffic white, Inset jet black, 3000 K, CRI ≥ 90, system 17.5 W, 125 lm/W

DALI-2

traffic white, Inset jet black, 3000 K, CRI ≥ 90, system 17.5 W, 125 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset jet black, 4000 K, CRI ≥ 90, system 17.5 W, 135 lm/W

DALI-2

traffic white, Inset jet black, 4000 K, CRI ≥ 90, system 17.5 W, 135 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset jet black, 3000 K, CRI ≥ 80, system 17.5 W, 145 lm/W

DALI-2

traffic white, Inset jet black, 3000 K, CRI ≥ 80, system 17.5 W, 145 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset jet black, 4000 K, CRI ≥ 80, system 17.5 W, 165 lm/W

DALI-2

traffic white, Inset jet black, 4000 K, CRI ≥ 80, system 17.5 W, 165 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset jet black, 3000 K, CRI ≥ 90, system 40 W, 118 lm/W

DALI-2

traffic white, Inset jet black, 3000 K, CRI ≥ 90, system 40 W, 118 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset jet black, 4000 K, CRI ≥ 90, system 40 W, 127 lm/W

DALI-2

traffic white, Inset jet black, 4000 K, CRI ≥ 90, system 40 W, 127 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset jet black, 3000 K, CRI ≥ 80, system 40 W, 137 lm/W

DALI-2

traffic white, Inset jet black, 3000 K, CRI ≥ 80, system 40 W, 137 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset jet black, 4000 K, CRI ≥ 80, system 40 W, 155 lm/W

DALI-2

traffic white, Inset jet black, 4000 K, CRI ≥ 80, system 40 W, 155 lm/W

DALI-2 ESSENTIAL sensor

PARO medium spotline ceiling

Status

Article number(s)

Type

Dimming

traffic white, Inset traffic white, 3000 K, CRI ≥ 90, system 17.5 W, 125 lm/W

DALI-2

traffic white, Inset traffic white, 3000 K, CRI ≥ 90, system 17.5 W, 125 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset traffic white, 4000 K, CRI ≥ 90, system 17.5 W, 135 lm/W

DALI-2

traffic white, Inset traffic white, 4000 K, CRI ≥ 90, system 17.5 W, 135 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset traffic white, 3000 K, CRI ≥ 80, system 17.5 W, 145 lm/W

DALI-2

traffic white, Inset traffic white, 3000 K, CRI ≥ 80, system 17.5 W, 145 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset traffic white, 4000 K, CRI ≥ 80, system 17.5 W, 165 lm/W

DALI-2

traffic white, Inset traffic white, 4000 K, CRI ≥ 80, system 17.5 W, 165 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset traffic white, 3000 K, CRI ≥ 90, system 40 W, 118 lm/W

DALI-2

traffic white, Inset traffic white, 3000 K, CRI ≥ 90, system 40 W, 118 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset traffic white, 4000 K, CRI ≥ 90, system 40 W, 127 lm/W

DALI-2

traffic white, Inset traffic white, 4000 K, CRI ≥ 90, system 40 W, 127 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset traffic white, 3000 K, CRI ≥ 80, system 40 W, 137 lm/W

DALI-2

traffic white, Inset traffic white, 3000 K, CRI ≥ 80, system 40 W, 137 lm/W

DALI-2 ESSENTIAL sensor

traffic white, Inset traffic white, 4000 K, CRI ≥ 80, system 40 W, 155 lm/W

DALI-2

traffic white, Inset traffic white, 4000 K, CRI ≥ 80, system 40 W, 155 lm/W

DALI-2 ESSENTIAL sensor

PARO medium spotline ceiling

Status

Article number(s)

Type

Dimming

jet black, Inset jet black, 3000 K, CRI ≥ 90, system 17.5 W, 119 lm/W

DALI-2

jet black, Inset jet black, 3000 K, CRI ≥ 90, system 17.5 W, 119 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset jet black, 4000 K, CRI ≥ 90, system 17.5 W, 128 lm/W

DALI-2

jet black, Inset jet black, 4000 K, CRI ≥ 90, system 17.5 W, 128 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset jet black, 3000 K, CRI ≥ 80, system 17.5 W, 138 lm/W

DALI-2

jet black, Inset jet black, 3000 K, CRI ≥ 80, system 17.5 W, 138 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset jet black, 4000 K, CRI ≥ 80, system 17.5 W, 157 lm/W

DALI-2

jet black, Inset jet black, 4000 K, CRI ≥ 80, system 17.5 W, 157 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset jet black, 3000 K, CRI ≥ 90, system 40 W, 111 lm/W

DALI-2

jet black, Inset jet black, 3000 K, CRI ≥ 90, system 40 W, 111 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset jet black, 4000 K, CRI ≥ 90, system 40 W, 120 lm/W

DALI-2

jet black, Inset jet black, 4000 K, CRI ≥ 90, system 40 W, 120 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset jet black, 3000 K, CRI ≥ 80, system 40 W, 129 lm/W

DALI-2

jet black, Inset jet black, 3000 K, CRI ≥ 80, system 40 W, 129 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset jet black, 4000 K, CRI ≥ 80, system 40 W, 147 lm/W

DALI-2

jet black, Inset jet black, 4000 K, CRI ≥ 80, system 40 W, 147 lm/W

DALI-2 ESSENTIAL sensor

PARO medium spotline ceiling

Status

Article number(s)

Type

Dimming

jet black, Inset traffic white, 3000 K, CRI ≥ 90, system 17.5 W, 119 lm/W

DALI-2

jet black, Inset traffic white, 3000 K, CRI ≥ 90, system 17.5 W, 119 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset traffic white, 4000 K, CRI ≥ 90, system 17.5 W, 128 lm/W

DALI-2

jet black, Inset traffic white, 4000 K, CRI ≥ 90, system 17.5 W, 128 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset traffic white, 3000 K, CRI ≥ 80, system 17.5 W, 138 lm/W

DALI-2

jet black, Inset traffic white, 3000 K, CRI ≥ 80, system 17.5 W, 138 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset traffic white, 4000 K, CRI ≥ 80, system 17.5 W, 157 lm/W

DALI-2

jet black, Inset traffic white, 4000 K, CRI ≥ 80, system 17.5 W, 157 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset traffic white, 3000 K, CRI ≥ 90, system 40 W, 111 lm/W

DALI-2

jet black, Inset traffic white, 3000 K, CRI ≥ 90, system 40 W, 111 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset traffic white, 4000 K, CRI ≥ 90, system 40 W, 120 lm/W

DALI-2

jet black, Inset traffic white, 4000 K, CRI ≥ 90, system 40 W, 120 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset traffic white, 3000 K, CRI ≥ 80, system 40 W, 129 lm/W

DALI-2

jet black, Inset traffic white, 3000 K, CRI ≥ 80, system 40 W, 129 lm/W

DALI-2 ESSENTIAL sensor

jet black, Inset traffic white, 4000 K, CRI ≥ 80, system 40 W, 147 lm/W

DALI-2

jet black, Inset traffic white, 4000 K, CRI ≥ 80, system 40 W, 147 lm/W

DALI-2 ESSENTIAL sensor

PARO

ceiling

Quickinfo

Colour

Inset

Simple drawing

Light distribution

Product data & specification documents

Description

Products and codes

Colour

Inset

PARO medium lens wide ceiling

PARO medium lens wide ceiling

PARO medium lens wide ceiling

PARO medium lens wide ceiling

PARO medium louver wide ceiling

PARO medium louver wide ceiling

PARO medium louver wide ceiling

PARO medium louver wide ceiling

PARO medium louver wide ceiling

PARO medium louver wide ceiling

PARO medium louver wide ceiling

PARO medium louver wide ceiling

PARO medium spotline ceiling

PARO medium spotline ceiling

PARO medium spotline ceiling

PARO medium spotline ceiling

PARO medium spotline ceiling

PARO medium spotline ceiling

PARO medium spotline ceiling

PARO medium spotline ceiling

Related products
