MINO 25

surface

New

Quickinfo

3000 K, 4000 K
CRI ≥ 80, CRI ≥ 90 / 3 SDCM (initial MacAdam)
UGR ≤ 16, UGR ≤ 19
up to 168 lm/W
L90 / 100000 h, L90 / 50000 h
DALI-2
Wideflood
IP20

Colour

    • Inset

    • Products and codes

    Product data & specification documents

    Download all
    Download all
    • ROLF
    • ULD

    Description

    Luminaire housing from extruded aluminium profile, angular design; extremely slim design (only 25 x 25 mm); no visible screws; surface raw or powder coated; suitable for ceiling mounting; high quality reflector with micro-faceted, aluminum-vaporised surface; or fitted with single LED light points; good glare reduction due to recessed light point plane; despite this increased efficiency through special lens technology; inserted lenses with wide flood radiation characteristic; precise radiation characteristic with symmetrical light distribution; or completely homogeneously illuminated, opal cover; converter integrated into luminaire housing; energy-efficient LEDs with very good colour rendering

    Products and codes

    Filter
    123
    lm/W
    168
    lm/W
    1320
    lm
    4630
    lm
    10.7
    W
    27.5
    W
    0.56
    0.81
    0.51
    0.74

    Colour

    • Inset

    • MINO 25 louver surface

    MINO 25 louver surface

    MINO 25 louver surface

    Status
    Article number(s)
    Type
    Dimming
    signal white, Inset black reflector, 3000 K, system 10.7 W, 133 lm/W, length 1,004 mm
    DALI-2
    signal white, Inset black reflector, 4000 K, system 10.7 W, 133 lm/W, length 1,004 mm
    DALI-2
    signal white, Inset black reflector, 3000 K, system 10.7 W, 152 lm/W, length 1,004 mm
    DALI-2
    signal white, Inset black reflector, 4000 K, system 10.7 W, 162 lm/W, length 1,004 mm
    DALI-2
    signal white, Inset black reflector, 3000 K, system 20.6 W, 138 lm/W, length 2,004 mm
    DALI-2
    signal white, Inset black reflector, 4000 K, system 20.6 W, 138 lm/W, length 2,004 mm
    DALI-2
    signal white, Inset black reflector, 3000 K, system 20.6 W, 158 lm/W, length 2,004 mm
    DALI-2
    signal white, Inset black reflector, 4000 K, system 20.6 W, 168 lm/W, length 2,004 mm
    DALI-2
    signal white, Inset black reflector, 3000 K, system 27.5 W, 138 lm/W, length 2,754 mm
    DALI-2
    signal white, Inset black reflector, 4000 K, system 27.5 W, 138 lm/W, length 2,754 mm
    DALI-2
    signal white, Inset black reflector, 3000 K, system 27.5 W, 158 lm/W, length 2,754 mm
    DALI-2
    signal white, Inset black reflector, 4000 K, system 27.5 W, 168 lm/W, length 2,754 mm
    DALI-2
    MINO 25 louver surface

    MINO 25 louver surface

    MINO 25 louver surface

    Status
    Article number(s)
    Type
    Dimming

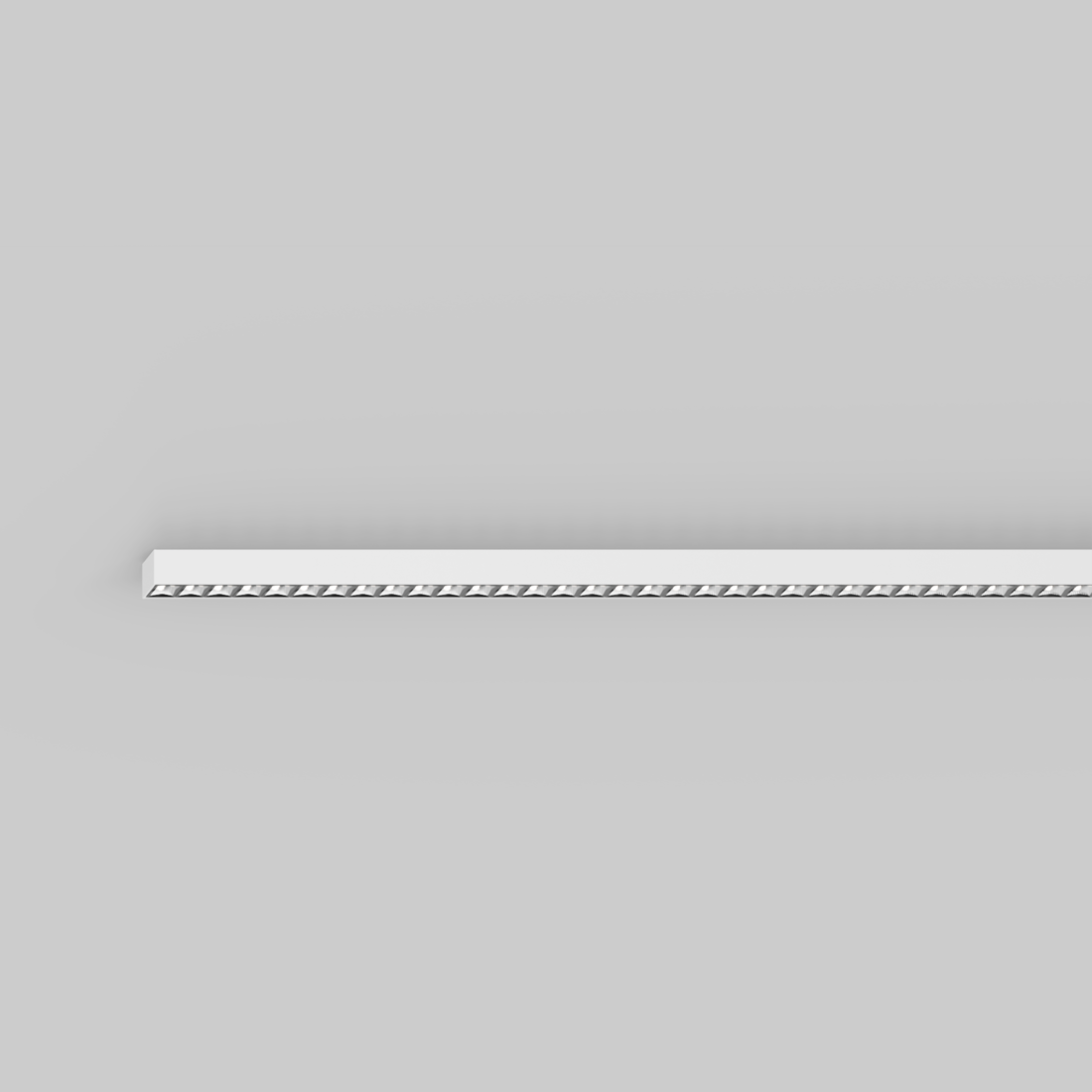

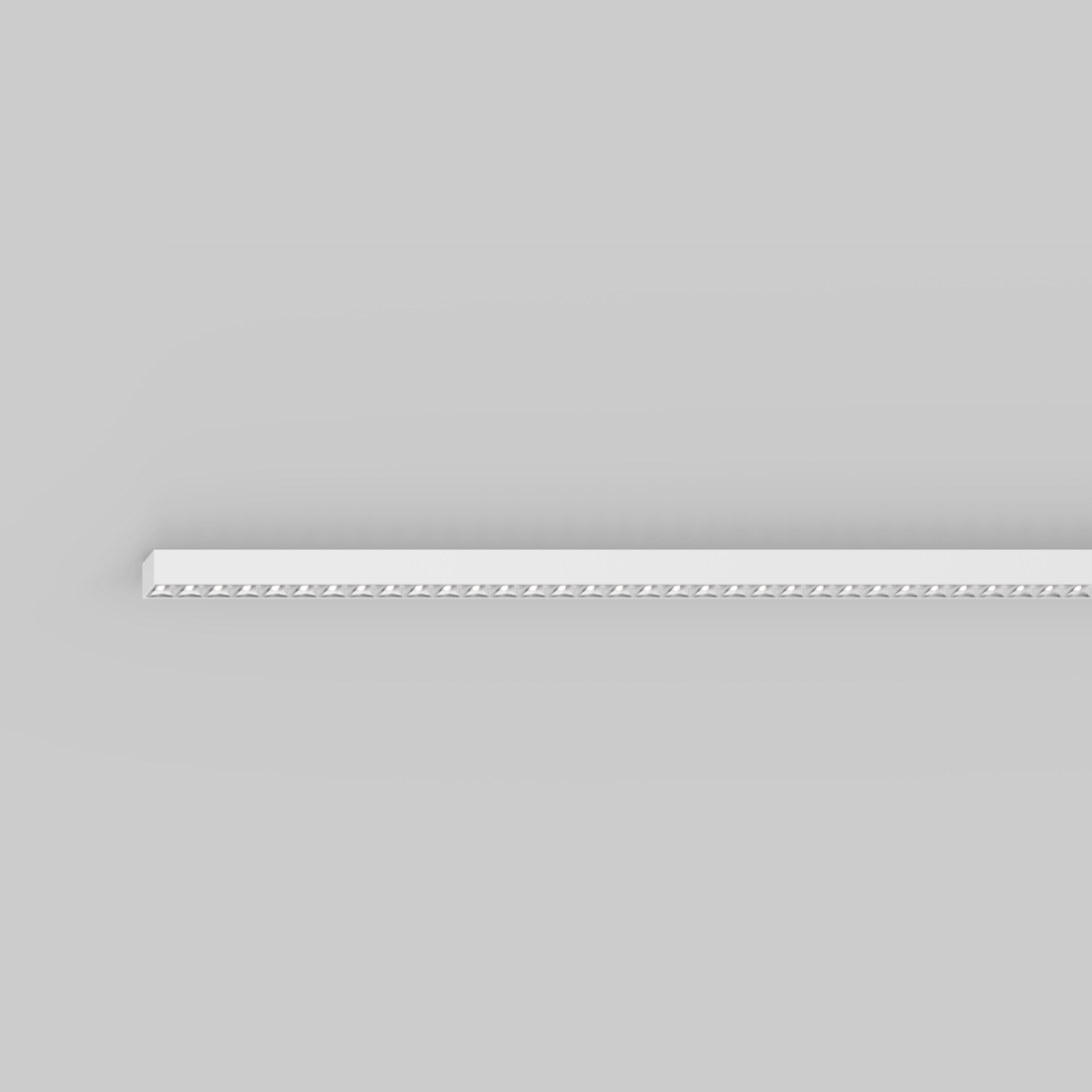

    signal white, Inset chrome reflector, 3000 K, system 10.7 W, 133 lm/W, length 1,004 mm
    DALI-2
    signal white, Inset chrome reflector, 4000 K, system 10.7 W, 133 lm/W, length 1,004 mm
    DALI-2
    signal white, Inset chrome reflector, 3000 K, system 10.7 W, 152 lm/W, length 1,004 mm
    DALI-2
    signal white, Inset chrome reflector, 4000 K, system 10.7 W, 162 lm/W, length 1,004 mm
    DALI-2
    signal white, Inset chrome reflector, 3000 K, system 20.6 W, 138 lm/W, length 2,004 mm
    DALI-2
    signal white, Inset chrome reflector, 4000 K, system 20.6 W, 138 lm/W, length 2,004 mm
    DALI-2
    signal white, Inset chrome reflector, 3000 K, system 20.6 W, 158 lm/W, length 2,004 mm
    DALI-2
    signal white, Inset chrome reflector, 4000 K, system 20.6 W, 168 lm/W, length 2,004 mm
    DALI-2
    signal white, Inset chrome reflector, 3000 K, system 27.5 W, 138 lm/W, length 2,754 mm
    DALI-2
    signal white, Inset chrome reflector, 4000 K, system 27.5 W, 138 lm/W, length 2,754 mm
    DALI-2
    signal white, Inset chrome reflector, 3000 K, system 27.5 W, 158 lm/W, length 2,754 mm
    DALI-2
    signal white, Inset chrome reflector, 4000 K, system 27.5 W, 168 lm/W, length 2,754 mm
    DALI-2
    MINO 25 louver surface

    MINO 25 louver surface

    MINO 25 louver surface

    Status
    Article number(s)
    Type
    Dimming
    signal black, Inset black reflector, 3000 K, system 10.7 W, 133 lm/W, length 1,004 mm
    DALI-2
    signal black, Inset black reflector, 4000 K, system 10.7 W, 133 lm/W, length 1,004 mm
    DALI-2
    signal black, Inset black reflector, 3000 K, system 10.7 W, 152 lm/W, length 1,004 mm
    DALI-2
    signal black, Inset black reflector, 4000 K, system 10.7 W, 162 lm/W, length 1,004 mm
    DALI-2
    signal black, Inset black reflector, 3000 K, system 20.6 W, 138 lm/W, length 2,004 mm
    DALI-2
    signal black, Inset black reflector, 4000 K, system 20.6 W, 138 lm/W, length 2,004 mm
    DALI-2
    signal black, Inset black reflector, 3000 K, system 20.6 W, 158 lm/W, length 2,004 mm
    DALI-2
    signal black, Inset black reflector, 4000 K, system 20.6 W, 168 lm/W, length 2,004 mm
    DALI-2
    signal black, Inset black reflector, 3000 K, system 27.5 W, 138 lm/W, length 2,754 mm
    DALI-2
    signal black, Inset black reflector, 4000 K, system 27.5 W, 138 lm/W, length 2,754 mm
    DALI-2
    signal black, Inset black reflector, 3000 K, system 27.5 W, 158 lm/W, length 2,754 mm
    DALI-2
    signal black, Inset black reflector, 4000 K, system 27.5 W, 168 lm/W, length 2,754 mm
    DALI-2
    MINO 25 louver surface

    MINO 25 louver surface

    MINO 25 louver surface

    Status
    Article number(s)
    Type
    Dimming

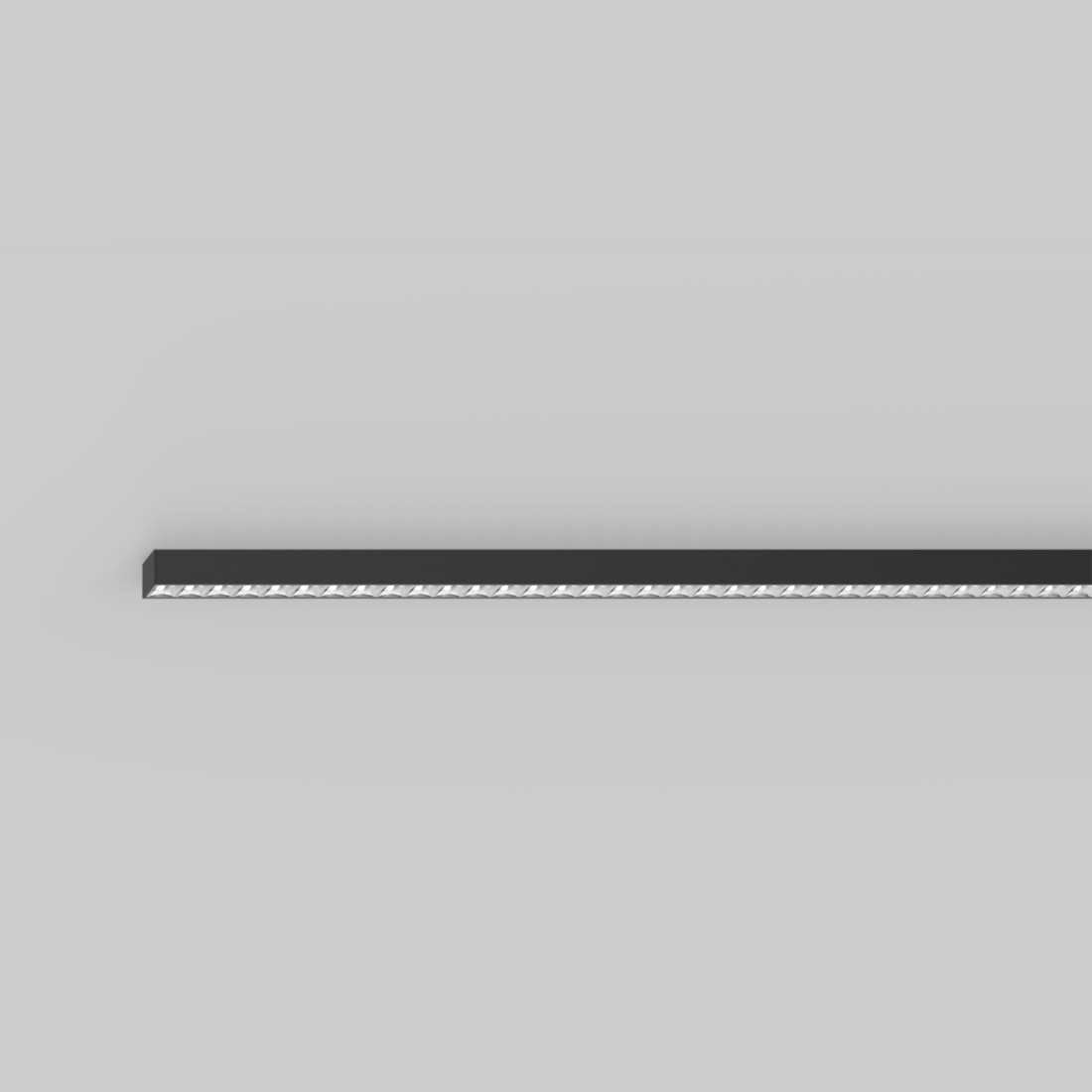

    signal black, Inset chrome reflector, 3000 K, system 10.7 W, 133 lm/W, length 1,004 mm
    DALI-2
    signal black, Inset chrome reflector, 4000 K, system 10.7 W, 133 lm/W, length 1,004 mm
    DALI-2
    signal black, Inset chrome reflector, 3000 K, system 10.7 W, 152 lm/W, length 1,004 mm
    DALI-2
    signal black, Inset chrome reflector, 4000 K, system 10.7 W, 162 lm/W, length 1,004 mm
    DALI-2
    signal black, Inset chrome reflector, 3000 K, system 20.6 W, 138 lm/W, length 2,004 mm
    DALI-2
    signal black, Inset chrome reflector, 4000 K, system 20.6 W, 138 lm/W, length 2,004 mm
    DALI-2
    signal black, Inset chrome reflector, 3000 K, system 20.6 W, 158 lm/W, length 2,004 mm
    DALI-2
    signal black, Inset chrome reflector, 4000 K, system 20.6 W, 168 lm/W, length 2,004 mm
    DALI-2
    signal black, Inset chrome reflector, 3000 K, system 27.5 W, 138 lm/W, length 2,754 mm
    DALI-2
    signal black, Inset chrome reflector, 4000 K, system 27.5 W, 138 lm/W, length 2,754 mm
    DALI-2
    signal black, Inset chrome reflector, 3000 K, system 27.5 W, 158 lm/W, length 2,754 mm
    DALI-2
    signal black, Inset chrome reflector, 4000 K, system 27.5 W, 168 lm/W, length 2,754 mm
    DALI-2
    MINO 25 louver surface

    MINO 25 louver surface

    MINO 25 louver surface

    Status
    Article number(s)
    Type
    Dimming
    aluminium raw, Inset black reflector, 3000 K, system 10.7 W, 133 lm/W, length 1,004 mm
    DALI-2
    aluminium raw, Inset black reflector, 4000 K, system 10.7 W, 133 lm/W, length 1,004 mm
    DALI-2
    aluminium raw, Inset black reflector, 3000 K, system 10.7 W, 152 lm/W, length 1,004 mm
    DALI-2
    aluminium raw, Inset black reflector, 4000 K, system 10.7 W, 162 lm/W, length 1,004 mm
    DALI-2
    aluminium raw, Inset black reflector, 3000 K, system 20.6 W, 138 lm/W, length 2,004 mm
    DALI-2
    aluminium raw, Inset black reflector, 4000 K, system 20.6 W, 138 lm/W, length 2,004 mm
    DALI-2
    aluminium raw, Inset black reflector, 3000 K, system 20.6 W, 158 lm/W, length 2,004 mm
    DALI-2
    aluminium raw, Inset black reflector, 4000 K, system 20.6 W, 168 lm/W, length 2,004 mm
    DALI-2
    aluminium raw, Inset black reflector, 3000 K, system 27.5 W, 138 lm/W, length 2,754 mm
    DALI-2
    aluminium raw, Inset black reflector, 4000 K, system 27.5 W, 138 lm/W, length 2,754 mm
    DALI-2
    aluminium raw, Inset black reflector, 3000 K, system 27.5 W, 158 lm/W, length 2,754 mm
    DALI-2
    aluminium raw, Inset black reflector, 4000 K, system 27.5 W, 168 lm/W, length 2,754 mm
    DALI-2
    MINO 25 louver surface

    MINO 25 louver surface

    MINO 25 louver surface

    Status
    Article number(s)
    Type
    Dimming

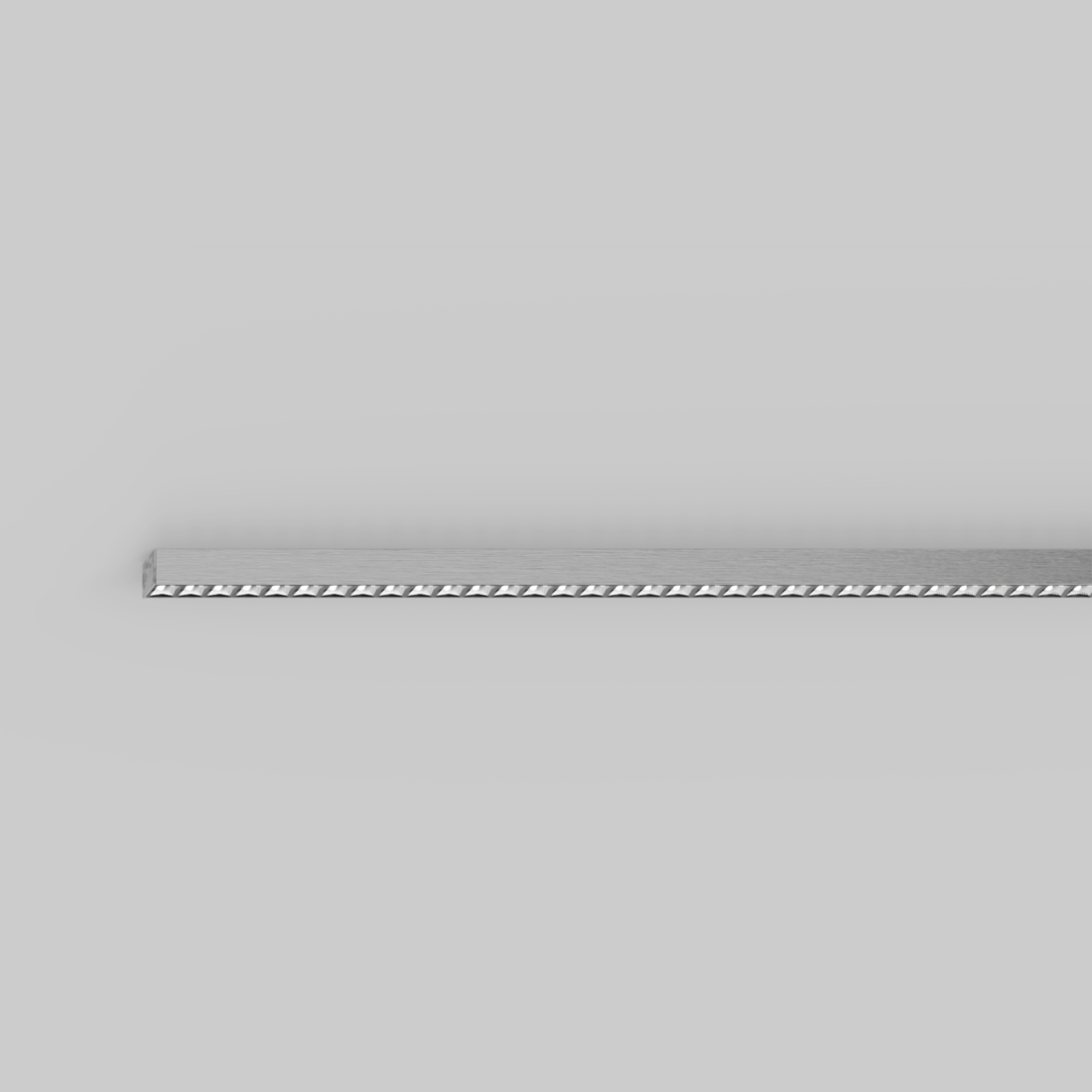

    aluminium raw, Inset chrome reflector, 3000 K, system 10.7 W, 133 lm/W, length 1,004 mm
    DALI-2
    aluminium raw, Inset chrome reflector, 4000 K, system 10.7 W, 133 lm/W, length 1,004 mm
    DALI-2
    aluminium raw, Inset chrome reflector, 3000 K, system 10.7 W, 152 lm/W, length 1,004 mm
    DALI-2
    aluminium raw, Inset chrome reflector, 4000 K, system 10.7 W, 162 lm/W, length 1,004 mm
    DALI-2
    aluminium raw, Inset chrome reflector, 3000 K, system 20.6 W, 138 lm/W, length 2,004 mm
    DALI-2
    aluminium raw, Inset chrome reflector, 4000 K, system 20.6 W, 138 lm/W, length 2,004 mm
    DALI-2
    aluminium raw, Inset chrome reflector, 3000 K, system 20.6 W, 158 lm/W, length 2,004 mm
    DALI-2
    aluminium raw, Inset chrome reflector, 4000 K, system 20.6 W, 168 lm/W, length 2,004 mm
    DALI-2
    aluminium raw, Inset chrome reflector, 3000 K, system 27.5 W, 138 lm/W, length 2,754 mm
    DALI-2
    aluminium raw, Inset chrome reflector, 4000 K, system 27.5 W, 138 lm/W, length 2,754 mm
    DALI-2
    aluminium raw, Inset chrome reflector, 3000 K, system 27.5 W, 158 lm/W, length 2,754 mm
    DALI-2
    aluminium raw, Inset chrome reflector, 4000 K, system 27.5 W, 168 lm/W, length 2,754 mm
    DALI-2
    MINO 25 spotline surface

    MINO 25 spotline surface

    MINO 25 spotline surface

    Status
    Article number(s)
    Type
    Dimming

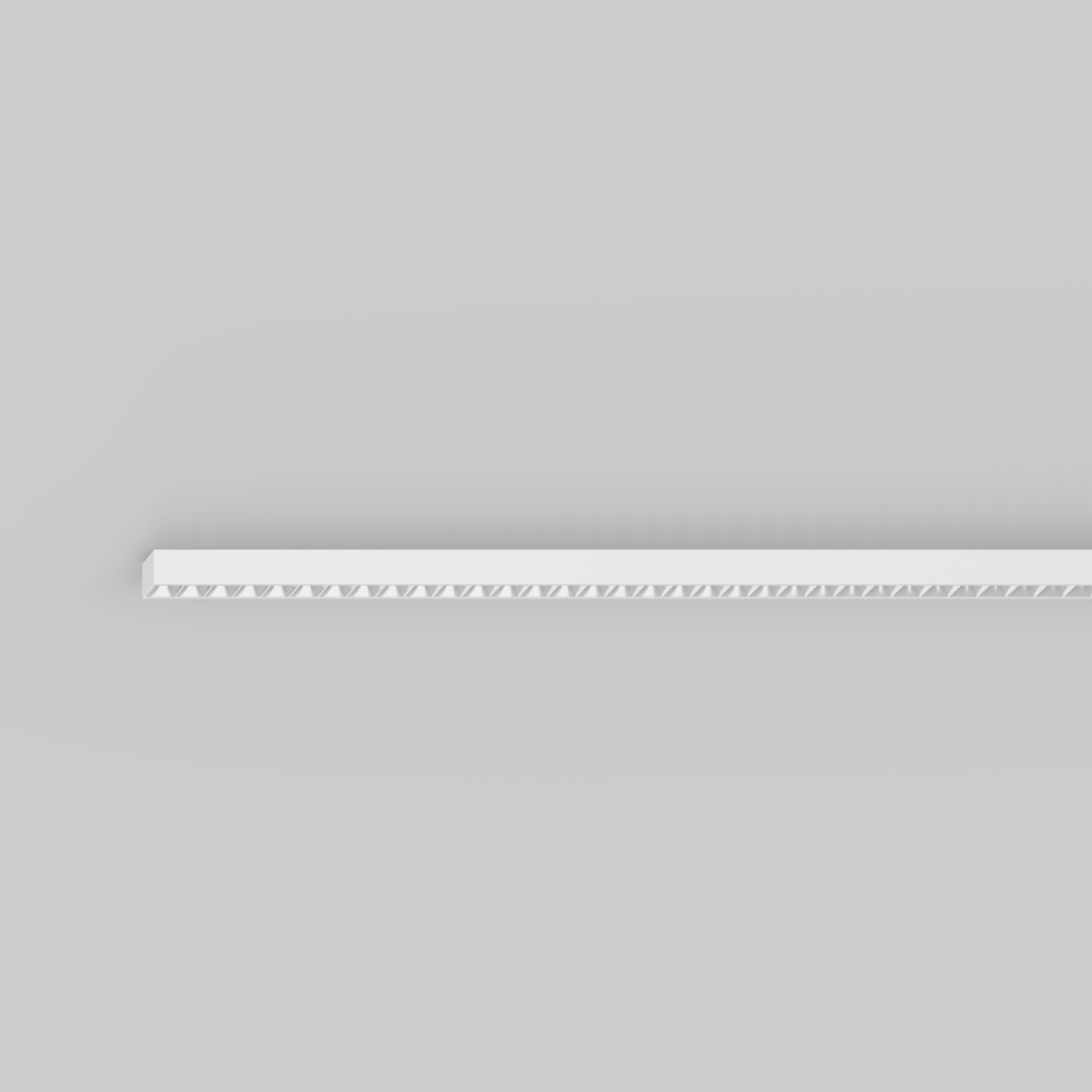

    signal white, Inset jet black, 3000 K, system 10.7 W, 123 lm/W, length 1,004 mm
    DALI-2
    signal white, Inset jet black, 4000 K, system 10.7 W, 123 lm/W, length 1,004 mm
    DALI-2
    signal white, Inset jet black, 3000 K, system 10.7 W, 142 lm/W, length 1,004 mm
    DALI-2
    signal white, Inset jet black, 4000 K, system 10.7 W, 151 lm/W, length 1,004 mm
    DALI-2
    signal white, Inset jet black, 3000 K, system 20.6 W, 128 lm/W, length 2,004 mm
    DALI-2
    signal white, Inset jet black, 4000 K, system 20.6 W, 128 lm/W, length 2,004 mm
    DALI-2
    signal white, Inset jet black, 3000 K, system 20.6 W, 147 lm/W, length 2,004 mm
    DALI-2
    signal white, Inset jet black, 4000 K, system 20.6 W, 157 lm/W, length 2,004 mm
    DALI-2
    signal white, Inset jet black, 3000 K, system 27.5 W, 128 lm/W, length 2,754 mm
    DALI-2
    signal white, Inset jet black, 4000 K, system 27.5 W, 128 lm/W, length 2,754 mm
    DALI-2
    signal white, Inset jet black, 3000 K, system 27.5 W, 147 lm/W, length 2,754 mm
    DALI-2
    signal white, Inset jet black, 4000 K, system 27.5 W, 157 lm/W, length 2,754 mm
    DALI-2
    MINO 25 spotline surface

    MINO 25 spotline surface

    MINO 25 spotline surface

    Status
    Article number(s)
    Type
    Dimming
    signal white, Inset traffic white, 3000 K, system 10.7 W, 131 lm/W, length 1,004 mm
    DALI-2
    signal white, Inset traffic white, 4000 K, system 10.7 W, 131 lm/W, length 1,004 mm
    DALI-2
    signal white, Inset traffic white, 3000 K, system 10.7 W, 150 lm/W, length 1,004 mm
    DALI-2
    signal white, Inset traffic white, 4000 K, system 10.7 W, 160 lm/W, length 1,004 mm
    DALI-2
    signal white, Inset traffic white, 3000 K, system 20.6 W, 135 lm/W, length 2,004 mm
    DALI-2
    signal white, Inset traffic white, 4000 K, system 20.6 W, 135 lm/W, length 2,004 mm
    DALI-2
    signal white, Inset traffic white, 3000 K, system 20.6 W, 156 lm/W, length 2,004 mm
    DALI-2
    signal white, Inset traffic white, 4000 K, system 20.6 W, 166 lm/W, length 2,004 mm
    DALI-2
    signal white, Inset traffic white, 3000 K, system 27.5 W, 136 lm/W, length 2,754 mm
    DALI-2
    signal white, Inset traffic white, 4000 K, system 27.5 W, 136 lm/W, length 2,754 mm
    DALI-2
    signal white, Inset traffic white, 3000 K, system 27.5 W, 156 lm/W, length 2,754 mm
    DALI-2
    signal white, Inset traffic white, 4000 K, system 27.5 W, 166 lm/W, length 2,754 mm
    DALI-2
    MINO 25 spotline surface

    MINO 25 spotline surface

    MINO 25 spotline surface

    Status
    Article number(s)
    Type
    Dimming
    signal black, Inset jet black, 3000 K, system 10.7 W, 123 lm/W, length 1,004 mm
    DALI-2
    signal black, Inset jet black, 4000 K, system 10.7 W, 123 lm/W, length 1,004 mm
    DALI-2
    signal black, Inset jet black, 3000 K, system 10.7 W, 142 lm/W, length 1,004 mm
    DALI-2
    signal black, Inset jet black, 4000 K, system 10.7 W, 151 lm/W, length 1,004 mm
    DALI-2
    signal black, Inset jet black, 3000 K, system 20.6 W, 128 lm/W, length 2,004 mm
    DALI-2
    signal black, Inset jet black, 4000 K, system 20.6 W, 128 lm/W, length 2,004 mm
    DALI-2
    signal black, Inset jet black, 3000 K, system 20.6 W, 147 lm/W, length 2,004 mm
    DALI-2
    signal black, Inset jet black, 4000 K, system 20.6 W, 157 lm/W, length 2,004 mm
    DALI-2
    signal black, Inset jet black, 3000 K, system 27.5 W, 128 lm/W, length 2,754 mm
    DALI-2
    signal black, Inset jet black, 4000 K, system 27.5 W, 128 lm/W, length 2,754 mm
    DALI-2
    signal black, Inset jet black, 3000 K, system 27.5 W, 147 lm/W, length 2,754 mm
    DALI-2
    signal black, Inset jet black, 4000 K, system 27.5 W, 157 lm/W, length 2,754 mm
    DALI-2
    MINO 25 spotline surface

    MINO 25 spotline surface

    MINO 25 spotline surface

    Status
    Article number(s)
    Type
    Dimming
    signal black, Inset traffic white, 3000 K, system 10.7 W, 131 lm/W, length 1,004 mm
    DALI-2
    signal black, Inset traffic white, 4000 K, system 10.7 W, 131 lm/W, length 1,004 mm
    DALI-2
    signal black, Inset traffic white, 3000 K, system 10.7 W, 150 lm/W, length 1,004 mm
    DALI-2
    signal black, Inset traffic white, 4000 K, system 10.7 W, 160 lm/W, length 1,004 mm
    DALI-2
    signal black, Inset traffic white, 3000 K, system 20.6 W, 135 lm/W, length 2,004 mm
    DALI-2
    signal black, Inset traffic white, 4000 K, system 20.6 W, 135 lm/W, length 2,004 mm
    DALI-2
    signal black, Inset traffic white, 3000 K, system 20.6 W, 156 lm/W, length 2,004 mm
    DALI-2
    signal black, Inset traffic white, 4000 K, system 20.6 W, 166 lm/W, length 2,004 mm
    DALI-2
    signal black, Inset traffic white, 3000 K, system 27.5 W, 136 lm/W, length 2,754 mm
    DALI-2
    signal black, Inset traffic white, 4000 K, system 27.5 W, 136 lm/W, length 2,754 mm
    DALI-2
    signal black, Inset traffic white, 3000 K, system 27.5 W, 156 lm/W, length 2,754 mm
    DALI-2
    signal black, Inset traffic white, 4000 K, system 27.5 W, 166 lm/W, length 2,754 mm
    DALI-2
    MINO 25 spotline surface

    MINO 25 spotline surface

    MINO 25 spotline surface

    Status
    Article number(s)
    Type
    Dimming
    aluminium raw, Inset jet black, 3000 K, system 10.7 W, 123 lm/W, length 1,004 mm
    DALI-2
    aluminium raw, Inset jet black, 4000 K, system 10.7 W, 123 lm/W, length 1,004 mm
    DALI-2
    aluminium raw, Inset jet black, 3000 K, system 10.7 W, 142 lm/W, length 1,004 mm
    DALI-2
    aluminium raw, Inset jet black, 4000 K, system 10.7 W, 151 lm/W, length 1,004 mm
    DALI-2
    aluminium raw, Inset jet black, 3000 K, system 20.6 W, 128 lm/W, length 2,004 mm
    DALI-2
    aluminium raw, Inset jet black, 4000 K, system 20.6 W, 128 lm/W, length 2,004 mm
    DALI-2
    aluminium raw, Inset jet black, 3000 K, system 20.6 W, 147 lm/W, length 2,004 mm
    DALI-2
    aluminium raw, Inset jet black, 4000 K, system 20.6 W, 157 lm/W, length 2,004 mm
    DALI-2
    aluminium raw, Inset jet black, 3000 K, system 27.5 W, 128 lm/W, length 2,754 mm
    DALI-2
    aluminium raw, Inset jet black, 4000 K, system 27.5 W, 128 lm/W, length 2,754 mm
    DALI-2
    aluminium raw, Inset jet black, 3000 K, system 27.5 W, 147 lm/W, length 2,754 mm
    DALI-2
    aluminium raw, Inset jet black, 4000 K, system 27.5 W, 157 lm/W, length 2,754 mm
    DALI-2
    MINO 25 spotline surface

    MINO 25 spotline surface

    MINO 25 spotline surface

    Status
    Article number(s)
    Type
    Dimming
    aluminium raw, Inset traffic white, 3000 K, system 10.7 W, 131 lm/W, length 1,004 mm
    DALI-2
    aluminium raw, Inset traffic white, 4000 K, system 10.7 W, 131 lm/W, length 1,004 mm
    DALI-2
    aluminium raw, Inset traffic white, 3000 K, system 10.7 W, 150 lm/W, length 1,004 mm
    DALI-2
    aluminium raw, Inset traffic white, 4000 K, system 10.7 W, 160 lm/W, length 1,004 mm
    DALI-2
    aluminium raw, Inset traffic white, 3000 K, system 20.6 W, 135 lm/W, length 2,004 mm
    DALI-2
    aluminium raw, Inset traffic white, 4000 K, system 20.6 W, 135 lm/W, length 2,004 mm
    DALI-2
    aluminium raw, Inset traffic white, 3000 K, system 20.6 W, 156 lm/W, length 2,004 mm
    DALI-2
    aluminium raw, Inset traffic white, 4000 K, system 20.6 W, 166 lm/W, length 2,004 mm
    DALI-2
    aluminium raw, Inset traffic white, 3000 K, system 27.5 W, 136 lm/W, length 2,754 mm
    DALI-2
    aluminium raw, Inset traffic white, 4000 K, system 27.5 W, 136 lm/W, length 2,754 mm
    DALI-2
    aluminium raw, Inset traffic white, 3000 K, system 27.5 W, 156 lm/W, length 2,754 mm
    DALI-2
    aluminium raw, Inset traffic white, 4000 K, system 27.5 W, 166 lm/W, length 2,754 mm
    DALI-2

    Related products

    New

    MINO 25

    suspended
    New
    MINO 25 louver trim

    MINO 25

    recessed

    VELA

    surface / ceiling

    VELA

    suspended

    SONO

    surface

    FLOW

    surface

    TASK

    round surface

    TASK

    round suspended

    TASK

    square surface

    TASK

    square suspended
