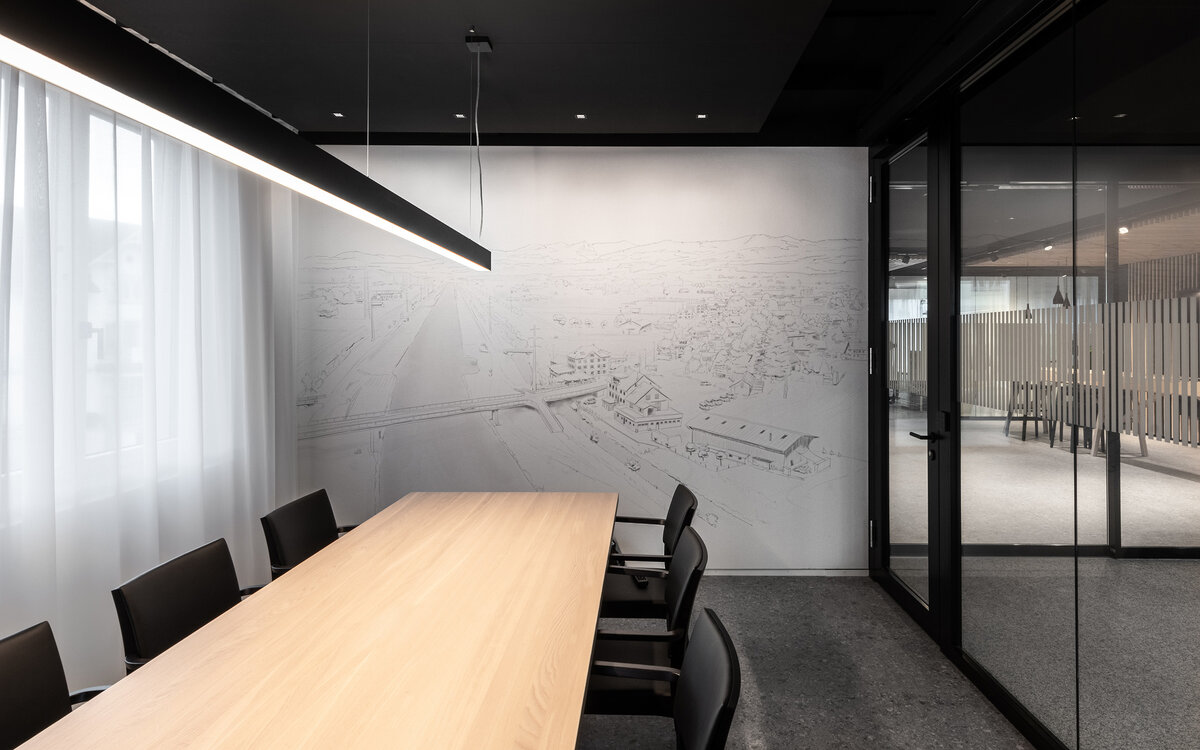

Raiffeisenbank Benken

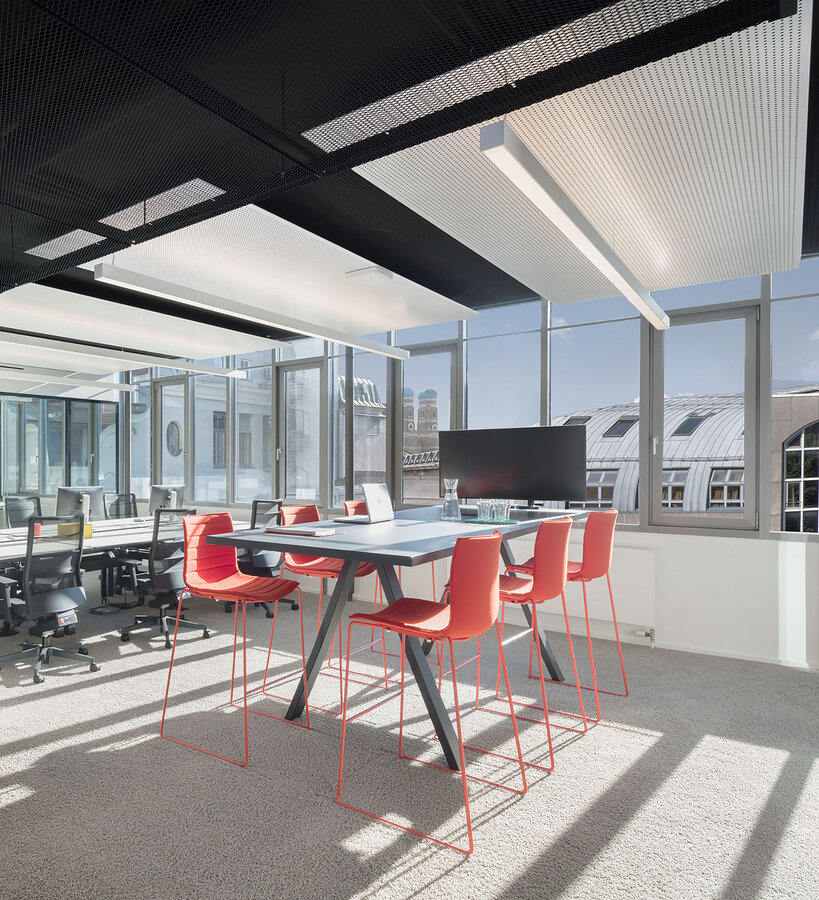

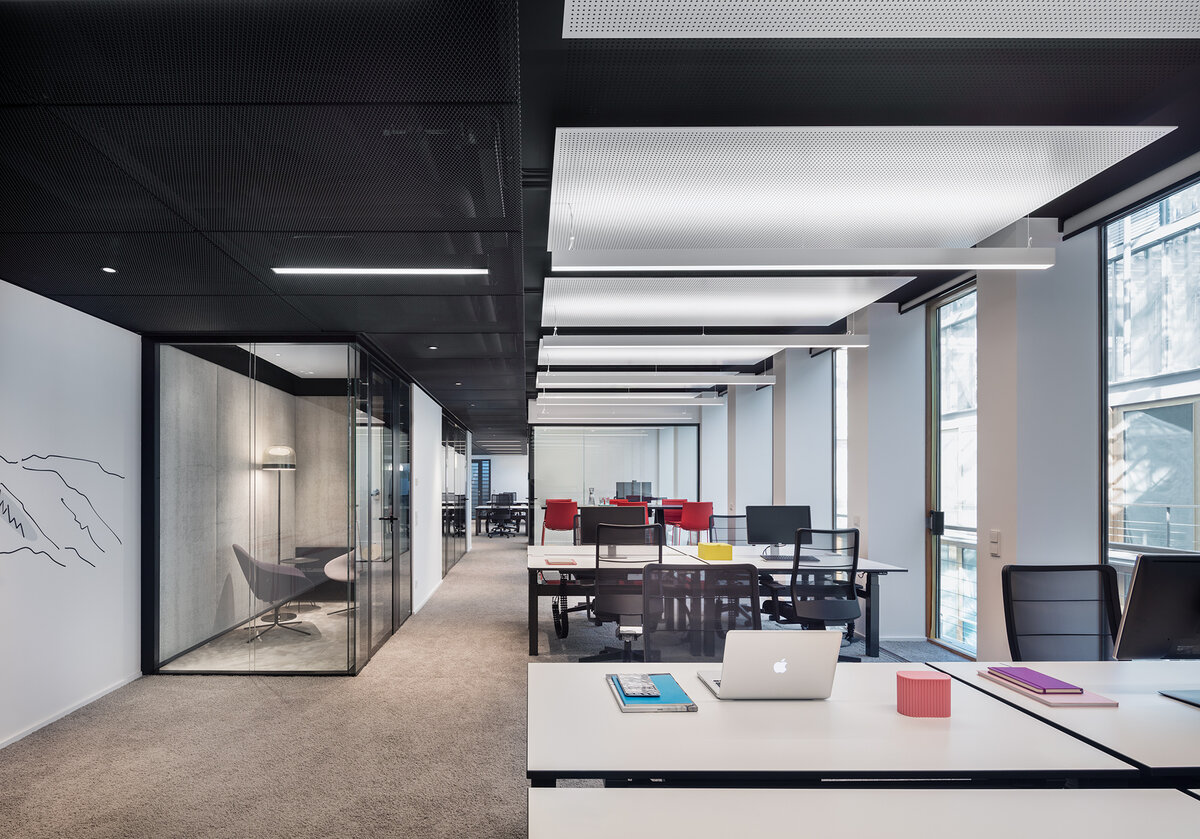

Office Bain
Office Bain

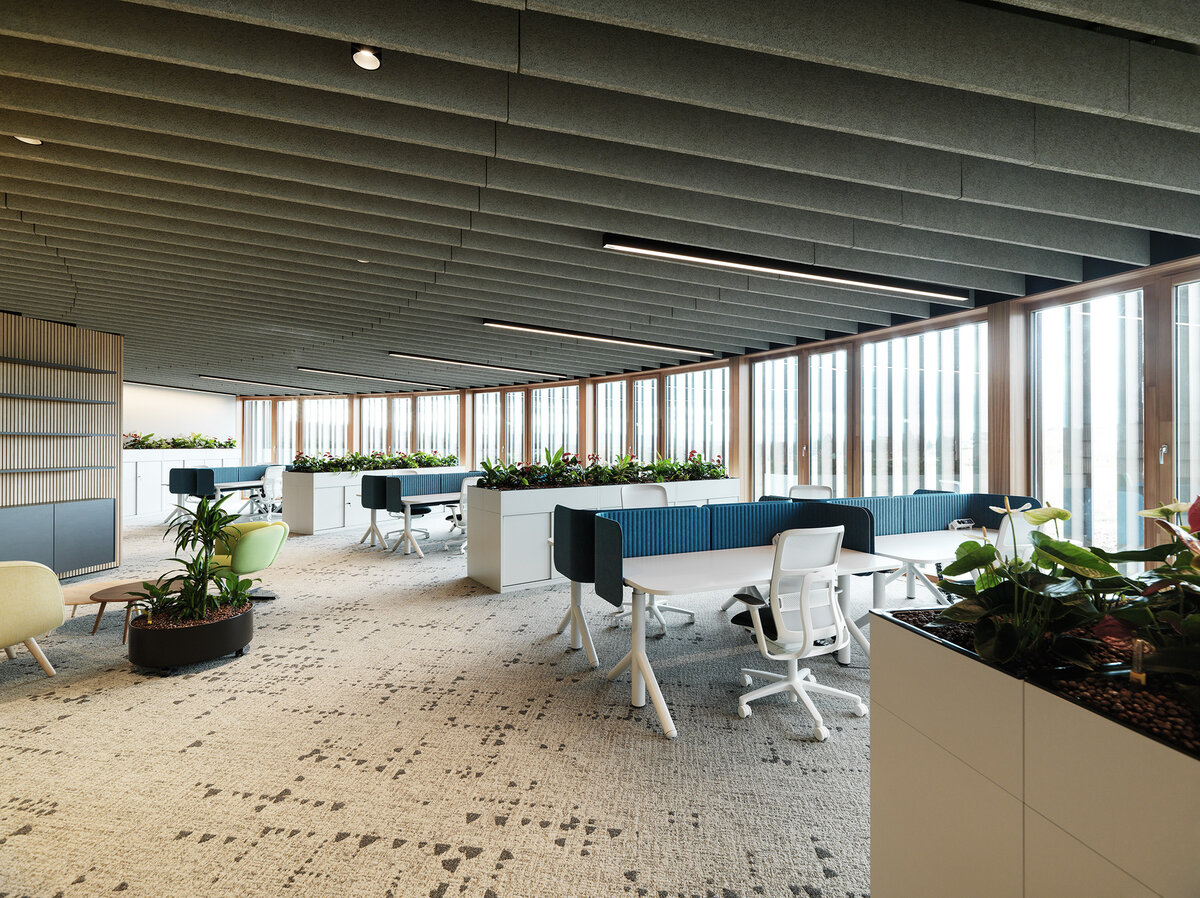

MAM Competence Center

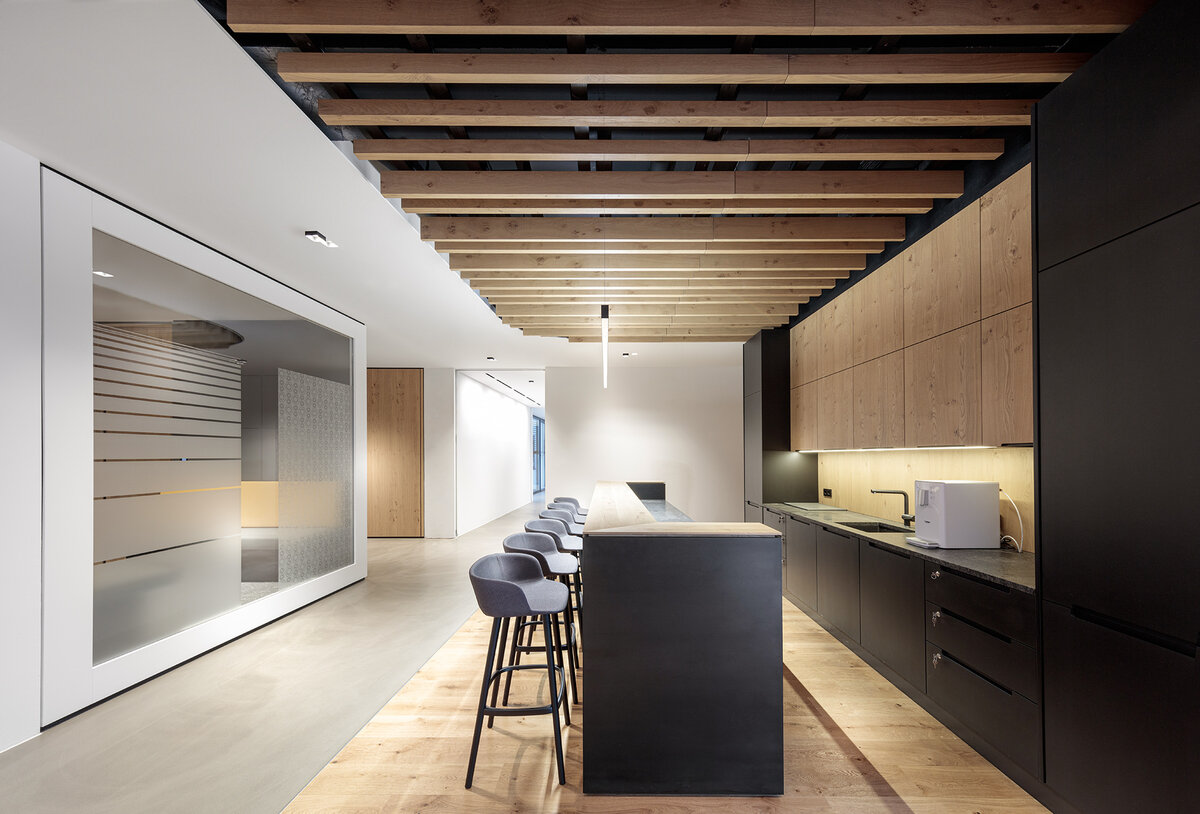

Langzauner GmbH

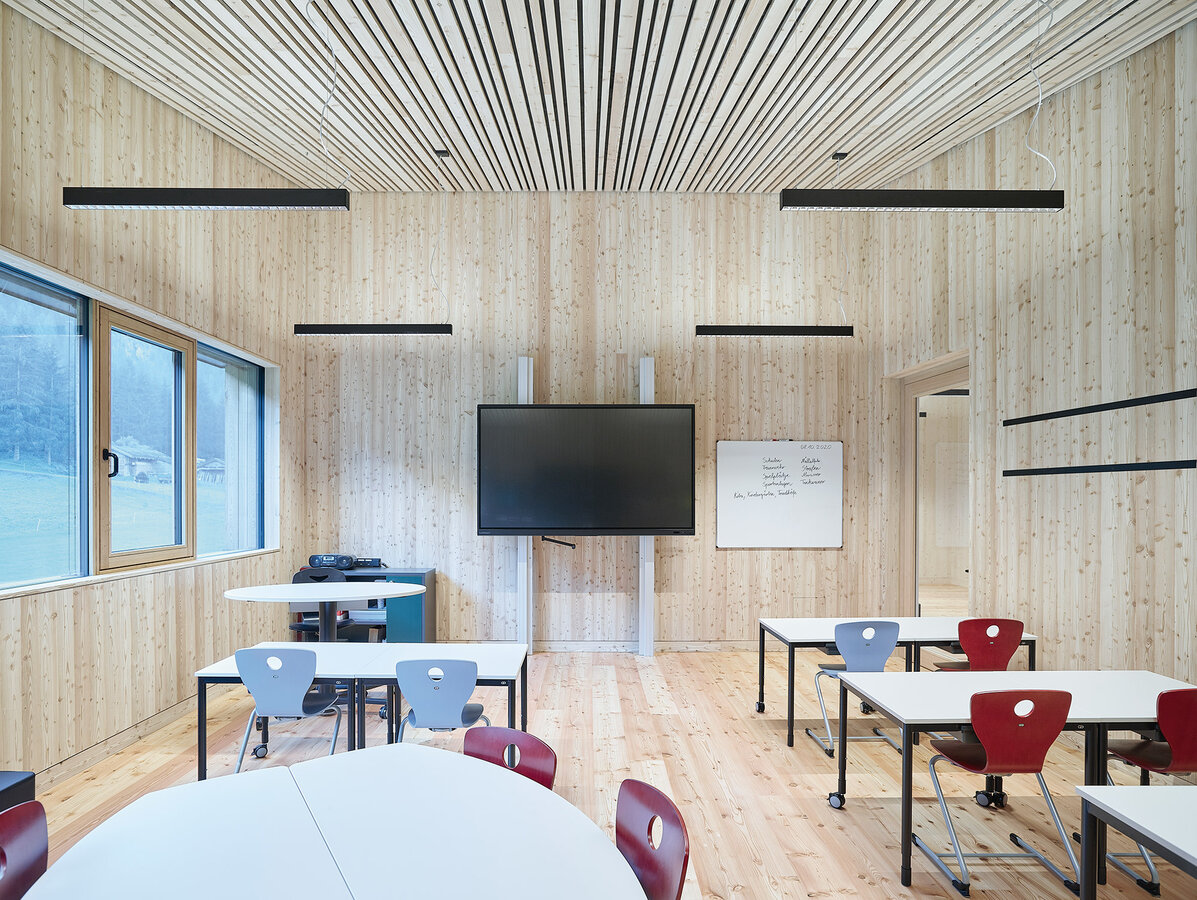

Grundschule St. Martin

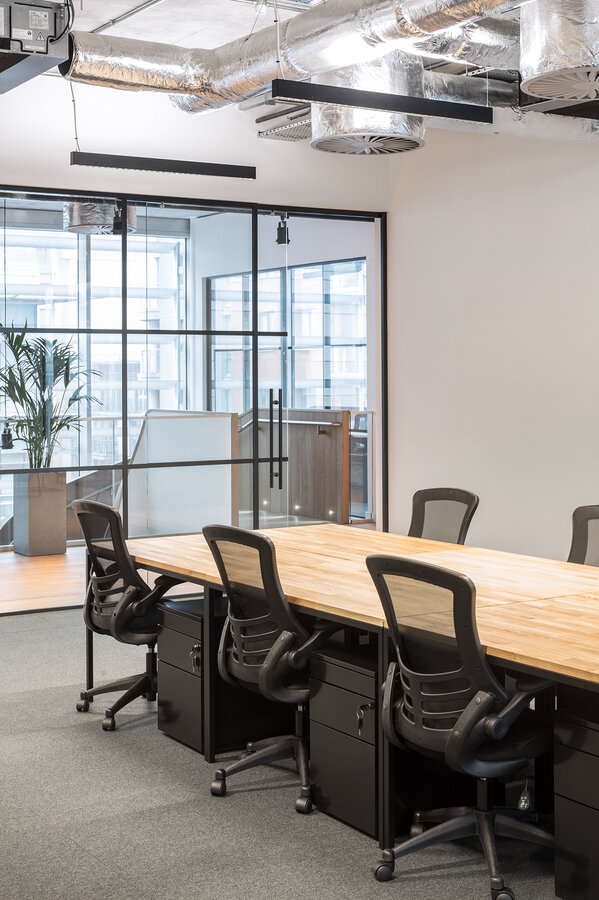

XYZ building floor

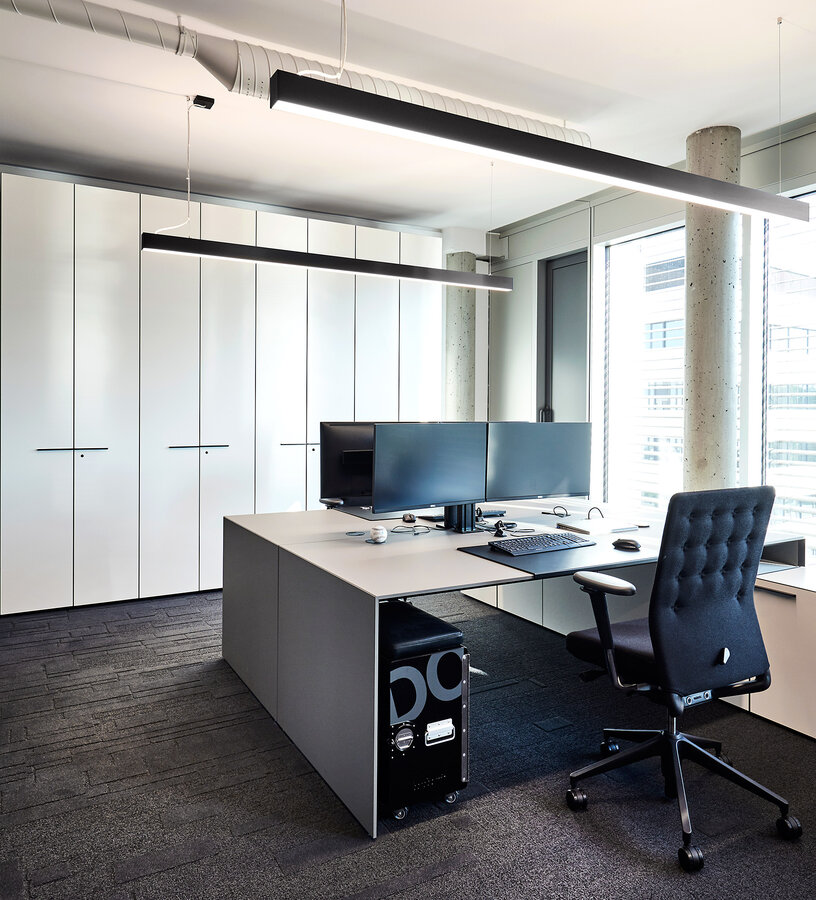

Deutsche Wohnwerte (im Colours)

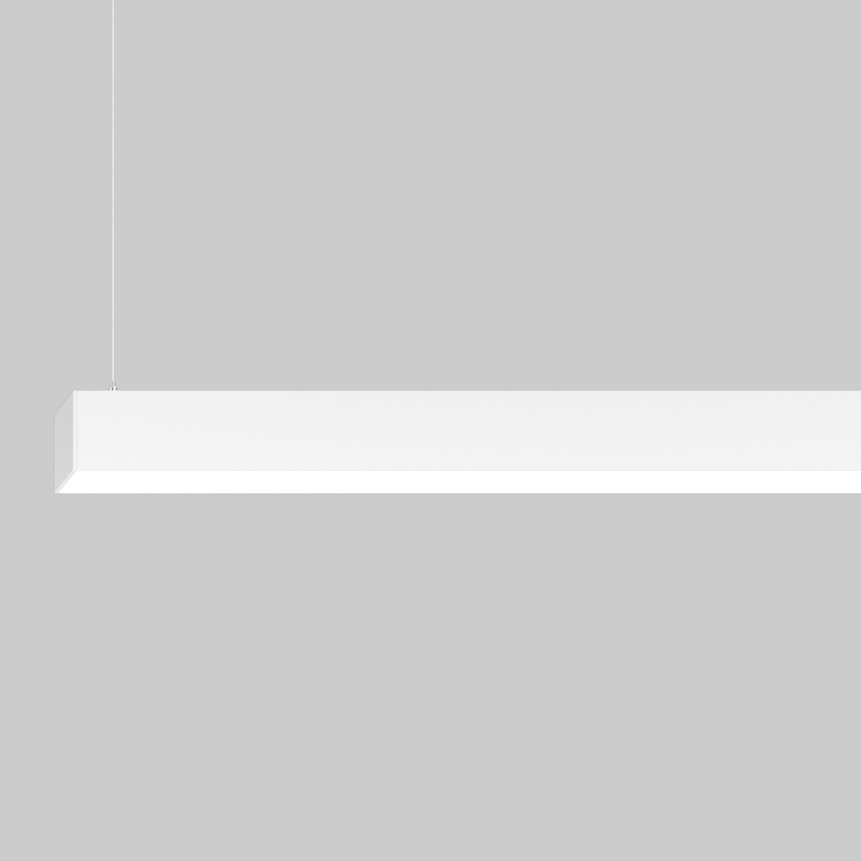

LITO 60

suspended

Quickinfo

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM (initial MacAdam)
UGR ≤ 19
up to ↓ 5,530 lm / ↑ 3,980 lm
up to 4,060 lm/m
up to 122 lm/W
L80 / 50000 h
Cover: Microprismatic
DALI-2, non DIM, stand alone ESSENTIAL sensor
IP20

Colour

Products and codes
Discover family

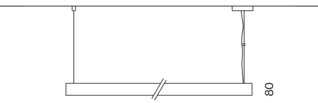

Simple drawing

Light distribution

Product data & specification documents

Download all
Download all
  • DWG - 3D
  • Revit BIM data
  • EPD

Description

Luminaire housing from extruded aluminium profile, angular design; no visible screws; surface powder coated; pendant fitting with cable suspension; with integrated toolless suspension height adjustment; spring clip attachment to the luminaire; freely positionable; incl. transparent feed; light inset made from extruded profile for improved thermal management; micro prismatic PMMA diffuser incl. diffuser film for homogeneous illumination and reduced luminance; direct / indirect light distribution; indirect light component with integrated PC boards for maximum, homogeneous ceiling illumination; energy-efficient LEDs with very good colour rendering

DiiA® standards 251, 252, 253

microprismatic UGR ≤ 19

suspension freely positionable

170° indirect illumination

Products and codes

Filter
112
lm/W
122
lm/W
1880
lm
3980
lm
40
W
78
W
0.54
0.72
0.49
0.66

Colour

LITO 60 direct / indirect suspended

LITO 60 direct / indirect suspended

LITO 60 direct / indirect suspended

Status
Article number(s)
Type
Dimming
pure white, 3000 K, 112 lm/W, length 1,180 mm
non DIM
pure white, 3000 K, 112 lm/W, length 1,180 mm
DALI-2
pure white, 3000 K, 112 lm/W, length 1,180 mm
stand alone ESSENTIAL sensor
pure white, 4000 K, 119 lm/W, length 1,180 mm
non DIM
pure white, 4000 K, 119 lm/W, length 1,180 mm
DALI-2
pure white, 4000 K, 119 lm/W, length 1,180 mm
stand alone ESSENTIAL sensor
pure white, 3000 K, 112 lm/W, length 1,480 mm
non DIM
pure white, 3000 K, 112 lm/W, length 1,480 mm
DALI-2
pure white, 3000 K, 112 lm/W, length 1,480 mm
stand alone ESSENTIAL sensor
pure white, 4000 K, 119 lm/W, length 1,480 mm
non DIM
pure white, 4000 K, 119 lm/W, length 1,480 mm
DALI-2
pure white, 4000 K, 119 lm/W, length 1,480 mm
stand alone ESSENTIAL sensor
pure white, 3000 K, 115 lm/W, length 2,352 mm
non DIM
pure white, 3000 K, 115 lm/W, length 2,352 mm
DALI-2
pure white, 3000 K, 115 lm/W, length 2,352 mm
stand alone ESSENTIAL sensor
pure white, 4000 K, 122 lm/W, length 2,352 mm
non DIM
pure white, 4000 K, 122 lm/W, length 2,352 mm
DALI-2
pure white, 4000 K, 122 lm/W, length 2,352 mm
stand alone ESSENTIAL sensor
LITO 60 direct / indirect suspended

LITO 60 direct / indirect suspended

LITO 60 direct / indirect suspended

Status
Article number(s)
Type
Dimming
jet black, 3000 K, 112 lm/W, length 1,180 mm
non DIM
jet black, 3000 K, 112 lm/W, length 1,180 mm
DALI-2
jet black, 3000 K, 112 lm/W, length 1,180 mm
stand alone ESSENTIAL sensor
jet black, 4000 K, 119 lm/W, length 1,180 mm
non DIM
jet black, 4000 K, 119 lm/W, length 1,180 mm
DALI-2
jet black, 4000 K, 119 lm/W, length 1,180 mm
stand alone ESSENTIAL sensor
jet black, 3000 K, 112 lm/W, length 1,480 mm
non DIM
jet black, 3000 K, 112 lm/W, length 1,480 mm
DALI-2
jet black, 3000 K, 112 lm/W, length 1,480 mm
stand alone ESSENTIAL sensor
jet black, 4000 K, 119 lm/W, length 1,480 mm
non DIM
jet black, 4000 K, 119 lm/W, length 1,480 mm
DALI-2
jet black, 4000 K, 119 lm/W, length 1,480 mm
stand alone ESSENTIAL sensor
jet black, 3000 K, 115 lm/W, length 2,352 mm
non DIM
jet black, 3000 K, 115 lm/W, length 2,352 mm
DALI-2
jet black, 3000 K, 115 lm/W, length 2,352 mm
stand alone ESSENTIAL sensor
jet black, 4000 K, 122 lm/W, length 2,352 mm
non DIM
jet black, 4000 K, 122 lm/W, length 2,352 mm
DALI-2
jet black, 4000 K, 122 lm/W, length 2,352 mm
stand alone ESSENTIAL sensor
LITO 60 direct / indirect suspended

LITO 60 direct / indirect suspended

LITO 60 direct / indirect suspended

Status
Article number(s)
Type
Dimming
white aluminium, 3000 K, 112 lm/W, length 1,180 mm
non DIM
white aluminium, 3000 K, 112 lm/W, length 1,180 mm
DALI-2
white aluminium, 3000 K, 112 lm/W, length 1,180 mm
stand alone ESSENTIAL sensor
white aluminium, 4000 K, 119 lm/W, length 1,180 mm
non DIM
white aluminium, 4000 K, 119 lm/W, length 1,180 mm
DALI-2
white aluminium, 4000 K, 119 lm/W, length 1,180 mm
stand alone ESSENTIAL sensor
white aluminium, 3000 K, 112 lm/W, length 1,480 mm
non DIM
white aluminium, 3000 K, 112 lm/W, length 1,480 mm
DALI-2
white aluminium, 3000 K, 112 lm/W, length 1,480 mm
stand alone ESSENTIAL sensor
white aluminium, 4000 K, 119 lm/W, length 1,480 mm
non DIM
white aluminium, 4000 K, 119 lm/W, length 1,480 mm
DALI-2
white aluminium, 4000 K, 119 lm/W, length 1,480 mm
stand alone ESSENTIAL sensor
white aluminium, 3000 K, 115 lm/W, length 2,352 mm
non DIM
white aluminium, 3000 K, 115 lm/W, length 2,352 mm
DALI-2
white aluminium, 3000 K, 115 lm/W, length 2,352 mm
stand alone ESSENTIAL sensor
white aluminium, 4000 K, 122 lm/W, length 2,352 mm
non DIM
white aluminium, 4000 K, 122 lm/W, length 2,352 mm
DALI-2
white aluminium, 4000 K, 122 lm/W, length 2,352 mm
stand alone ESSENTIAL sensor
