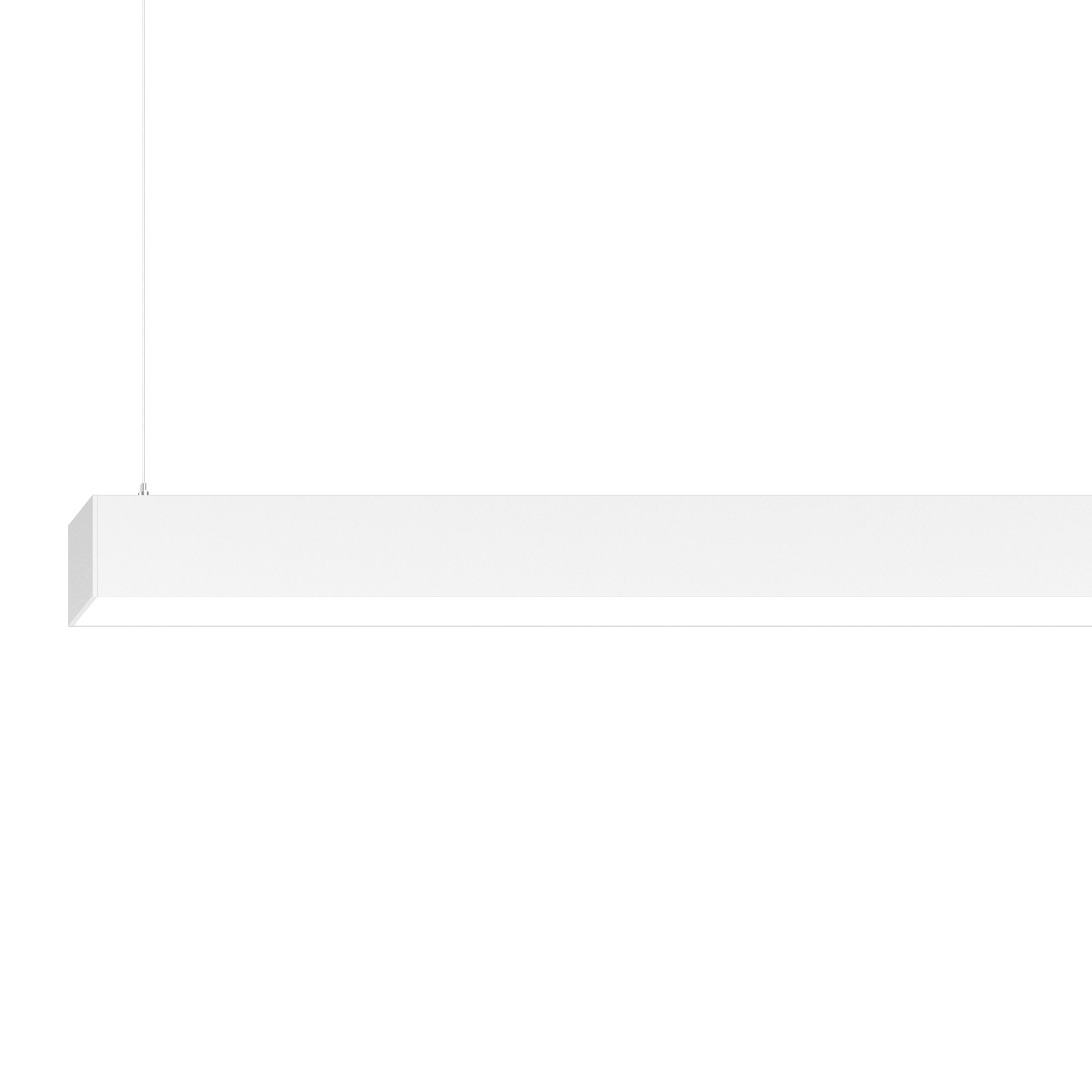

LITO 60 direct / indirect suspended

LITO 60 direct / indirect

suspended

046-5224677Z

Quickinfo

4000 K
CRI ≥ 80 / 3 SDCM (initial MacAdam)
UGR ≤ 19
2,760 lm / ↑ 1,990 lm
4,060 lm/m
119 lm/W
L90 / 50000 h
stand alone ESSENTIAL sensor
Microprismatic
IP20

Colour

General

  • Ceiling
  • Suspended
  • pure white
  • RAL 9010
  • IP20
  • indirect 1990 lm
  • direct 2760 lm
  • total 4750 lm
  • 4060 lm/m

LED

  • 4000 K
  • CRI ≥ 80
  • L90 / 50000 h
  • ≤ 3 SDCM (initial MacAdam)
  • MR 0.72
  • MDER 0.66

Optical

  • Microprismatic
  • microprismatic
  • UGR ≤ 19
  • PstLM ≤ 1.0 1
  • SVM ≤ 0.4 1

Electrical

  • stand alone ESSENTIAL sensor
  • brightness & presence
  • 220-240 V
  • system 40 W
  • system 119 lm/W 2
  • PC1
  • 34 W/m

Physical

  • cable 1500 mm
  • length 1180 mm
  • width 60 mm
  • height 80 mm
  • 3.6 kg

Circuit Breaker Types

Automatic Circuit Breaker Type

B10
B13
B16
B20
C10
C13
C16
C20

Number of Fixtures

7
10
12
14
10
20
24
28
1 Value of containing product at full load (undimmed) 2 incl. consideration of optical losses, internal control unit losses & operating device efficiency

Luminaire housing made of extruded aluminium profile; light tight final end caps made of aluminium; no visible screws; angular design; surface pure white powder coated; suspended luminaire with 1500mm cable suspension; with integrated toolless suspension height adjustment on the luminaire; spring clip attachment to the luminaire; freely positionable; incl. transparent feed; LED light inset consisting of highly reflective lacquered aluminium for improved thermal management; light colour 4000 K; ≤ 3 SDCM (initial MacAdam); CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; micro prismatic PMMA diffuser incl. diffuser film for homogeneous illumination and reduced luminance; UGR ≤ 19; direct/indirect illumination characteristic; indirect light component with integrated PC boards for maximum, homogeneous ceiling illumination; degree of protection IP20; PC1; 220-240 V; internal wiring in light halogen free; incl. DALI-2 converter; luminaire with integrated infrared presence and brightness sensor (ESSENTIAL sensor); automatic light control of luminaire to individually adjustable brightness; variable automatic shutdown; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
