JANE

semi-recessed / surface / suspended

New

Quickinfo

3000 K, 4000 K
CRI ≥ 90 / 3 SDCM (initial MacAdam)
up to 74 lm/W
L80 / 50000 h
IP40
JANE Concept Room
Products and codes
Discover family

Simple drawing

Light distribution

Product data & specification documents

Download all
Download all
  • ROLF
  • ULD

Description

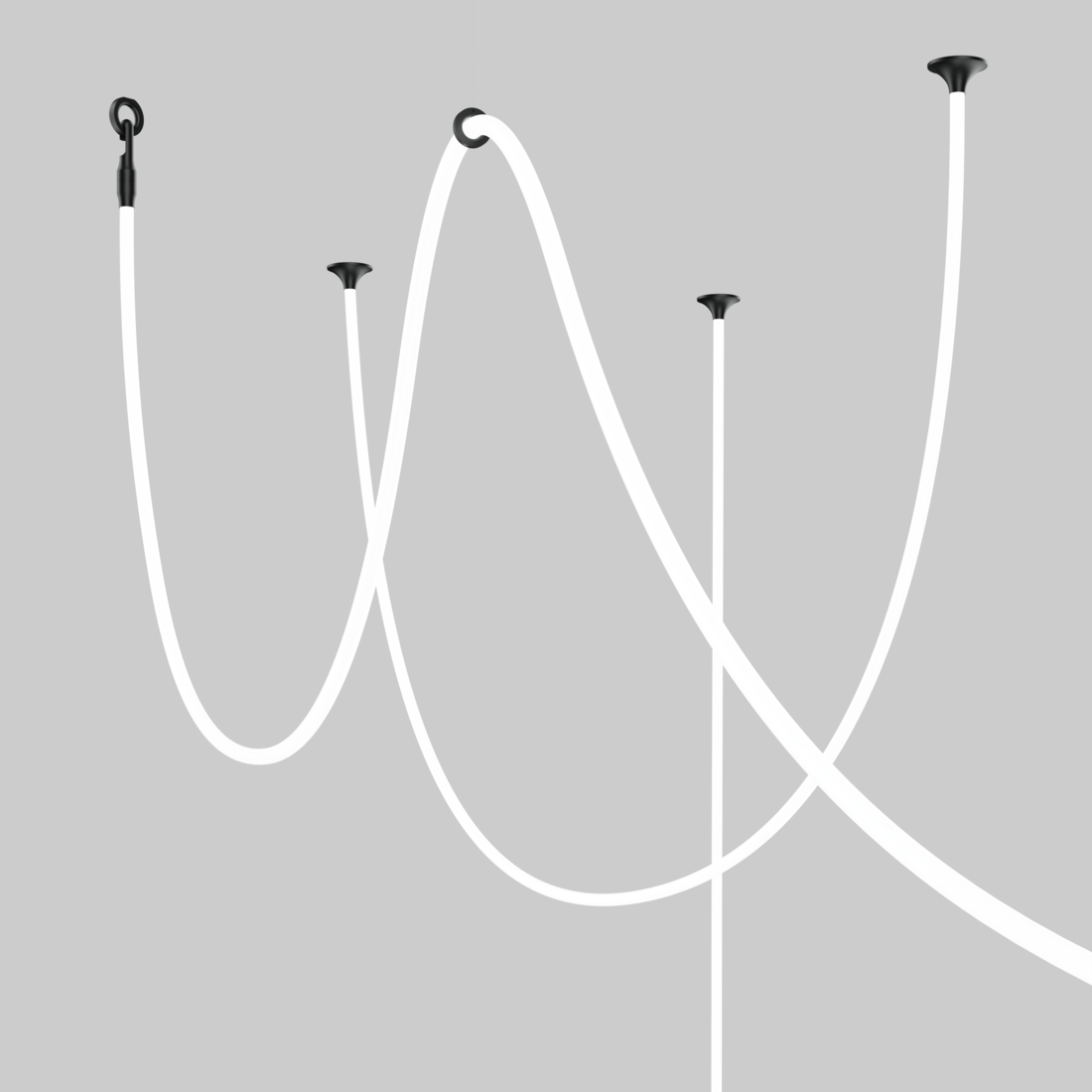

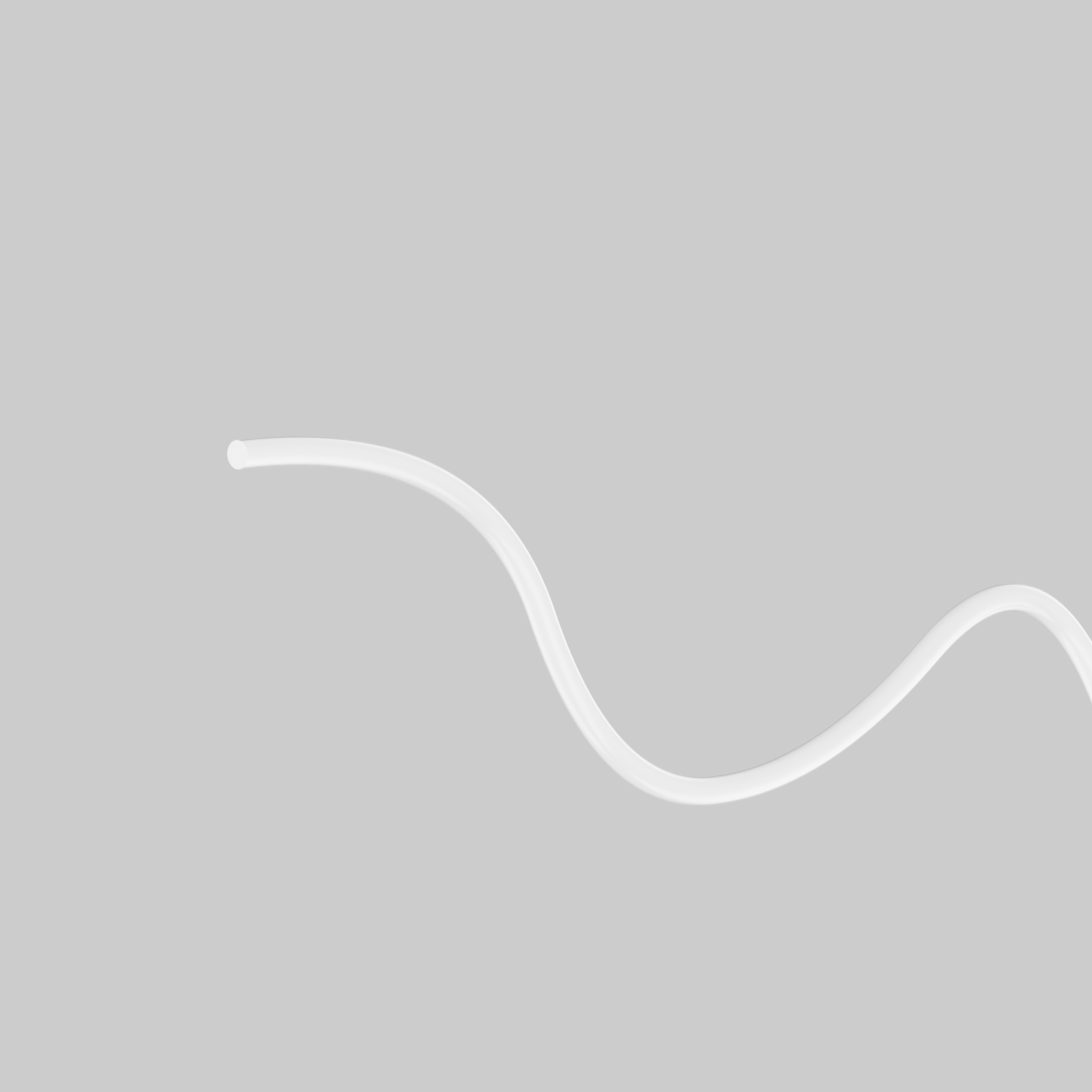

Highly flexible light rope made of food grade silicone for creative and decorative design; extremely slim design (only 18 mm diameter); for wall-/ceiling surface mounting or suspended mounting (cable suspension, height adjustment without tools); completely homogeneously illuminated, matt surface; 360° light emission; energy-efficient LEDs with very good colour rendering; optionally with external converter for ceiling installation or suspended in combination with the light rope (available as an accessory)

many mounting options

dust & insect protection (IP 40)

360° light emitting

Products and codes

Filter
71
lm/W
74
lm/W
1040
lm
10400
lm
14.1
W
148
W
0.69
0.9
0.62
0.81
JANE semi-recessed / surface / suspended

JANE semi-recessed / surface / suspended

JANE semi-recessed / surface / suspended

Status
Article number(s)
Type
3000 K, fixture 148 W, 71 lm/W, length 10,000 mm
4000 K, fixture 141 W, 74 lm/W, length 10,000 mm
3000 K, fixture 14.8 W, 71 lm/W, length 1,000 mm
4000 K, fixture 14.1 W, 74 lm/W, length 1,000 mm
3000 K, fixture 29.5 W, 71 lm/W, length 2,000 mm
4000 K, fixture 28.1 W, 74 lm/W, length 2,000 mm
3000 K, fixture 44 W, 71 lm/W, length 3,000 mm
4000 K, fixture 42 W, 74 lm/W, length 3,000 mm
3000 K, fixture 59 W, 71 lm/W, length 4,000 mm
4000 K, fixture 56 W, 74 lm/W, length 4,000 mm
3000 K, fixture 89 W, 71 lm/W, length 6,000 mm
4000 K, fixture 84 W, 74 lm/W, length 6,000 mm
3000 K, fixture 118 W, 71 lm/W, length 8,000 mm
4000 K, fixture 112 W, 74 lm/W, length 8,000 mm

Accessories

Converter

article number
power
voltage / frequency
protection class
control
constant voltage
POWER SUPPLY external
002-62132
320 W
min 50 Hz
max 60 Hz
PC2
48 V
POWER SUPPLY external
002-62133
60 W
min 47 Hz
max 63 Hz
PC2
48 V
POWER SUPPLY external
002-62134
100 W
min 50 Hz
max 60 Hz
PC2
48 V
POWER SUPPLY external
002-62135
150 W
min 50 Hz
max 60 Hz
PC2
48 V
POWER SUPPLY external
002-62139
250 W
min 50 Hz
max 60 Hz
PC2
48 V
POWER SUPPLY surface
058-6591217
100 W
min 50 Hz
max 60 Hz
PC2
non DIM
POWER SUPPLY surface
058-6591218
100 W
min 50 Hz
max 60 Hz
PC2
non DIM
POWER SUPPLY surface
058-6591237
100 W
min 50 Hz
max 60 Hz
PC2
DALI-2
POWER SUPPLY surface
058-6591238
100 W
min 50 Hz
max 60 Hz
PC2
DALI-2
POWER SUPPLY surface
058-6591317
150 W
min 50 Hz
max 60 Hz
PC2
non DIM
POWER SUPPLY surface
058-6591318
150 W
min 50 Hz
max 60 Hz
PC2
non DIM
POWER SUPPLY surface
058-6591337
150 W
min 50 Hz
max 60 Hz
PC2
DALI-2
POWER SUPPLY surface
058-6591338
150 W
min 50 Hz
max 60 Hz
PC2
DALI-2
POWER SUPPLY suspended
058-6592217
100 W
min 50 Hz
max 60 Hz
PC2
non DIM
POWER SUPPLY suspended
058-6592218
100 W
min 50 Hz
max 60 Hz
PC2
non DIM
POWER SUPPLY suspended
058-6592237
100 W
min 50 Hz
max 60 Hz
PC2
DALI-2
POWER SUPPLY suspended
058-6592238
100 W
min 50 Hz
max 60 Hz
PC2
DALI-2
POWER SUPPLY suspended
058-6592317
150 W
min 50 Hz
max 60 Hz
PC2
non DIM
POWER SUPPLY suspended
058-6592318
150 W
min 50 Hz
max 60 Hz
PC2
non DIM
POWER SUPPLY suspended
058-6592337
150 W
min 50 Hz
max 60 Hz
PC2
DALI-2
POWER SUPPLY suspended
058-6592338
150 W
min 50 Hz
max 60 Hz
PC2
DALI-2

Mounting

article number
type
colour
dimensions
cut out dimensions
MOUNTING SET recessed
058-6590217
traffic white
RAL 9016
diameter 74 mm
height 100 mm
0.25 kg
diameter
MOUNTING SET recessed
058-6590218
jet black
RAL 9005
diameter 74 mm
height 100 mm
0.04 kg
diameter
MOUNTING SET surface
058-6591017
traffic white
RAL 9016
diameter 74 mm
height 39 mm
0.13 kg
MOUNTING SET surface
058-6591018
jet black
RAL 9005
diameter 74 mm
height 39 mm
0.02 kg
CHANNEL surface
058-6591110
transparent
length 1,000 mm
width 21 mm
height 24 mm
0.18 kg
CLIP surface
058-6591410
transparent
length 15 mm
width 21 mm
height 24 mm
0.02 kg
MOUNTING RING surface
058-6591617
traffic white
RAL 9016
length 39 mm
width 9 mm
height 61 mm
0.02 kg
MOUNTING RING surface
058-6591618
jet black
RAL 9005
length 39 mm
width 9 mm
height 61 mm
0.02 kg
MOUNTING SET suspended
058-6592017
traffic white
RAL 9016
diameter 50 mm
height 135 mm
0.08 kg
MOUNTING SET suspended
058-6592018
jet black
RAL 9005
diameter 50 mm
height 135 mm
0.07 kg
MOUNTING RING suspended
058-6592617
traffic white
RAL 9016
diameter 39 mm
height 9 mm
0.02 kg
MOUNTING RING suspended
058-6592618
jet black
RAL 9005
diameter 39 mm
height 9 mm
0.02 kg
END CAP
058-6599007
1 piece
traffic white
RAL 9016
diameter 23 mm
height 35 mm
0.03 kg
END CAP
058-6599008
1 piece
jet black
RAL 9005
diameter 23 mm
height 35 mm
0.03 kg
END CAP
058-6599017
1 piece | weighted for vertical mounting
traffic white
RAL 9016
diameter 40 mm
height 100 mm
0.03 kg
END CAP
058-6599018
1 piece | weighted for vertical mounting
jet black
RAL 9005
diameter 40 mm
height 100 mm
0.03 kg

Electrical components

article number
dimensions
DALI DEVICE
058-6599330
length 120 mm
width 30 mm
height 22 mm
0.03 kg
