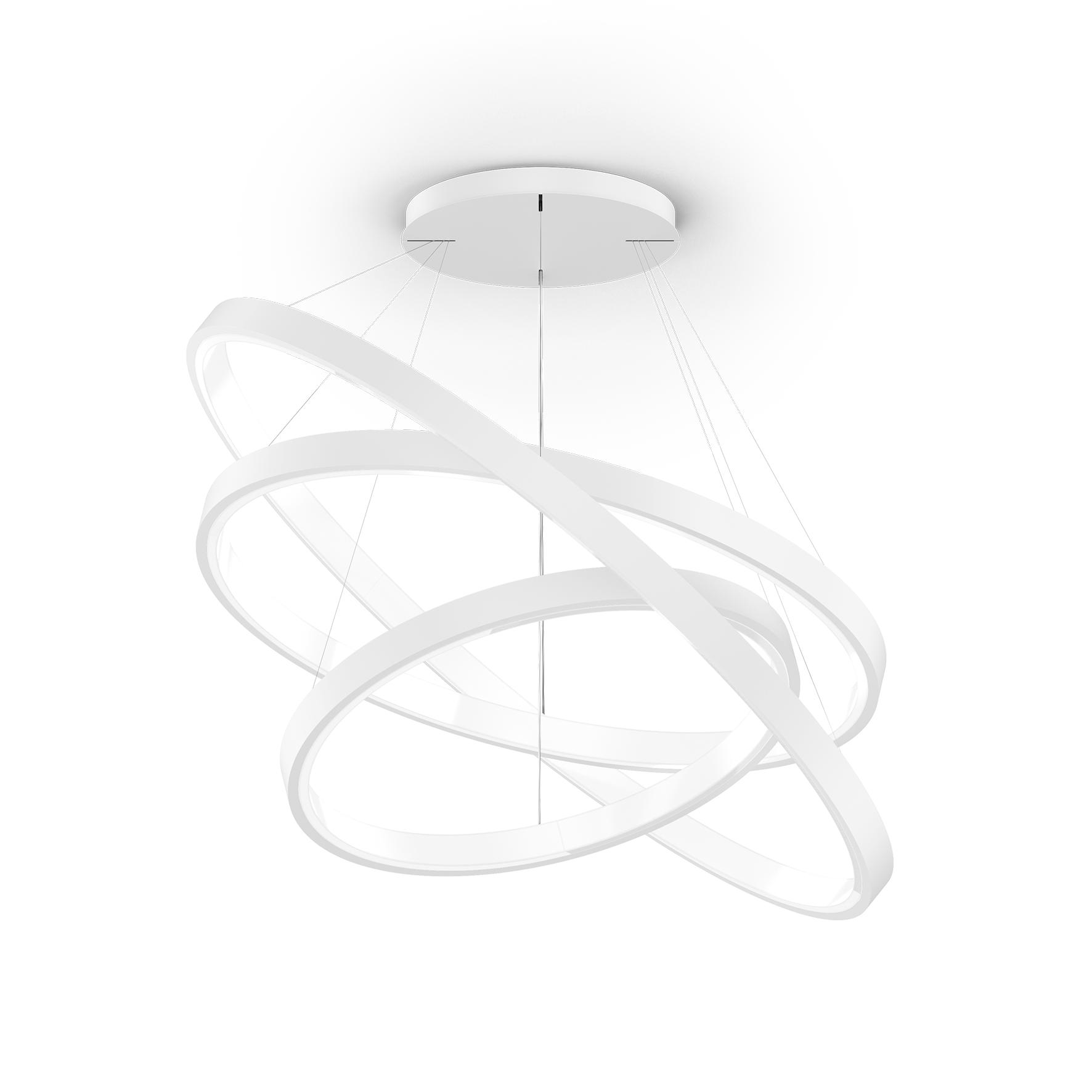

INO TRIPLE circle suspended | Ceiling luminaires

Technical data

General

Ceiling
Suspended
pure white
RAL 9010
IP20
indirect 2030¹, 2700², 8090³, 3380⁴ lm
direct 2030¹, 2710², 8110³, 3380⁴ lm
total 4060¹, 5410², 16200³, 6760⁴ lm

LED

2700 K
CRI ≥ 90
L90 / 50000 h
≤ 3 SDCM (initial MacAdam)
R_g: 101
R_f: 90
R_{1-15}: 88
MR 0.51
MDER 0.46

Optical

High Performance Opal
opal (lambertsch)
$P_{st}^{LM}$ ≤ 1.0¹ ² ³ ⁴ ⁵
SVM ≤ 0.4¹ ² ³ ⁴ ⁵

Electrical

DALI-2
220-240 V
system 37¹, 50², 149³, 62⁴ W
system 110¹, 108², 109³, 109⁴ lm/W ⁶
PC1
3 DALI Addr.

Physical

cable 5000 mm
diameter 875¹, 1165², 1455³, 1455⁴ mm
height 60 mm
13.6 kg

Circuit Breaker Types

Automatic Circuit Breaker Type

B10

B13

B16

B20

C10

C13

C16

C20

Number of Fixtures

2

3

4

5

4

6

7

9

^¹ 875mm ^² 1165mm ^³ combined ^⁴ 1455mm ^⁵ Value of containing product at full load (undimmed) ^⁶ incl. consideration of optical losses, internal control unit losses & operating device efficiency

Specification text

3 pcs. ring-shaped light fittings in rolled and seamlessly welded extruded aluminium profile; surface pure white powder coated; suspended luminaire with 5000mm cable suspension (canopy central); height adjustment without tools; light fitting individually height adjustable; incl. transparent feed; 3 pcs. electronic operating units installed in the canopy; light colour 2700 K; ≤ 3 SDCM (initial MacAdam); CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; HPO (High Performance Opal) cover for uniform illumination; inwards facing emission characteristics; direct/indirect light emission for additional accentuation of the ceiling; canopy with 2 cable openings and plug-in terminal for through wiring; degree of protection IP20; PC1; internal wiring in light halogen free; incl. 3 pcs. DALI-2 converters; light fitting separately controllable; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
