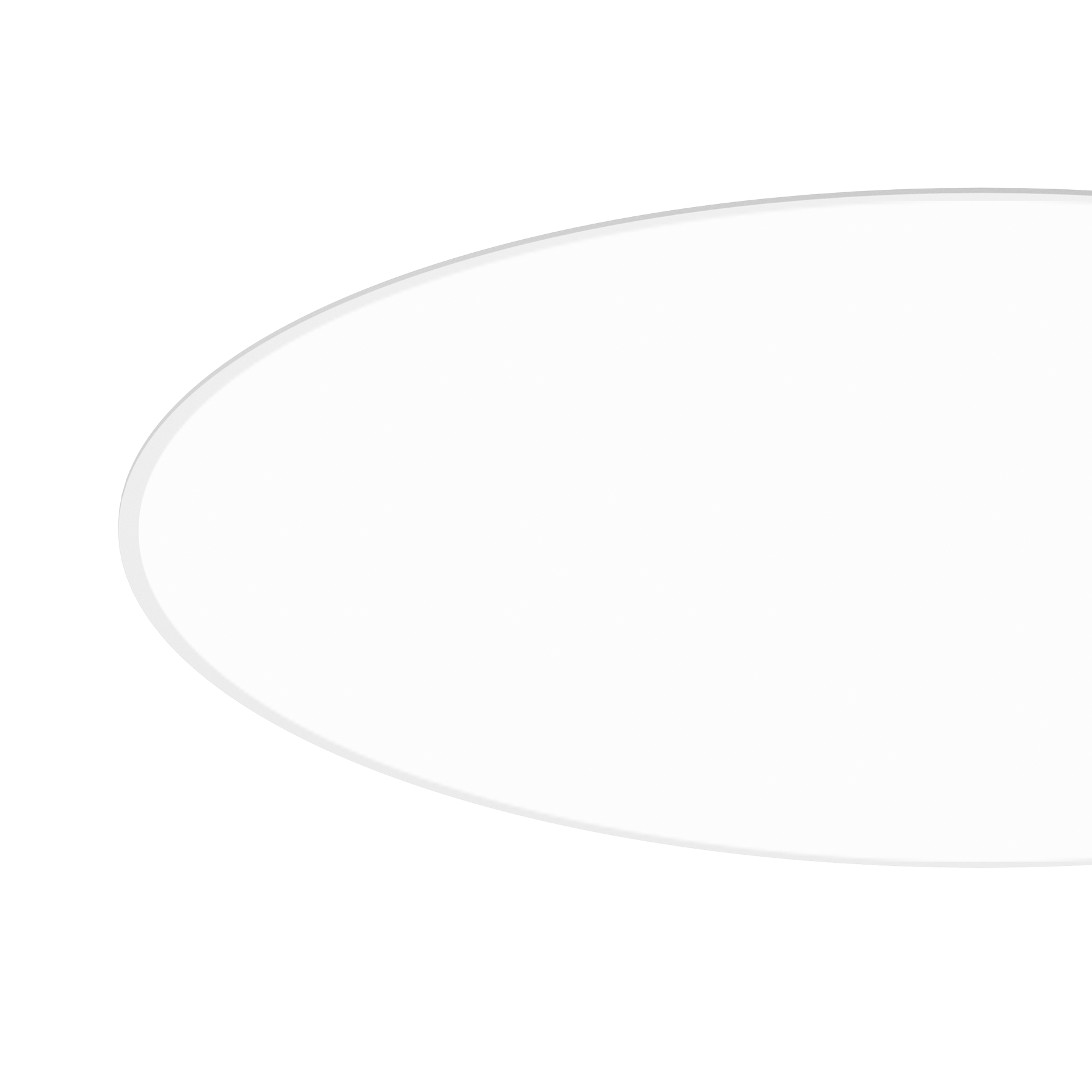

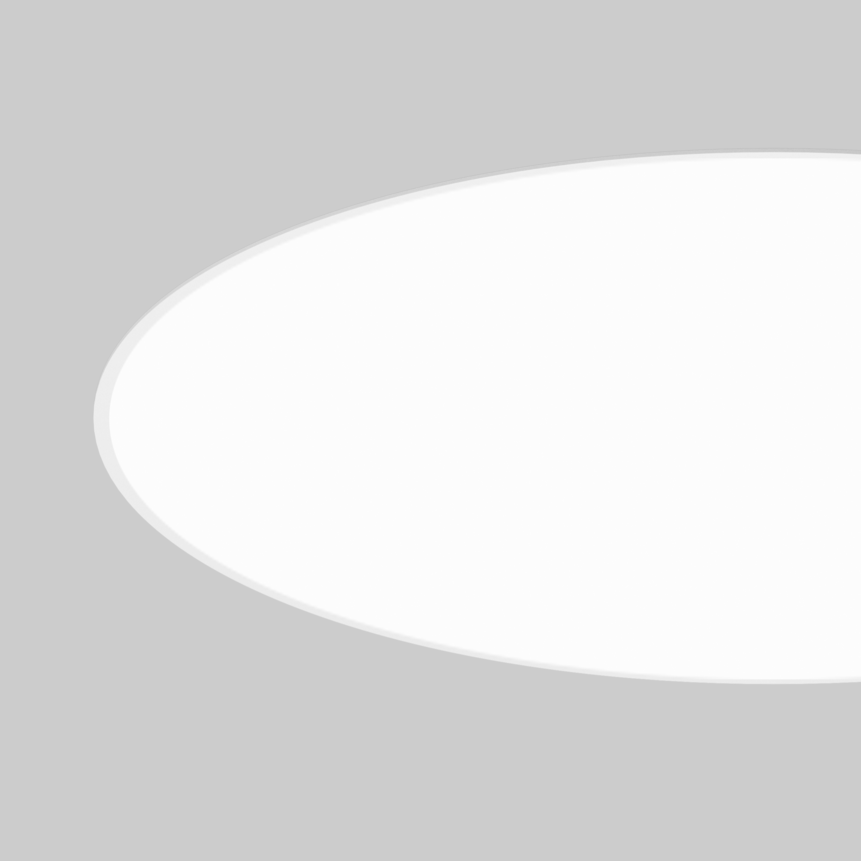

COMBO 1200
trim
064-1081537K
Quickinfo
3000 KCRI ≥ 80 / 3 SDCM (initial MacAdam)
UGR ≤ 19 / 65° ≤ 3,000 cd/m²
137 lm/W
L90 / 50000 h
DALI-2
Microprismatic
IP40
Colour
General
- Ceiling
- Recessed
- pure white
- RAL 9010
- IP40
- 12600 lm
LED
- 3000 K
- CRI ≥ 80
- L90 / 50000 h
- ≤ 3 SDCM (initial MacAdam)
- MR 0.54
- MDER 0.49
Optical
- Microprismatic
- microprismatic
- UGR ≤ 19
- ≤ 1.0 1
- SVM ≤ 0.4 1
- ≥65° <3000 cd/m²
Electrical
- DALI-2
- 220-240 V
- system 92 W
- system 137 lm/W 2
- PC1
- 3 DALI Addr.
Physical
- trim
- diameter 1216 mm
- height 105 mm
- 19 kg
Cutout
- diameter 1205 mm
- min. ceiling thickness 10 mm
- max. ceiling thickness 25 mm
- recessed depth 105 mm
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures
Round light fitting in aluminium; recessed light with wrap around edge; suitable for ceiling thickness of 10-25 mm; surface pure white powder coated; external converter for ceiling insertion, through-wiring suitable; electrical connection by means of reverse polarity protected plug system; LED board highly reflective lacquered for higher efficiency; light colour 3000 K; ≤ 3 SDCM (initial MacAdam); CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; flush ceiling light level; micro prismatic PMMA cover; absolutely homogeneous illumination by using a diffuser film on polycarbonate base; improved ratio of scattering effect to light transmission; same luminance for all size versions; UGR ≤ 19; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; degree of protection IP40; PC1; 220-240 V; internal wiring in light halogen free; incl. DALI-2 converter; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
