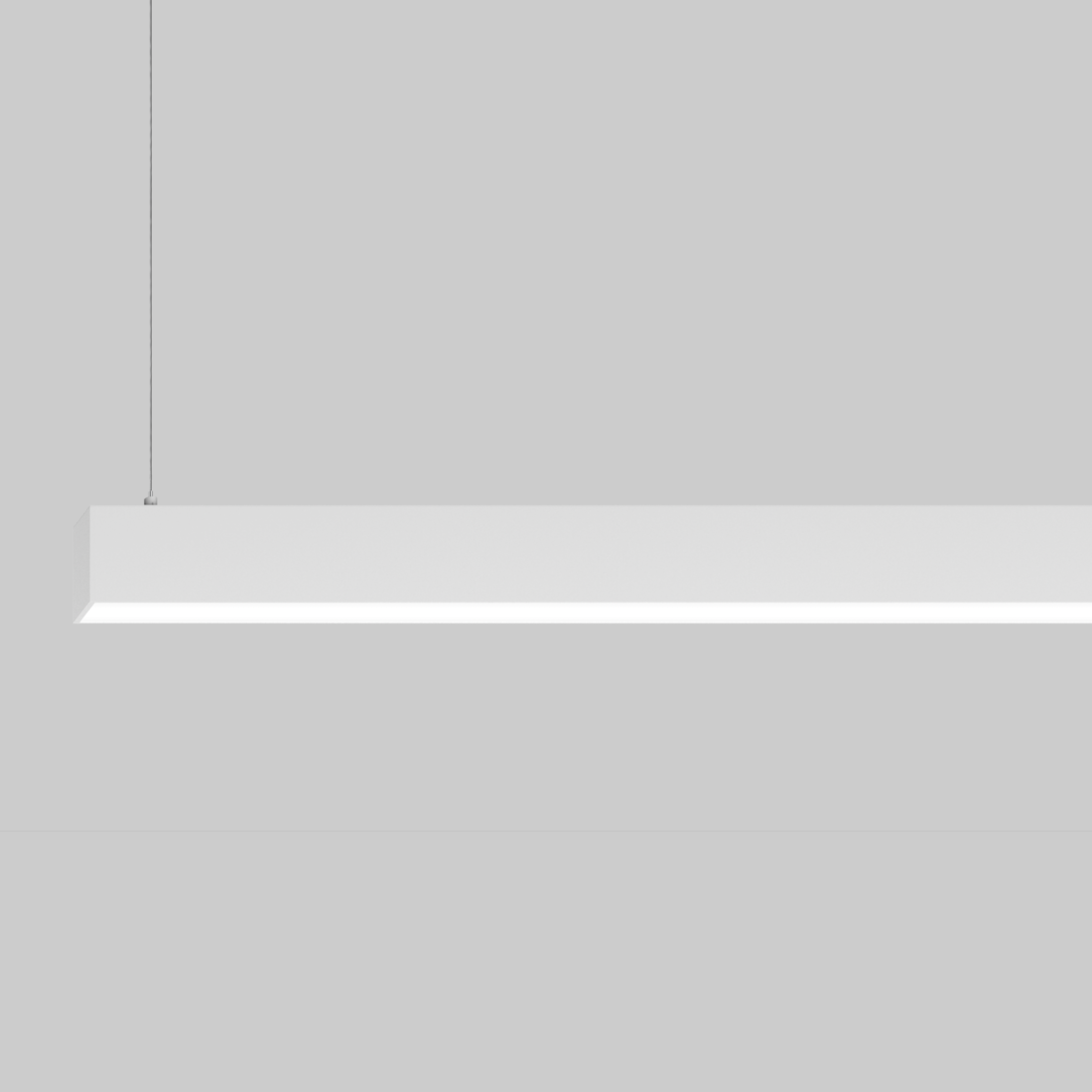

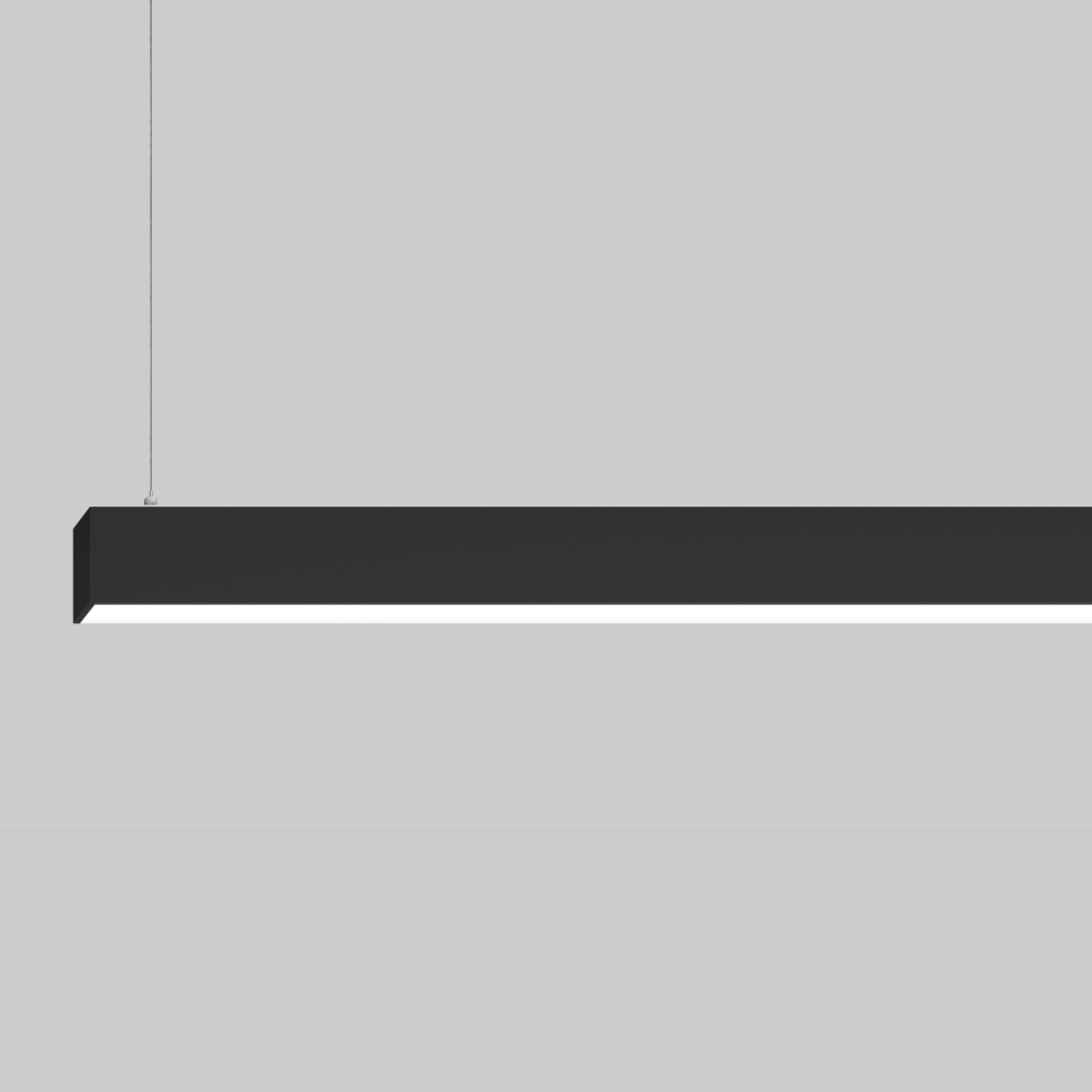

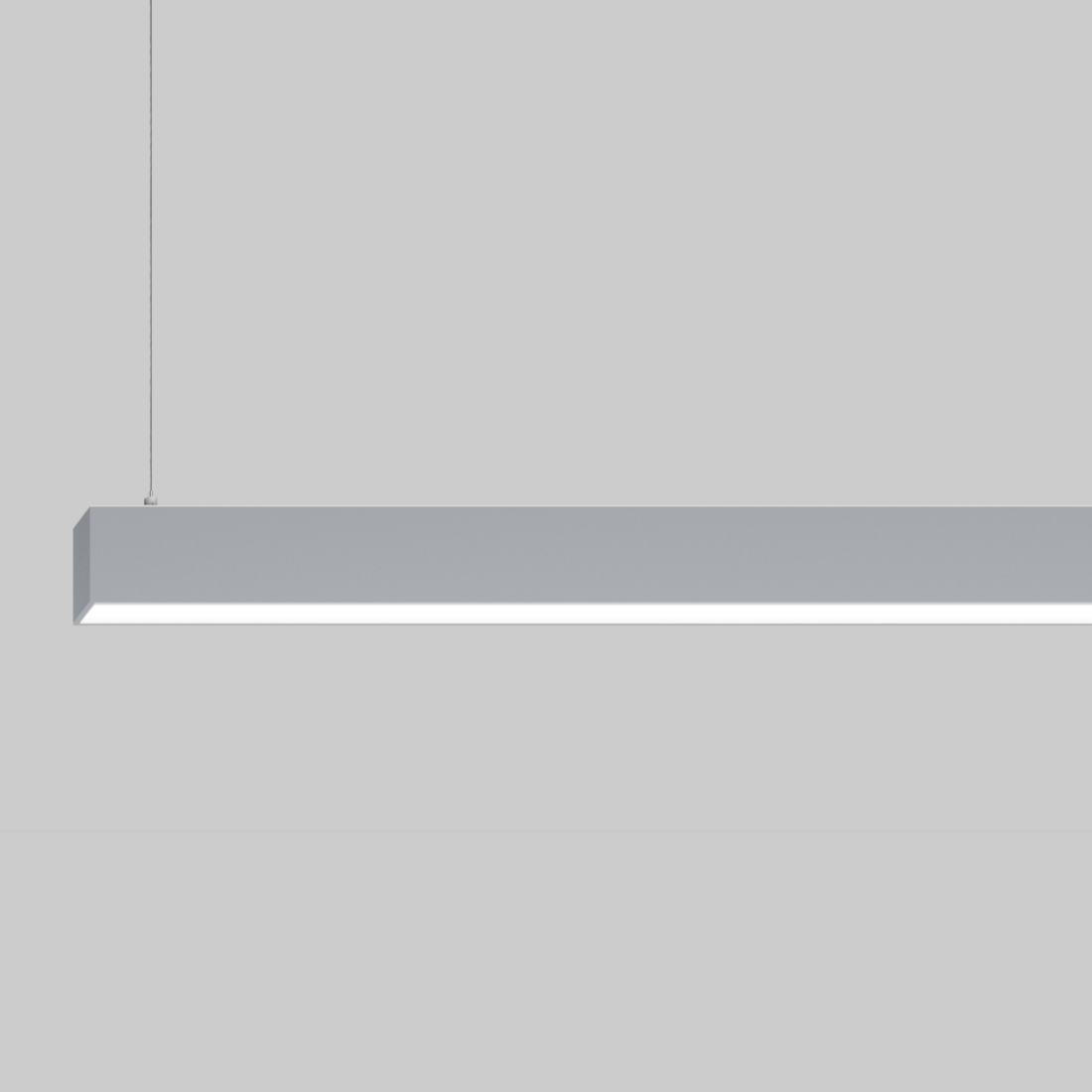

BASO 40 suspended

Quickinfo

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM
UGR ≤ 19
up to 3,660 lm/m
up to 135 lm/W
L90 / 50000 h
DALI-2, non DIM
Asymmetric Wallwasher, High Performance Opal, Microprismatic, Reflector
IP20

Colour

white

black

grey

Products and codes

Discover family

Simple drawing

Light distribution

Downloads & links

Product data & specification documents

CataloguePage(s)

DWG - 2D

Download all

Aggregated downloads

IES
LDT
ROLF
ULD

3DS
DWG - 3D
Revit BIM data

Description

Luminaire housing from extruded aluminium profile, angular design; no visible screws; surface powder coated in white, grey or black; luminaire profile with pre-assembled converter unit can be pre-mounted; light inset can be installed without tools; suspended luminaire with 1500mm cable suspension; with integrated tool-less suspension height adjustment; freely positioned attachment to the luminaire; incl. transparent feed; light inset made from extruded profile for improved thermal management (reflector version); HPO (High Performance Opal) cover for uniform illumination; or micro prismatic PMMA diffuser incl. diffuser film for homogeneous illumination and reduced luminance; or with specially computed, asymmetrical lens for homogeneous vertical lighting intensity; or high-quality, chromed reflector with faceted design; workplace luminaire suitable for VDUs according to DIN EN 12464-1 (UGR ≤ 19) for reflector version; energy-efficient LEDs with very good colour rendering; binning initial ≤ 3 MacAdam; available in the light colours 3000K and 4000K; CRI ≥ 80; min. 90 % of the luminous flux after 50000 hours; degree of protection IP 20; PC I; photobiological safety according to IEC 62471 risk group 0 for HPO, microprismatic PMMA cover and wallwasher versions; optionally non-dimmable or DALI-2 control

Products and codes

Filter

Colour

white

black

grey

BASO 40 microprismatic suspended

Status

Article number(s)

Type

Dimming

black, 3000 K, system 13.7 W, 86 lm/W, length 609 mm

non DIM

black, 3000 K, system 13.7 W, 86 lm/W, length 609 mm

DALI-2

black, 4000 K, system 13.7 W, 91 lm/W, length 609 mm

non DIM

black, 4000 K, system 13.7 W, 91 lm/W, length 609 mm

DALI-2

black, 3000 K, system 27.5 W, 86 lm/W, length 1,209 mm

non DIM

black, 3000 K, system 27.5 W, 86 lm/W, length 1,209 mm

DALI-2

black, 4000 K, system 27.5 W, 91 lm/W, length 1,209 mm

non DIM

black, 4000 K, system 27.5 W, 91 lm/W, length 1,209 mm

DALI-2

black, 3000 K, system 41 W, 87 lm/W, length 1,809 mm

non DIM

black, 3000 K, system 41 W, 87 lm/W, length 1,809 mm

DALI-2

black, 4000 K, system 41 W, 91 lm/W, length 1,809 mm

non DIM

black, 4000 K, system 41 W, 91 lm/W, length 1,809 mm

DALI-2

black, 3000 K, system 55 W, 86 lm/W, length 2,409 mm

non DIM

black, 3000 K, system 55 W, 86 lm/W, length 2,409 mm

DALI-2

black, 4000 K, system 55 W, 91 lm/W, length 2,409 mm

non DIM

black, 4000 K, system 55 W, 91 lm/W, length 2,409 mm

DALI-2

BASO 40 microprismatic suspended

Status

Article number(s)

Type

Dimming

grey, 3000 K, system 13.7 W, 86 lm/W, length 609 mm

non DIM

grey, 3000 K, system 13.7 W, 86 lm/W, length 609 mm

DALI-2

grey, 4000 K, system 13.7 W, 91 lm/W, length 609 mm

non DIM

grey, 4000 K, system 13.7 W, 91 lm/W, length 609 mm

DALI-2

grey, 3000 K, system 27.5 W, 86 lm/W, length 1,209 mm

non DIM

grey, 3000 K, system 27.5 W, 86 lm/W, length 1,209 mm

DALI-2

grey, 4000 K, system 27.5 W, 91 lm/W, length 1,209 mm

non DIM

grey, 4000 K, system 27.5 W, 91 lm/W, length 1,209 mm

DALI-2

grey, 3000 K, system 41 W, 87 lm/W, length 1,809 mm

non DIM

grey, 3000 K, system 41 W, 87 lm/W, length 1,809 mm

DALI-2

grey, 4000 K, system 41 W, 91 lm/W, length 1,809 mm

non DIM

grey, 4000 K, system 41 W, 91 lm/W, length 1,809 mm

DALI-2

grey, 3000 K, system 55 W, 86 lm/W, length 2,409 mm

non DIM

grey, 3000 K, system 55 W, 86 lm/W, length 2,409 mm

DALI-2

grey, 4000 K, system 55 W, 91 lm/W, length 2,409 mm

non DIM

grey, 4000 K, system 55 W, 91 lm/W, length 2,409 mm

DALI-2

BASO 40 microprismatic suspended

Status

Article number(s)

Type

Dimming

white, 3000 K, system 13.7 W, 86 lm/W, length 609 mm

non DIM

white, 3000 K, system 13.7 W, 86 lm/W, length 609 mm

DALI-2

white, 4000 K, system 13.7 W, 91 lm/W, length 609 mm

non DIM

white, 4000 K, system 13.7 W, 91 lm/W, length 609 mm

DALI-2

white, 3000 K, system 27.5 W, 86 lm/W, length 1,209 mm

non DIM

white, 3000 K, system 27.5 W, 86 lm/W, length 1,209 mm

DALI-2

white, 4000 K, system 27.5 W, 91 lm/W, length 1,209 mm

non DIM

white, 4000 K, system 27.5 W, 91 lm/W, length 1,209 mm

DALI-2

white, 3000 K, system 41 W, 87 lm/W, length 1,809 mm

non DIM

white, 3000 K, system 41 W, 87 lm/W, length 1,809 mm

DALI-2

white, 4000 K, system 41 W, 91 lm/W, length 1,809 mm

non DIM

white, 4000 K, system 41 W, 91 lm/W, length 1,809 mm

DALI-2

white, 3000 K, system 55 W, 86 lm/W, length 2,409 mm

non DIM

white, 3000 K, system 55 W, 86 lm/W, length 2,409 mm

DALI-2

white, 4000 K, system 55 W, 91 lm/W, length 2,409 mm

non DIM

white, 4000 K, system 55 W, 91 lm/W, length 2,409 mm

DALI-2

BASO 40 opal suspended

Status

Article number(s)

Type

Dimming

black, 3000 K, system 13.7 W, 97 lm/W, length 609 mm

non DIM

black, 3000 K, system 13.7 W, 97 lm/W, length 609 mm

DALI-2

black, 4000 K, system 13.7 W, 102 lm/W, length 609 mm

non DIM

black, 4000 K, system 13.7 W, 102 lm/W, length 609 mm

DALI-2

black, 3000 K, system 27.5 W, 96 lm/W, length 1,209 mm

non DIM

black, 3000 K, system 27.5 W, 96 lm/W, length 1,209 mm

DALI-2

black, 4000 K, system 27.5 W, 102 lm/W, length 1,209 mm

non DIM

black, 4000 K, system 27.5 W, 102 lm/W, length 1,209 mm

DALI-2

black, 3000 K, system 41 W, 97 lm/W, length 1,809 mm

non DIM

black, 3000 K, system 41 W, 97 lm/W, length 1,809 mm

DALI-2

black, 4000 K, system 41 W, 103 lm/W, length 1,809 mm

non DIM

black, 4000 K, system 41 W, 103 lm/W, length 1,809 mm

DALI-2

black, 3000 K, system 55 W, 97 lm/W, length 2,409 mm

non DIM

black, 3000 K, system 55 W, 97 lm/W, length 2,409 mm

DALI-2

black, 4000 K, system 55 W, 102 lm/W, length 2,409 mm

non DIM

black, 4000 K, system 55 W, 102 lm/W, length 2,409 mm

DALI-2

BASO 40 opal suspended

Status

Article number(s)

Type

Dimming

grey, 3000 K, system 13.7 W, 97 lm/W, length 609 mm

non DIM

grey, 3000 K, system 13.7 W, 97 lm/W, length 609 mm

DALI-2

grey, 4000 K, system 13.7 W, 102 lm/W, length 609 mm

non DIM

grey, 4000 K, system 13.7 W, 102 lm/W, length 609 mm

DALI-2

grey, 3000 K, system 27.5 W, 96 lm/W, length 1,209 mm

non DIM

grey, 3000 K, system 27.5 W, 96 lm/W, length 1,209 mm

DALI-2

grey, 4000 K, system 27.5 W, 102 lm/W, length 1,209 mm

non DIM

grey, 4000 K, system 27.5 W, 102 lm/W, length 1,209 mm

DALI-2

grey, 3000 K, system 41 W, 97 lm/W, length 1,809 mm

non DIM

grey, 3000 K, system 41 W, 97 lm/W, length 1,809 mm

DALI-2

grey, 4000 K, system 41 W, 103 lm/W, length 1,809 mm

non DIM

grey, 4000 K, system 41 W, 103 lm/W, length 1,809 mm

DALI-2

grey, 3000 K, system 55 W, 97 lm/W, length 2,409 mm

non DIM

grey, 3000 K, system 55 W, 97 lm/W, length 2,409 mm

DALI-2

grey, 4000 K, system 55 W, 102 lm/W, length 2,409 mm

non DIM

grey, 4000 K, system 55 W, 102 lm/W, length 2,409 mm

DALI-2

BASO 40 opal suspended

Status

Article number(s)

Type

Dimming

white, 3000 K, system 13.7 W, 97 lm/W, length 609 mm

non DIM

white, 3000 K, system 13.7 W, 97 lm/W, length 609 mm

DALI-2

white, 4000 K, system 13.7 W, 102 lm/W, length 609 mm

non DIM

white, 4000 K, system 13.7 W, 102 lm/W, length 609 mm

DALI-2

white, 3000 K, system 27.5 W, 96 lm/W, length 1,209 mm

non DIM

white, 3000 K, system 27.5 W, 96 lm/W, length 1,209 mm

DALI-2

white, 4000 K, system 27.5 W, 102 lm/W, length 1,209 mm

non DIM

white, 4000 K, system 27.5 W, 102 lm/W, length 1,209 mm

DALI-2

white, 3000 K, system 41 W, 97 lm/W, length 1,809 mm

non DIM

white, 3000 K, system 41 W, 97 lm/W, length 1,809 mm

DALI-2

white, 4000 K, system 41 W, 103 lm/W, length 1,809 mm

non DIM

white, 4000 K, system 41 W, 103 lm/W, length 1,809 mm

DALI-2

white, 3000 K, system 55 W, 97 lm/W, length 2,409 mm

non DIM

white, 3000 K, system 55 W, 97 lm/W, length 2,409 mm

DALI-2

white, 4000 K, system 55 W, 102 lm/W, length 2,409 mm

non DIM

white, 4000 K, system 55 W, 102 lm/W, length 2,409 mm

DALI-2

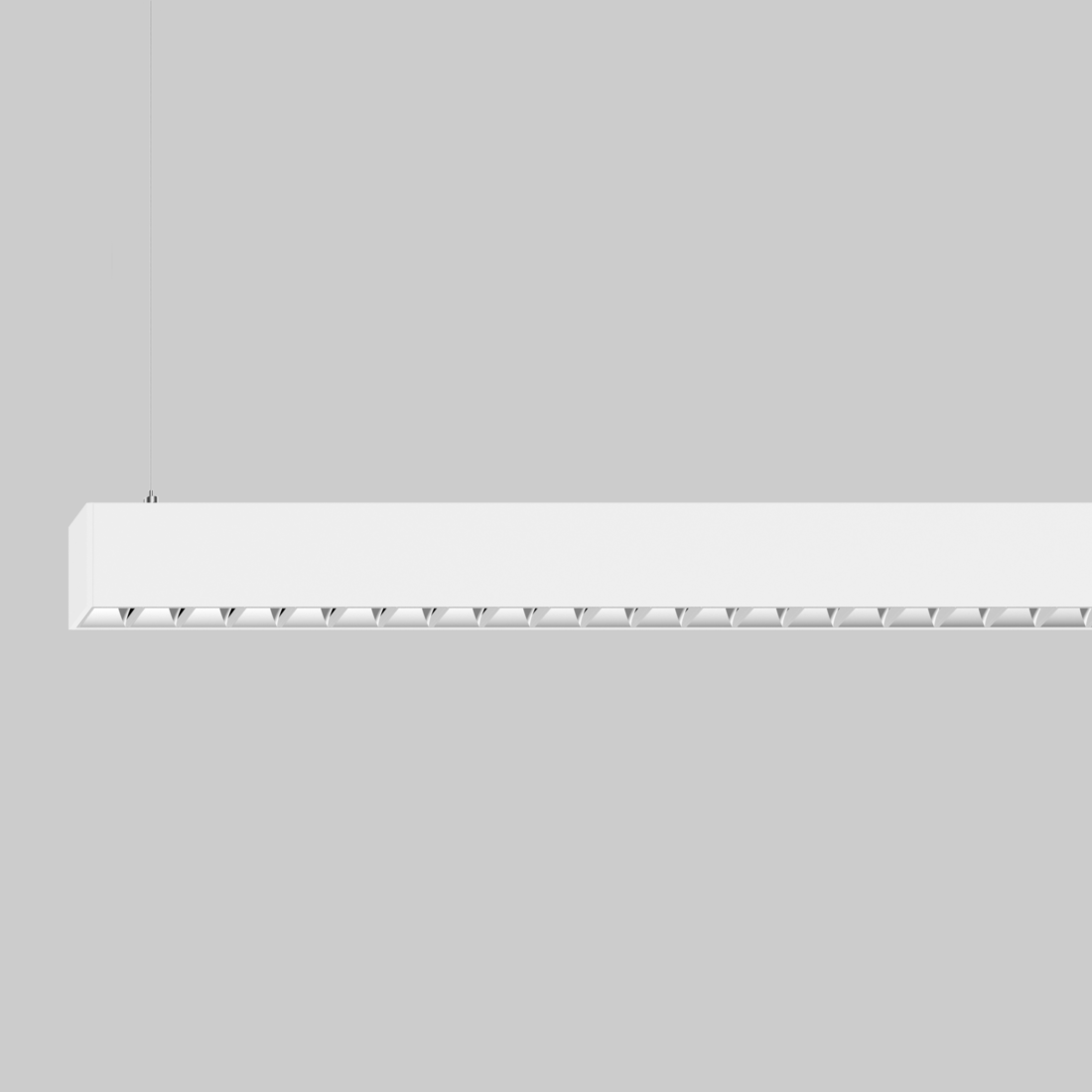

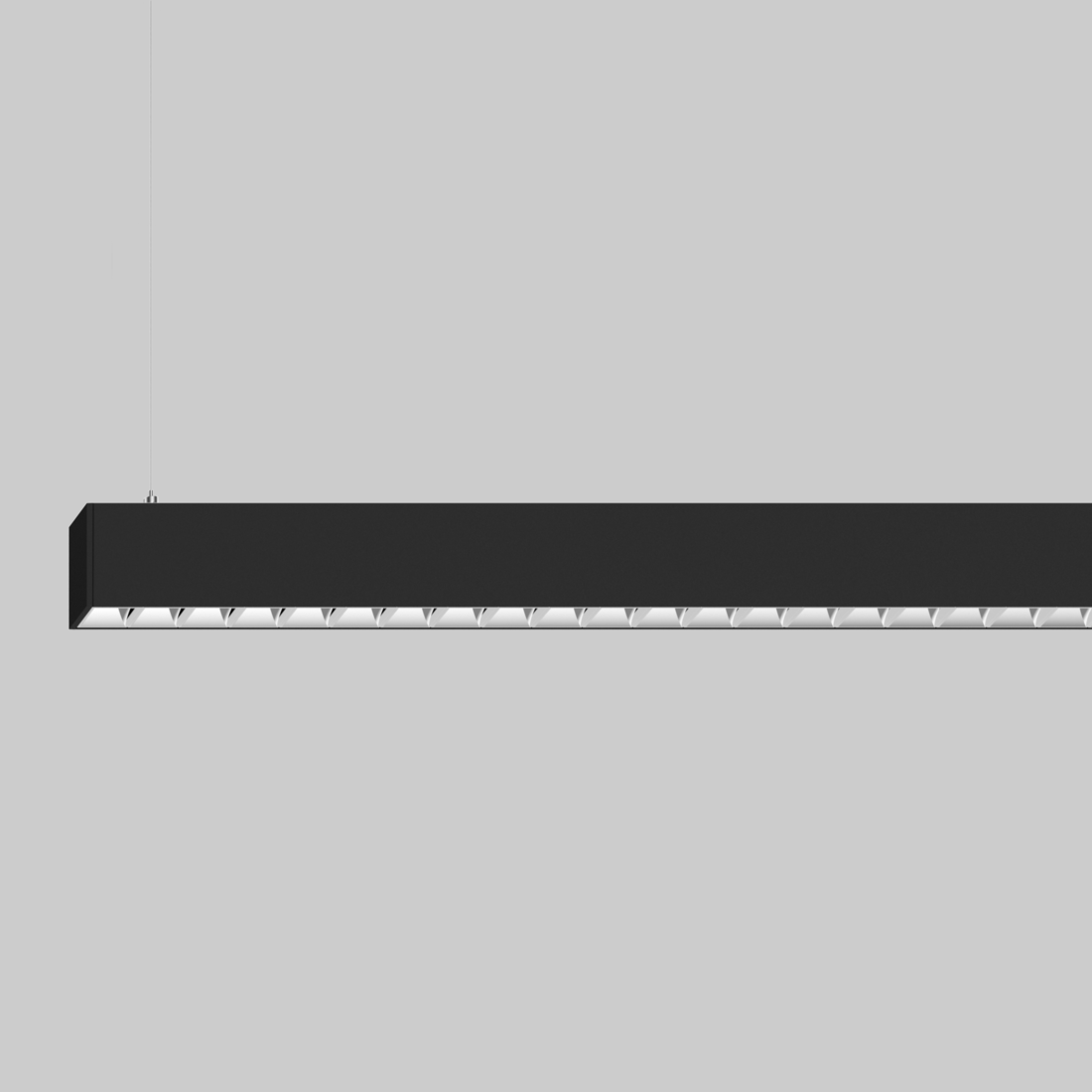

BASO 40 reflector suspended

Status

Article number(s)

Type

Dimming

black, 3000 K, system 20.2 W, 102 lm/W, length 609 mm

non DIM

black, 3000 K, system 20.2 W, 102 lm/W, length 609 mm

DALI-2

black, 4000 K, system 20.2 W, 108 lm/W, length 609 mm

non DIM

black, 4000 K, system 20.2 W, 108 lm/W, length 609 mm

DALI-2

black, 3000 K, system 40 W, 103 lm/W, length 1,209 mm

non DIM

black, 3000 K, system 40 W, 103 lm/W, length 1,209 mm

DALI-2

black, 4000 K, system 40 W, 109 lm/W, length 1,209 mm

non DIM

black, 4000 K, system 40 W, 109 lm/W, length 1,209 mm

DALI-2

black, 3000 K, system 61 W, 101 lm/W, length 1,809 mm

non DIM

black, 3000 K, system 61 W, 101 lm/W, length 1,809 mm

DALI-2

black, 4000 K, system 61 W, 107 lm/W, length 1,809 mm

non DIM

black, 4000 K, system 61 W, 107 lm/W, length 1,809 mm

DALI-2

black, 3000 K, system 81 W, 102 lm/W, length 2,409 mm

non DIM

black, 3000 K, system 81 W, 102 lm/W, length 2,409 mm

DALI-2

black, 4000 K, system 81 W, 108 lm/W, length 2,409 mm

non DIM

black, 4000 K, system 81 W, 108 lm/W, length 2,409 mm

DALI-2

BASO 40 reflector suspended

Status

Article number(s)

Type

Dimming

grey, 3000 K, system 20.2 W, 102 lm/W, length 609 mm

non DIM

grey, 3000 K, system 20.2 W, 102 lm/W, length 609 mm

DALI-2

grey, 4000 K, system 20.2 W, 108 lm/W, length 609 mm

non DIM

grey, 4000 K, system 20.2 W, 108 lm/W, length 609 mm

DALI-2

grey, 3000 K, system 40 W, 103 lm/W, length 1,209 mm

non DIM

grey, 3000 K, system 40 W, 103 lm/W, length 1,209 mm

DALI-2

grey, 4000 K, system 40 W, 109 lm/W, length 1,209 mm

non DIM

grey, 4000 K, system 40 W, 109 lm/W, length 1,209 mm

DALI-2

grey, 3000 K, system 61 W, 101 lm/W, length 1,809 mm

non DIM

grey, 3000 K, system 61 W, 101 lm/W, length 1,809 mm

DALI-2

grey, 4000 K, system 61 W, 107 lm/W, length 1,809 mm

non DIM

grey, 4000 K, system 61 W, 107 lm/W, length 1,809 mm

DALI-2

grey, 3000 K, system 81 W, 102 lm/W, length 2,409 mm

non DIM

grey, 3000 K, system 81 W, 102 lm/W, length 2,409 mm

DALI-2

grey, 4000 K, system 81 W, 108 lm/W, length 2,409 mm

non DIM

grey, 4000 K, system 81 W, 108 lm/W, length 2,409 mm

DALI-2

BASO 40 reflector suspended

Status

Article number(s)

Type

Dimming

white, 3000 K, system 20.2 W, 102 lm/W, length 609 mm

non DIM

white, 3000 K, system 20.2 W, 102 lm/W, length 609 mm

DALI-2

white, 4000 K, system 20.2 W, 108 lm/W, length 609 mm

non DIM

white, 4000 K, system 20.2 W, 108 lm/W, length 609 mm

DALI-2

white, 3000 K, system 40 W, 103 lm/W, length 1,209 mm

non DIM

white, 3000 K, system 40 W, 103 lm/W, length 1,209 mm

DALI-2

white, 4000 K, system 40 W, 109 lm/W, length 1,209 mm

non DIM

white, 4000 K, system 40 W, 109 lm/W, length 1,209 mm

DALI-2

white, 3000 K, system 61 W, 101 lm/W, length 1,809 mm

non DIM

white, 3000 K, system 61 W, 101 lm/W, length 1,809 mm

DALI-2

white, 4000 K, system 61 W, 107 lm/W, length 1,809 mm

non DIM

white, 4000 K, system 61 W, 107 lm/W, length 1,809 mm

DALI-2

white, 3000 K, system 81 W, 102 lm/W, length 2,409 mm

non DIM

white, 3000 K, system 81 W, 102 lm/W, length 2,409 mm

DALI-2

white, 4000 K, system 81 W, 108 lm/W, length 2,409 mm

non DIM

white, 4000 K, system 81 W, 108 lm/W, length 2,409 mm

DALI-2

BASO 40 wallwasher suspended

Status

Article number(s)

Type

Dimming

black, 3000 K, system 13.6 W, 126 lm/W, length 609 mm

non DIM

black, 3000 K, system 13.6 W, 126 lm/W, length 609 mm

DALI-2

black, 4000 K, system 13.6 W, 134 lm/W, length 609 mm

non DIM

black, 4000 K, system 13.6 W, 134 lm/W, length 609 mm

DALI-2

black, 3000 K, system 27.1 W, 127 lm/W, length 1,209 mm

non DIM

black, 3000 K, system 27.1 W, 127 lm/W, length 1,209 mm

DALI-2

black, 4000 K, system 27.1 W, 134 lm/W, length 1,209 mm

non DIM

black, 4000 K, system 27.1 W, 134 lm/W, length 1,209 mm

DALI-2

black, 3000 K, system 41 W, 126 lm/W, length 1,809 mm

non DIM

black, 3000 K, system 41 W, 126 lm/W, length 1,809 mm

DALI-2

black, 4000 K, system 41 W, 133 lm/W, length 1,809 mm

non DIM

black, 4000 K, system 41 W, 133 lm/W, length 1,809 mm

DALI-2

black, 3000 K, system 54 W, 127 lm/W, length 2,409 mm

non DIM

black, 3000 K, system 54 W, 127 lm/W, length 2,409 mm

DALI-2

black, 4000 K, system 54 W, 135 lm/W, length 2,409 mm

non DIM

black, 4000 K, system 54 W, 135 lm/W, length 2,409 mm

DALI-2

BASO 40 wallwasher suspended

Status

Article number(s)

Type

Dimming

grey, 3000 K, system 13.6 W, 126 lm/W, length 609 mm

non DIM

grey, 3000 K, system 13.6 W, 126 lm/W, length 609 mm

DALI-2

grey, 4000 K, system 13.6 W, 134 lm/W, length 609 mm

non DIM

grey, 4000 K, system 13.6 W, 134 lm/W, length 609 mm

DALI-2

grey, 3000 K, system 27.1 W, 127 lm/W, length 1,209 mm

non DIM

grey, 3000 K, system 27.1 W, 127 lm/W, length 1,209 mm

DALI-2

grey, 4000 K, system 27.1 W, 134 lm/W, length 1,209 mm

non DIM

grey, 4000 K, system 27.1 W, 134 lm/W, length 1,209 mm

DALI-2

grey, 3000 K, system 41 W, 126 lm/W, length 1,809 mm

non DIM

grey, 3000 K, system 41 W, 126 lm/W, length 1,809 mm

DALI-2

grey, 4000 K, system 41 W, 133 lm/W, length 1,809 mm

non DIM

grey, 4000 K, system 41 W, 133 lm/W, length 1,809 mm

DALI-2

grey, 3000 K, system 54 W, 127 lm/W, length 2,409 mm

non DIM

grey, 3000 K, system 54 W, 127 lm/W, length 2,409 mm

DALI-2

grey, 4000 K, system 54 W, 135 lm/W, length 2,409 mm

non DIM

grey, 4000 K, system 54 W, 135 lm/W, length 2,409 mm

DALI-2

BASO 40 wallwasher suspended

Status

Article number(s)

Type

Dimming

white, 3000 K, system 13.6 W, 126 lm/W, length 609 mm

non DIM

white, 3000 K, system 13.6 W, 126 lm/W, length 609 mm

DALI-2

white, 4000 K, system 13.6 W, 134 lm/W, length 609 mm

non DIM

white, 4000 K, system 13.6 W, 134 lm/W, length 609 mm

DALI-2

white, 3000 K, system 27.1 W, 127 lm/W, length 1,209 mm

non DIM

white, 3000 K, system 27.1 W, 127 lm/W, length 1,209 mm

DALI-2

white, 4000 K, system 27.1 W, 134 lm/W, length 1,209 mm

non DIM

white, 4000 K, system 27.1 W, 134 lm/W, length 1,209 mm

DALI-2

white, 3000 K, system 41 W, 126 lm/W, length 1,809 mm

non DIM

white, 3000 K, system 41 W, 126 lm/W, length 1,809 mm

DALI-2

white, 4000 K, system 41 W, 133 lm/W, length 1,809 mm

non DIM

white, 4000 K, system 41 W, 133 lm/W, length 1,809 mm

DALI-2

white, 3000 K, system 54 W, 127 lm/W, length 2,409 mm

non DIM

white, 3000 K, system 54 W, 127 lm/W, length 2,409 mm

DALI-2

white, 4000 K, system 54 W, 135 lm/W, length 2,409 mm

non DIM

white, 4000 K, system 54 W, 135 lm/W, length 2,409 mm

DALI-2

BASO 40 suspended

Quickinfo

Colour

Simple drawing

Light distribution

Product data & specification documents

Description

Products and codes

Colour

BASO 40 microprismatic suspended

BASO 40 microprismatic suspended

BASO 40 microprismatic suspended

BASO 40 microprismatic suspended

BASO 40 microprismatic suspended

BASO 40 microprismatic suspended

BASO 40 opal suspended

BASO 40 opal suspended

BASO 40 opal suspended

BASO 40 opal suspended

BASO 40 opal suspended

BASO 40 opal suspended

BASO 40 reflector suspended

BASO 40 reflector suspended

BASO 40 reflector suspended

BASO 40 reflector suspended

BASO 40 reflector suspended

BASO 40 reflector suspended

BASO 40 wallwasher suspended

BASO 40 wallwasher suspended

BASO 40 wallwasher suspended

BASO 40 wallwasher suspended

BASO 40 wallwasher suspended

BASO 40 wallwasher suspended

Related products
