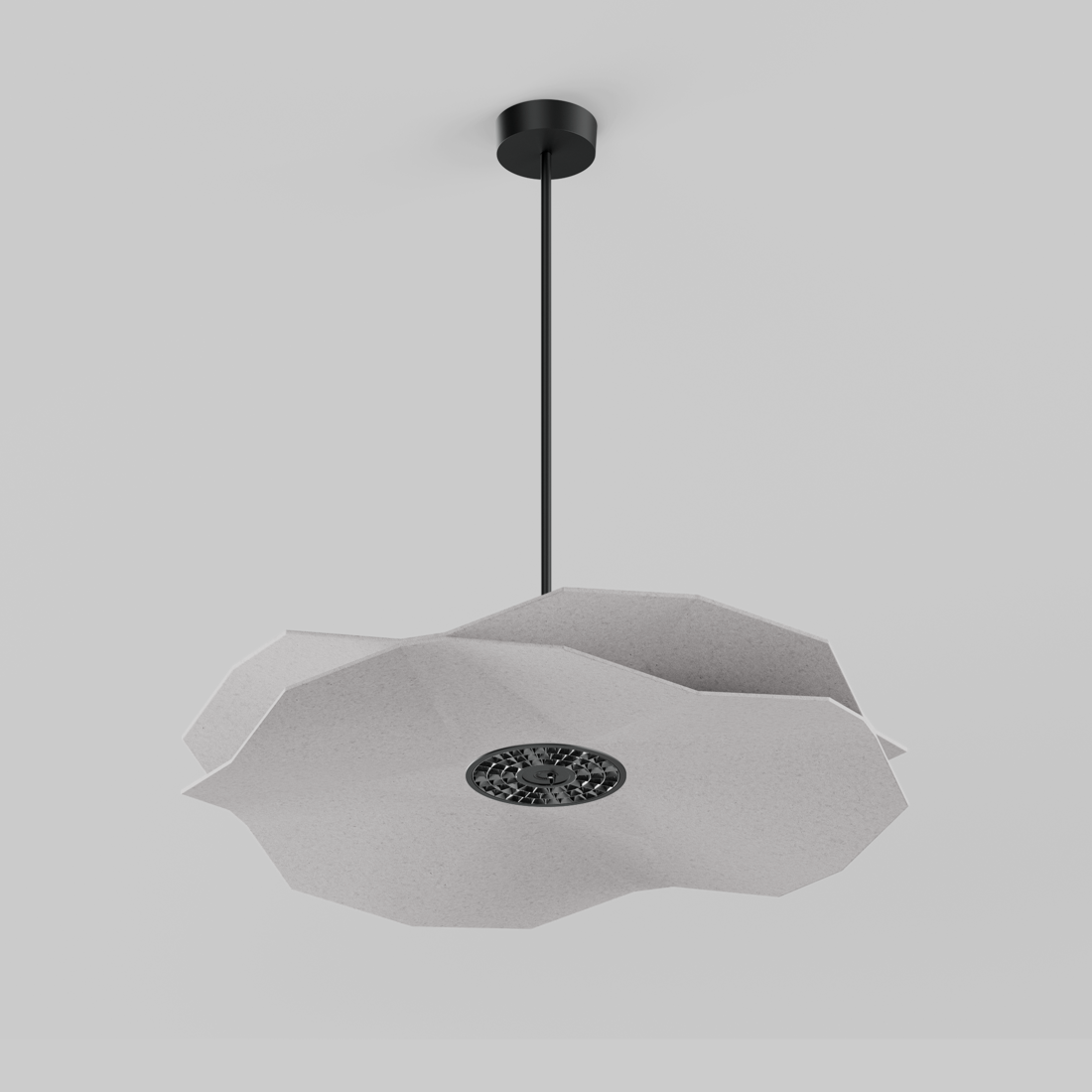

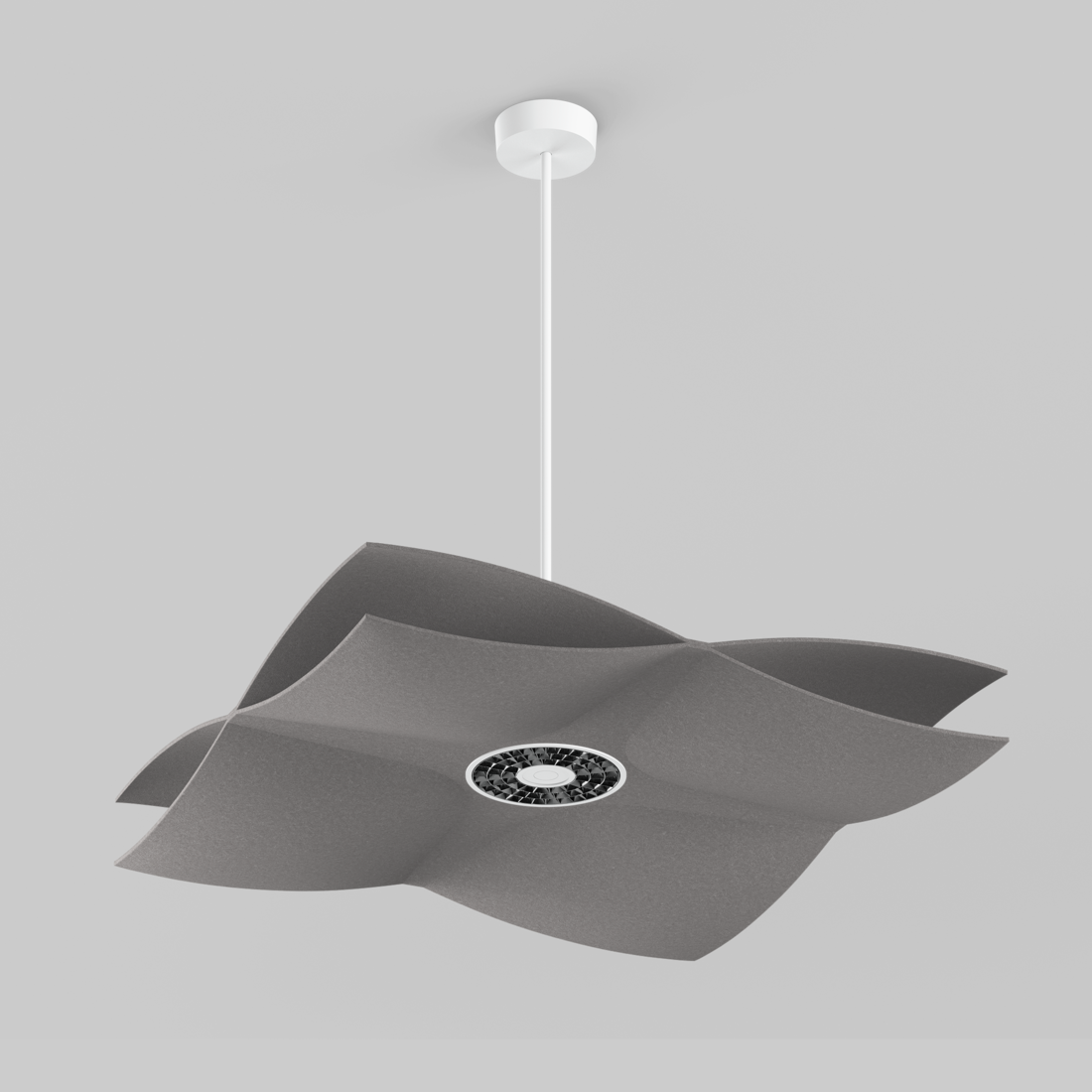

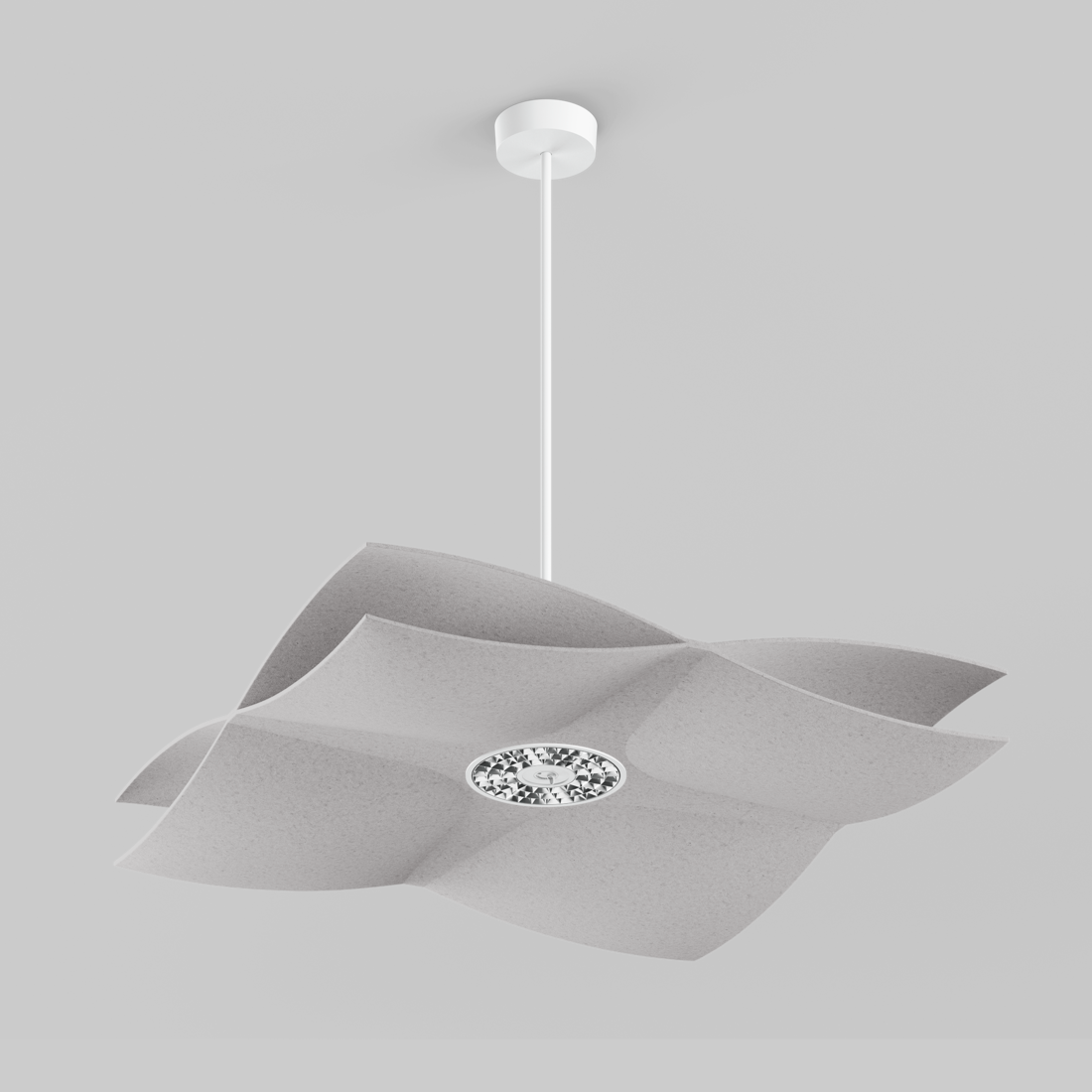

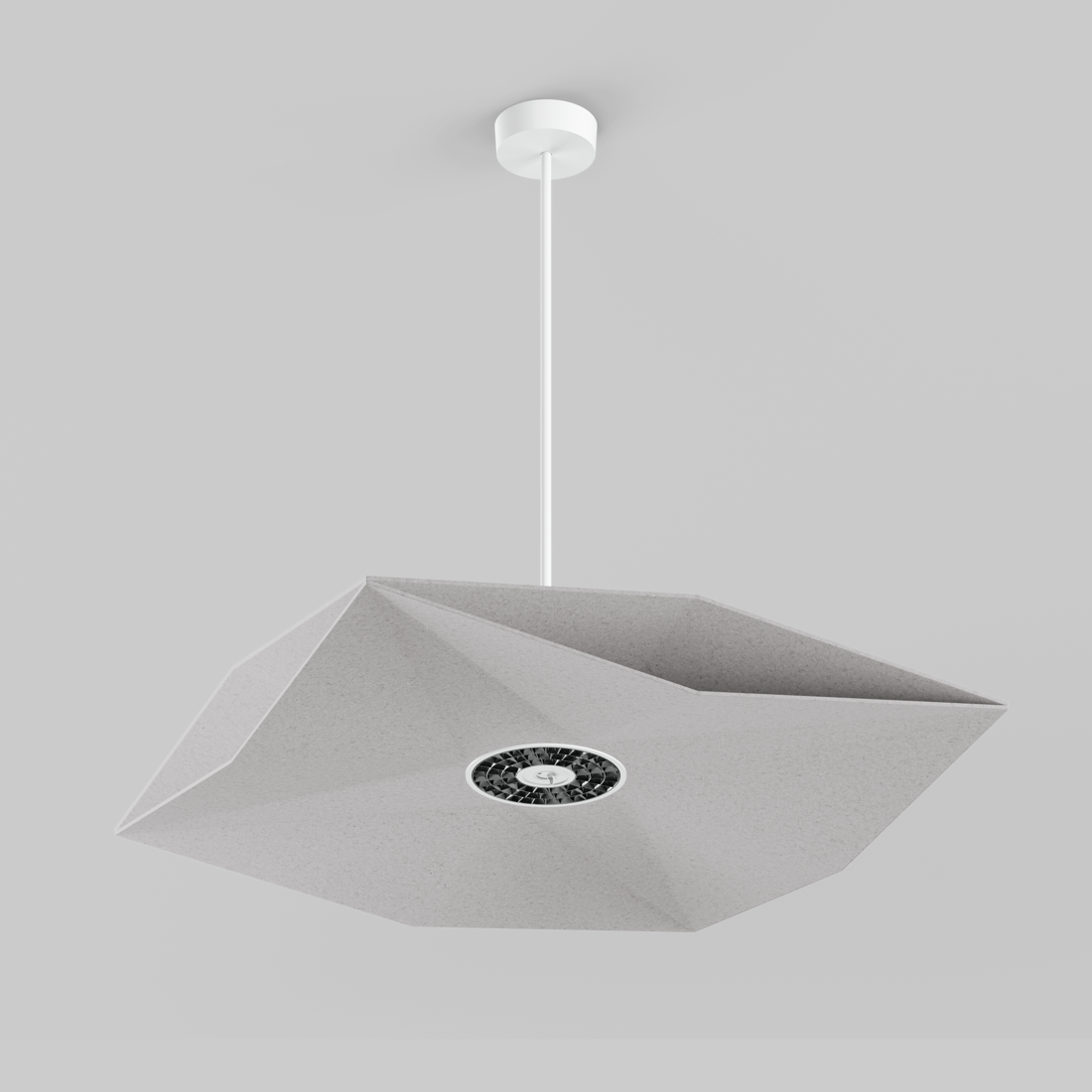

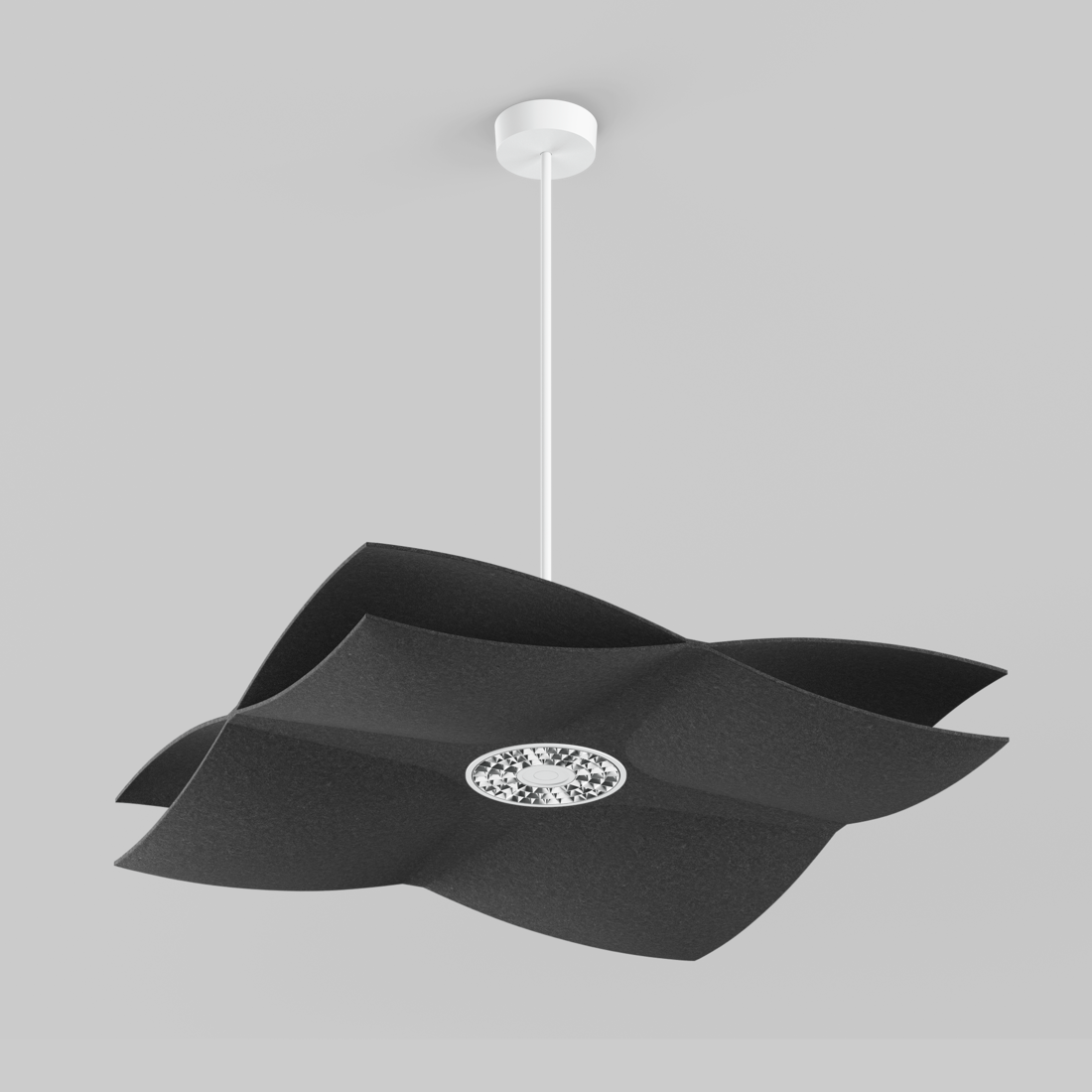

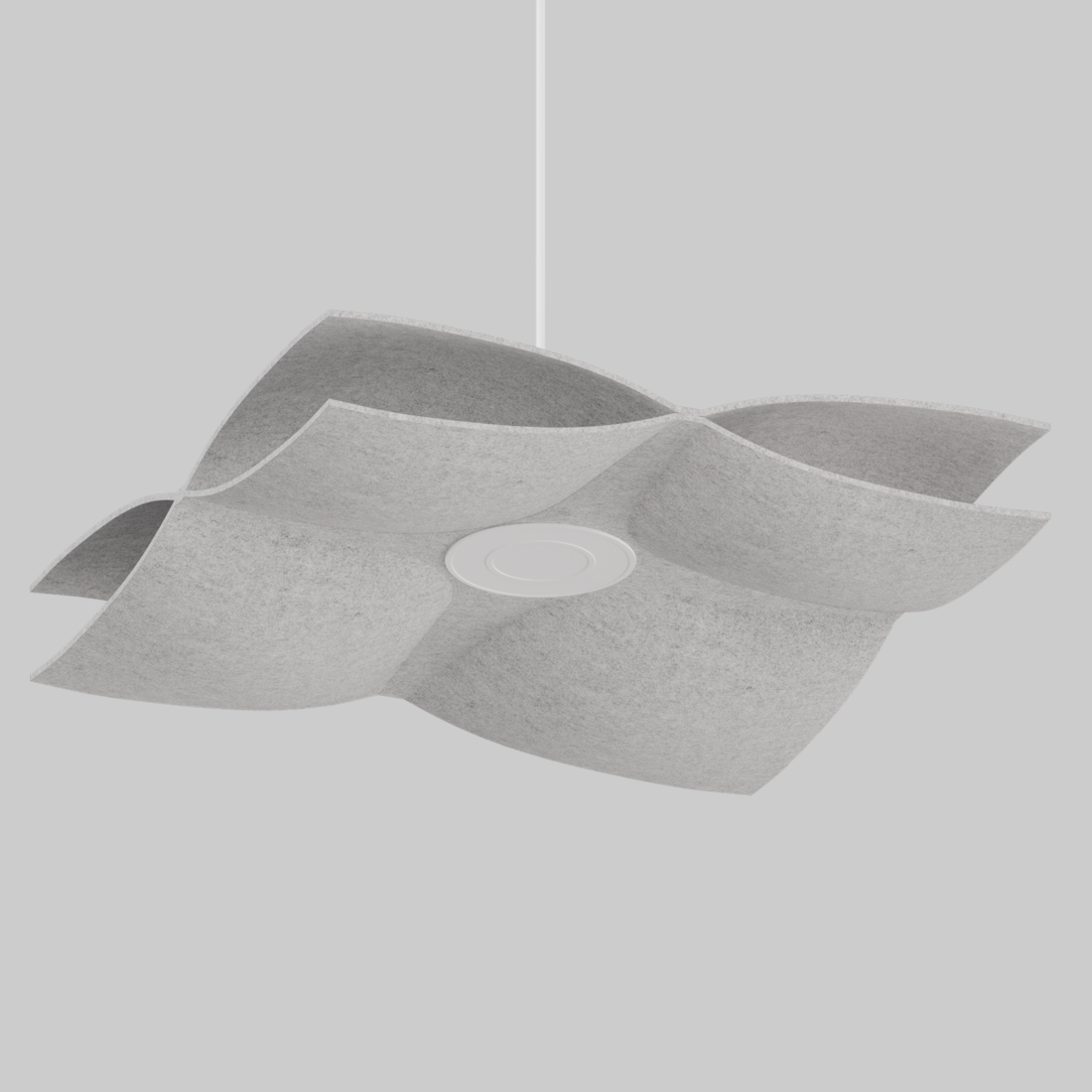

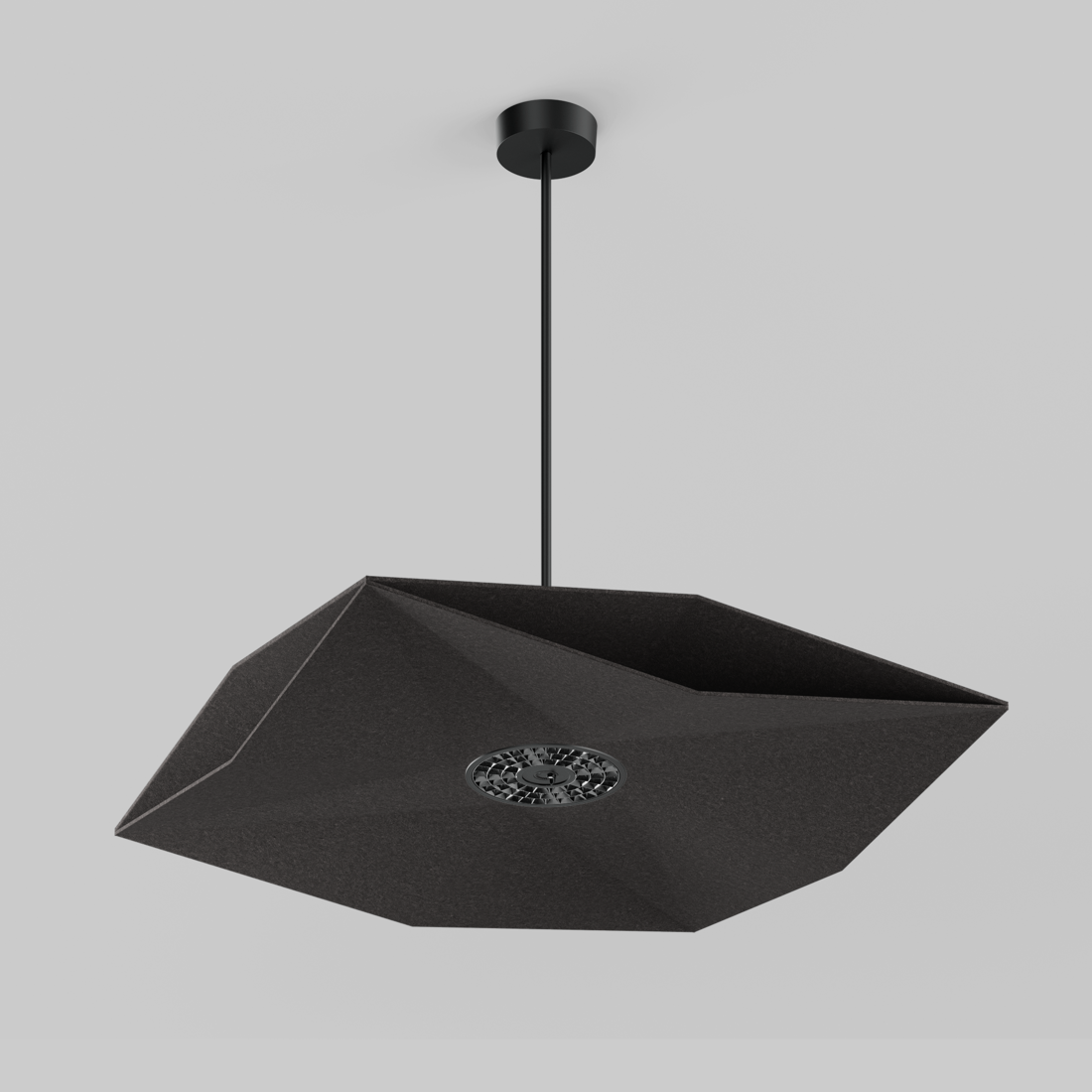

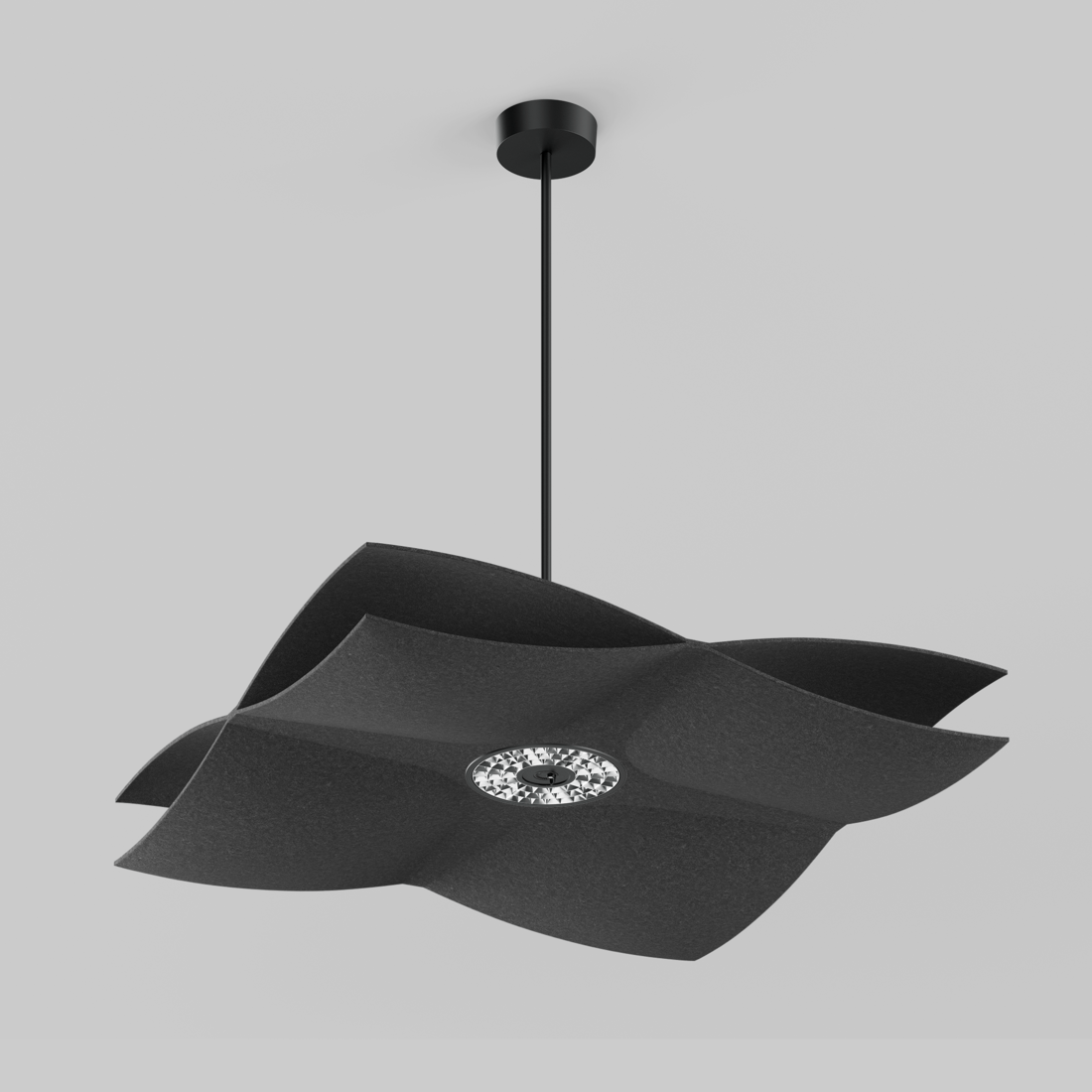

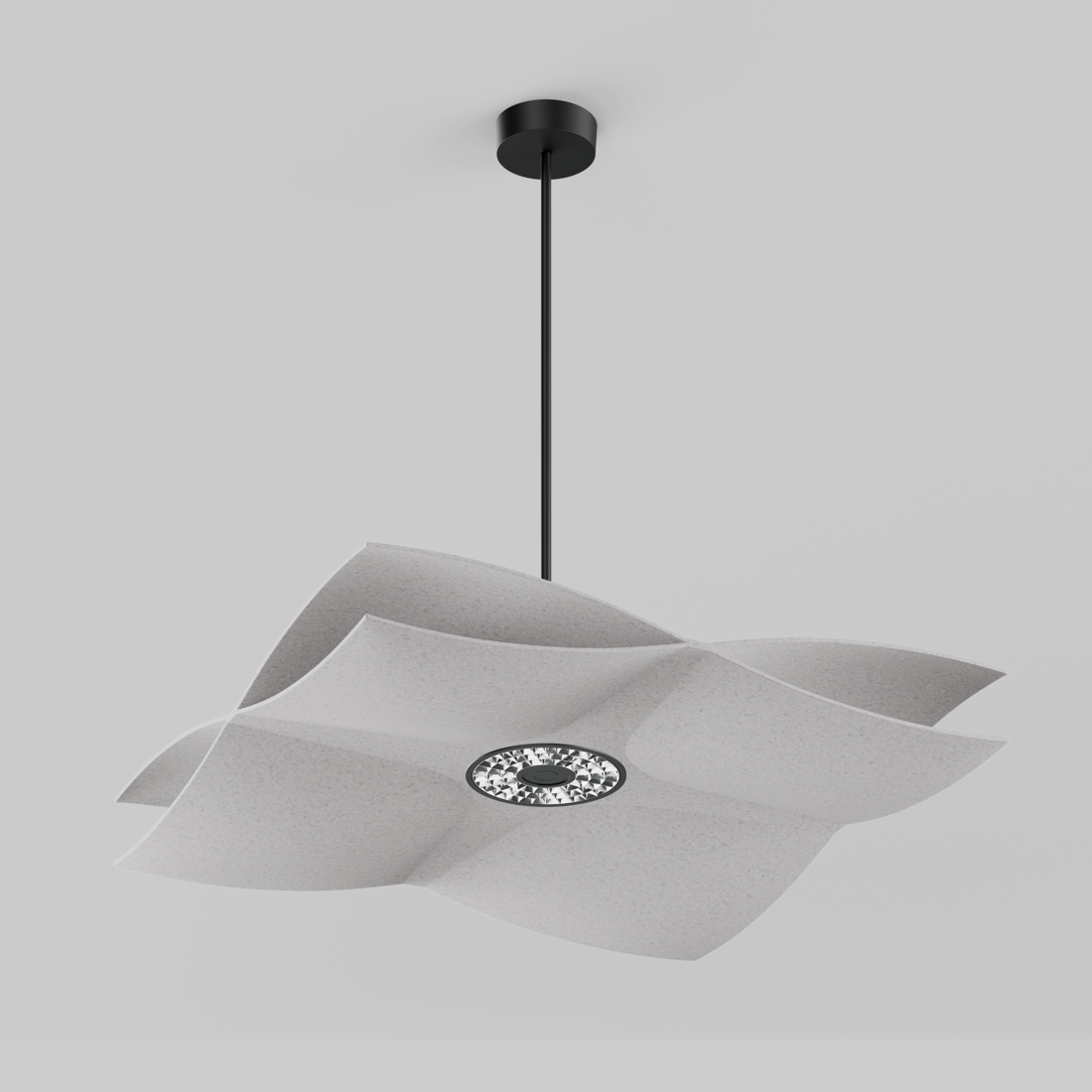

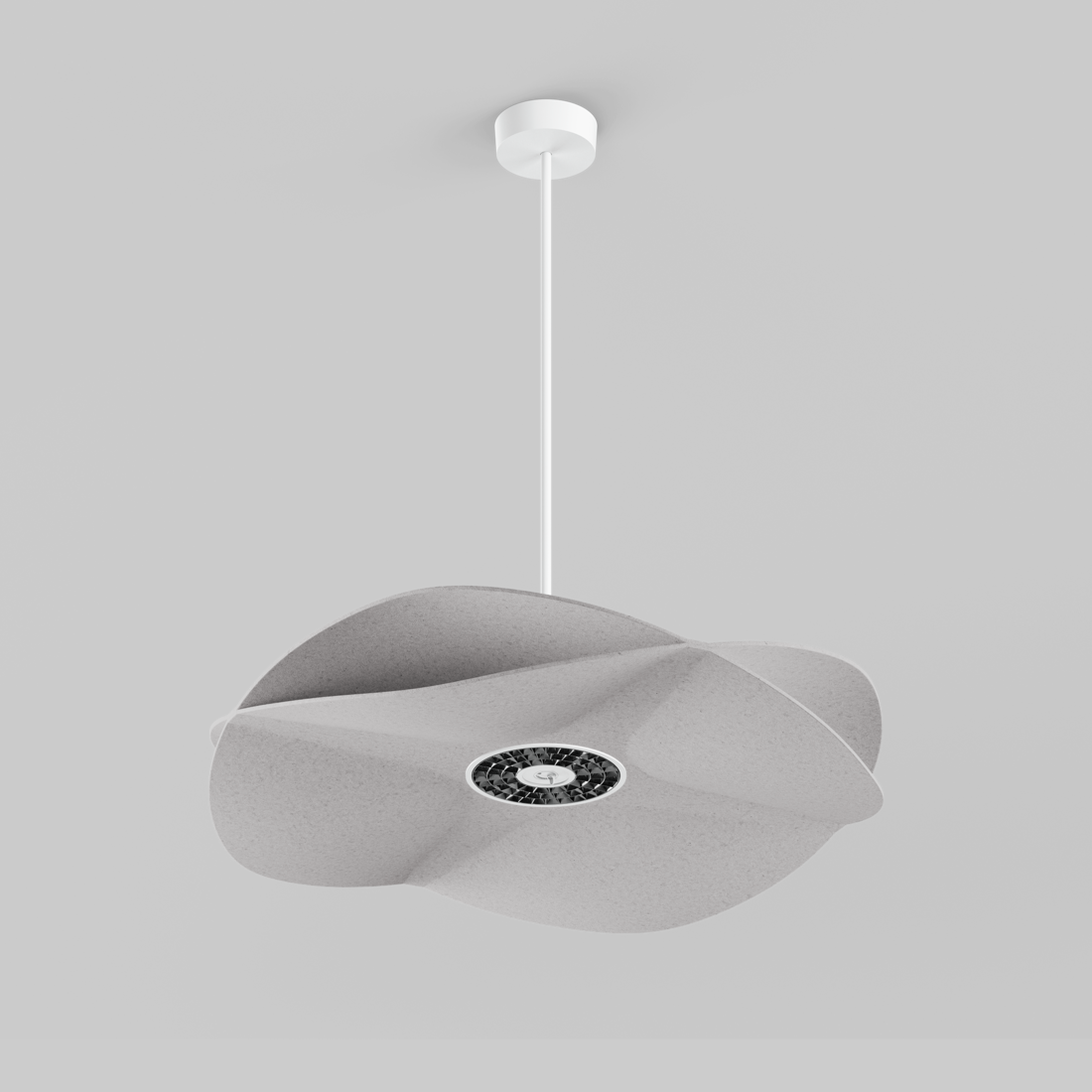

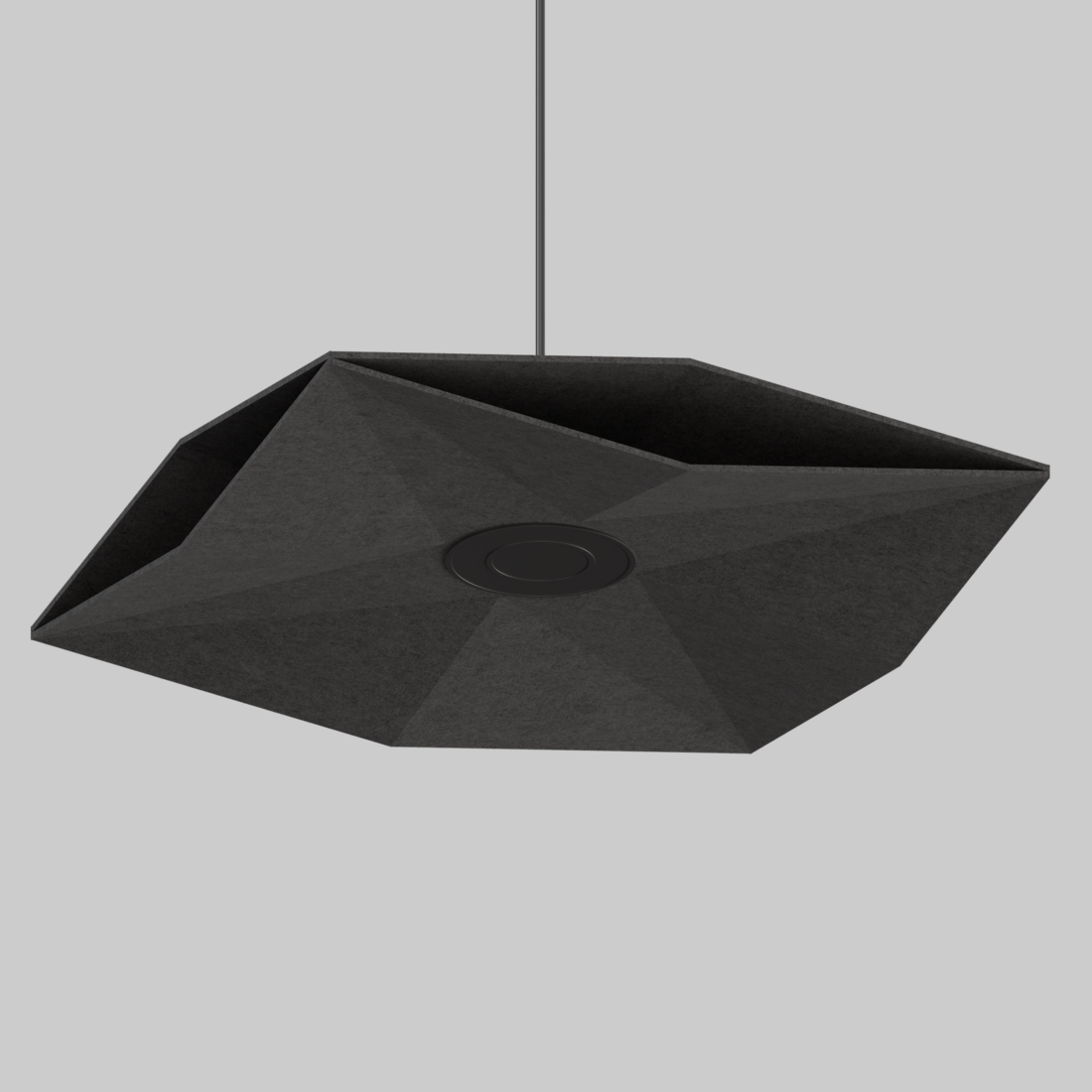

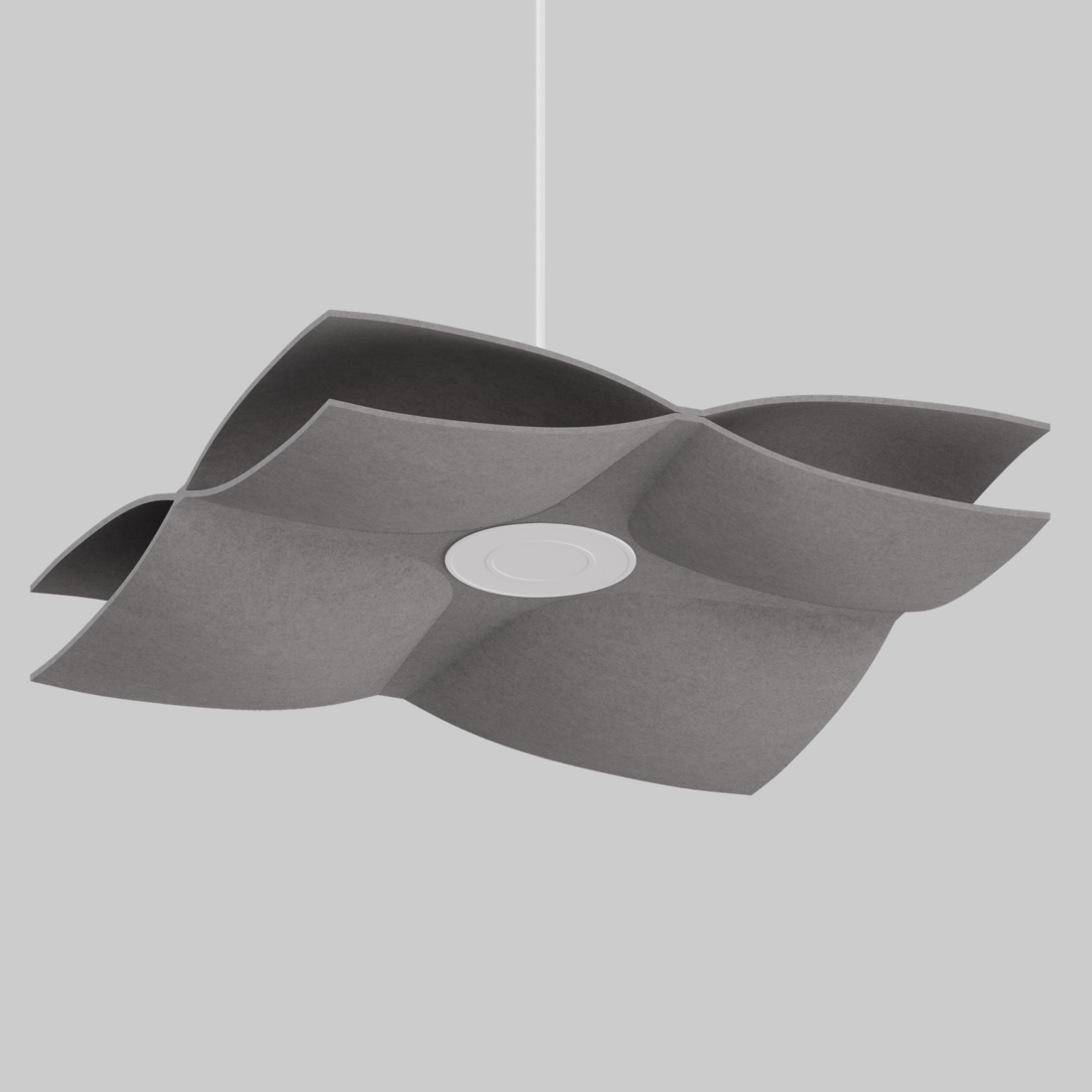

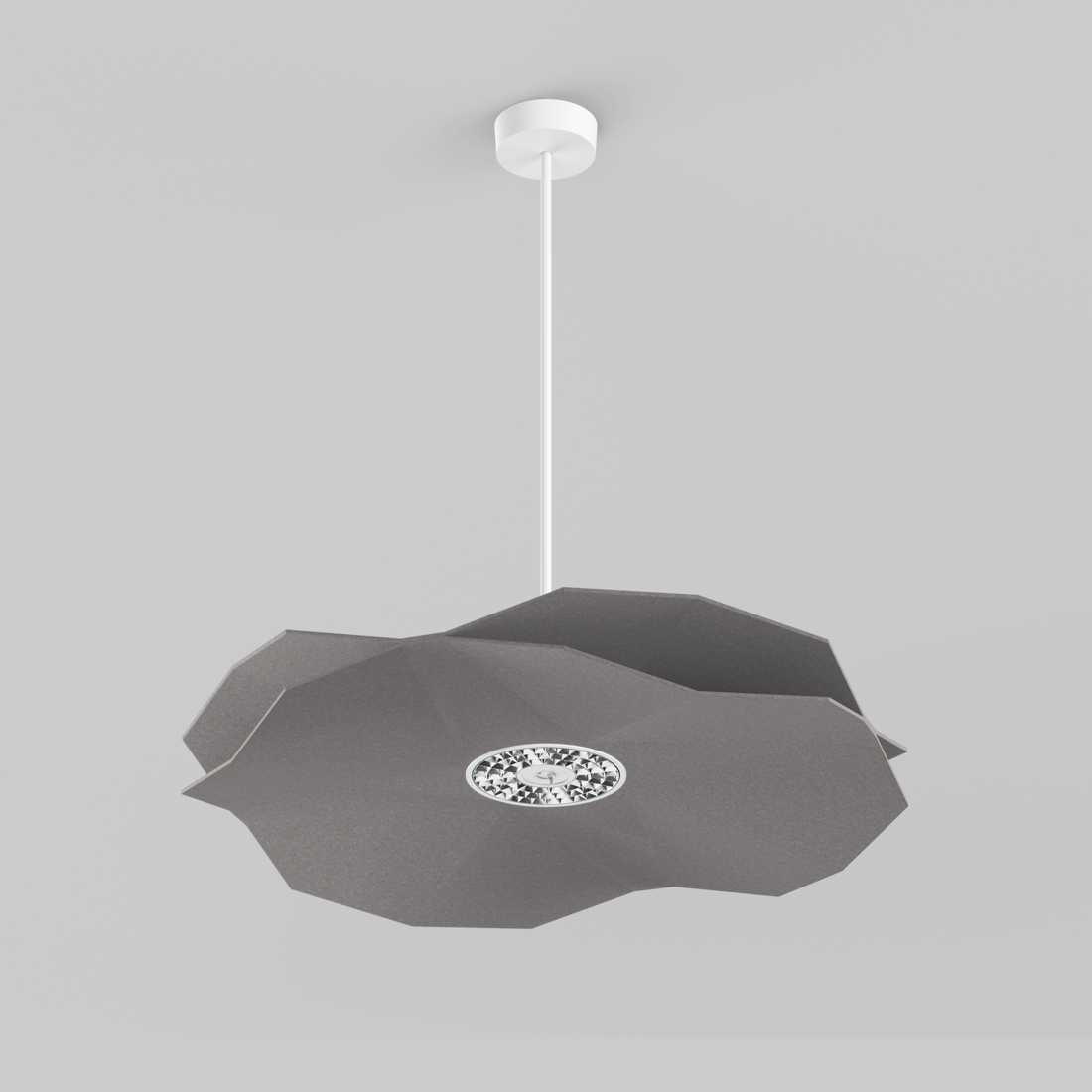

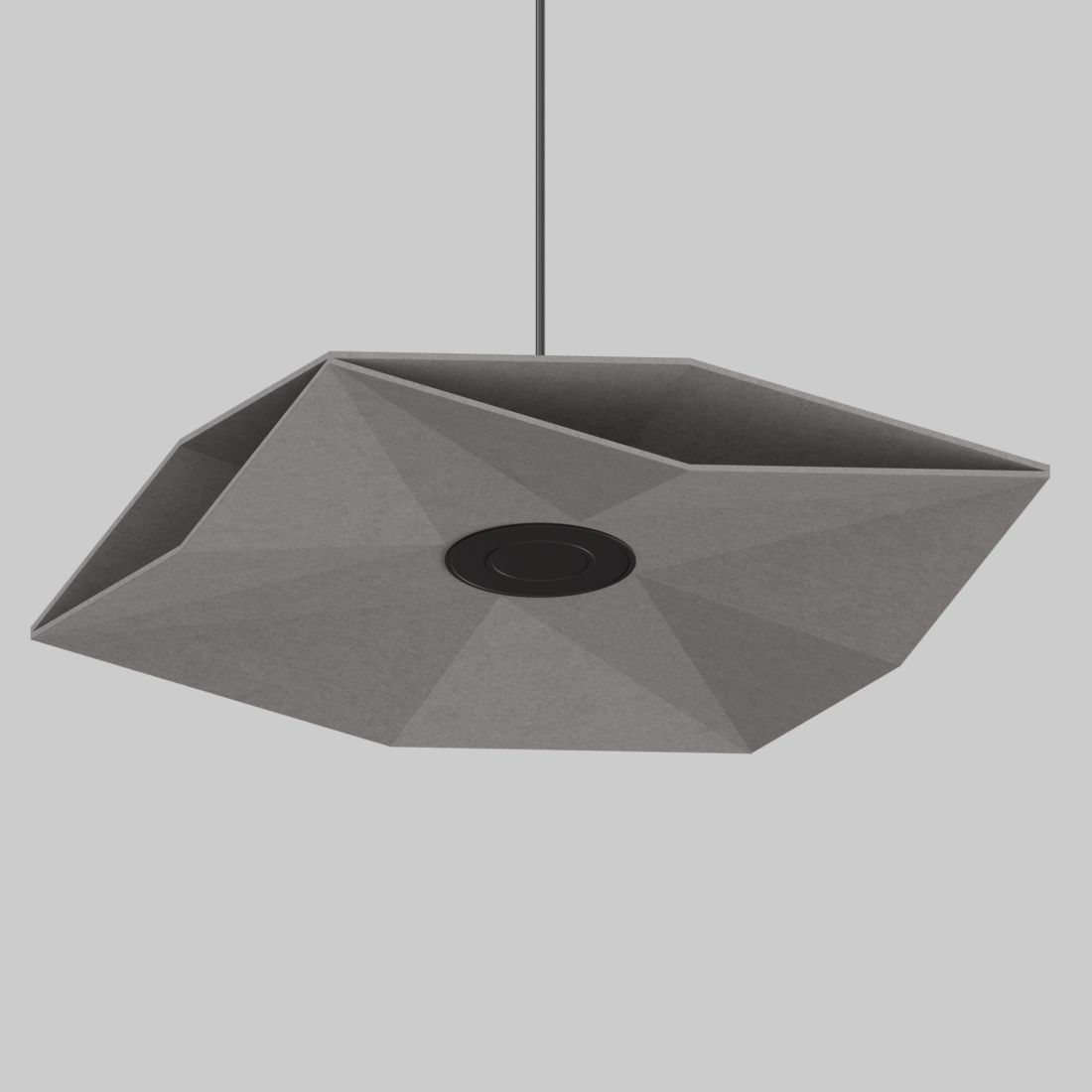

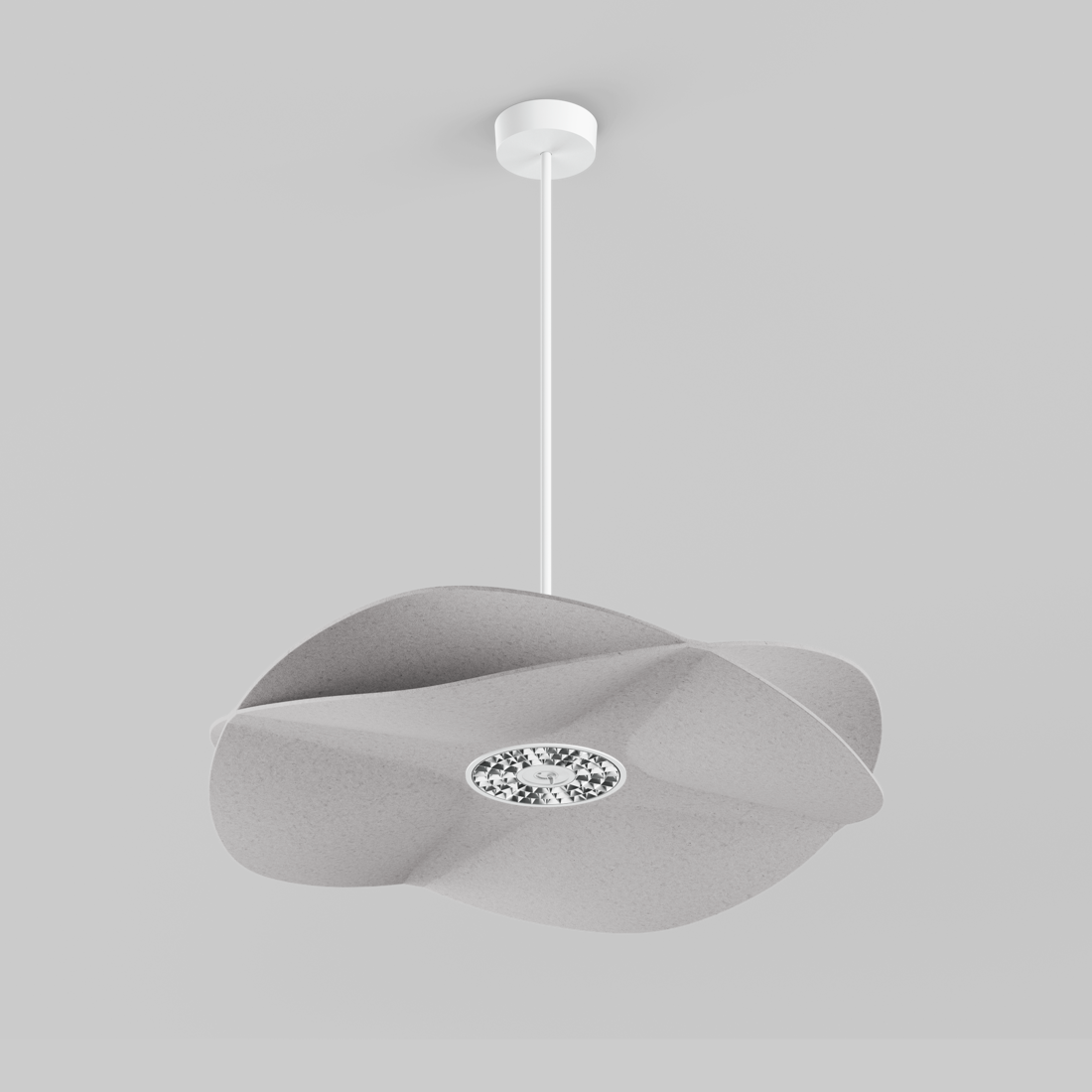

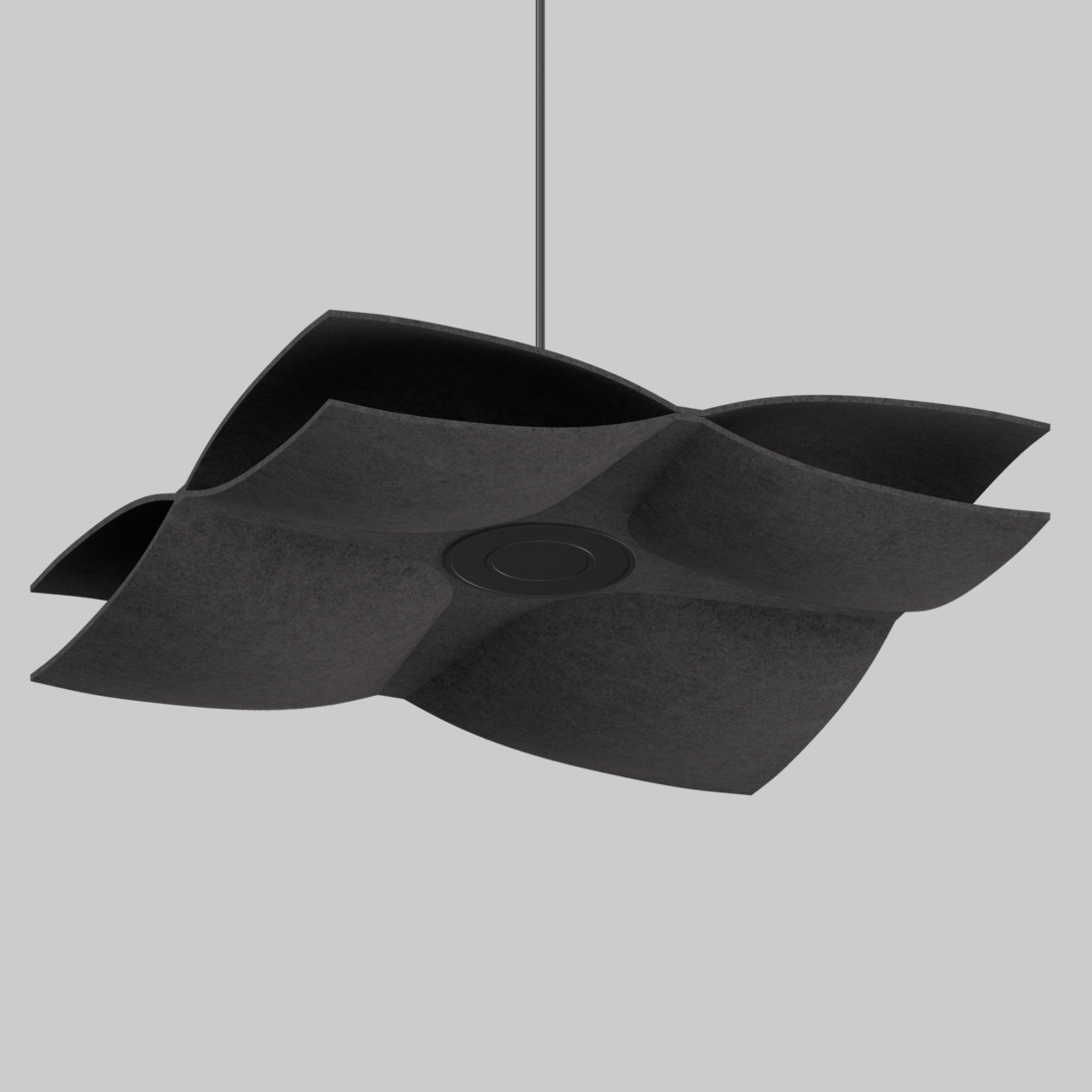

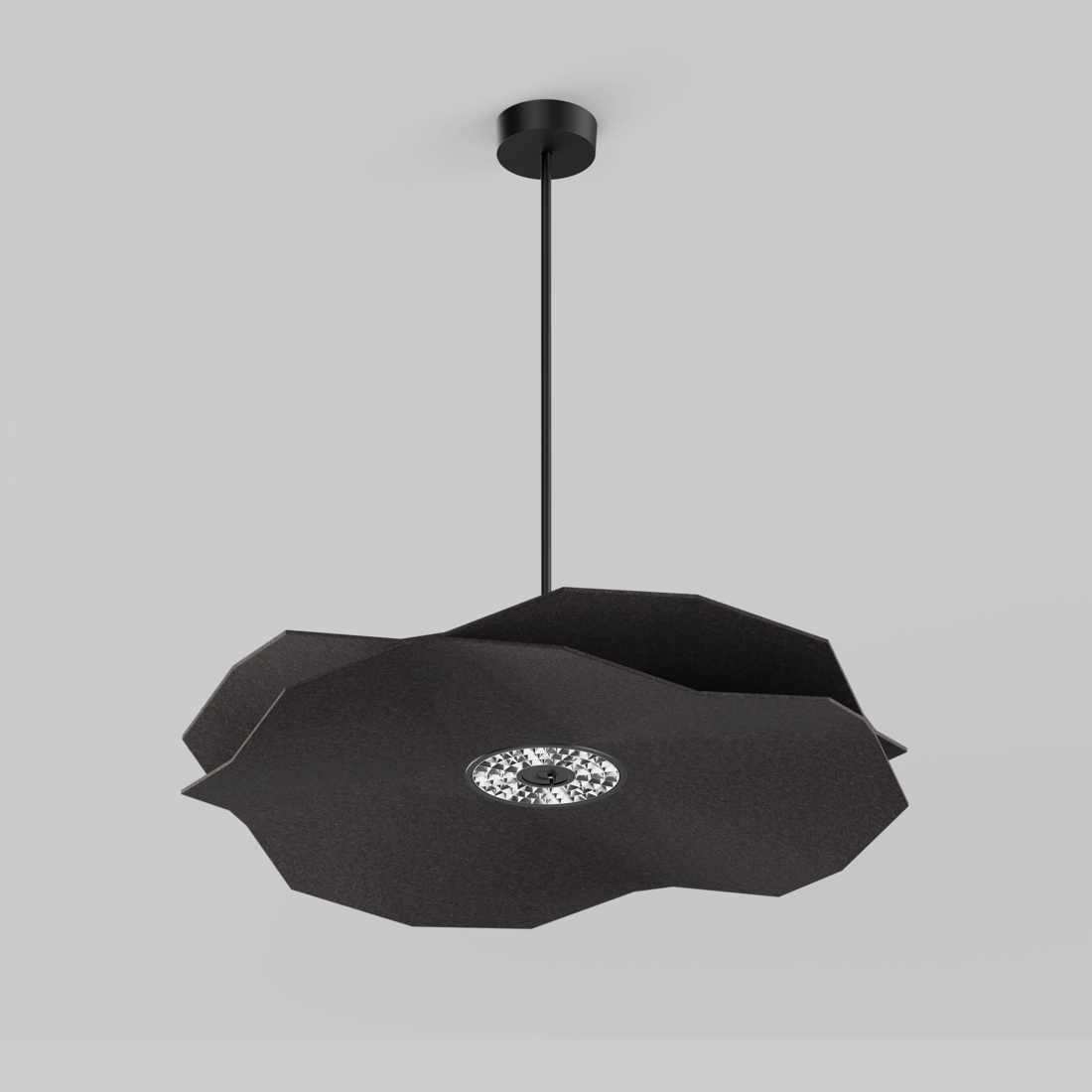

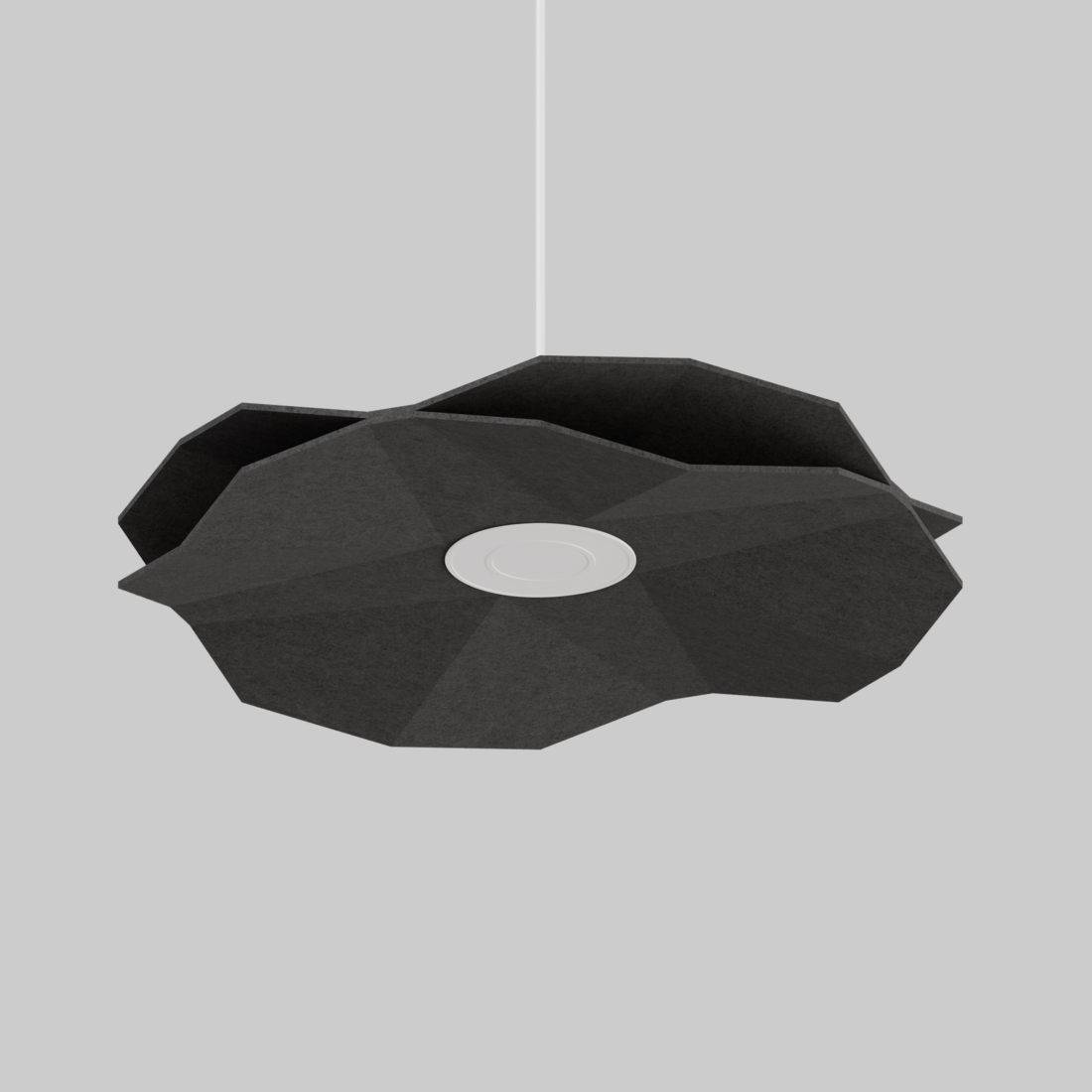

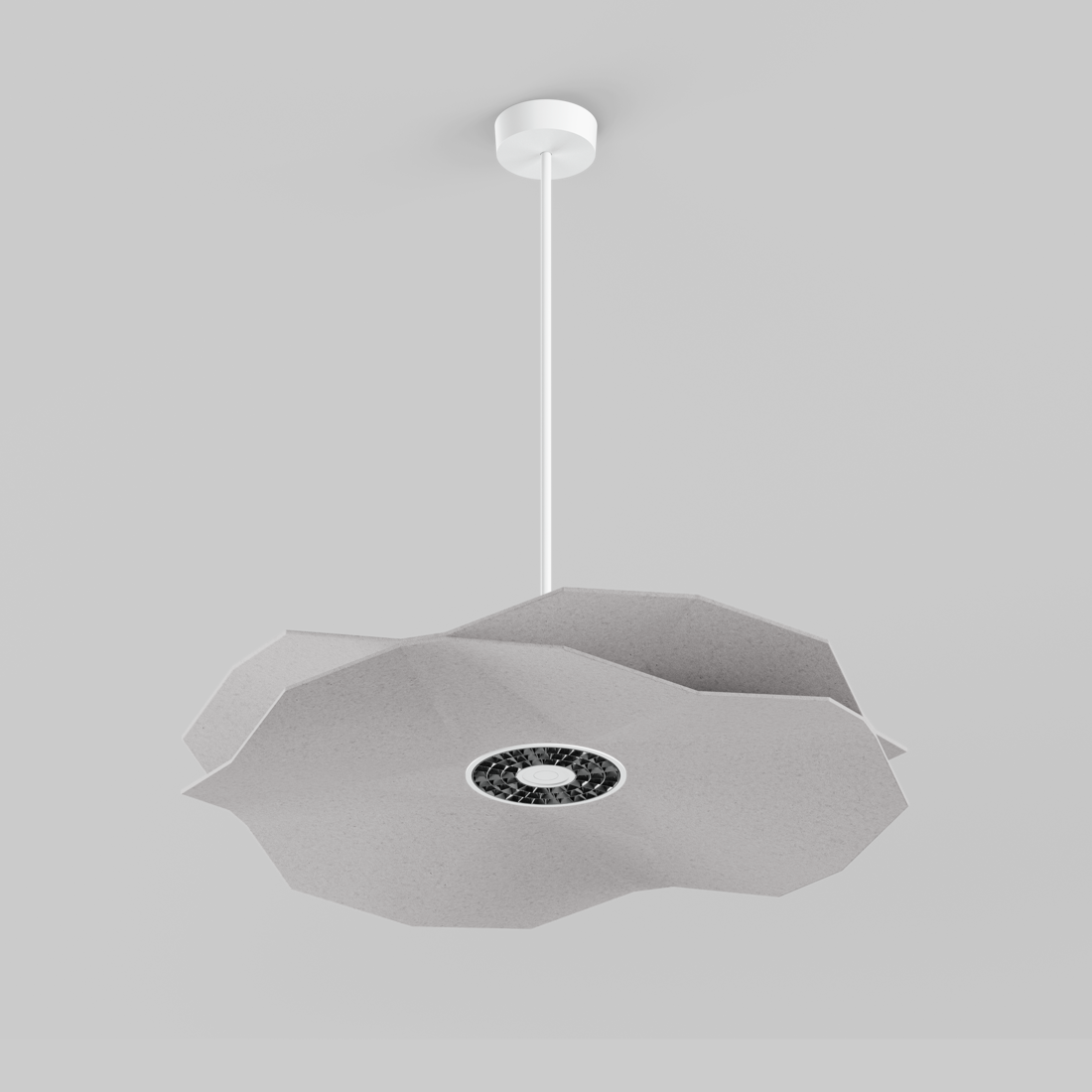

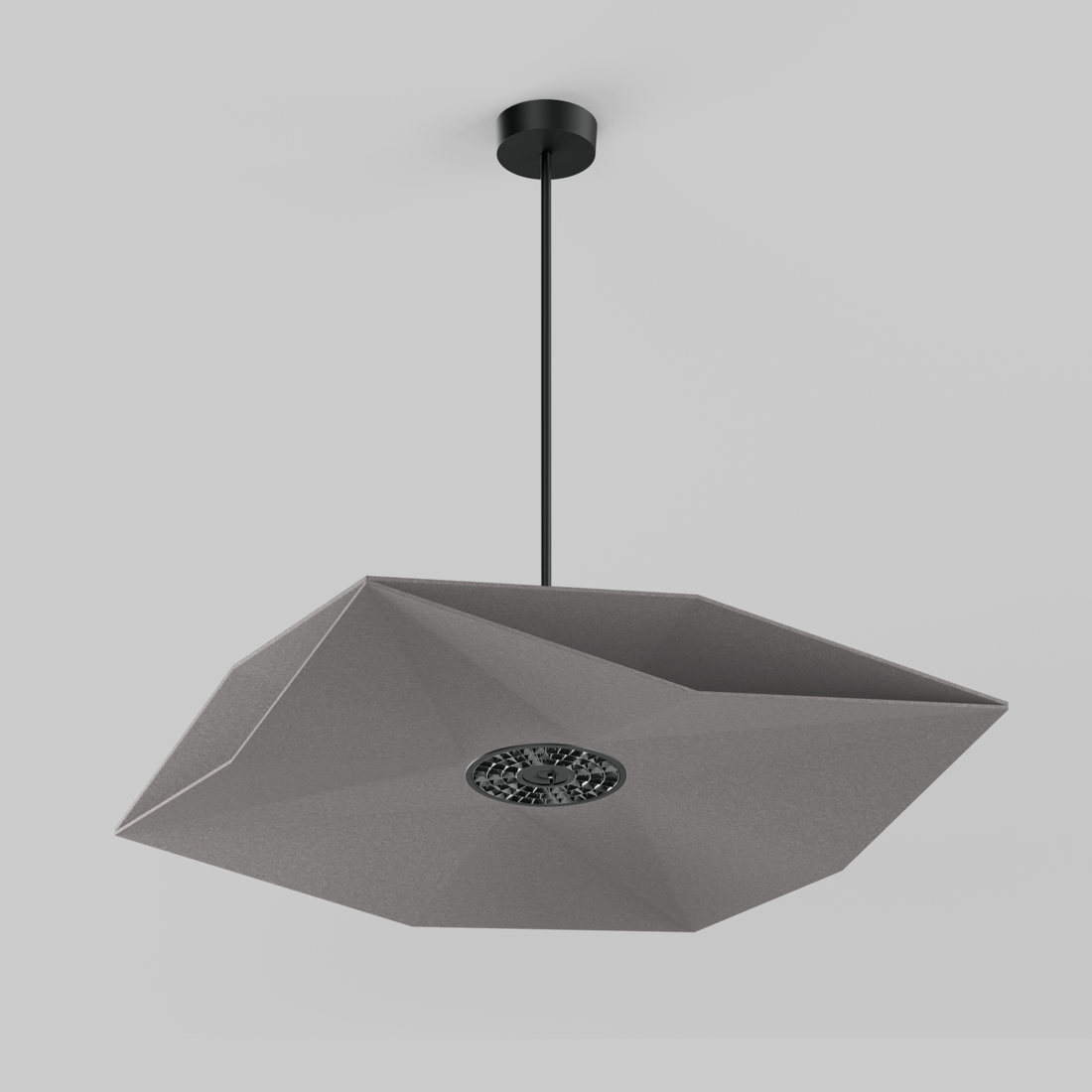

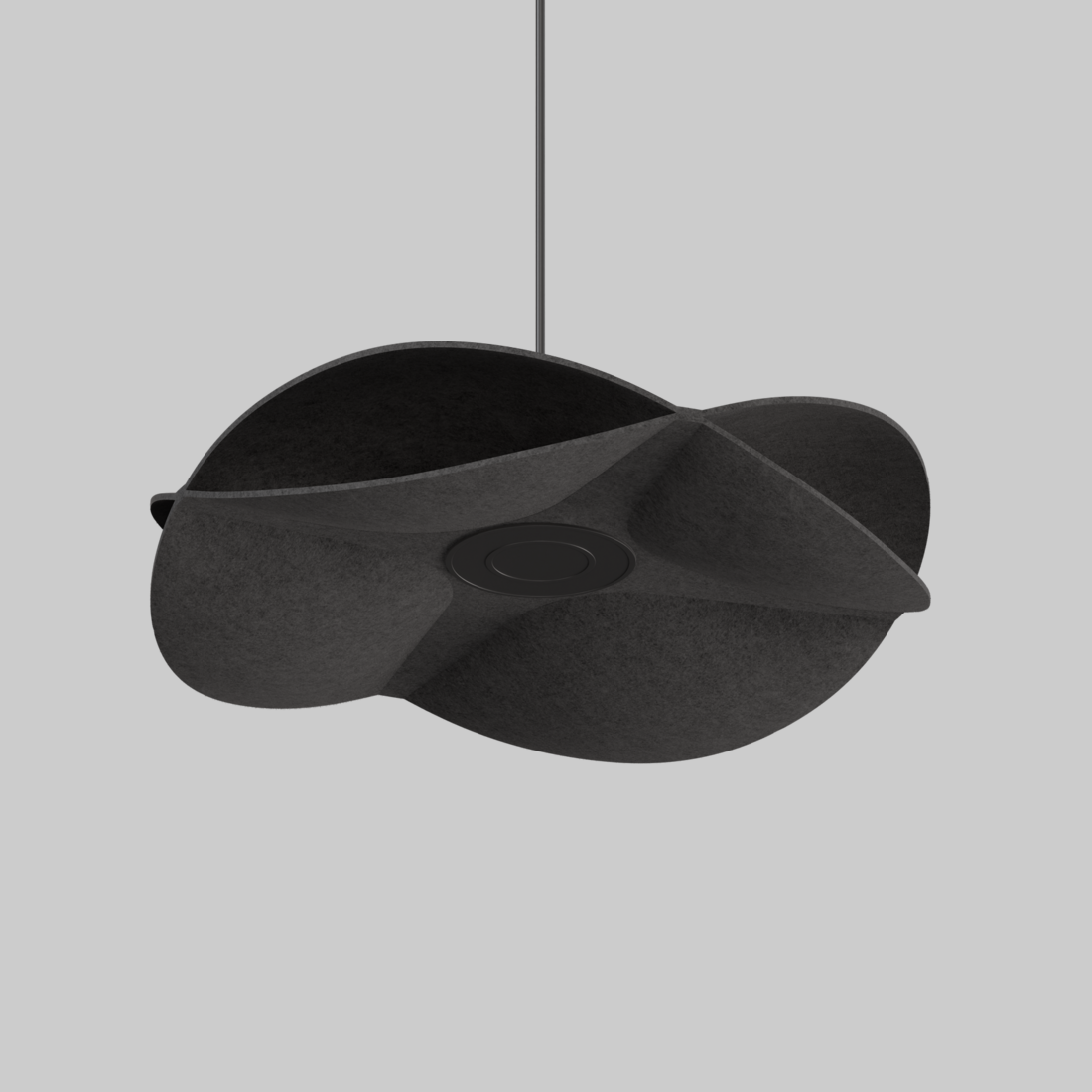

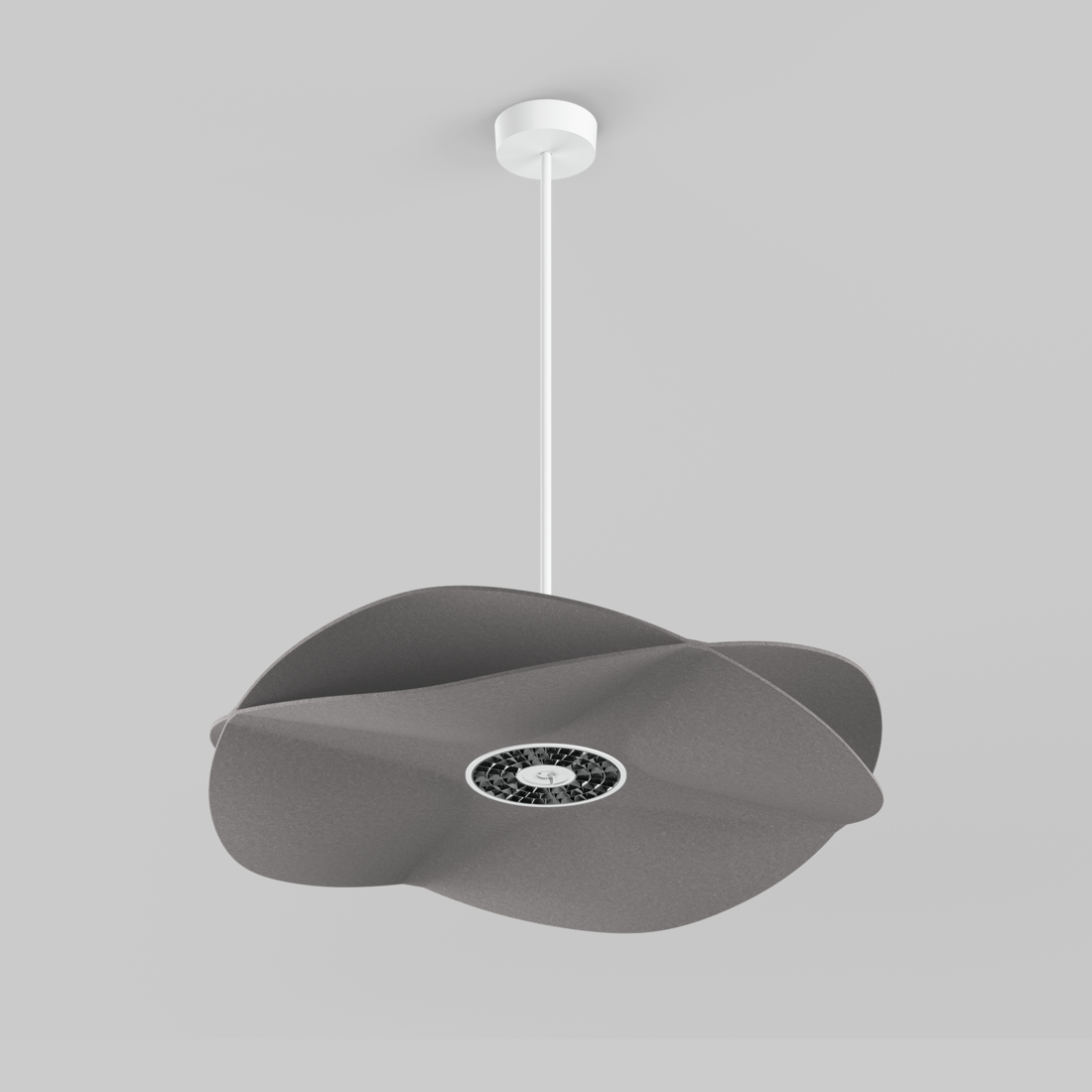

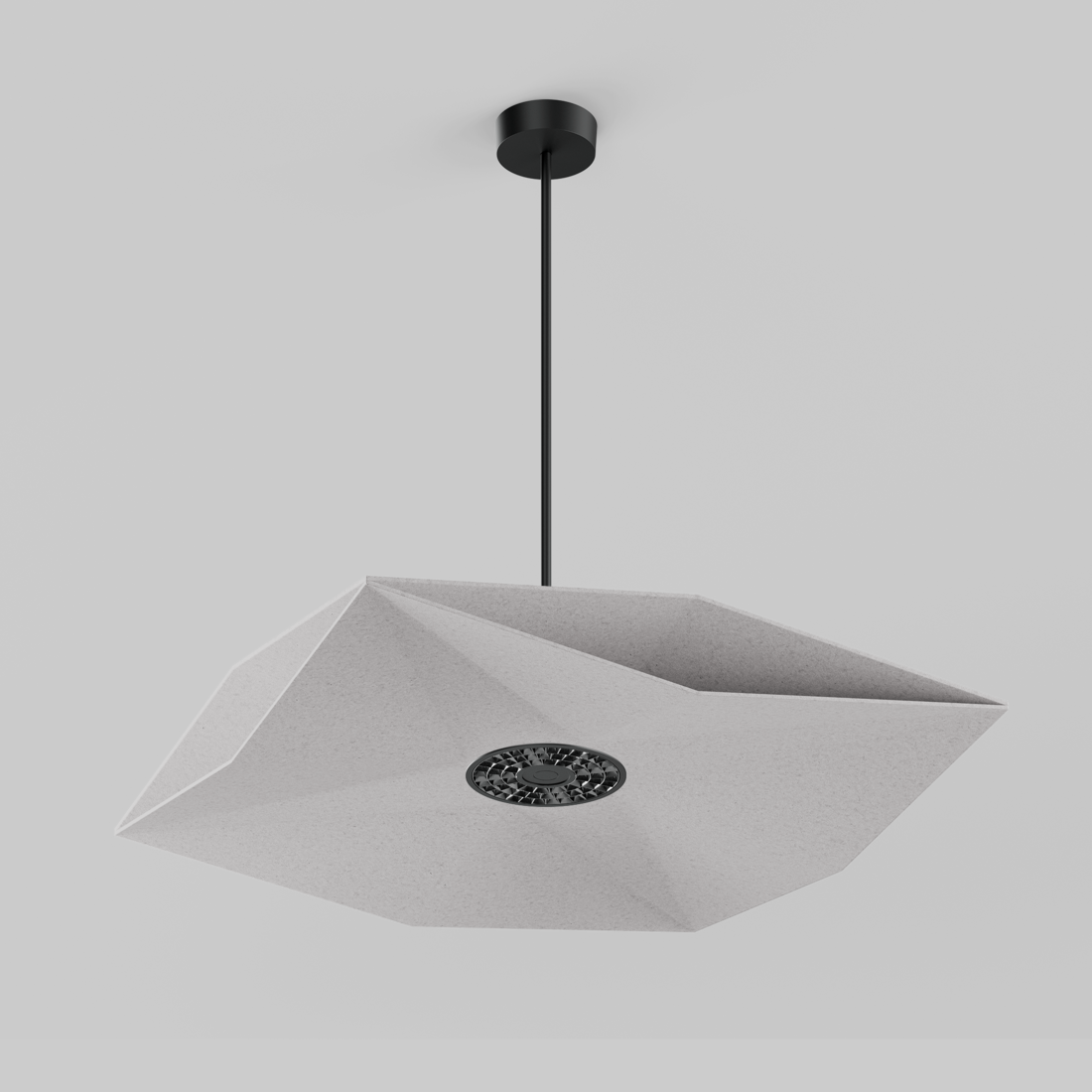

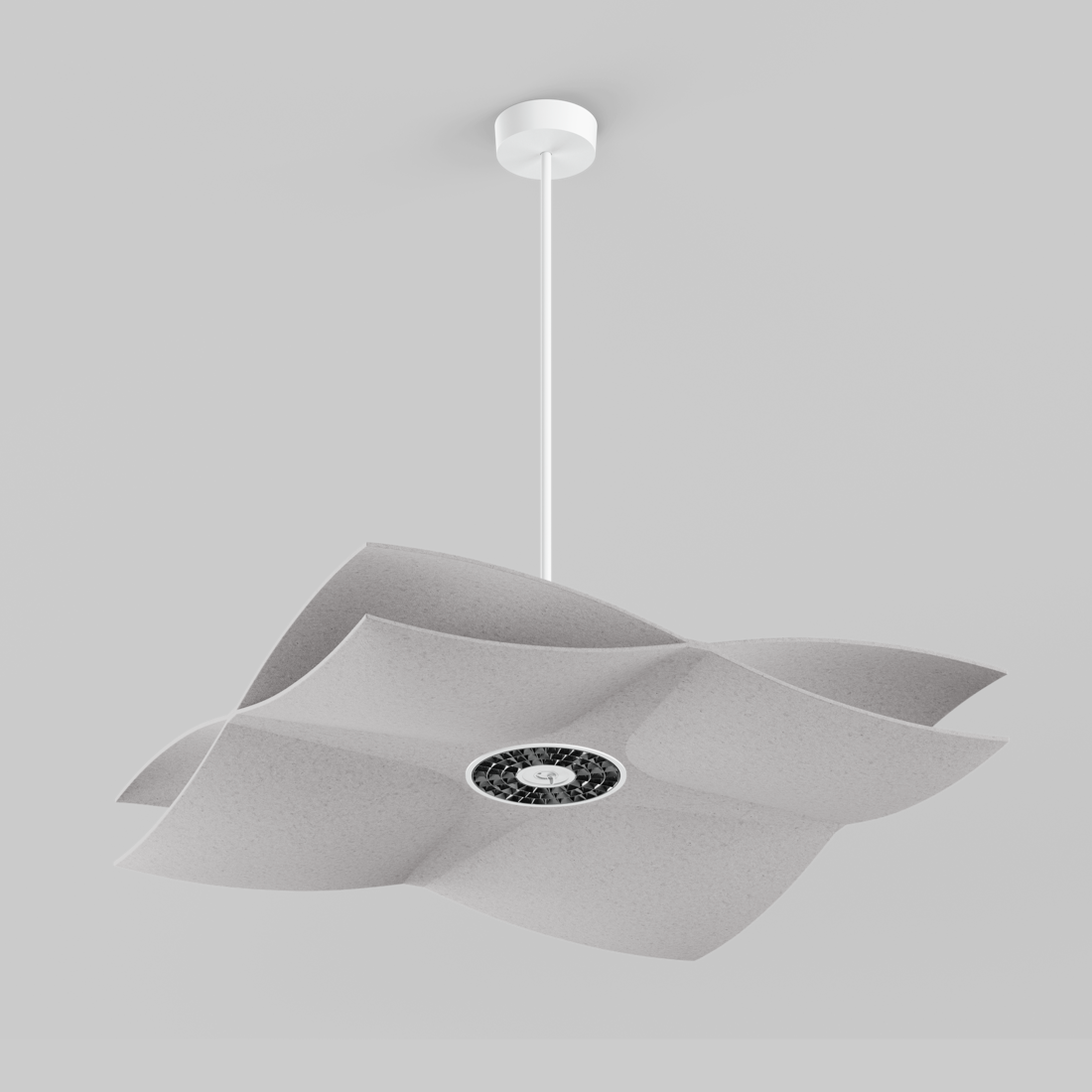

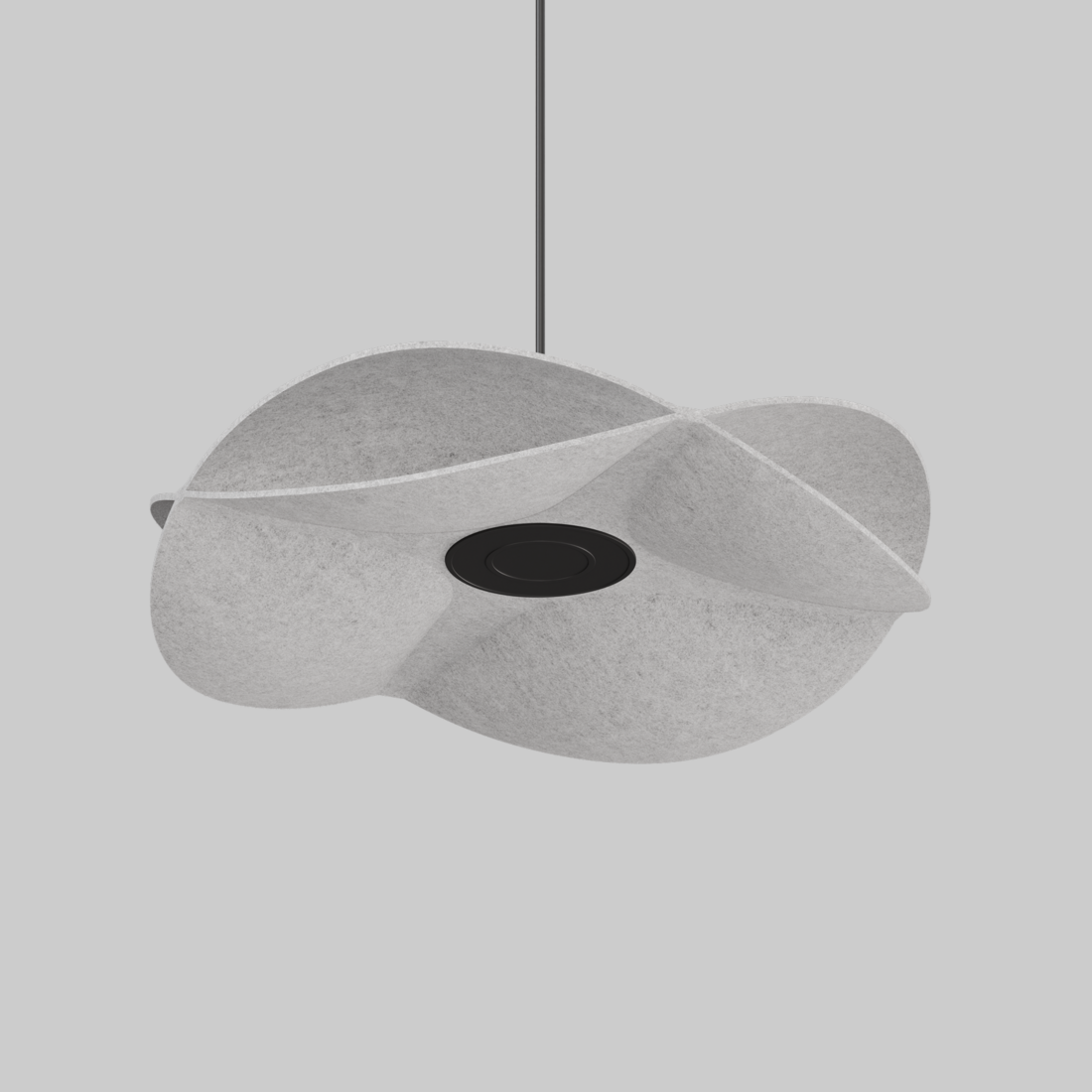

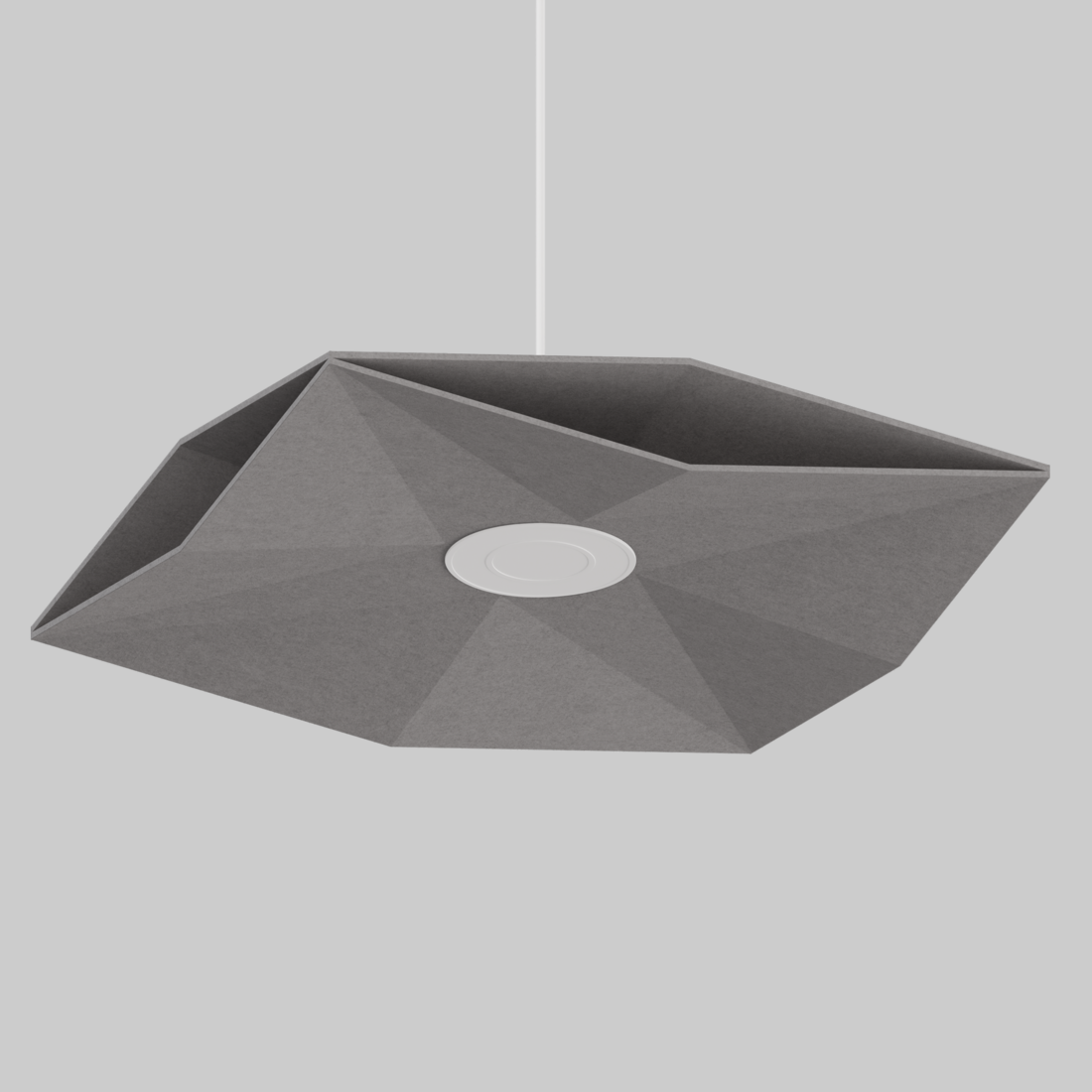

SOUNDCATCHER acoustic
suspended
Quickinfo
3000 K, 4000 KCRI ≥ 80 / 3 SDCM (initial MacAdam)
UGR ≤ 16, UGR ≤ 19
up to 164 lm/W
L90 / 100000 h
Cover: Spotline jet black, Spotline traffic white
DALI-2, DALI-2 ESSENTIAL sensor
IP20
PET felt made of at least 50% post-consumer recycled material
up to absorption class A
flame retardant version available
Simple drawing
Light distribution
Description

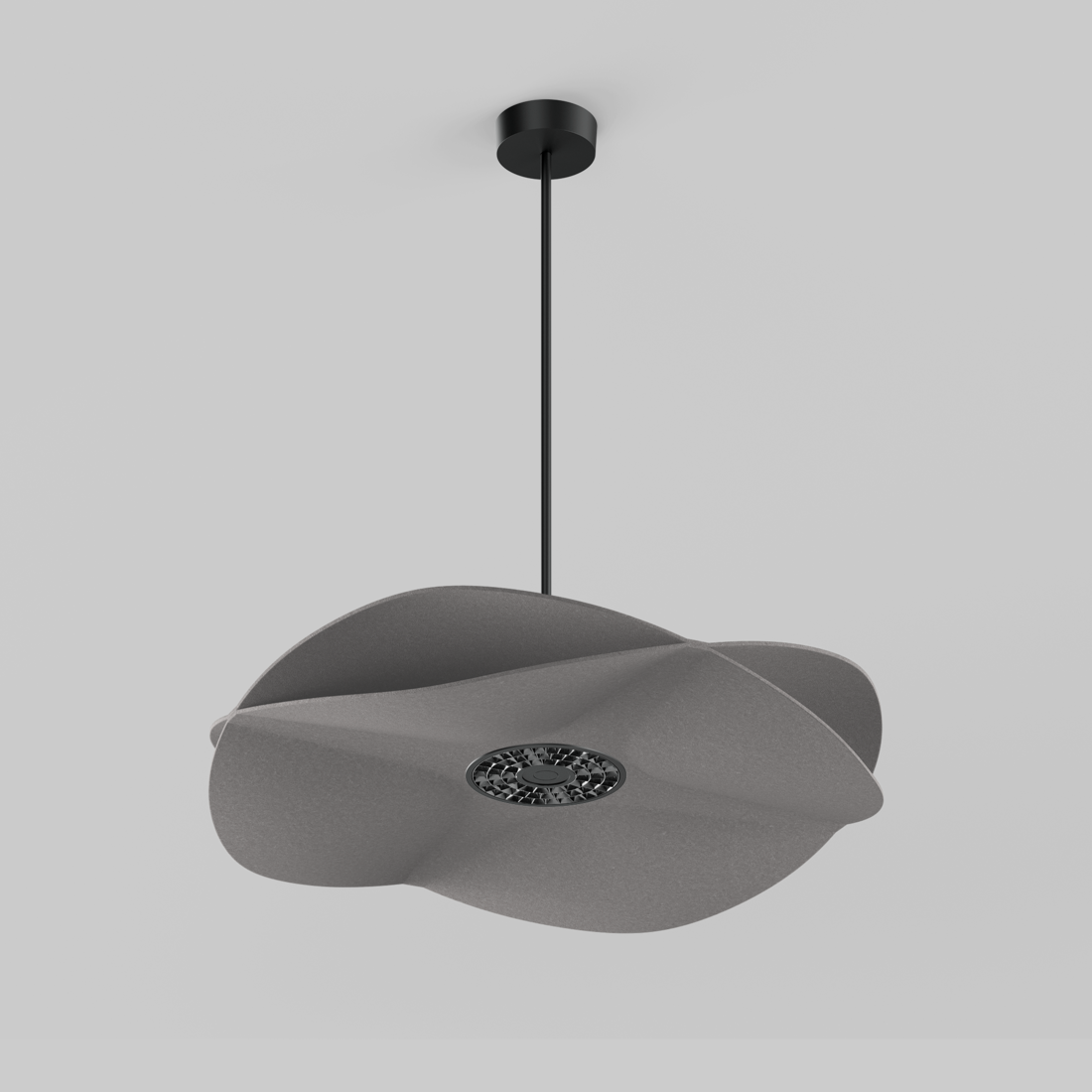

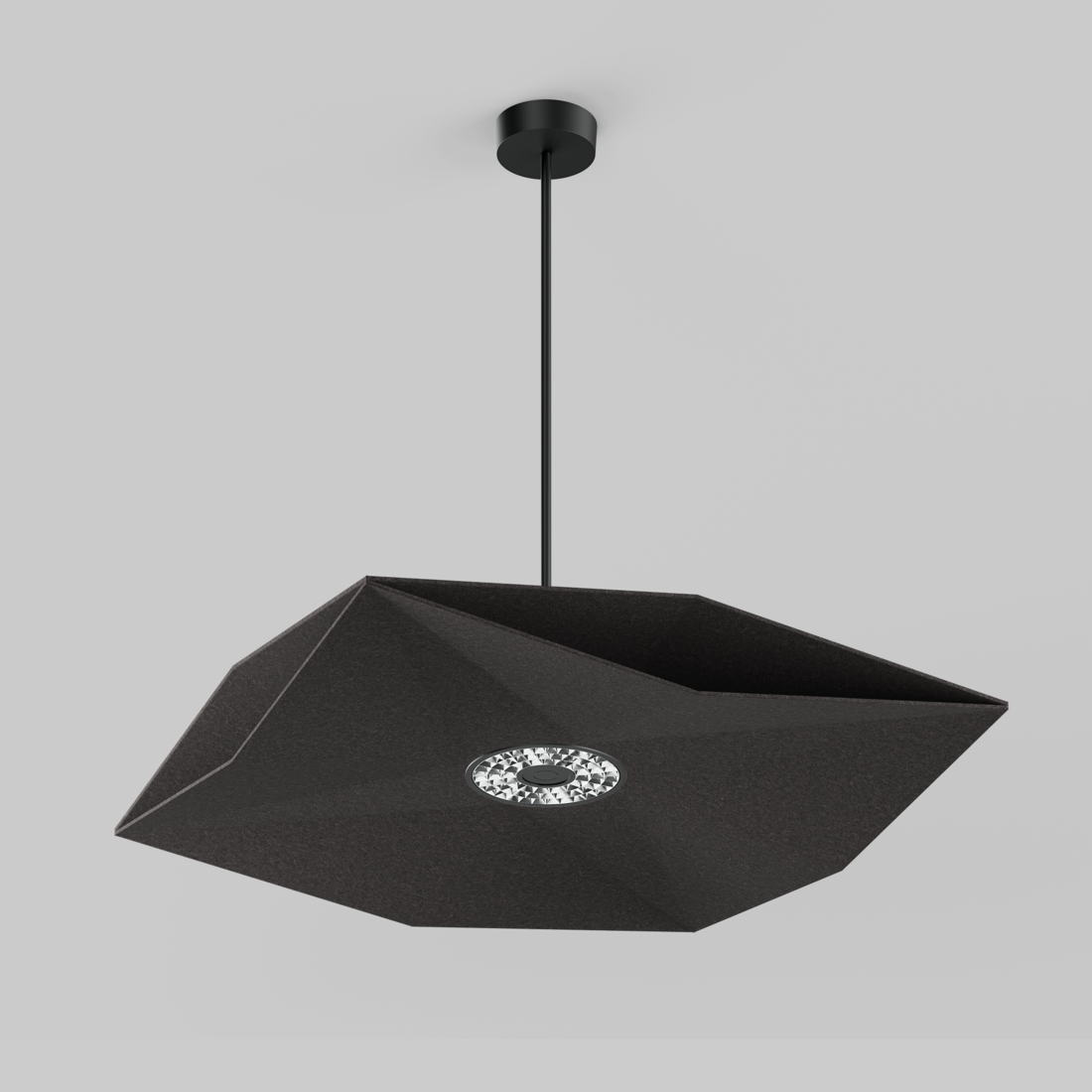

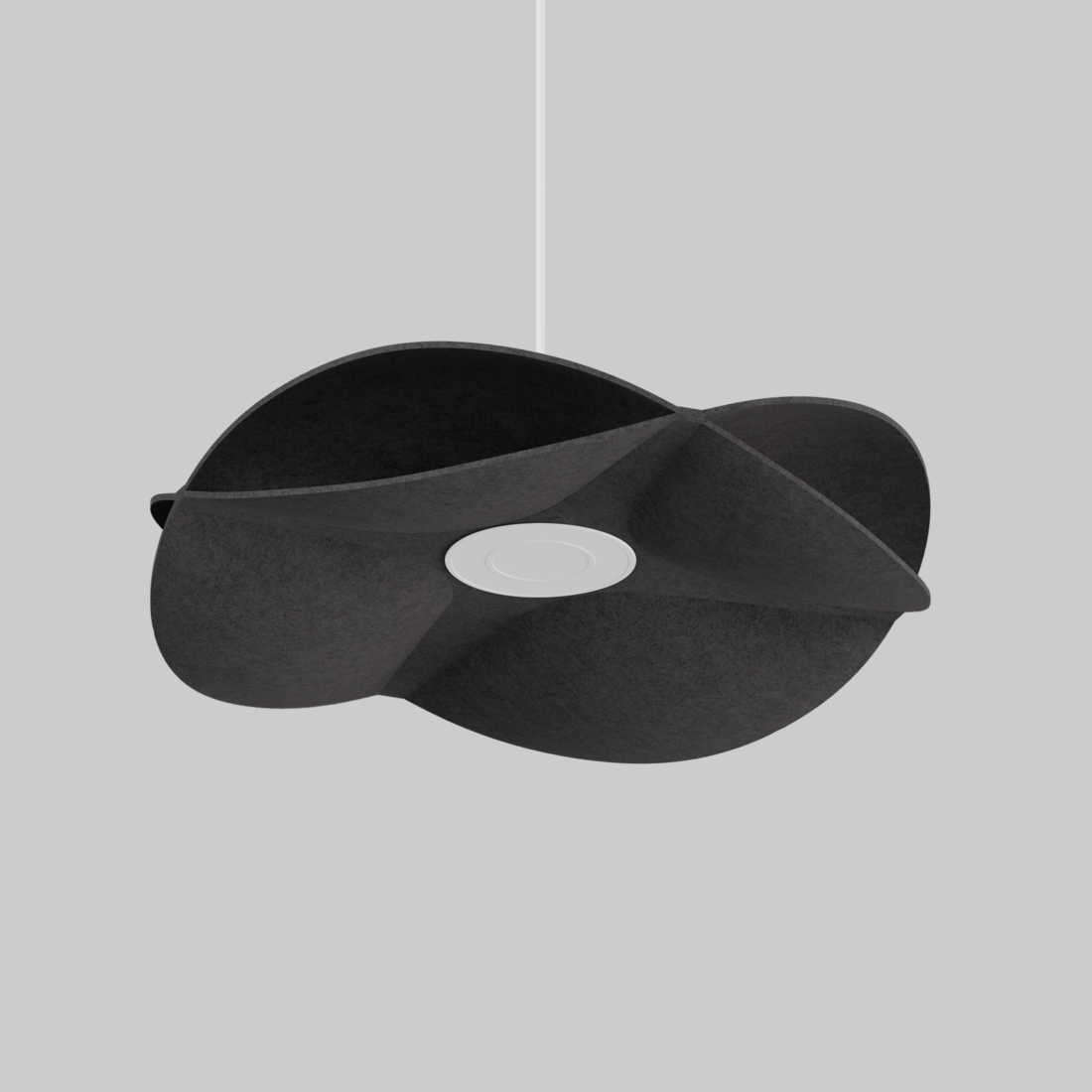

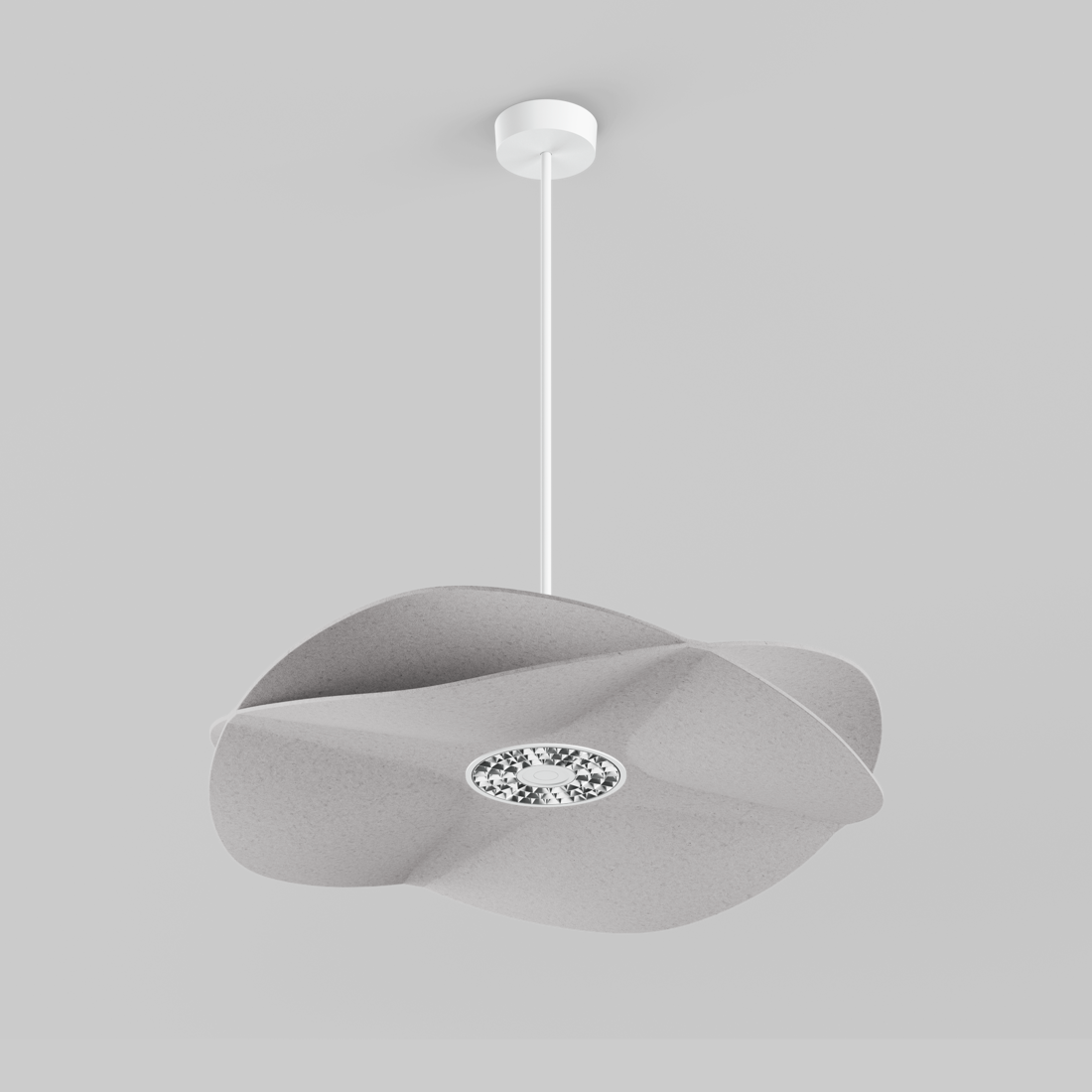

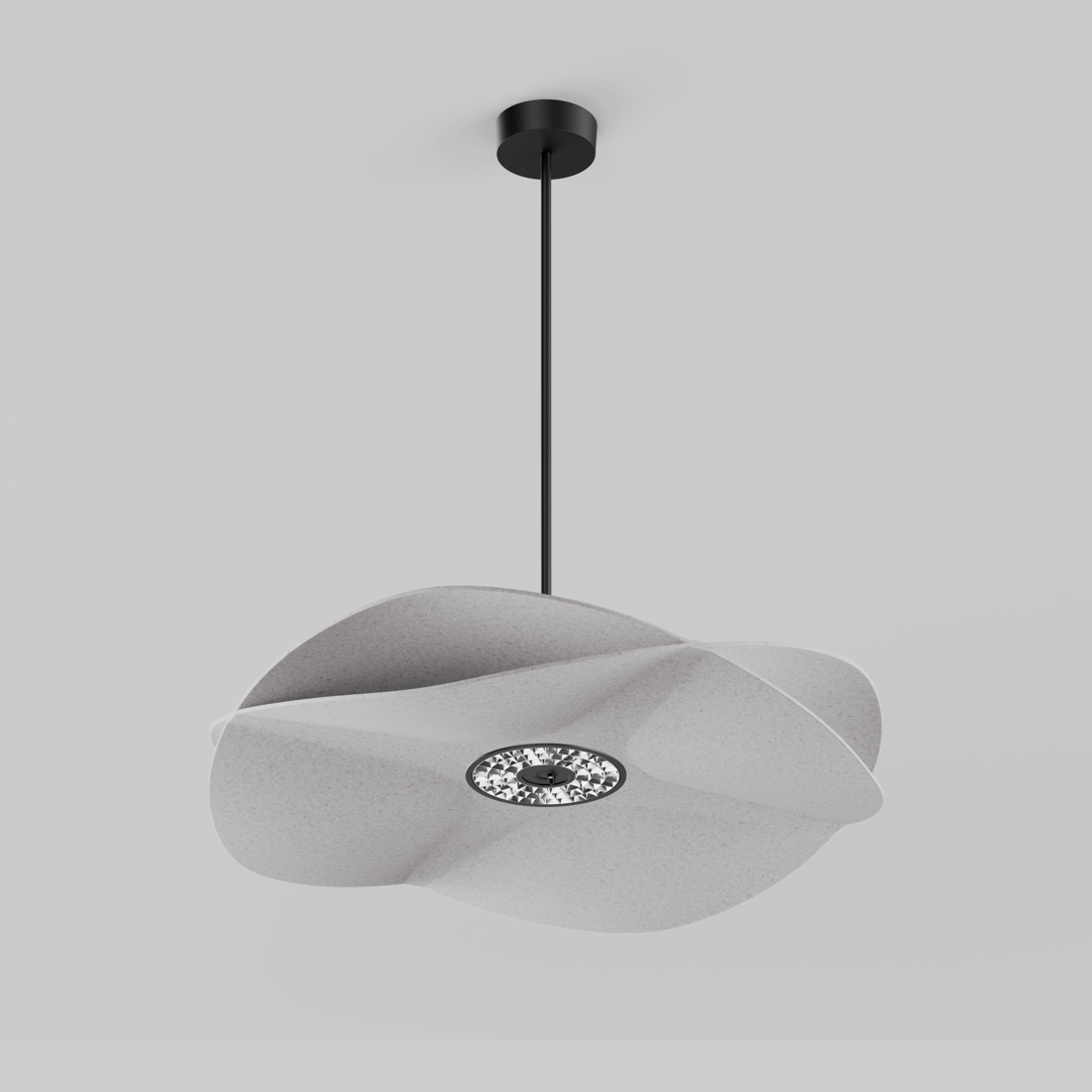

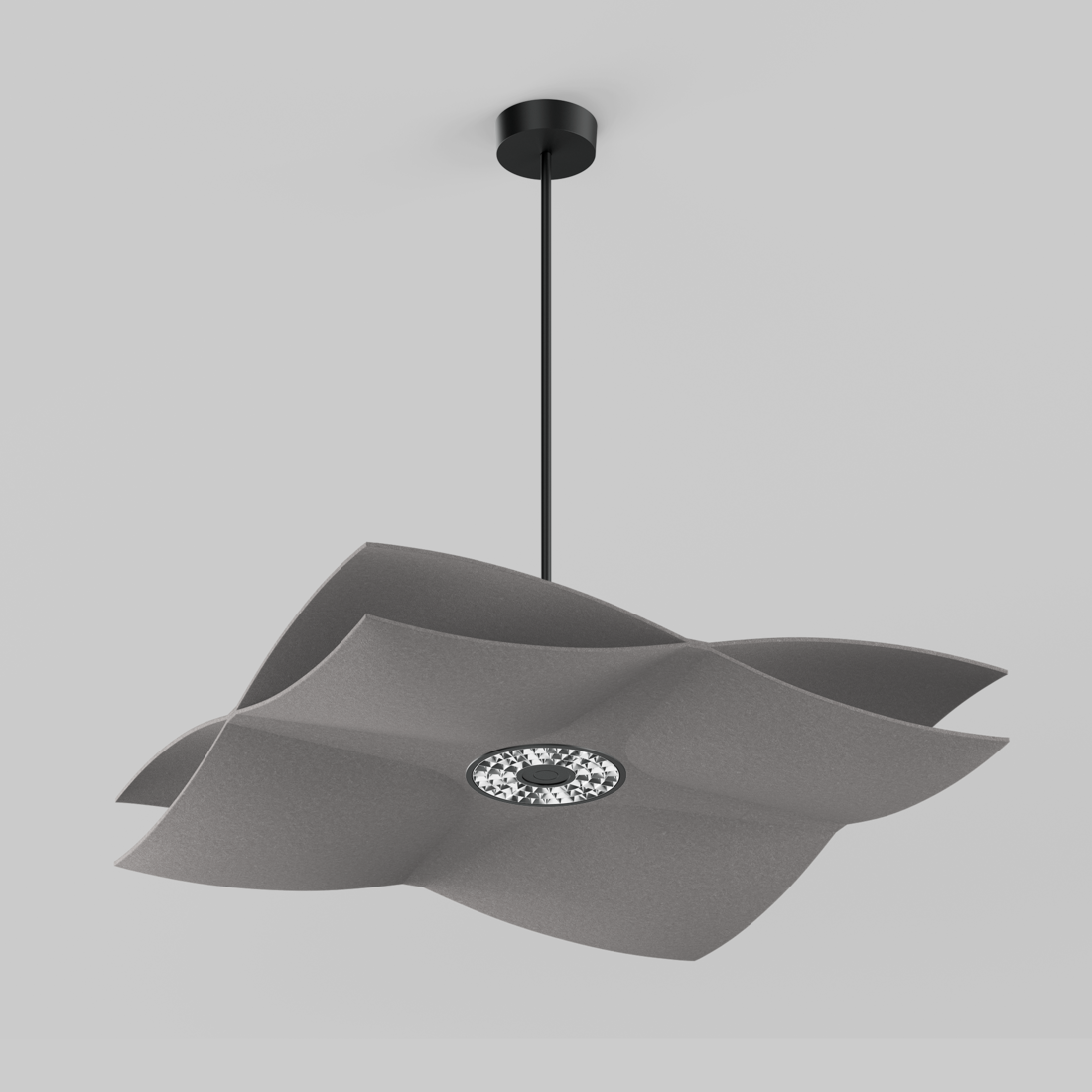

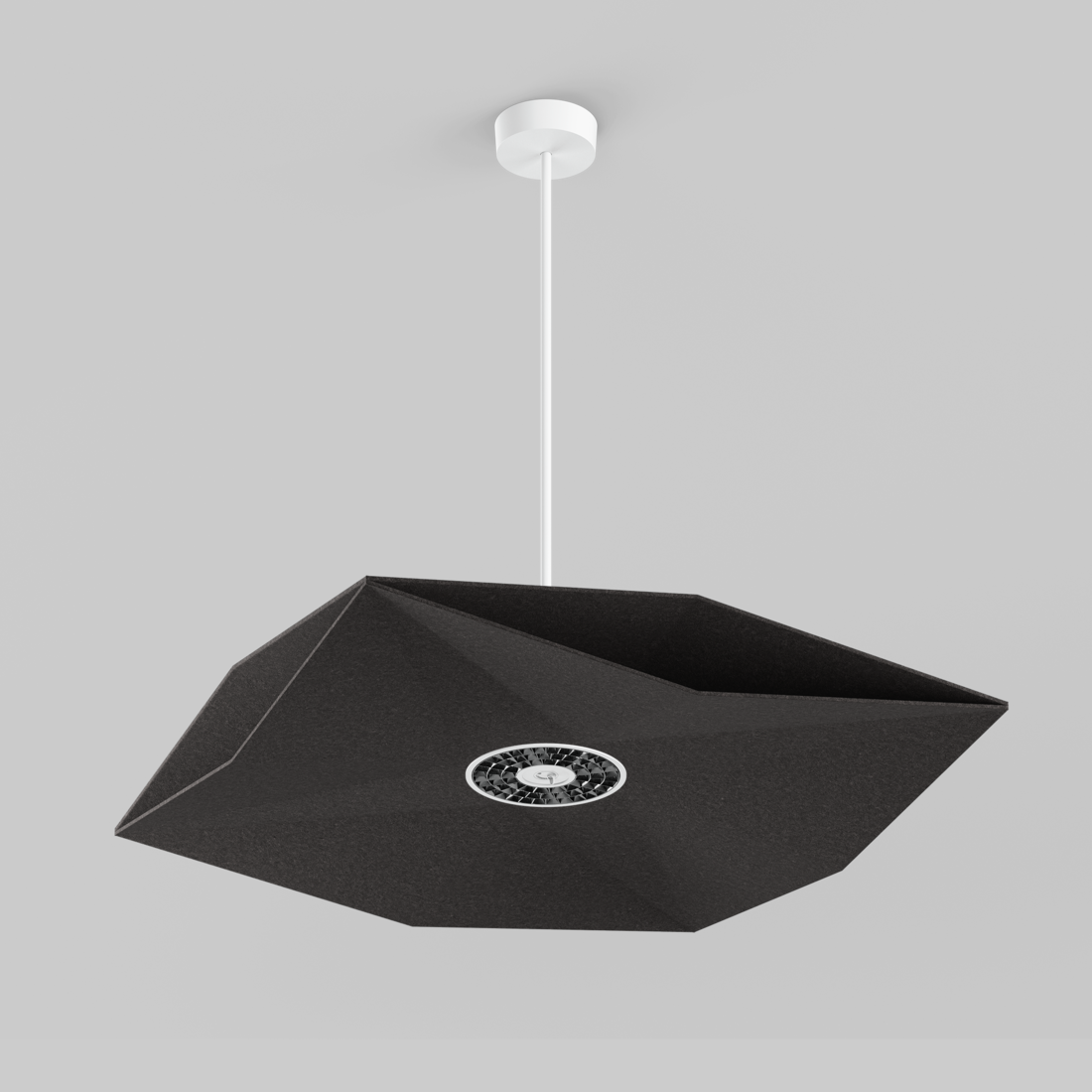

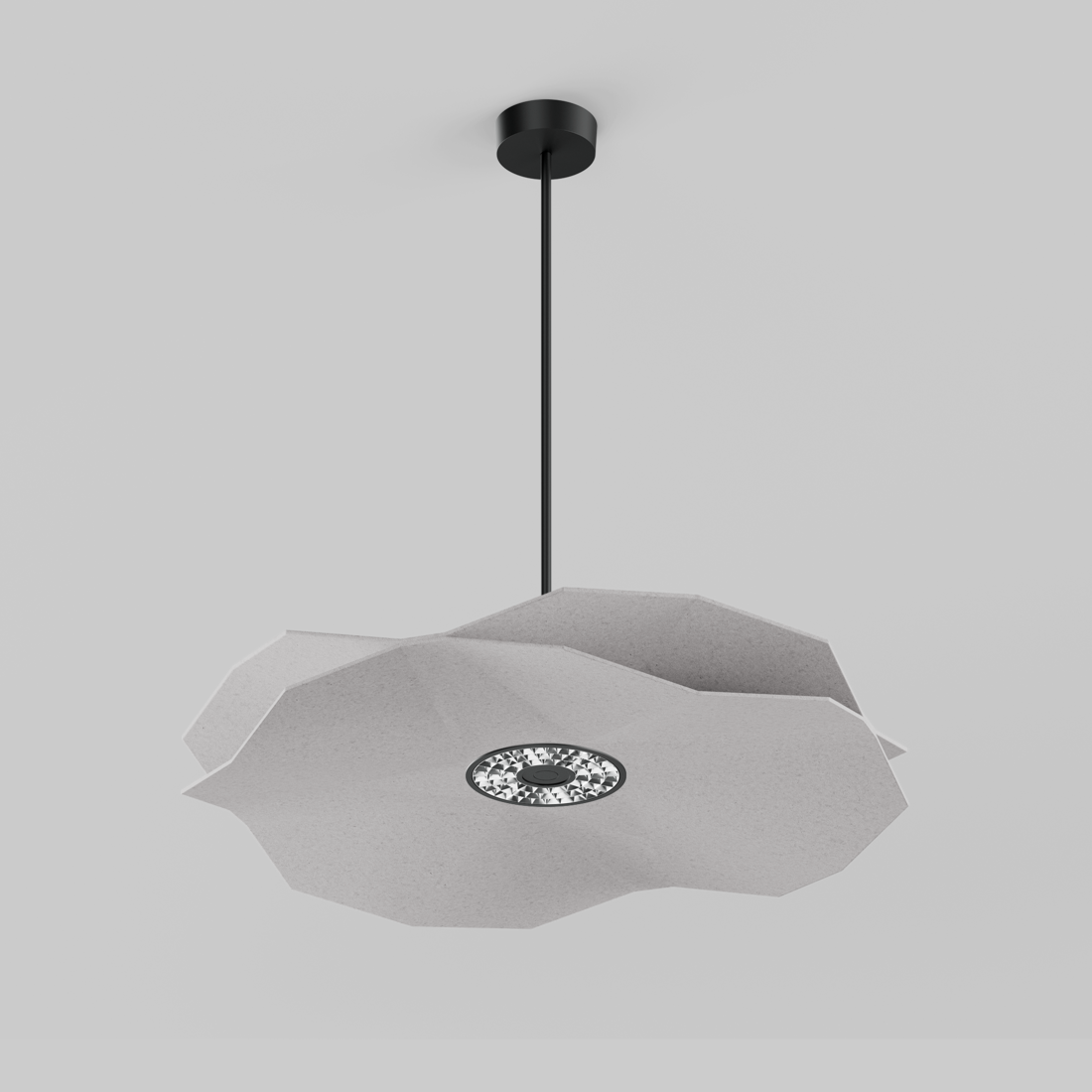

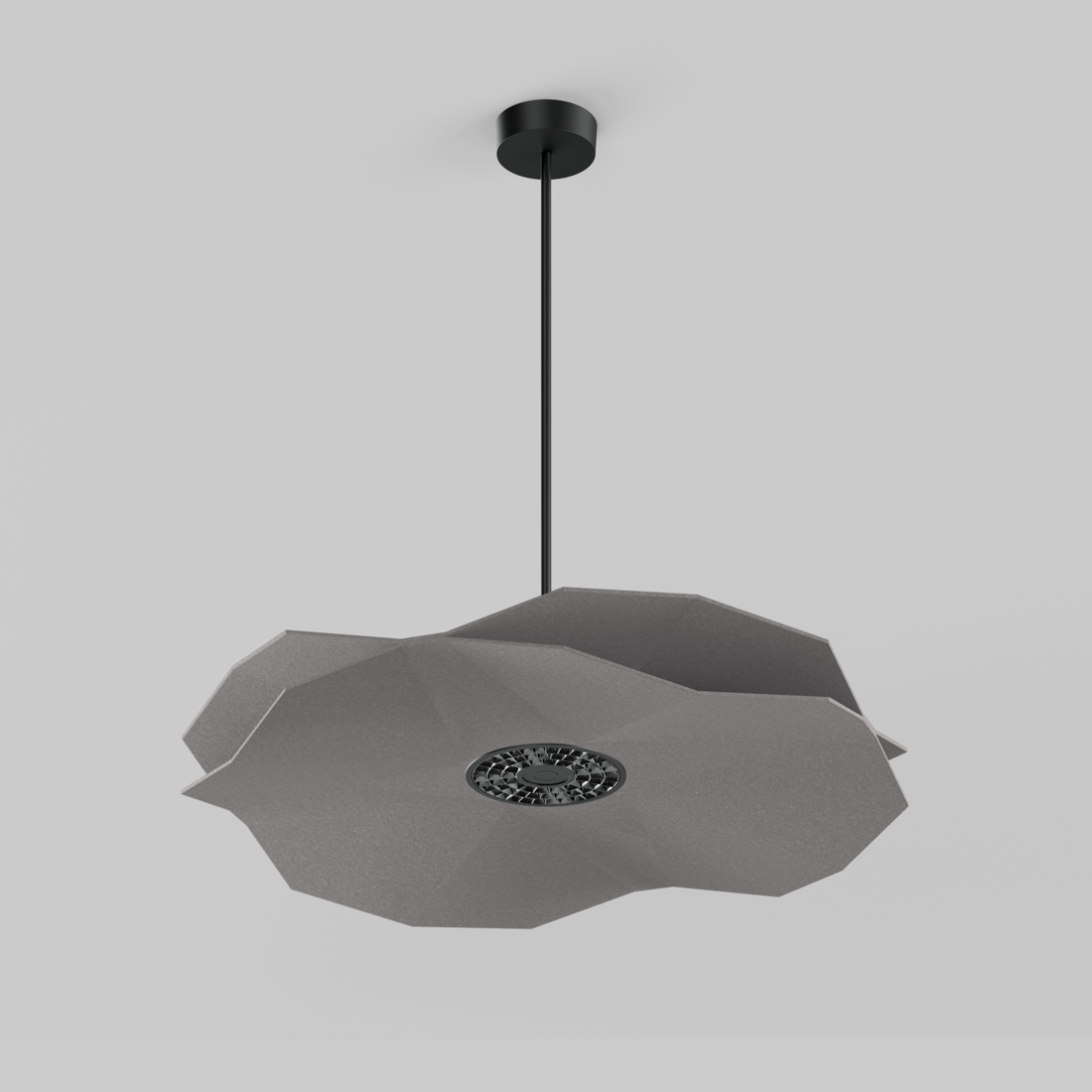

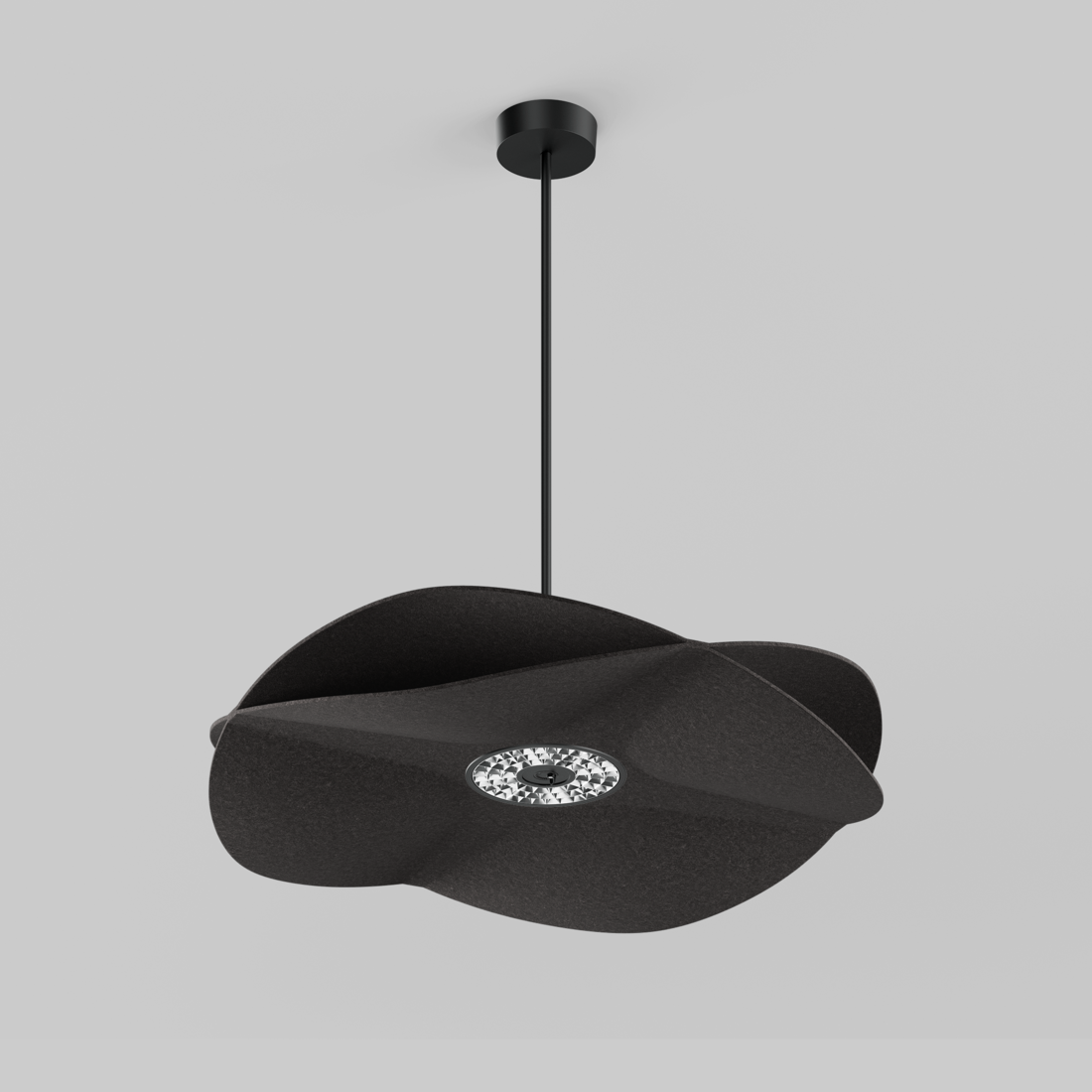

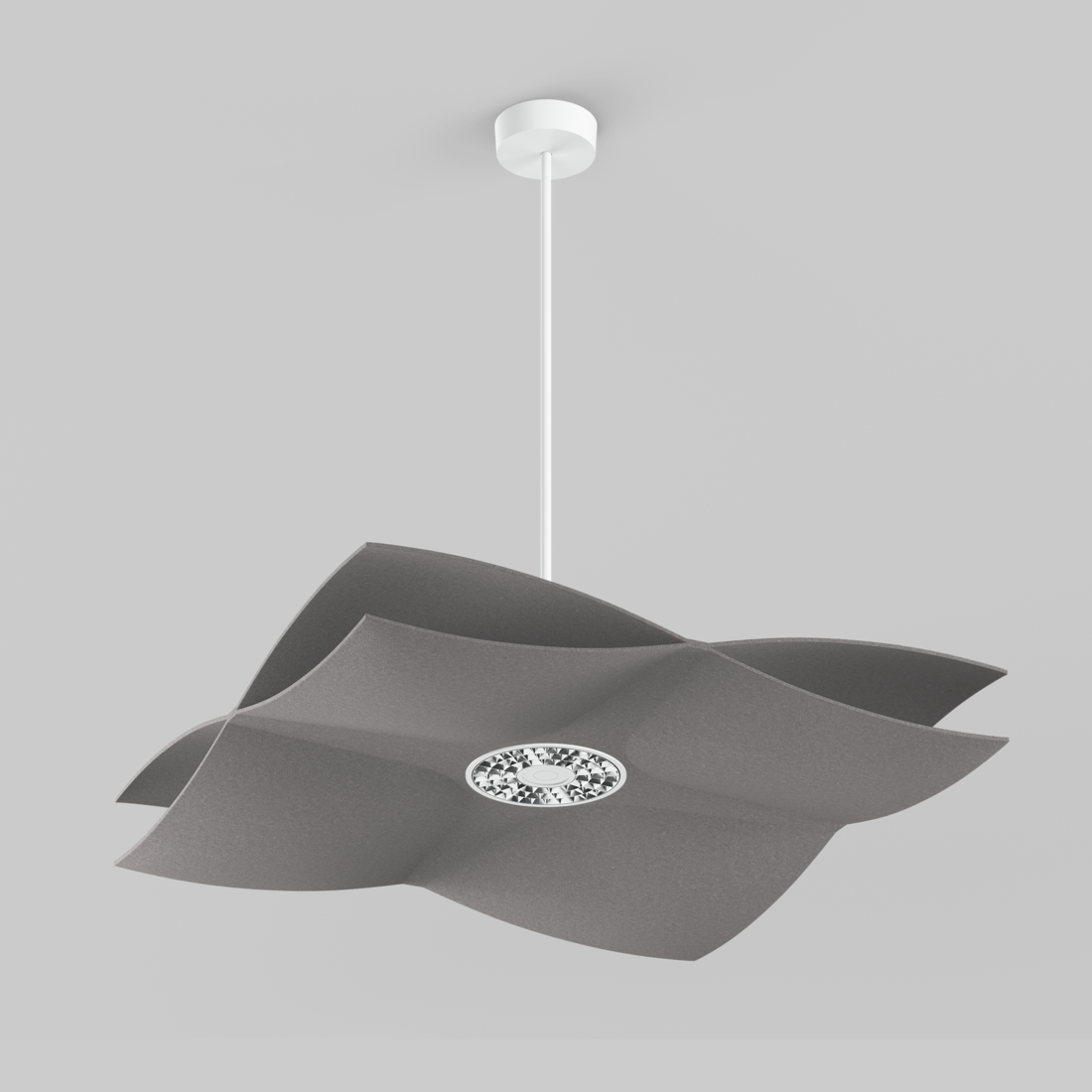

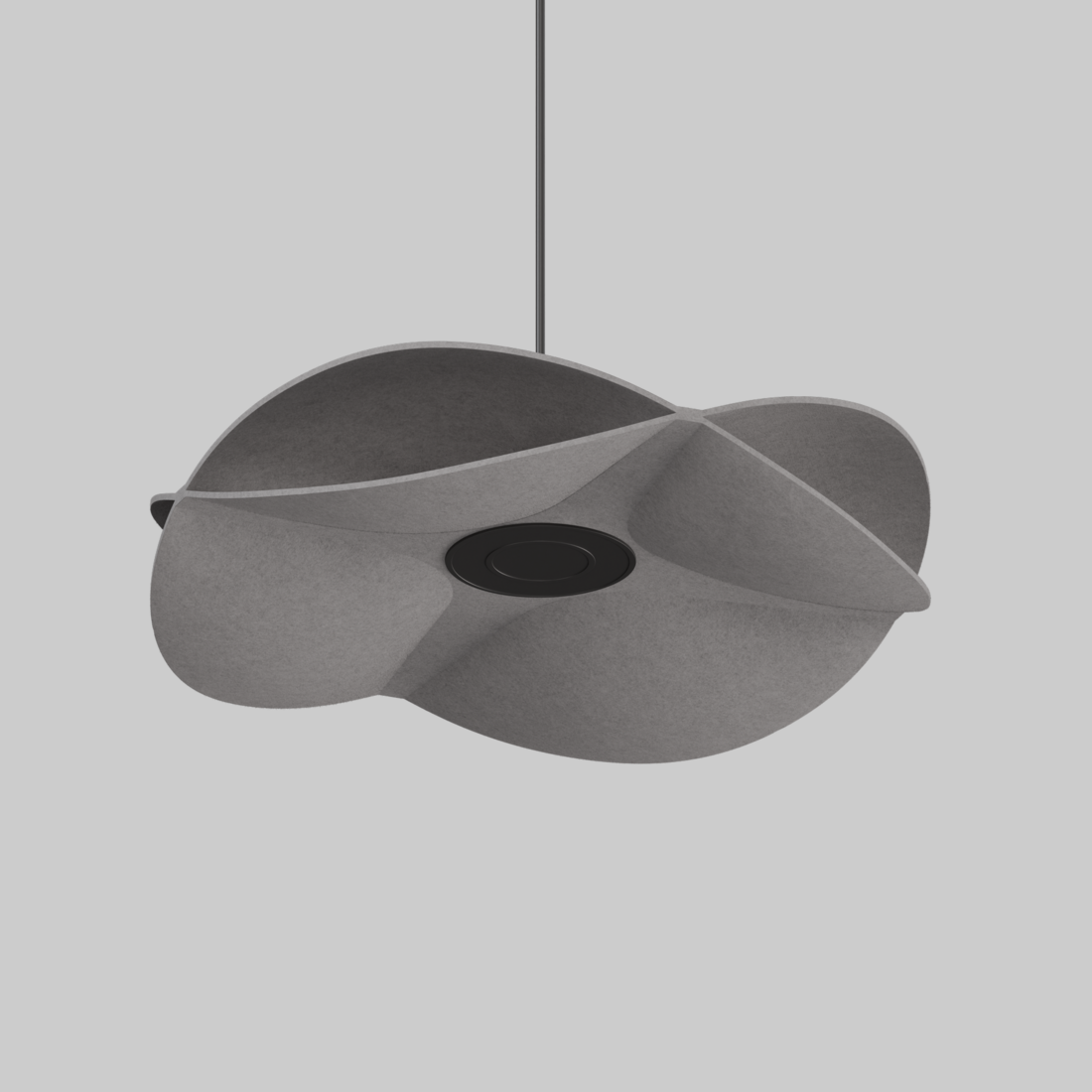

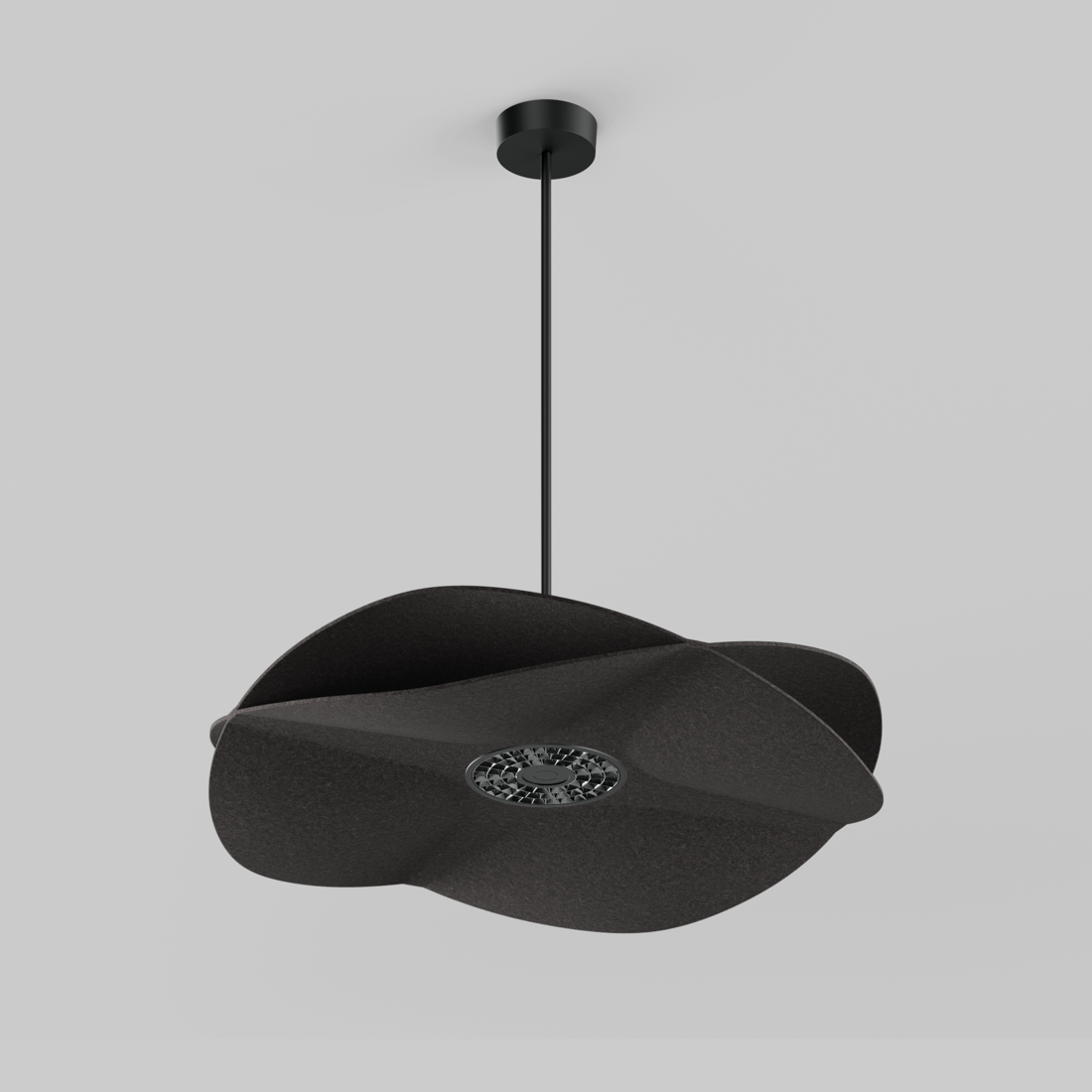

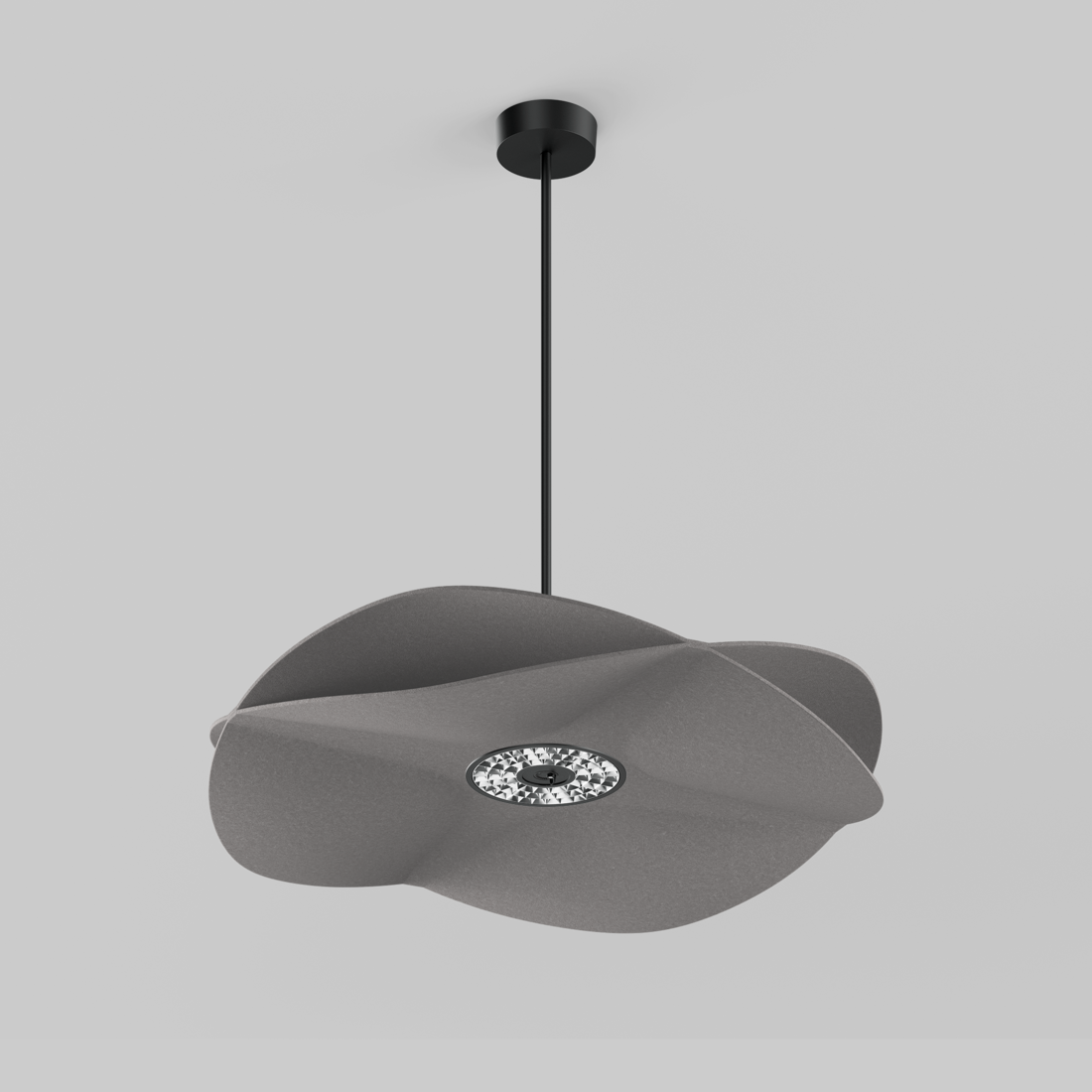

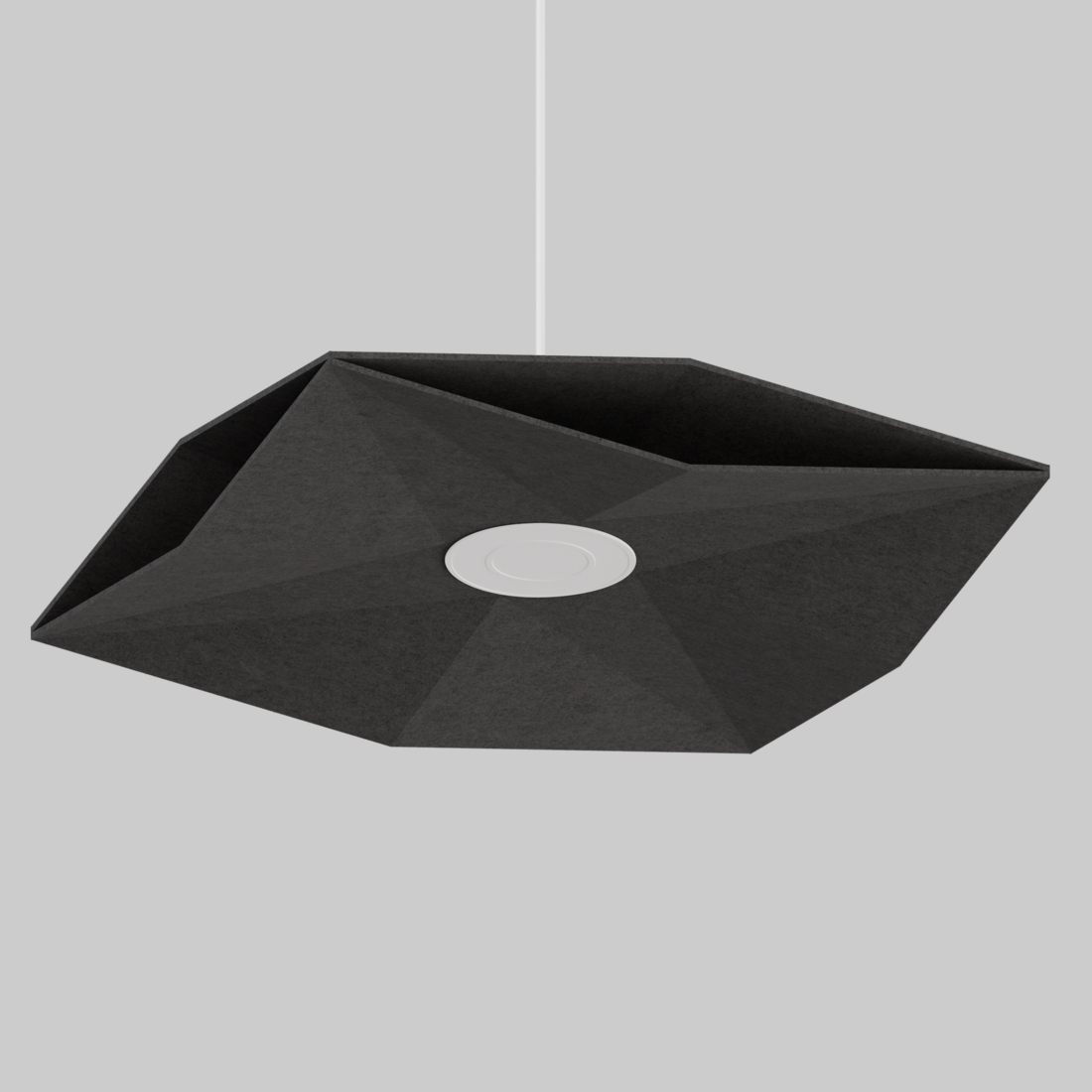

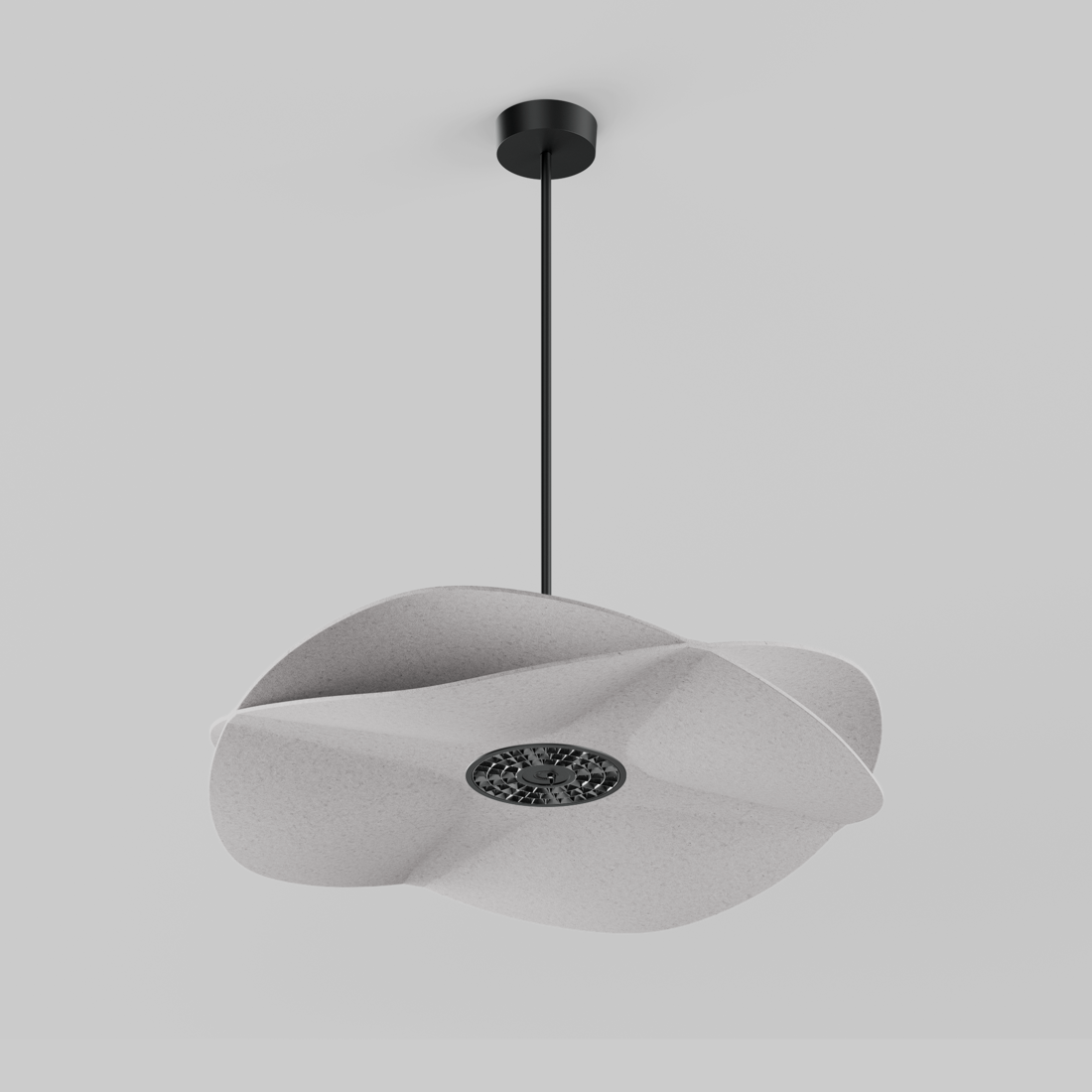

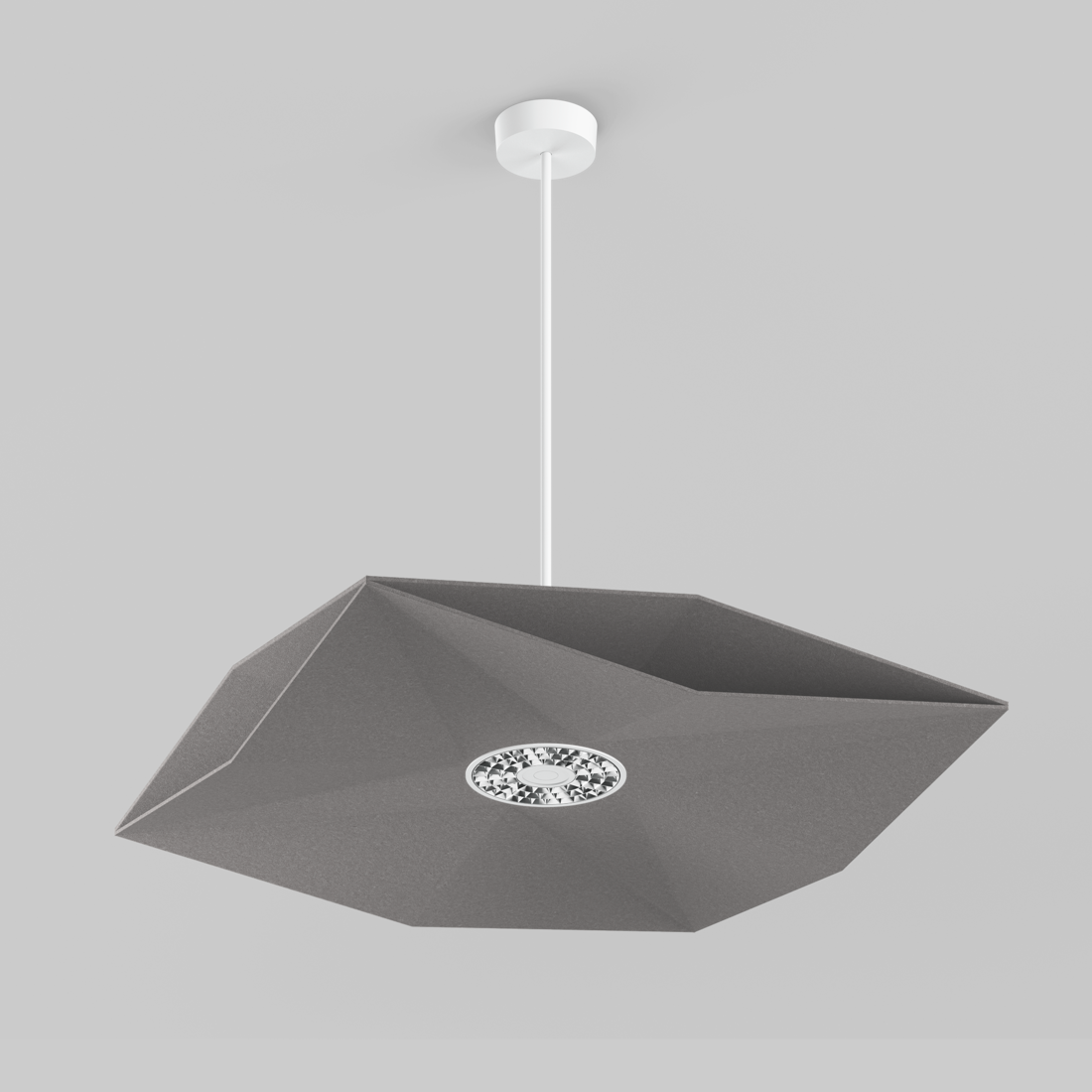

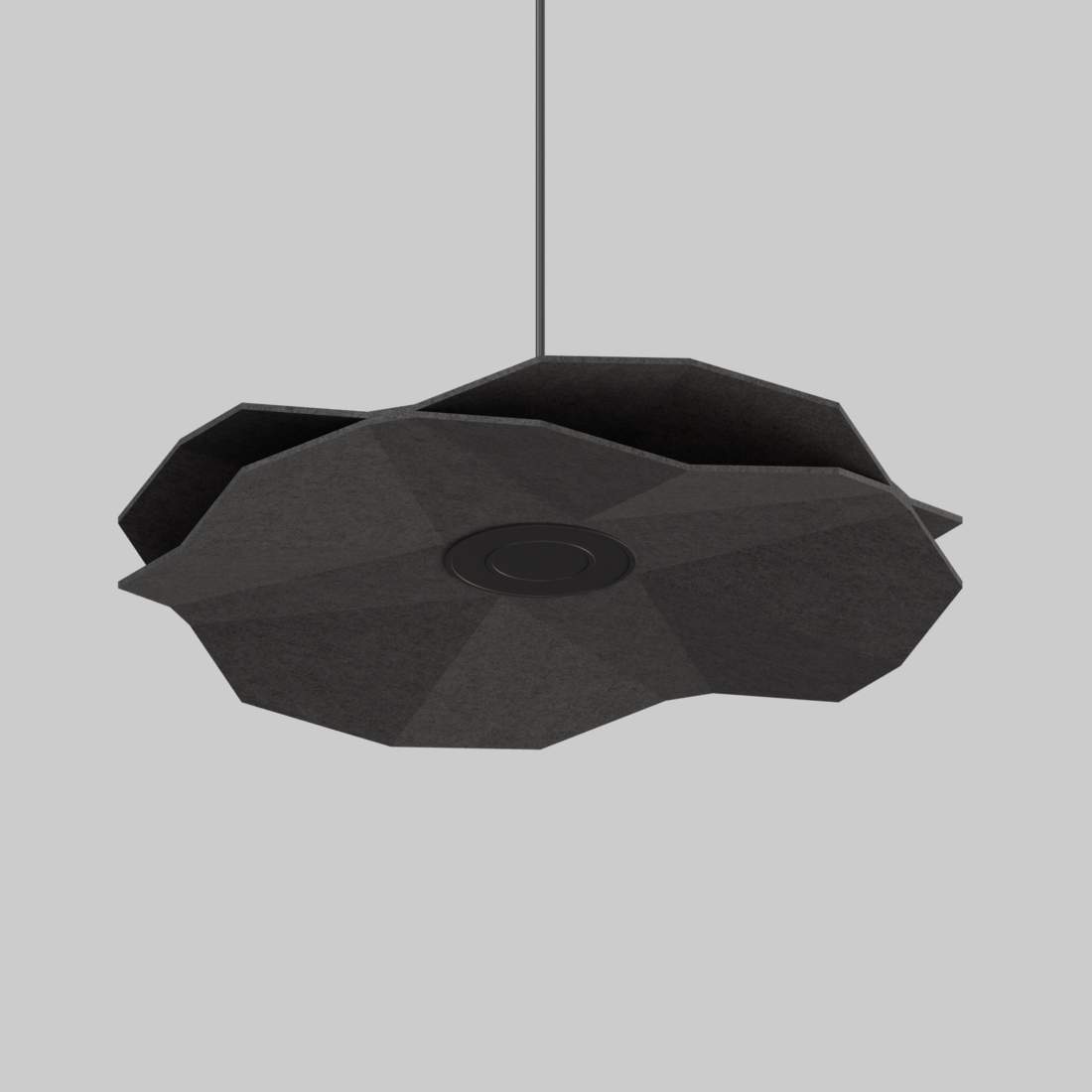

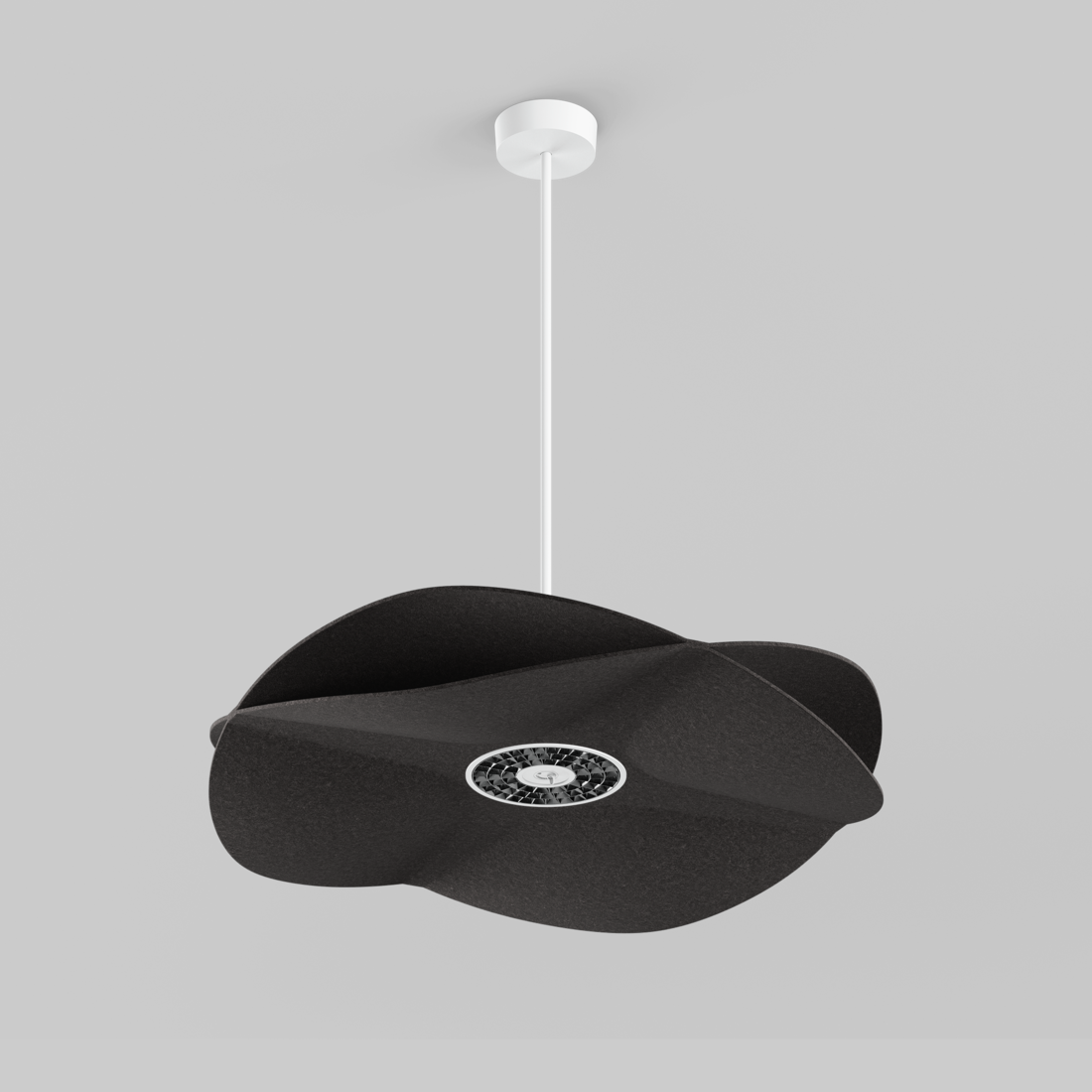

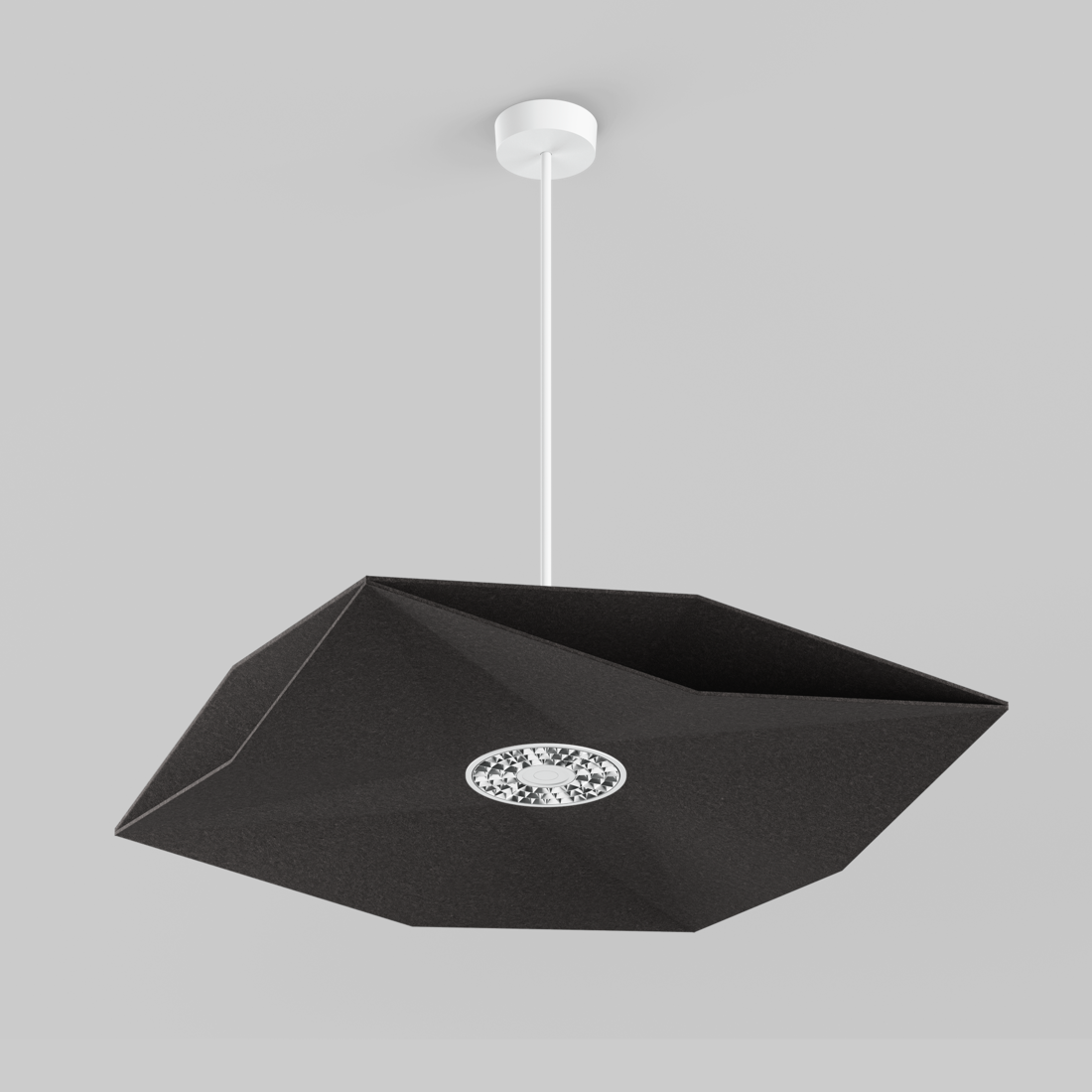

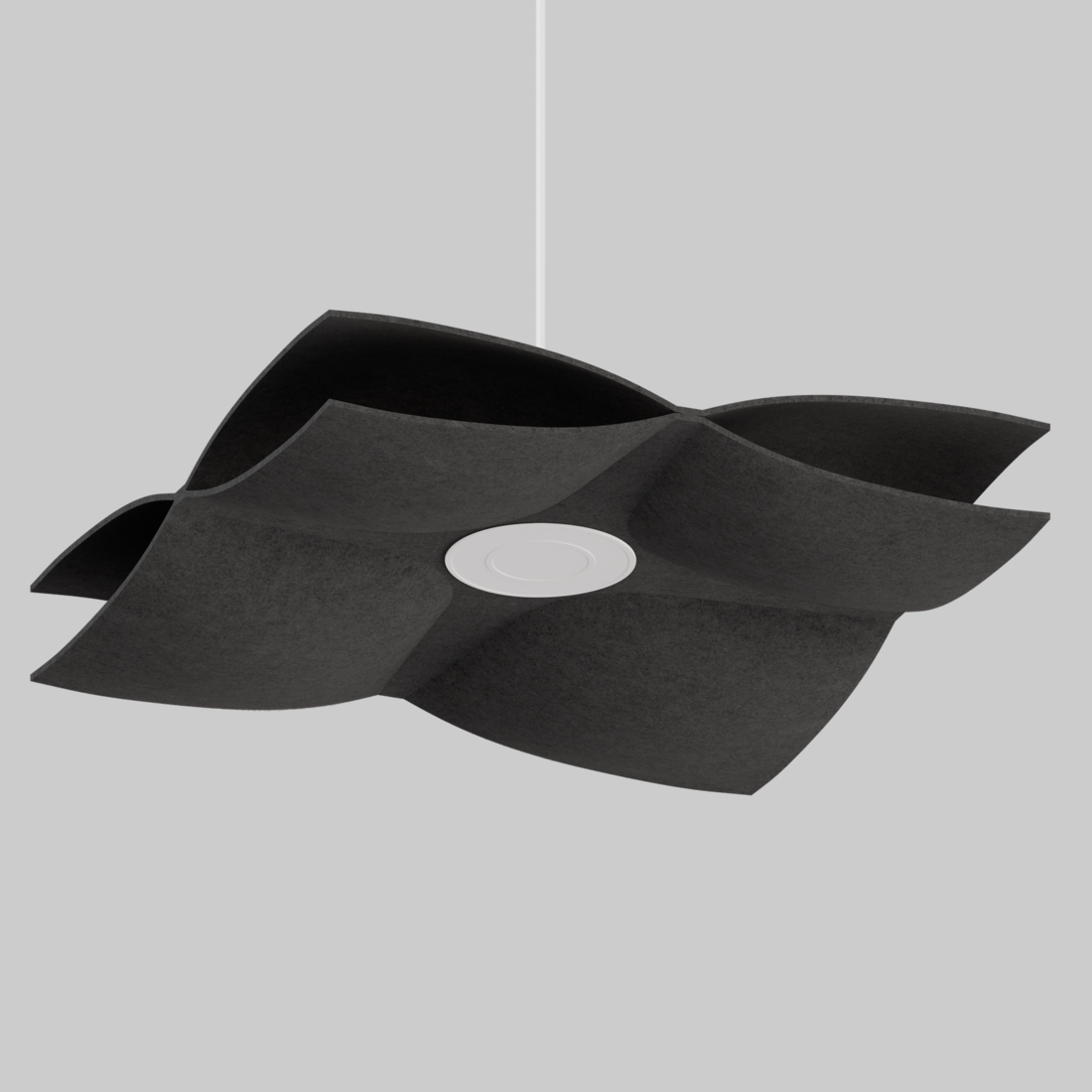

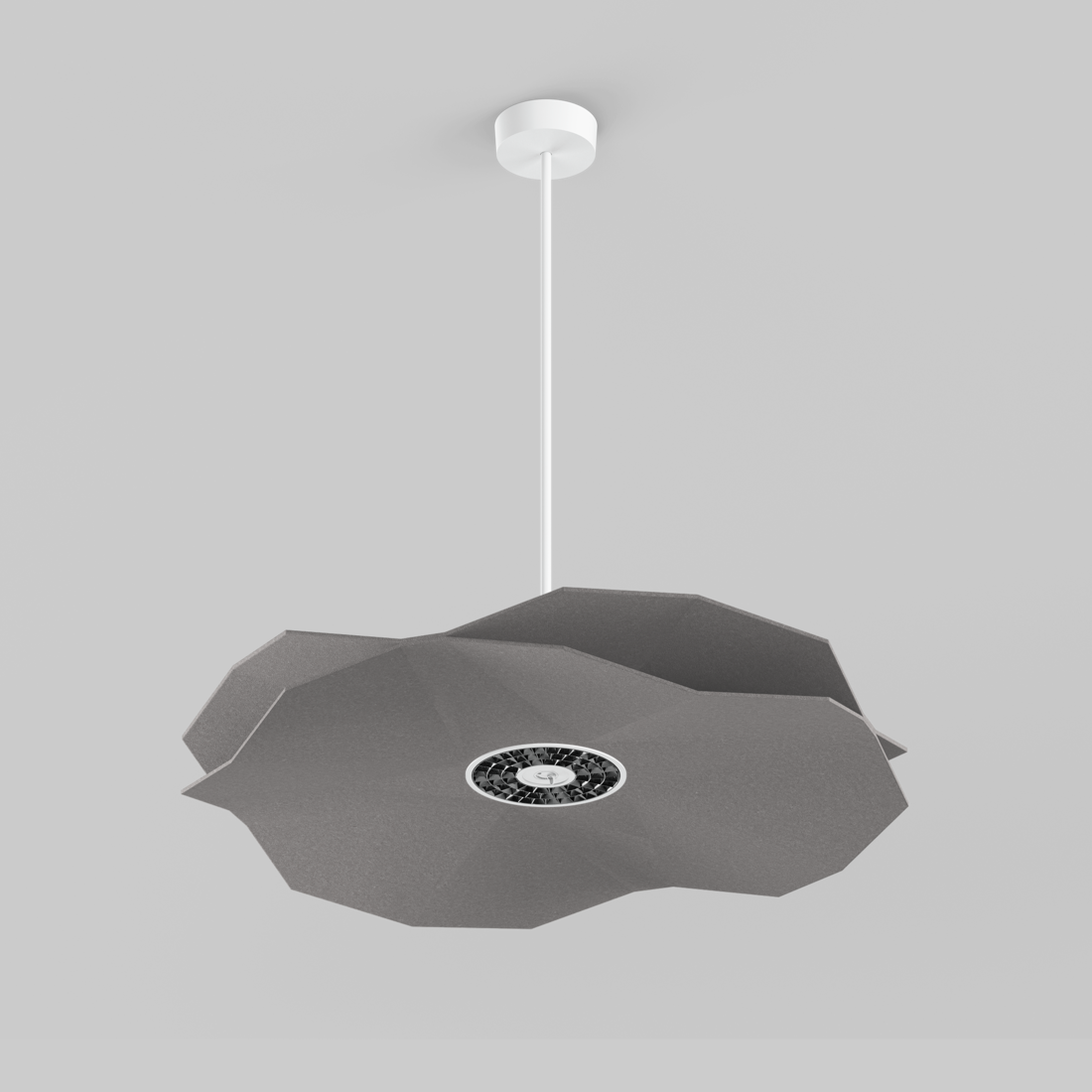

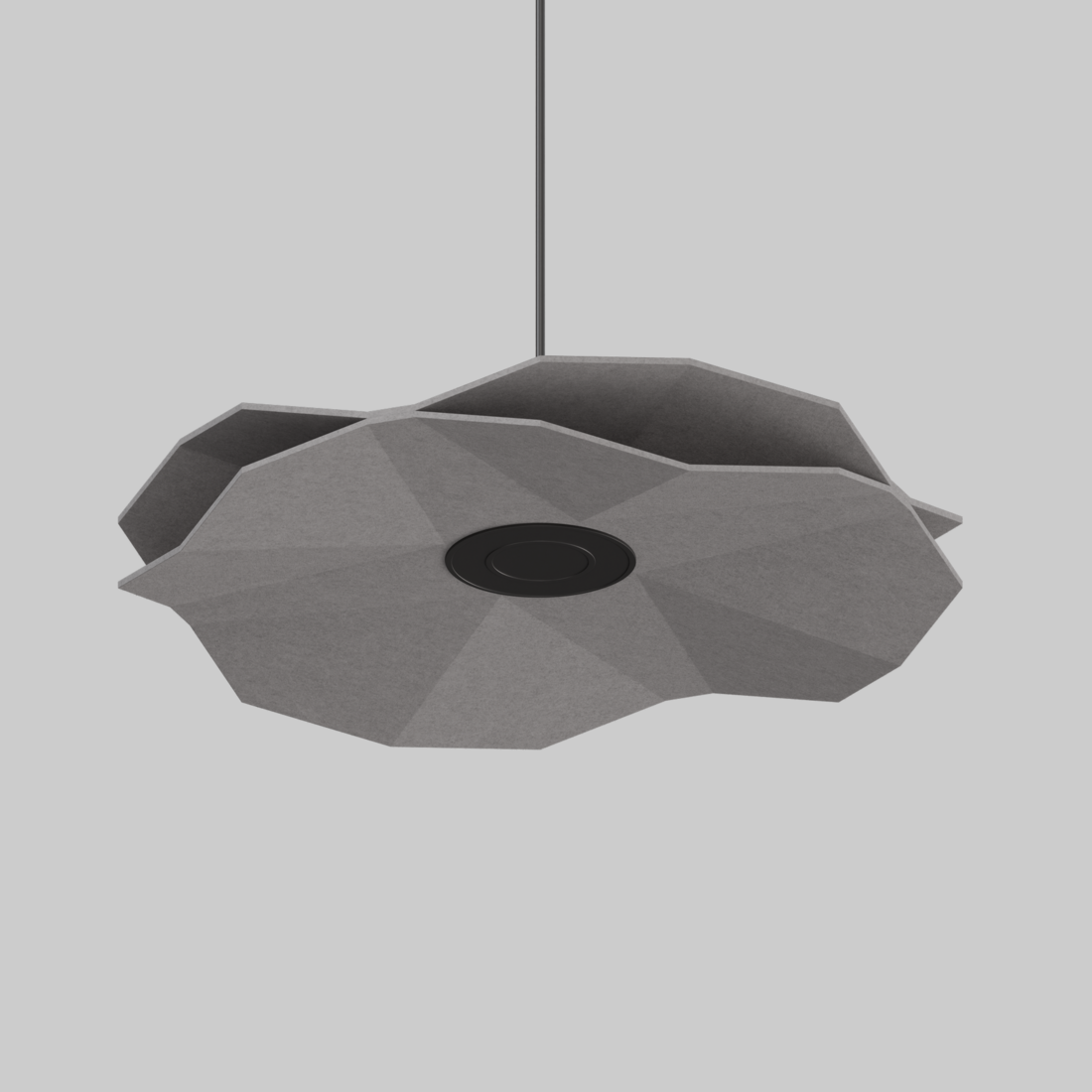

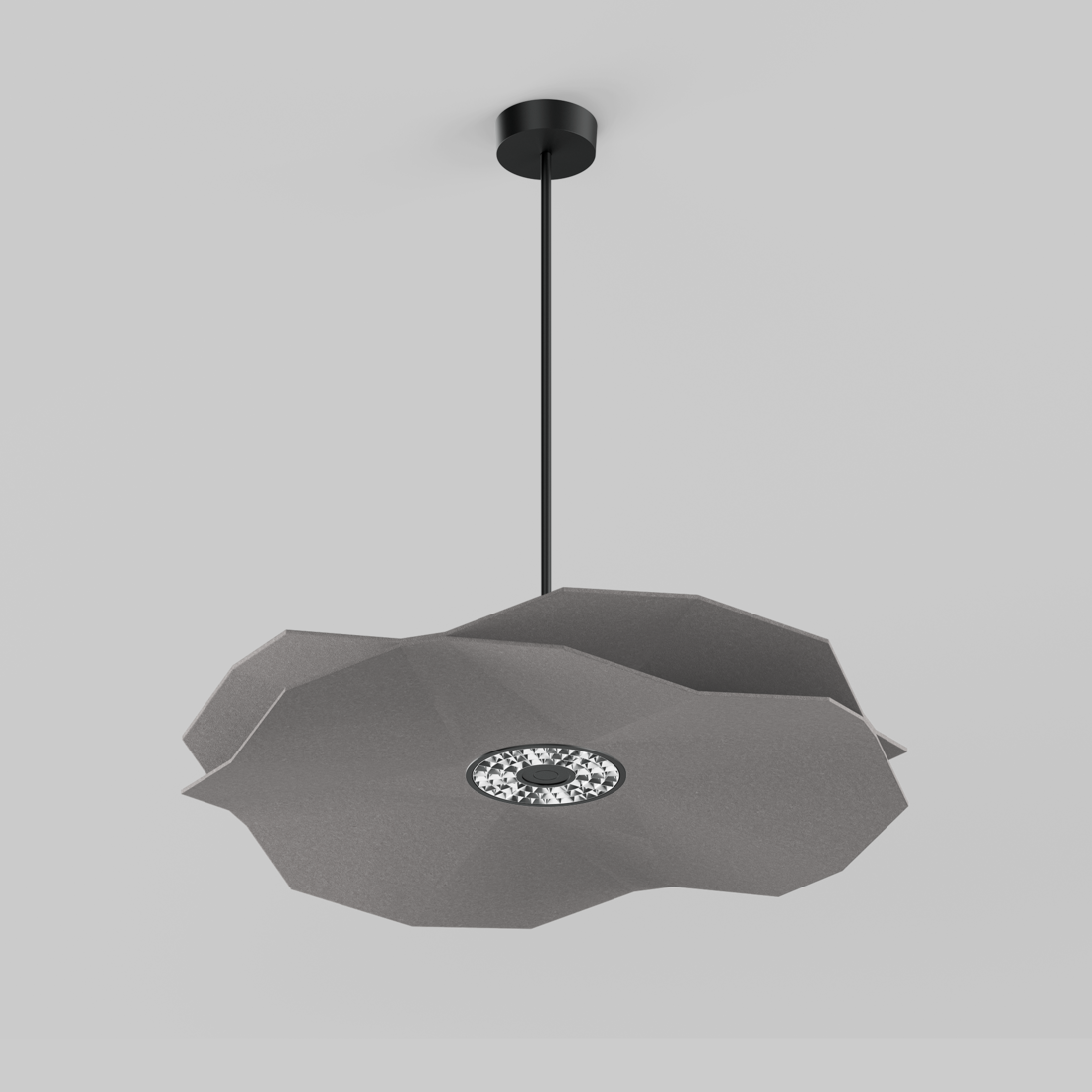

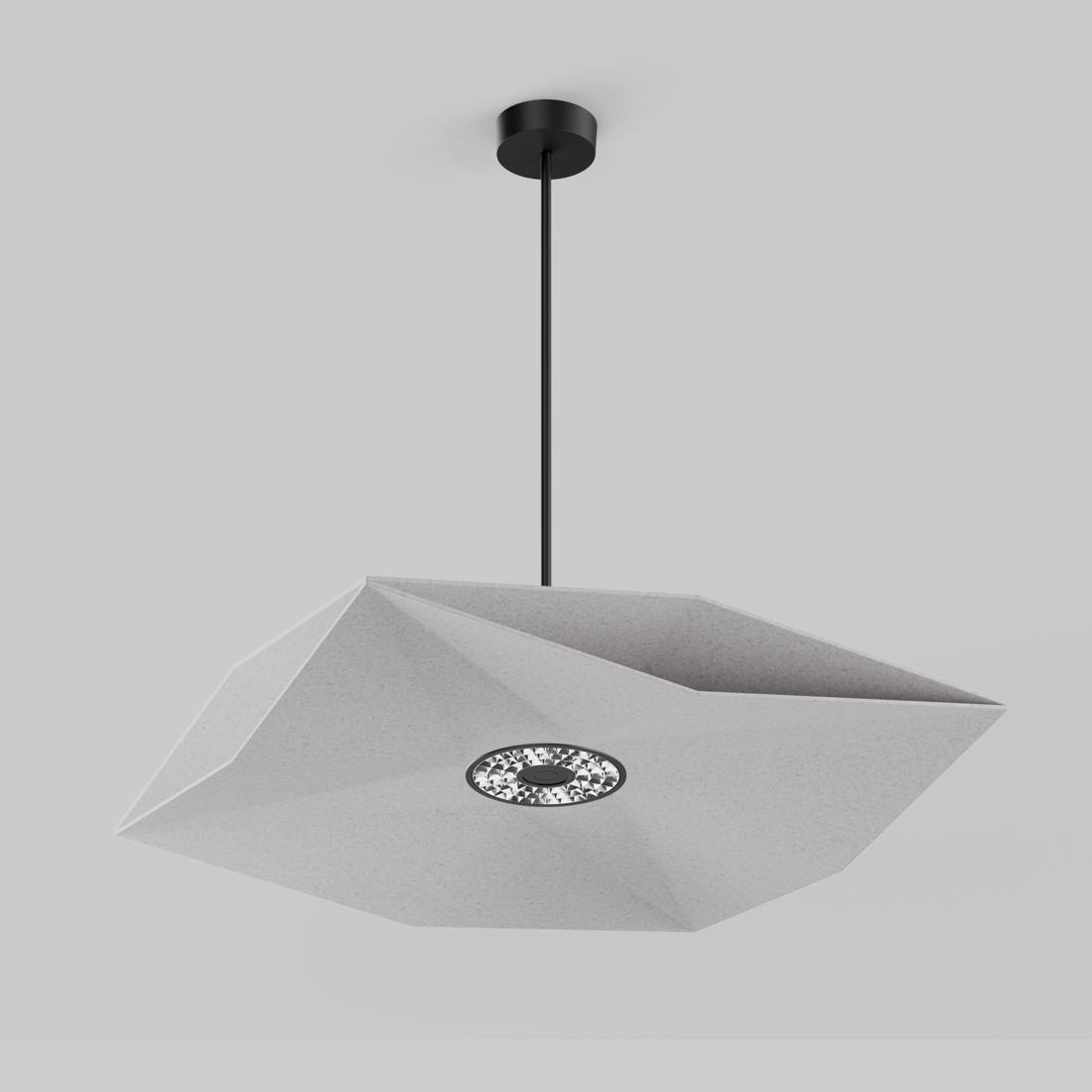

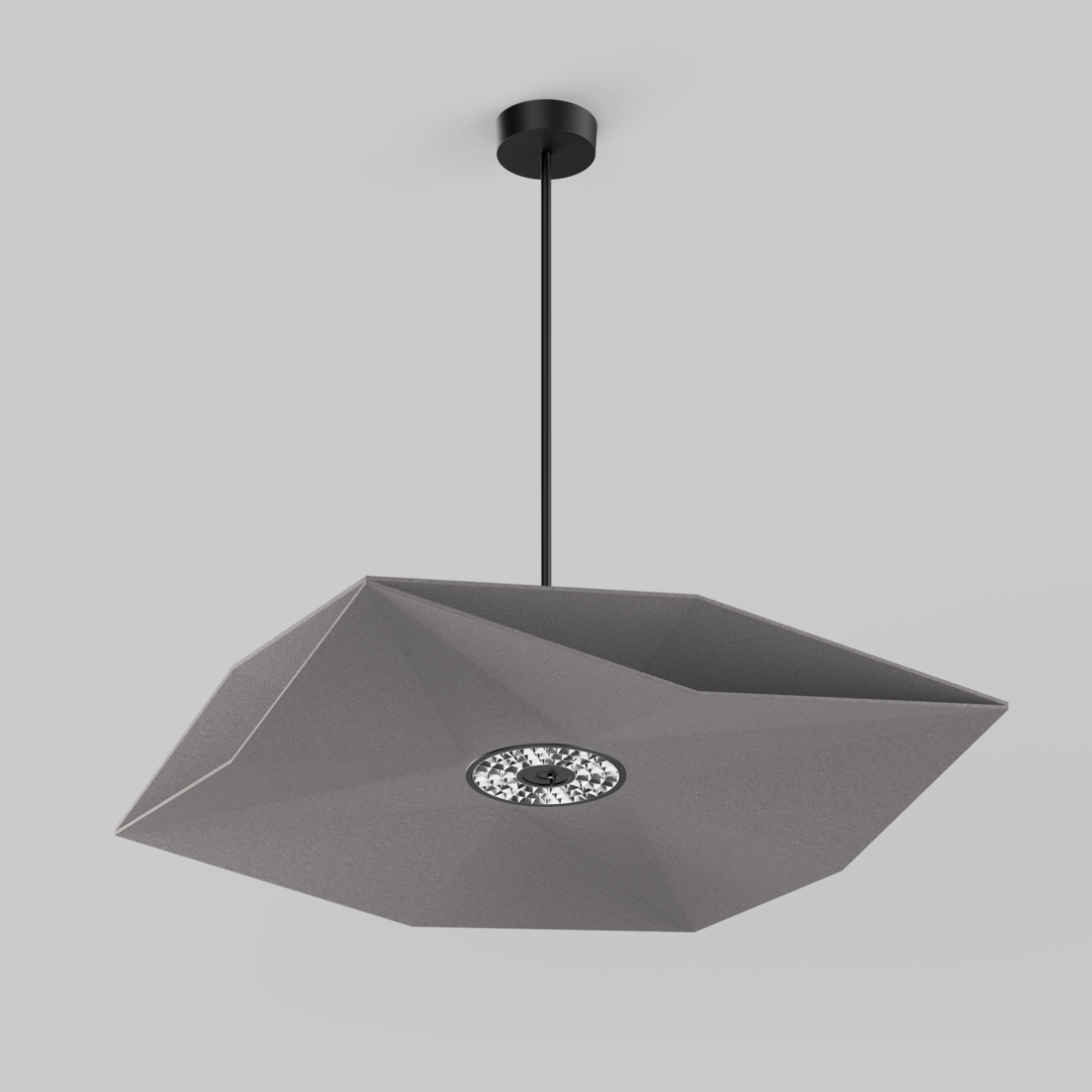

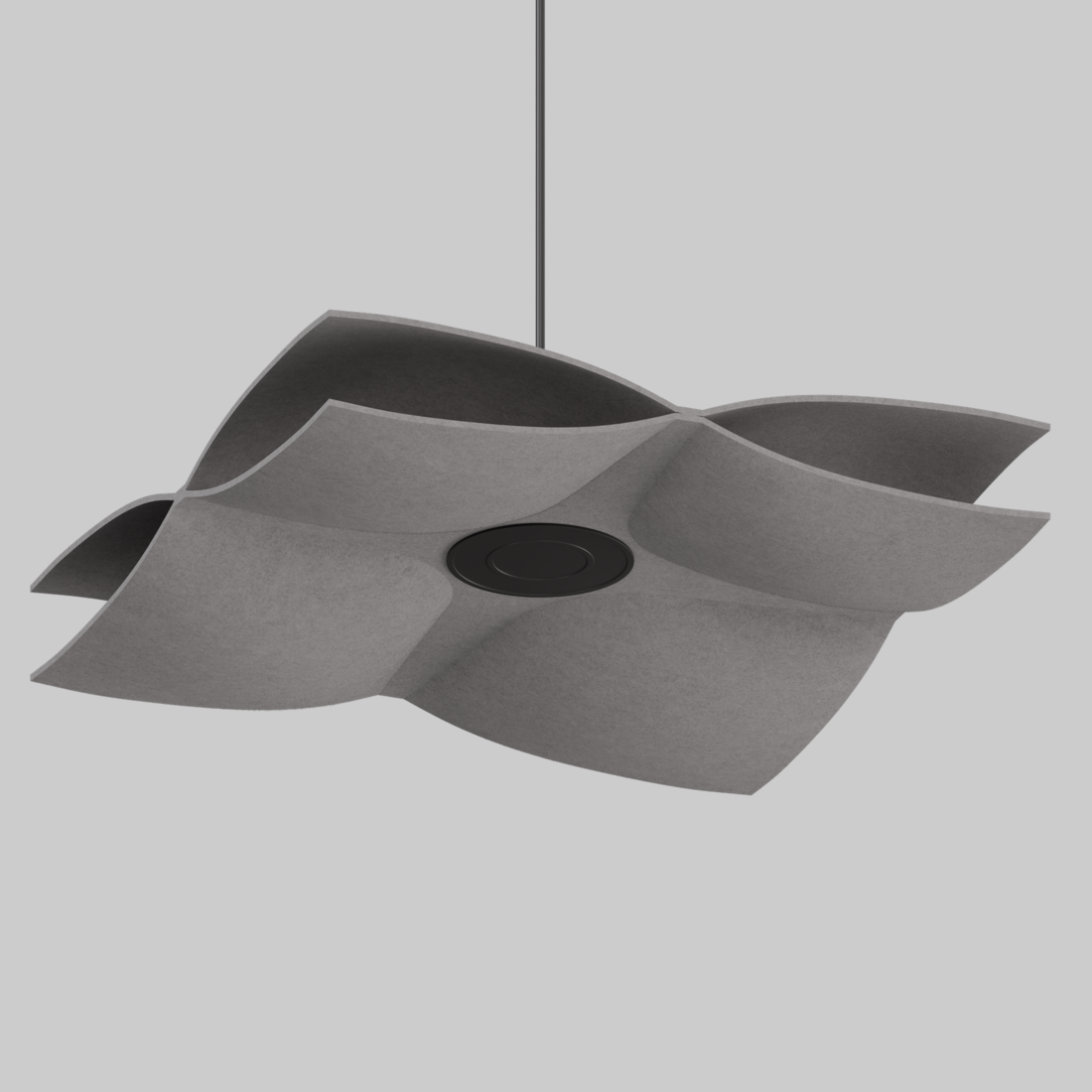

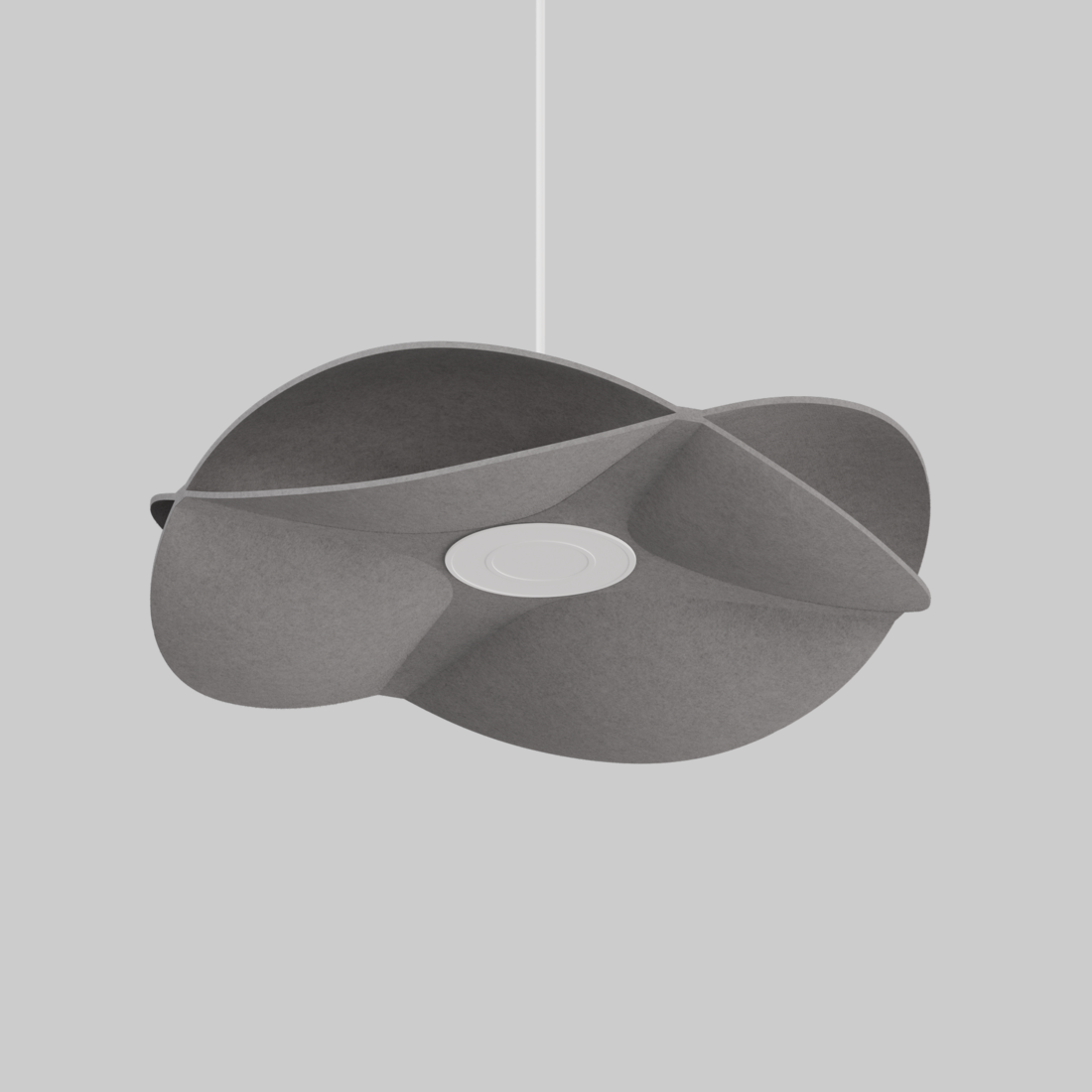

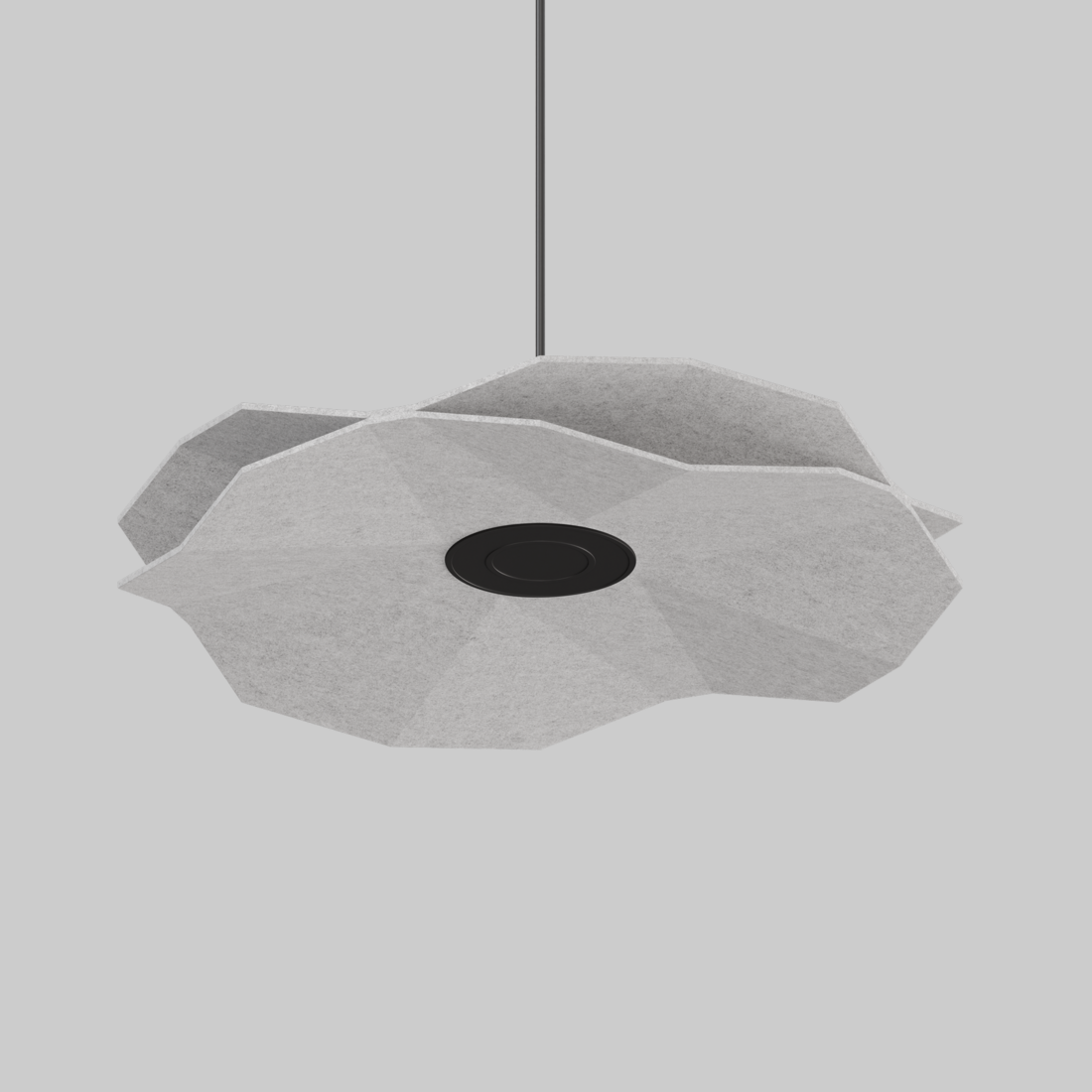

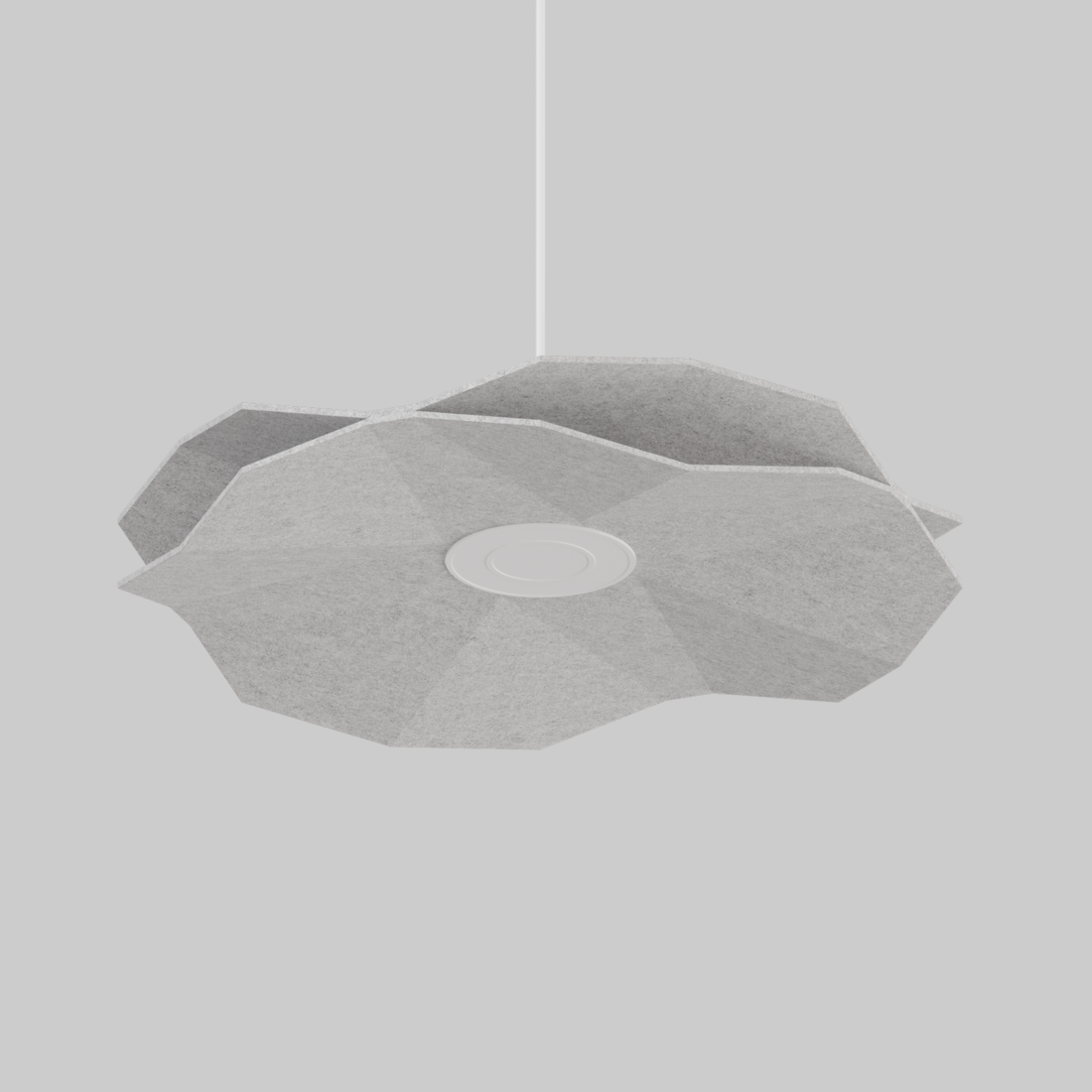

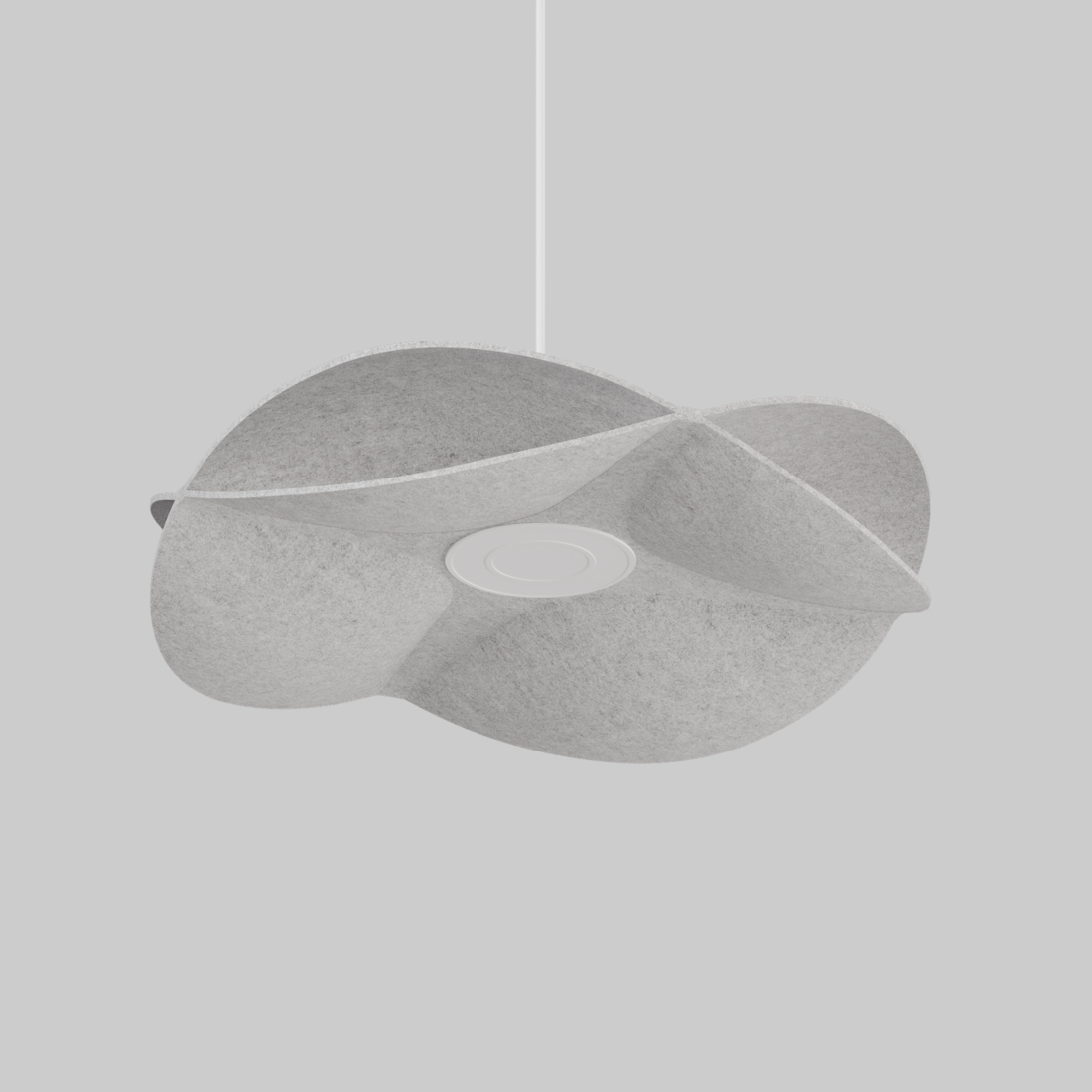

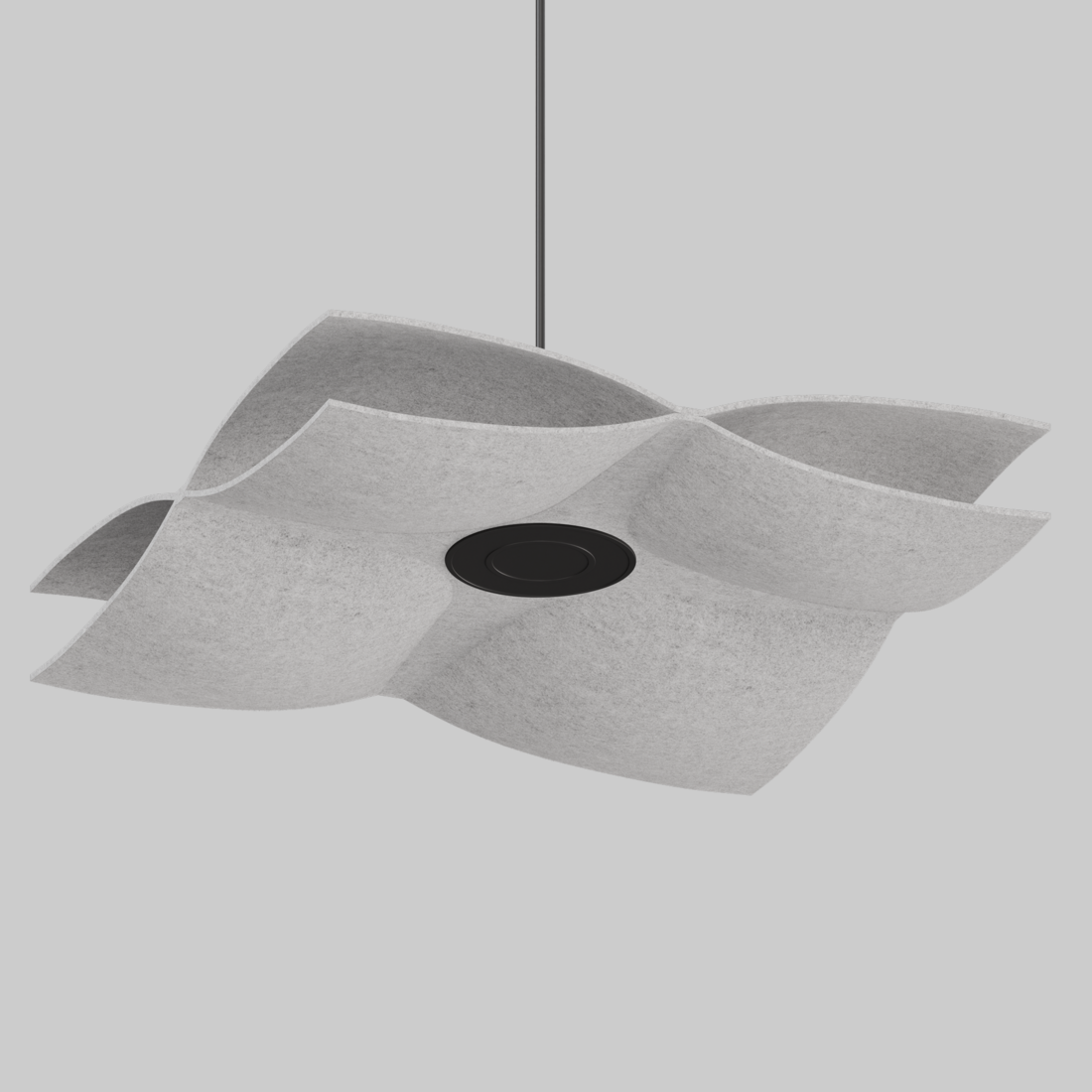

Acoustic element made of high quality, self-supporting, at least 50 % recycled PET felt with sound absorbing properties; in different moldings; constructed of two layers; choice of square, round or octagonal design; suitable for single or group installation; high quality visual and tactile surface; acoustically effective cavities; large sound absorbing surface; absorption of direct sound and sound reflected from the ceiling; this creates high acoustic performance; pendant fitting with MITA circle 240 acoustic suspended (LUMINAIRE or BLIND SUSPENSION); LUMINAIRE: ring shaped luminaire housing in die-cast aluminium; extremely slim design; surface powder coated; suspended; with adjustable pendant mounting, feed line in pendant tube; electronic operating unit installed in the canopy; fitted with single LED light points; good glare reduction due to recessed light point plane; despite this increased efficiency through special lens technology; inserted lenses with wide flood radiation characteristic; or high gloss reflector with faceted design; energy-efficient LEDs with very good colour rendering; optionally with sensor
acoustic volume
group mounting
four types in one size
Products and codes
Accessories
Acoustic
Mounting
