VARO 110 S

VARO 110 S

track

180-6531037F

Quickinfo

3000 K
CRI ≥ 90 / 3 SDCM (initial MacAdam)
128 lm/W
L85 / 50000 h
DALI-2
IP20

Colour

General

  • Ceiling
  • Track
  • tilt max 90°
  • rotation 355°
  • traffic white
  • RAL 9016
  • IP20
  • 4480 lm

LED

  • 3000 K
  • CRI ≥ 90
  • L85 / 50000 h
  • ≤ 3 SDCM (initial MacAdam)
  • Rg: 99
  • Rf: 92
  • R{1-15}: 93
  • MR 0.61
  • MDER 0.55

Optical

  • flood
  • beam angle 40°
  • PstLM ≤ 1.0 1
  • SVM ≤ 0.4 1

Electrical

  • DALI-2
  • 220-240 V
  • system 35 W
  • system 128 lm/W 2
  • PC2
  • 1 DALI Addr.

Physical

  • diameter 110 mm
  • height 110 mm
  • 0.7 kg

Circuit Breaker Types

Automatic Circuit Breaker Type

B13
B16
B20
C13
C16
C20

Number of Fixtures

42
53
66
71
90
110
1 Value of containing product at full load (undimmed) 2 incl. consideration of optical losses, internal control unit losses & operating device efficiency

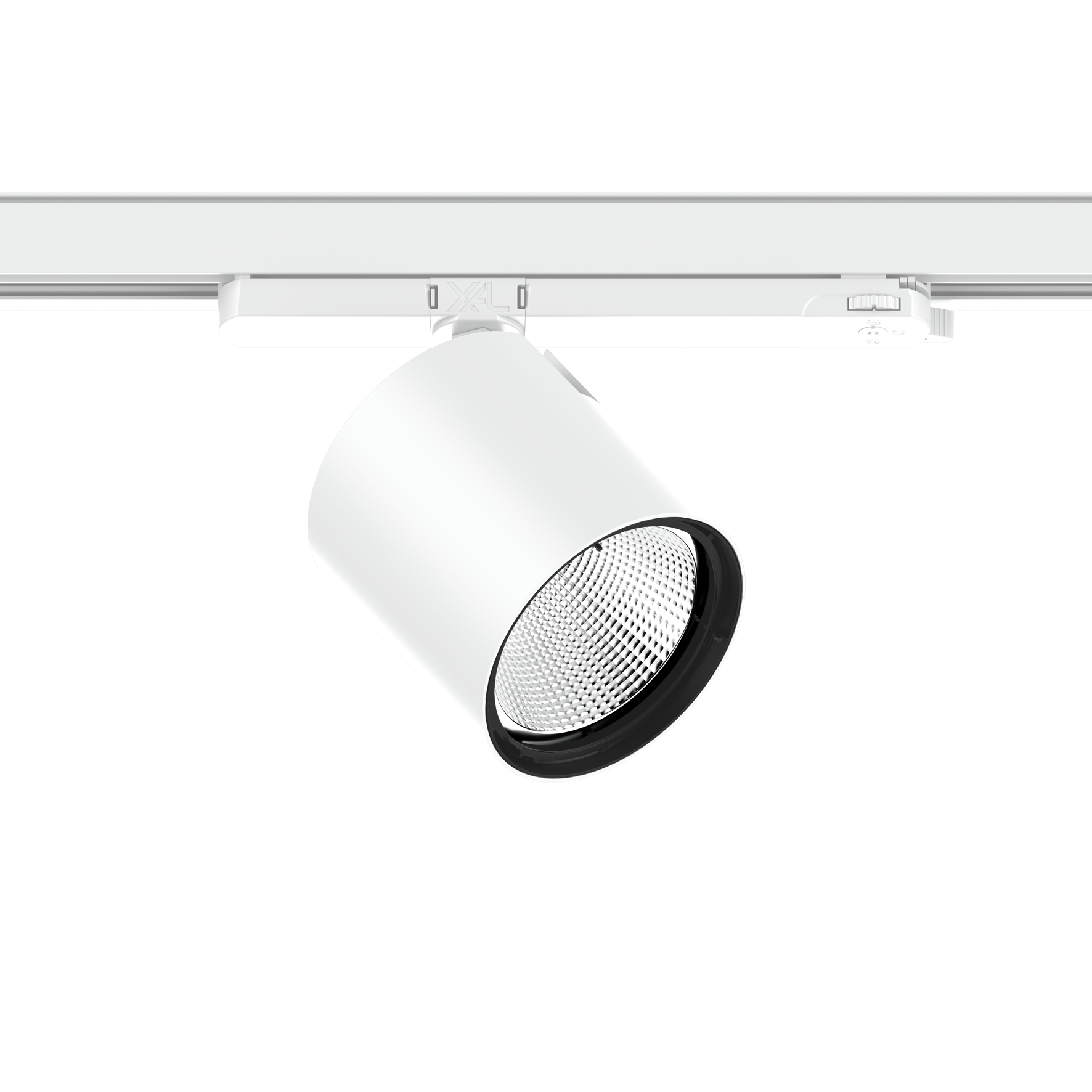

Track light made of die-cast aluminium; surface traffic white powder coated; 355° rotatable and 90° tiltable; integrated converter in the plastic adapter; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 3000 K; ≤ 3 SDCM (initial MacAdam); CRI ≥ 90; min. 85% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; including high quality aluminium reflector with spherical reflector; high gloss anodised; neutral colour reflection through absolute freedom from interference colour; for brilliant object staging; precise radiation characteristic with 40° beam; installed and exchanged without tools; optical attachments available as accessories; optical attachments can be combined; accessories are listed separately; degree of protection IP20; PC2; 220-240 V; incl. DALI-2 converter; adapter for toolless insertion or movement on a variety of 3-phase power tracks; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;

Product data & specification documents

Datasheets

Planning files & lighting data

Certificates

Download all

Accessories

Optical

article number
dimensions
HONEYCOMB LOUVER
080-6501118
diameter 106 mm
height 9 mm
WIDE FLOOD LENS
080-6502110W
diameter 106 mm
height 9 mm
0.03 kg
OVAL LENS
080-6502210
diameter 106 mm
height 9 mm
0.03 kg
SNOOT short
080-6503118
diameter 97 mm
height 23 mm
0.02 kg
SNOOT medium
080-6503218
diameter 97 mm
height 38 mm
0.02 kg
SNOOT angle
080-6503318
diameter 97 mm
height 38 mm
0.05 kg
