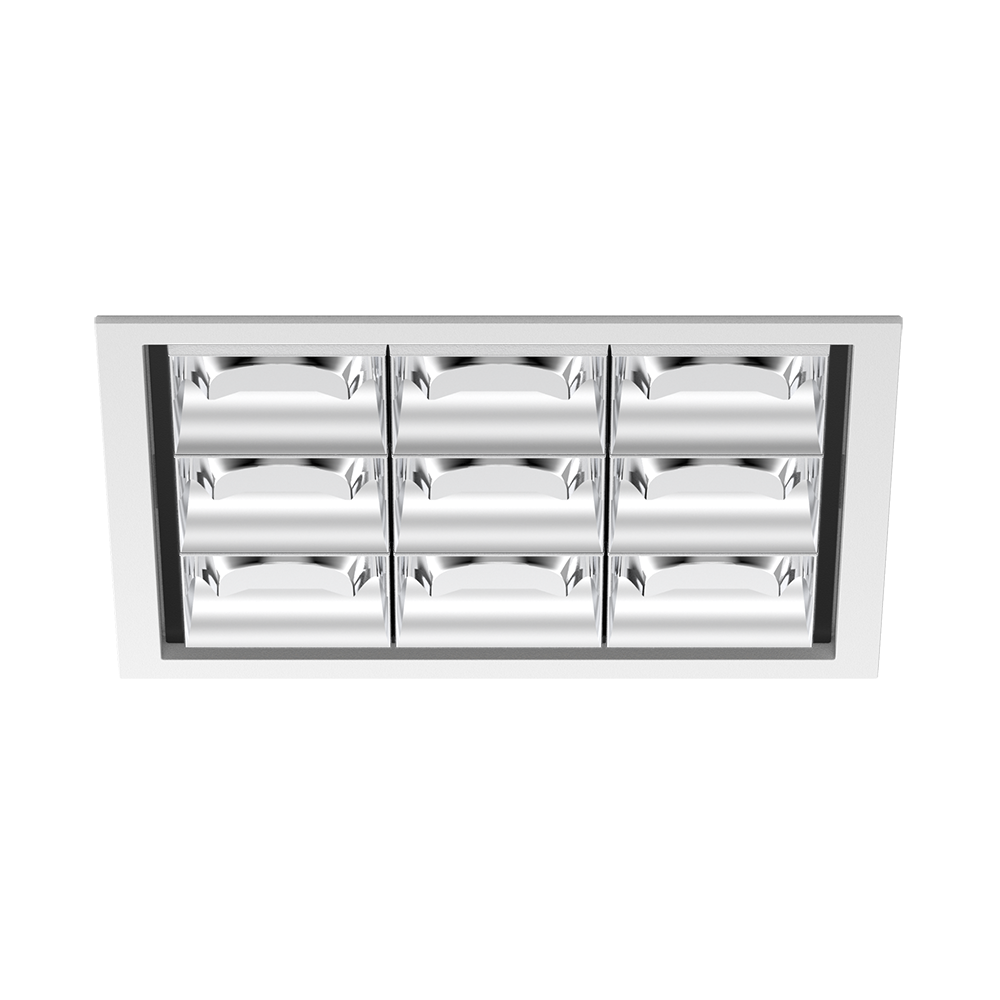

UNICO Q9 basic trim

UNICO Q9 basic

trim

090-7Q95190021 090-7Q9020W

Quickinfo

3000 K
CRI ≥ 90 / 3 SDCM
101 lm/W
L90 / 50000 h
non DIM
IP20

Colour

Mounting set

General

  • Ceiling
  • Recessed
  • chrome reflector
  • Mounting set traffic white
  • IP20
  • 3020 lm

LED

  • 3000 K
  • CRI ≥ 90
  • L90 / 50000 h
  • initial MacAdam ≤ 3 SDCM
  • Rg: 100
  • Rf: 92
  • R{1-15}: 91
  • MR 0.64
  • MDER 0.58

Optical

  • wallwasher floor

Electrical

  • non DIM
  • 220-240 V
  • system 29.9 W
  • system 101 lm/W 1
  • PC2

Physical

  • trim
  • length 138 mm
  • width 138 mm
  • height 51 mm
  • 0.71 kg

Cutout

  • length 130 mm
  • width 130 mm
  • min. ceiling thickness 2 mm
  • max. ceiling thickness 25 mm
  • recessed depth 90 mm

Circuit Breaker Types

Automatic Circuit Breaker Type

B10
B16
B20
B25
C10
C16
C20
C25

Number of Fixtures

30
49
61
76
30
49
61
76
1 incl. consideration of optical losses, internal control unit losses & operating device efficiency

Square recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; square installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; equipped with three wallwasher light elements + six flood square light elements; precise radiation characteristic; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; 220-240 V; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;

Product data & specification documents

Datasheets

Planing files & lighting data

Download all

Accessories

Mounting

article number
colour
dimensions
cut out dimensions
MOUNTING SET with trim
090-7Q9020W
traffic white
RAL 9016
length 138 mm
width 138 mm
height 30 mm
0.11 kg
length 130 mm
width 130 mm

Electrical mounting

article number
type
dimensions
THROUGH WIRING CONNECTION BOX
005-2551110
DALI cable ø 4 – 12 mm
length 105 mm
width 58 mm
height 30 mm
0.07 kg
