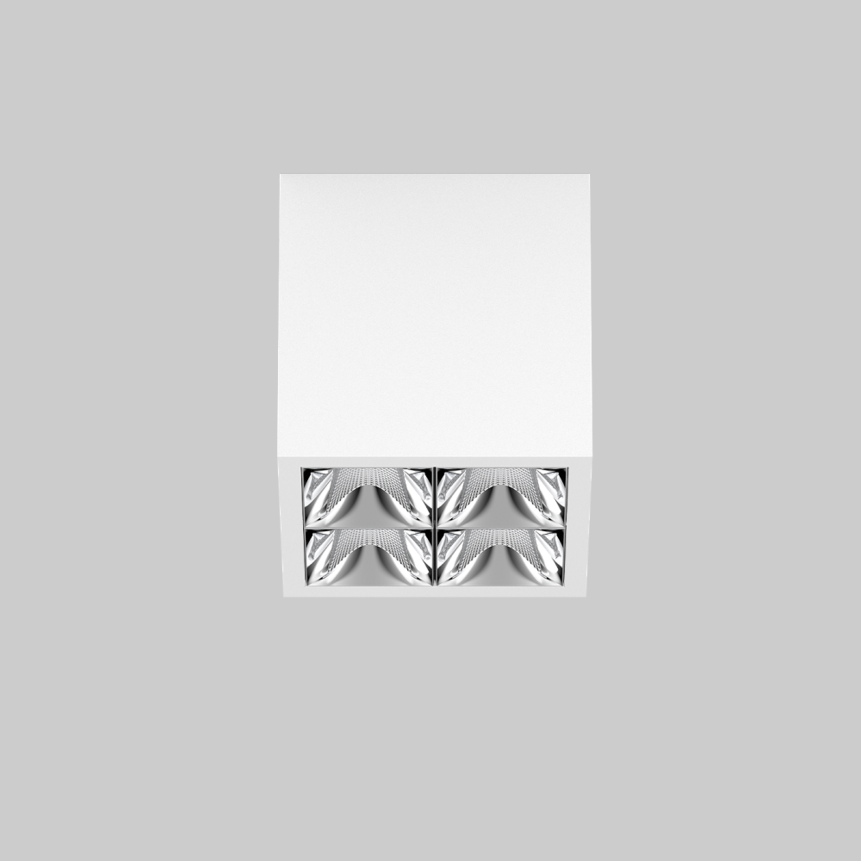

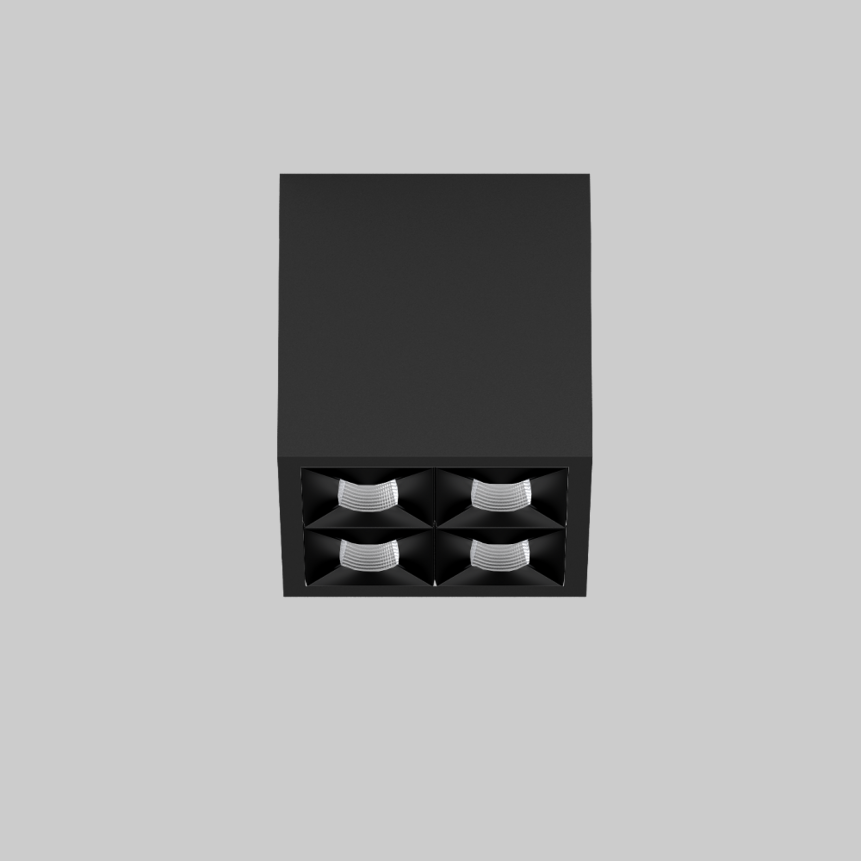

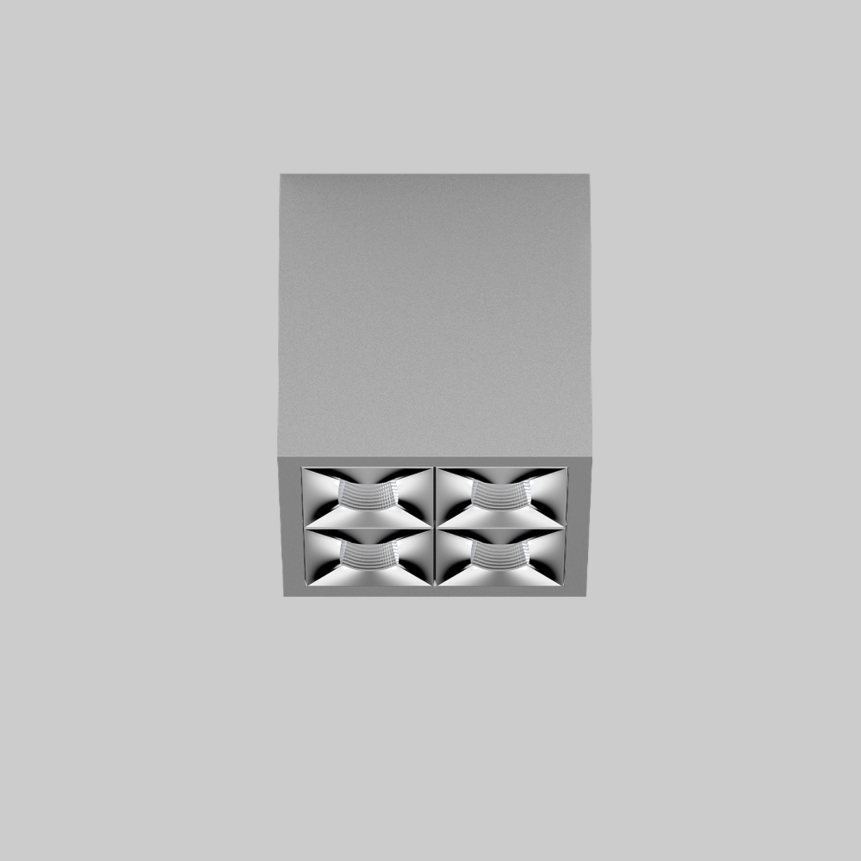

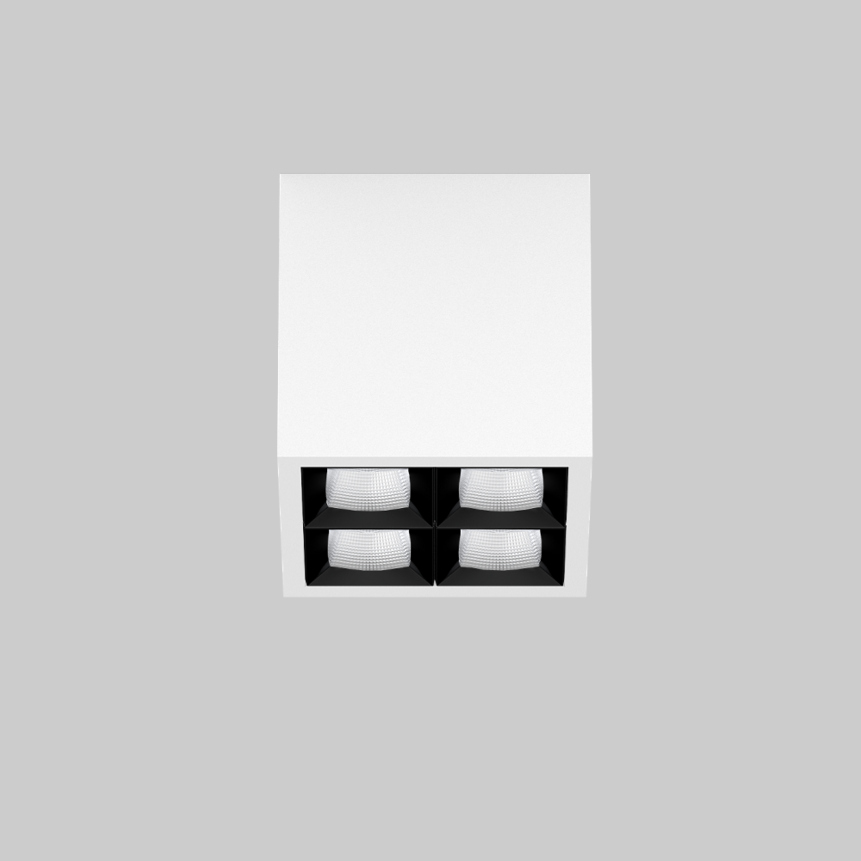

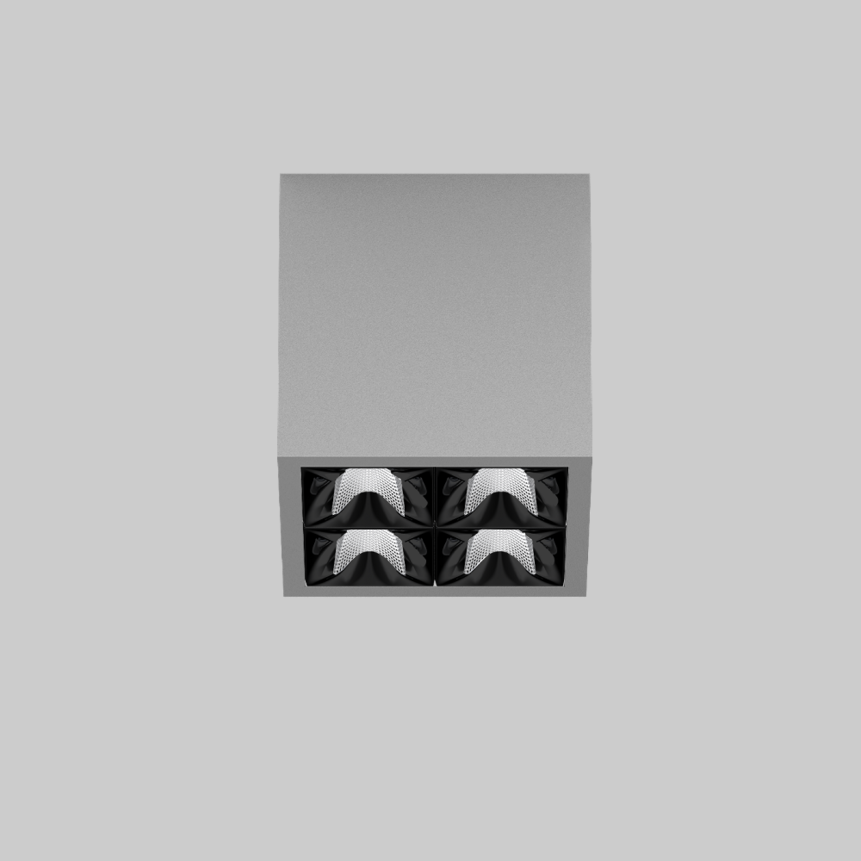

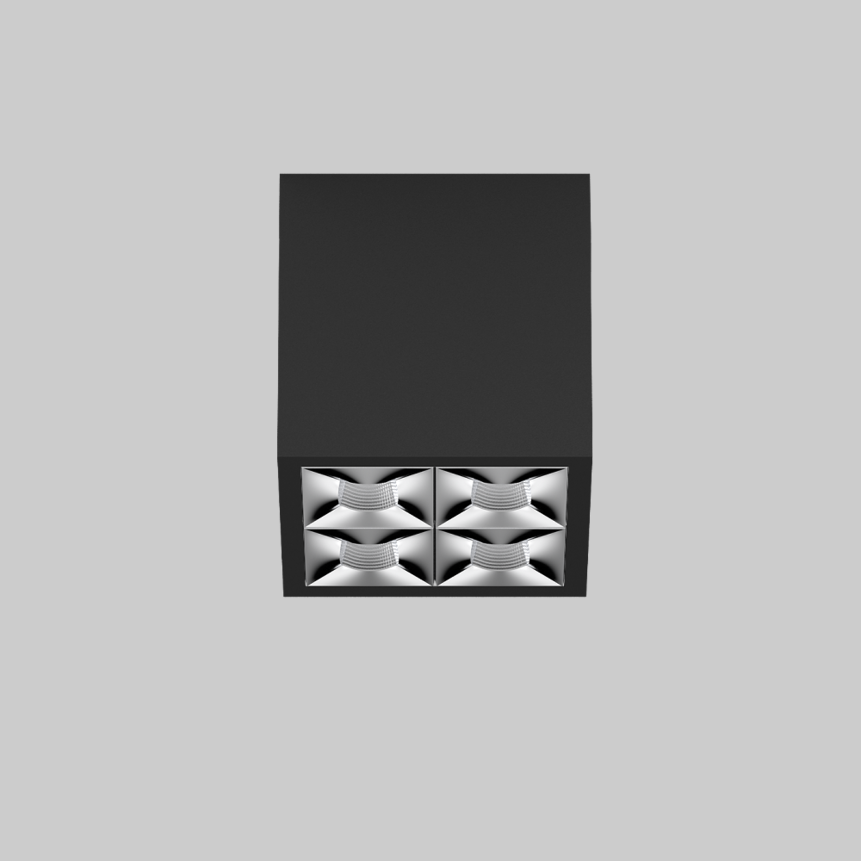

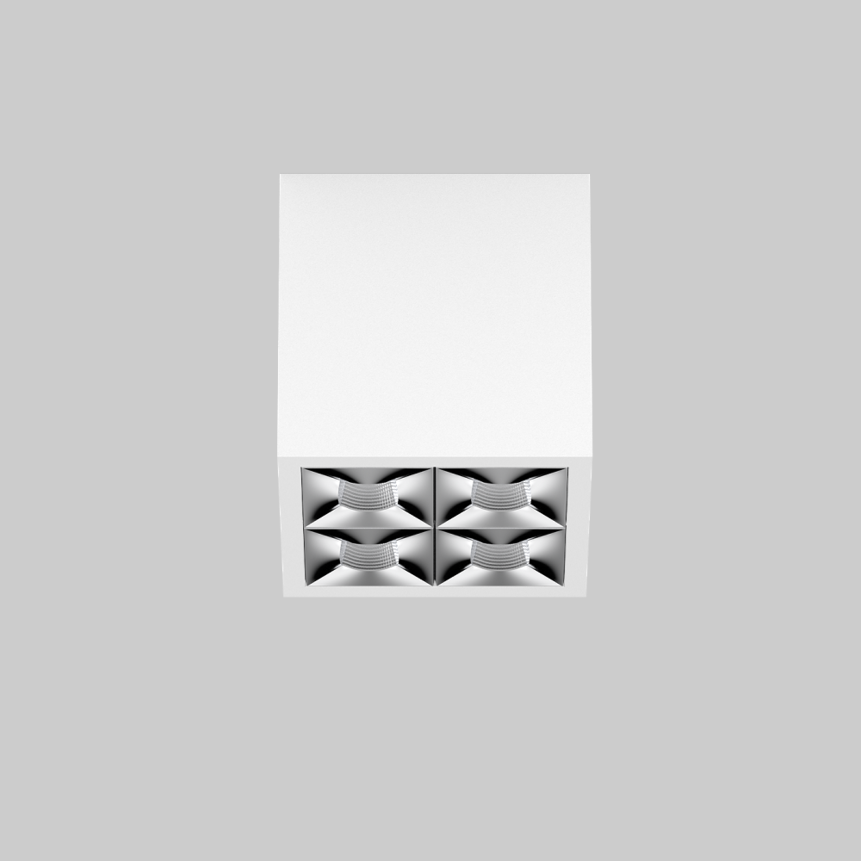

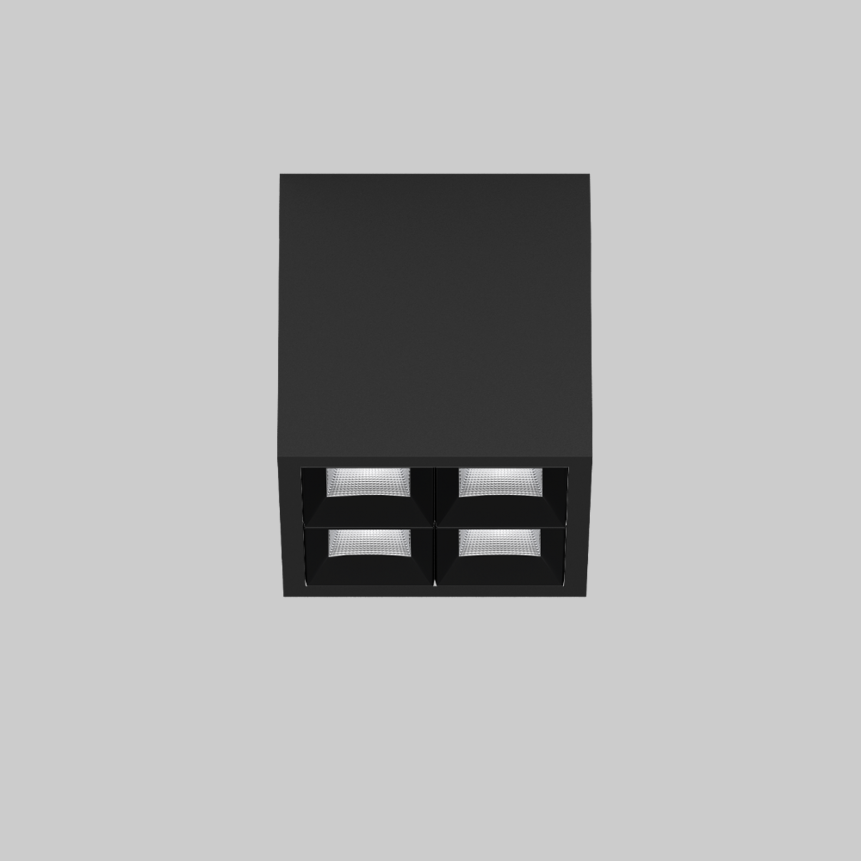

UNICO Q1 / Q4 basic

ceiling

Quickinfo

2700 K, 3000 K, 4000 K
CRI ≥ 90 / 3 SDCM
UGR < 10, UGR < 19
up to 107 lm/W
L90 / 50000 h
DALI-2, non DIM
IP20

Colour

  • Reflector

  • Simple drawing

    Light distribution

    Product data & specification documents

    Download all
    • ROLF
    • ULD

    Description

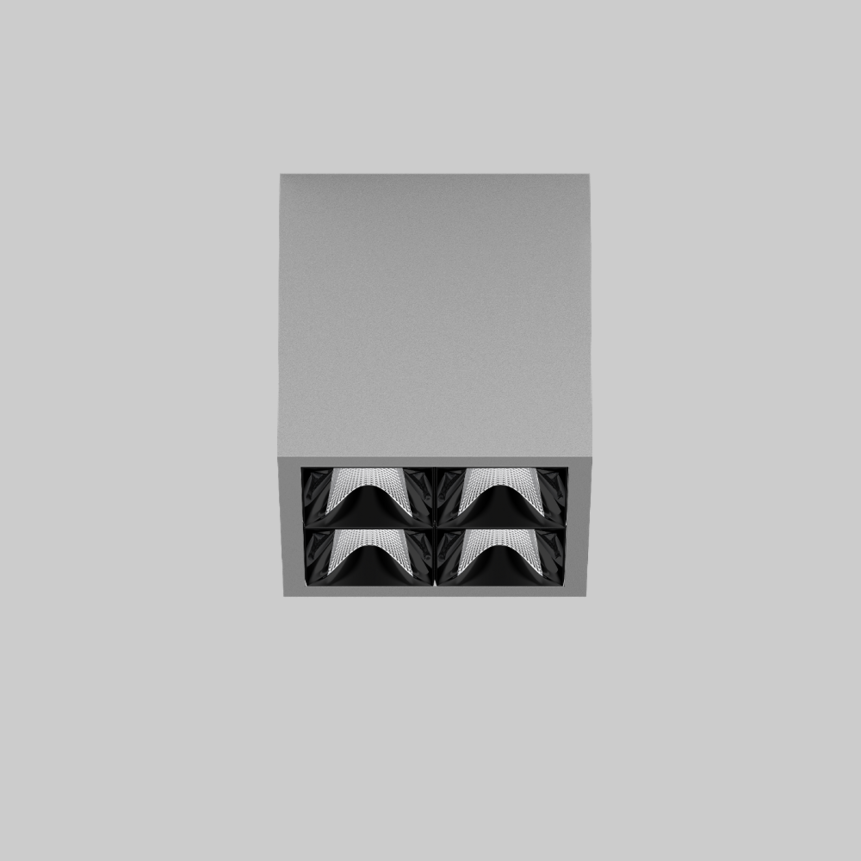

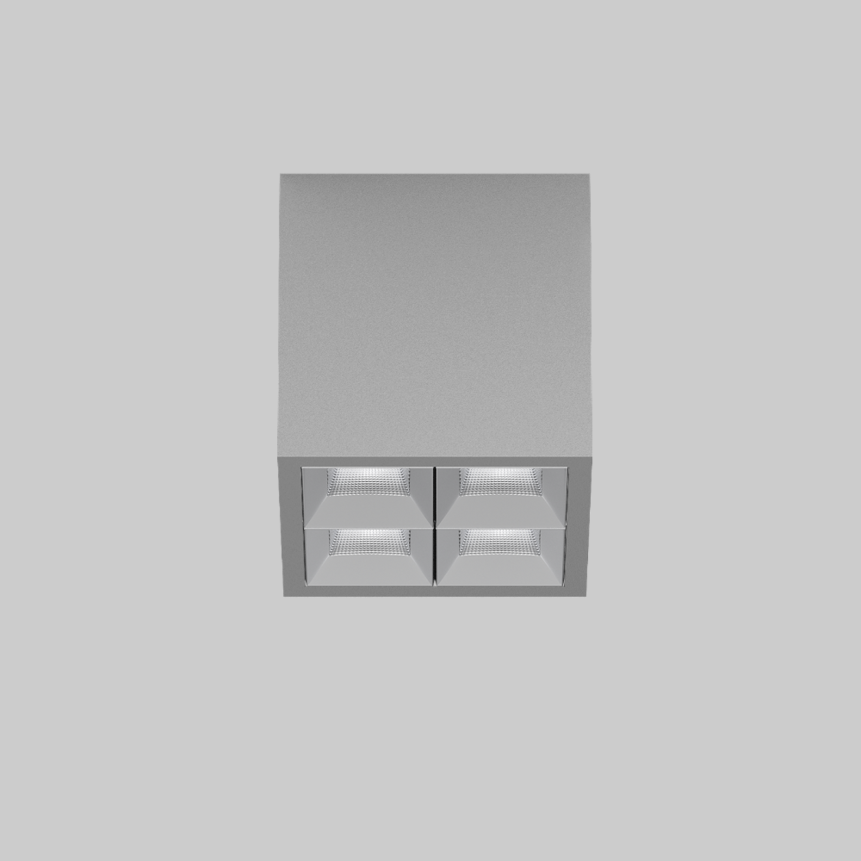

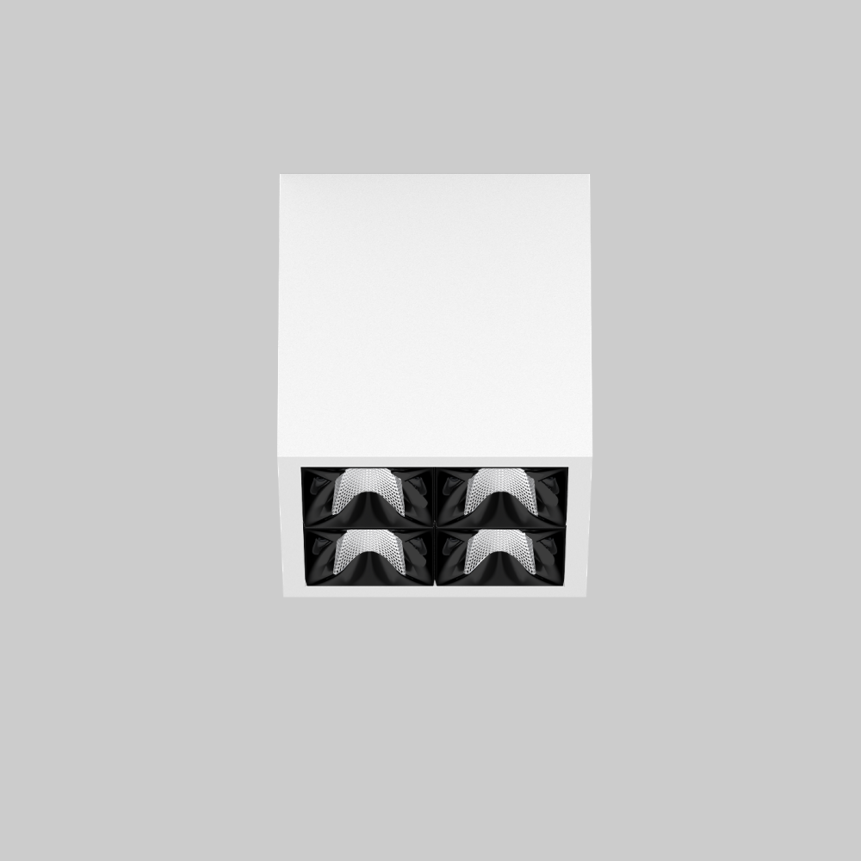

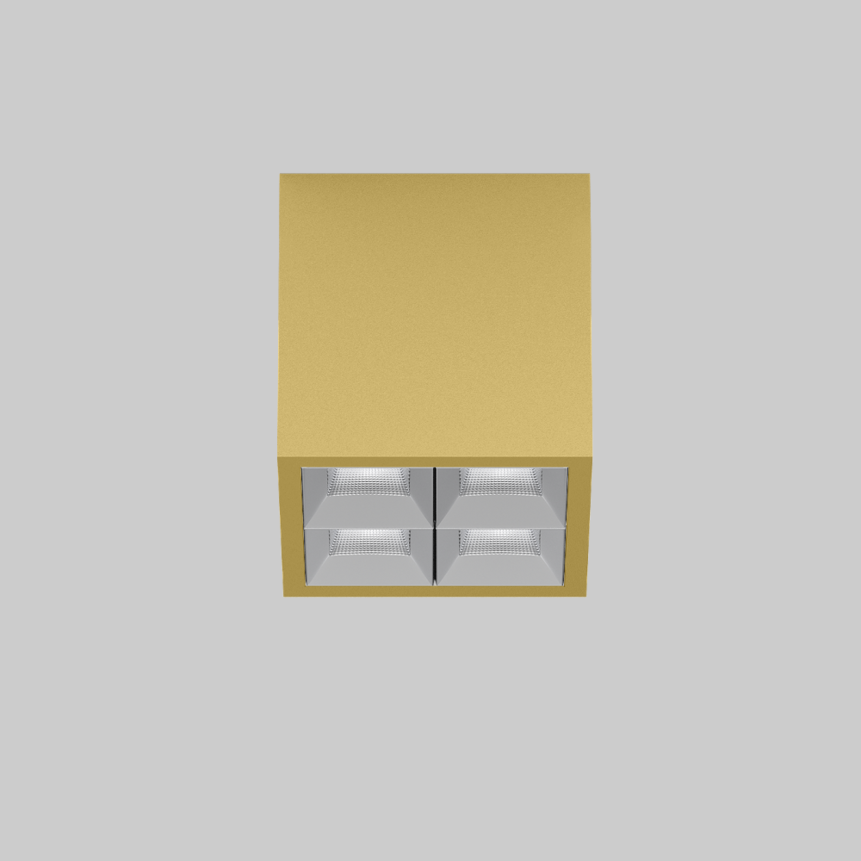

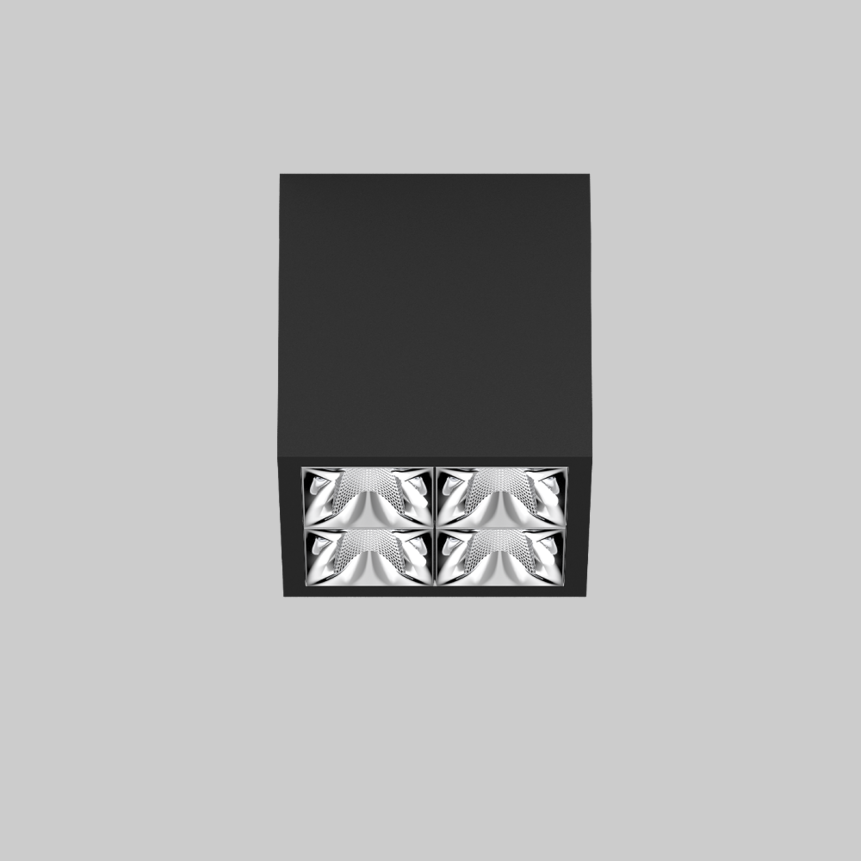

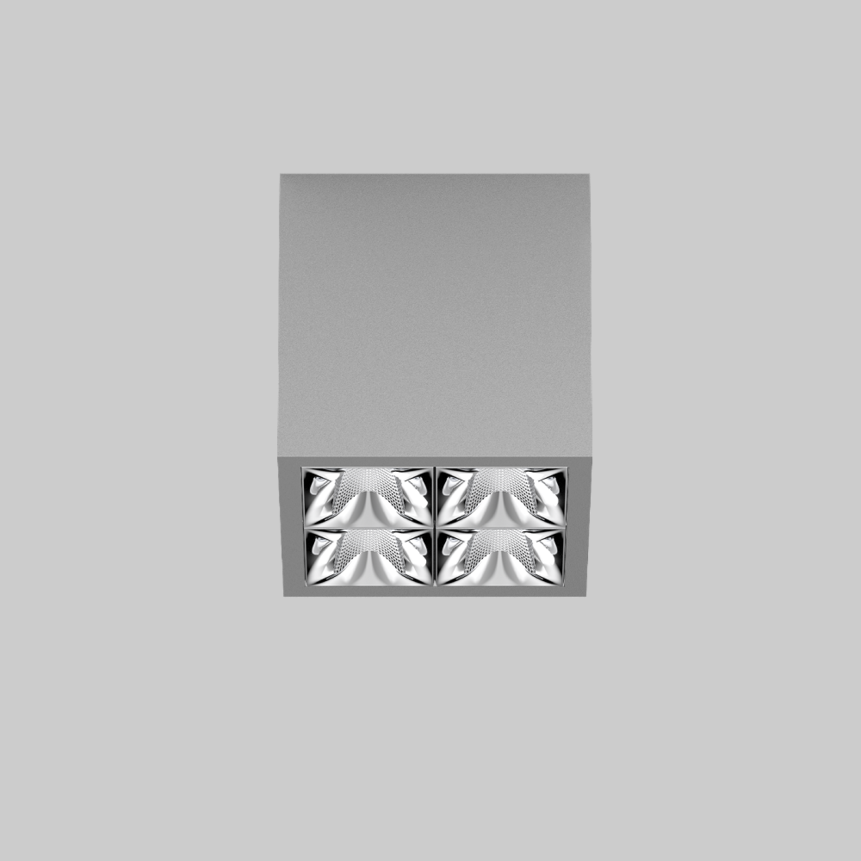

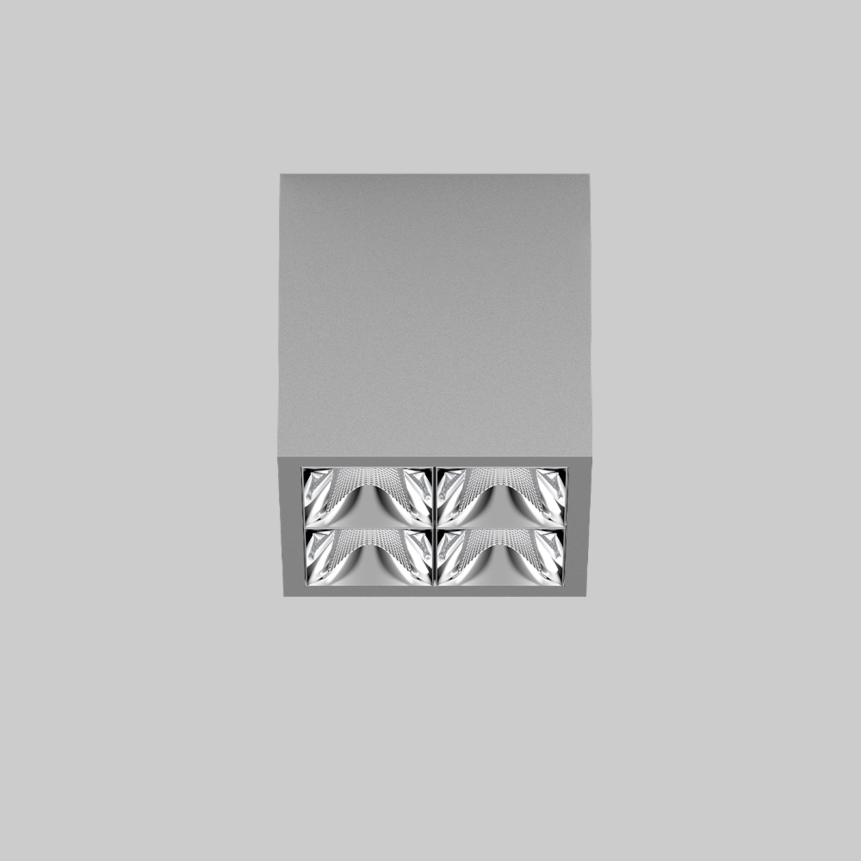

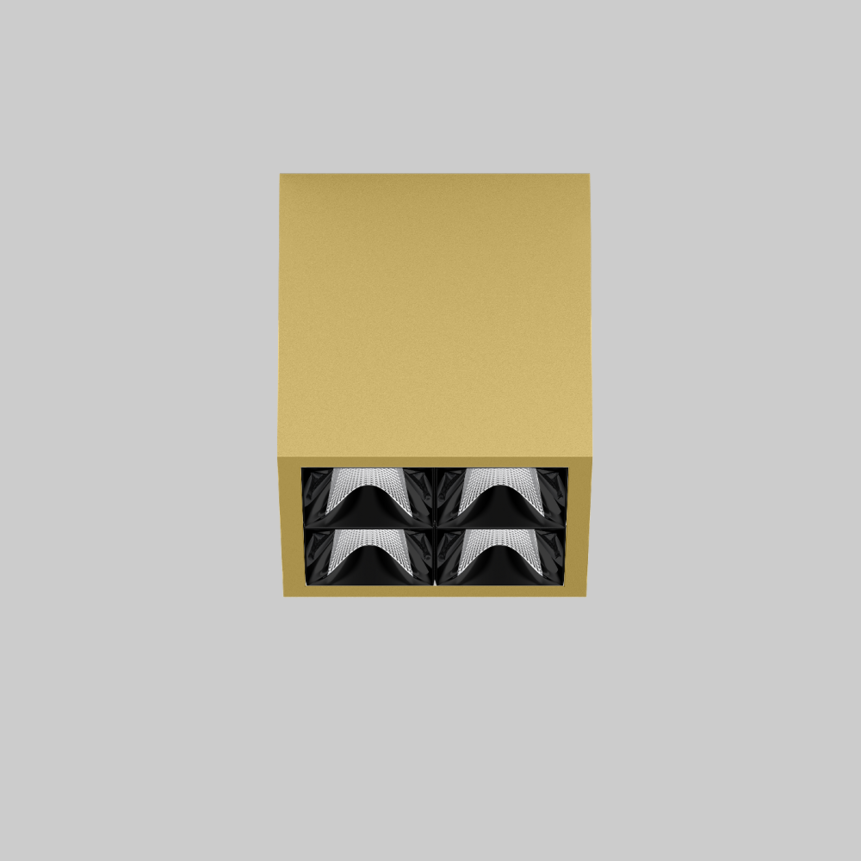

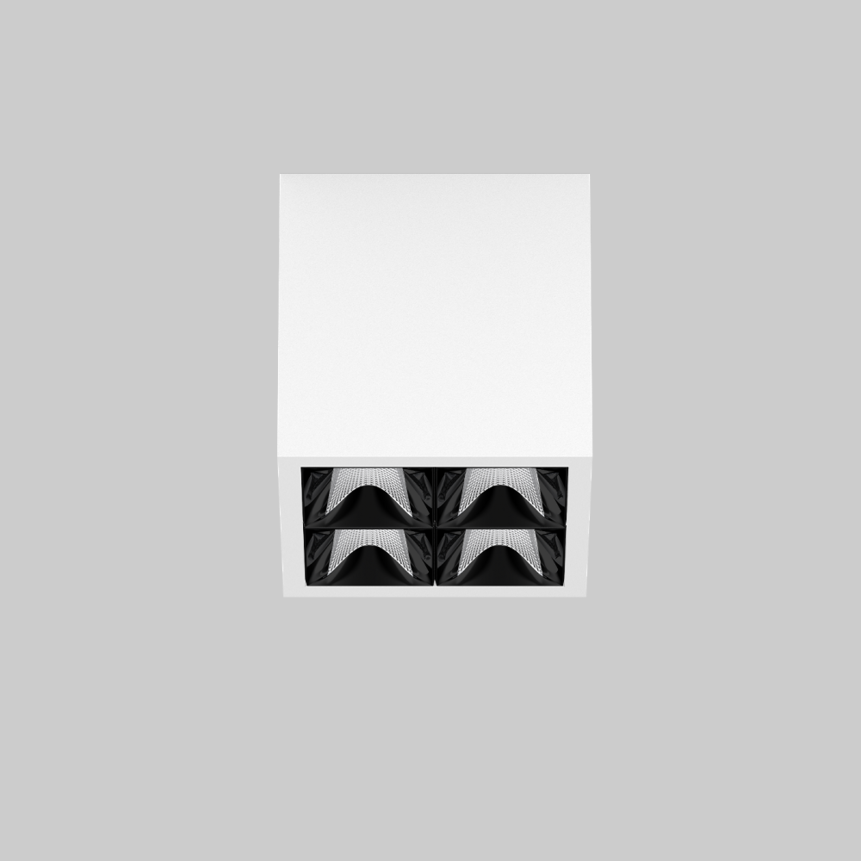

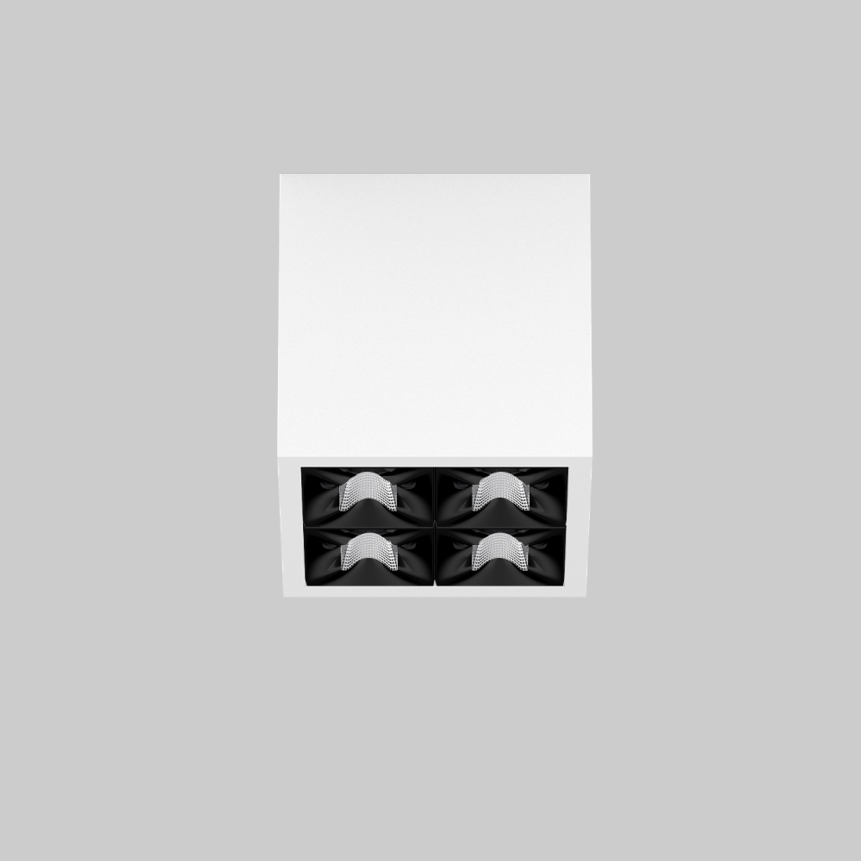

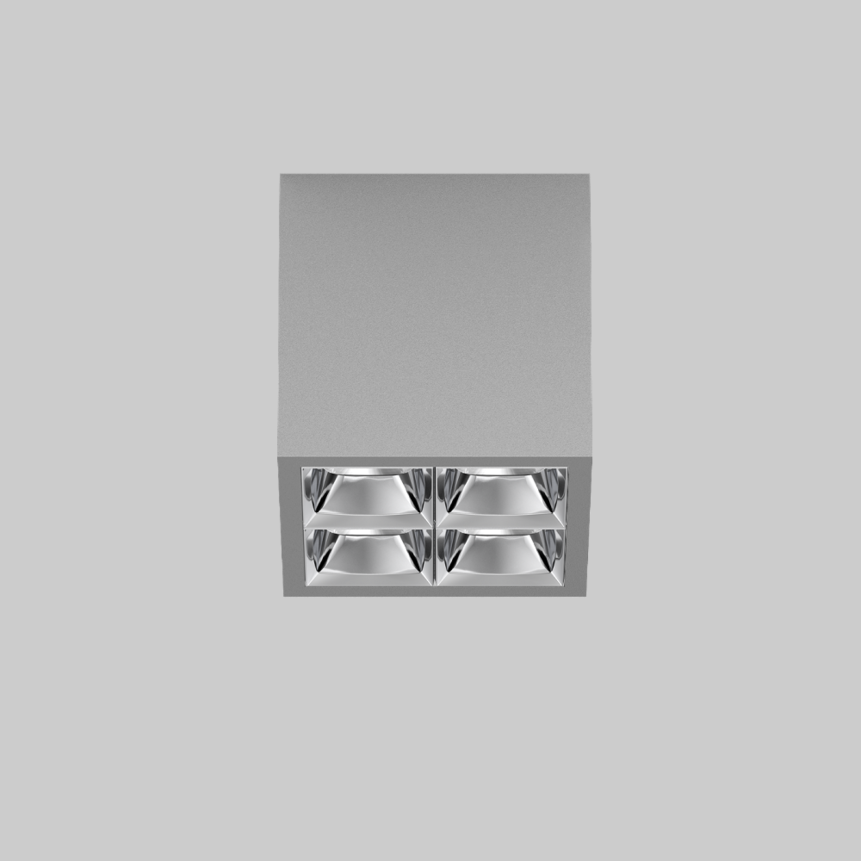

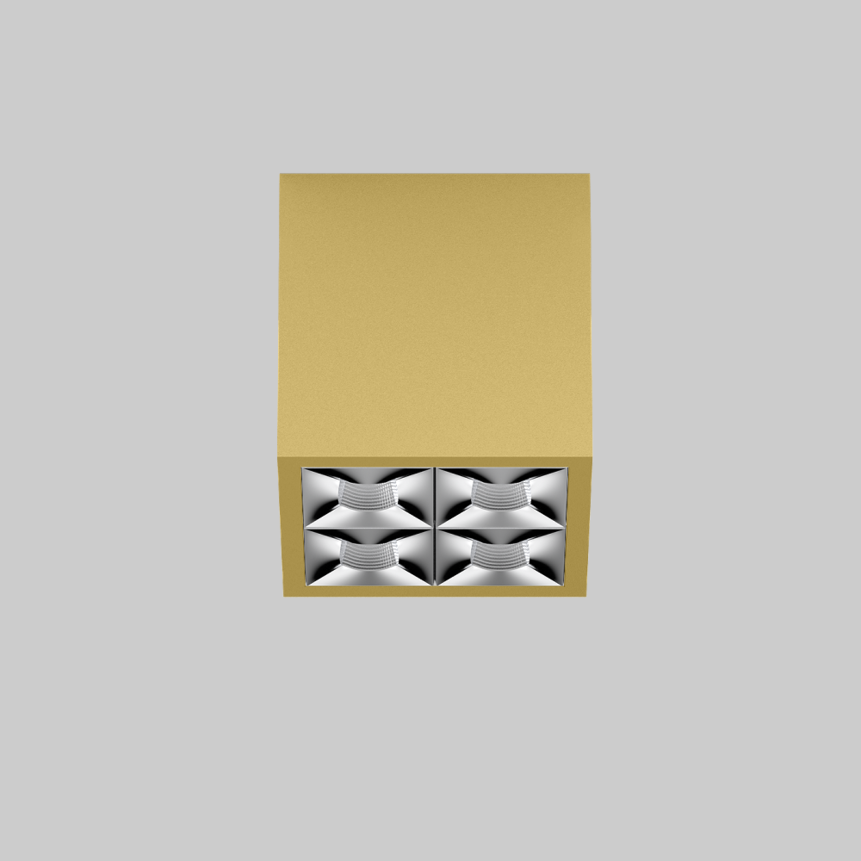

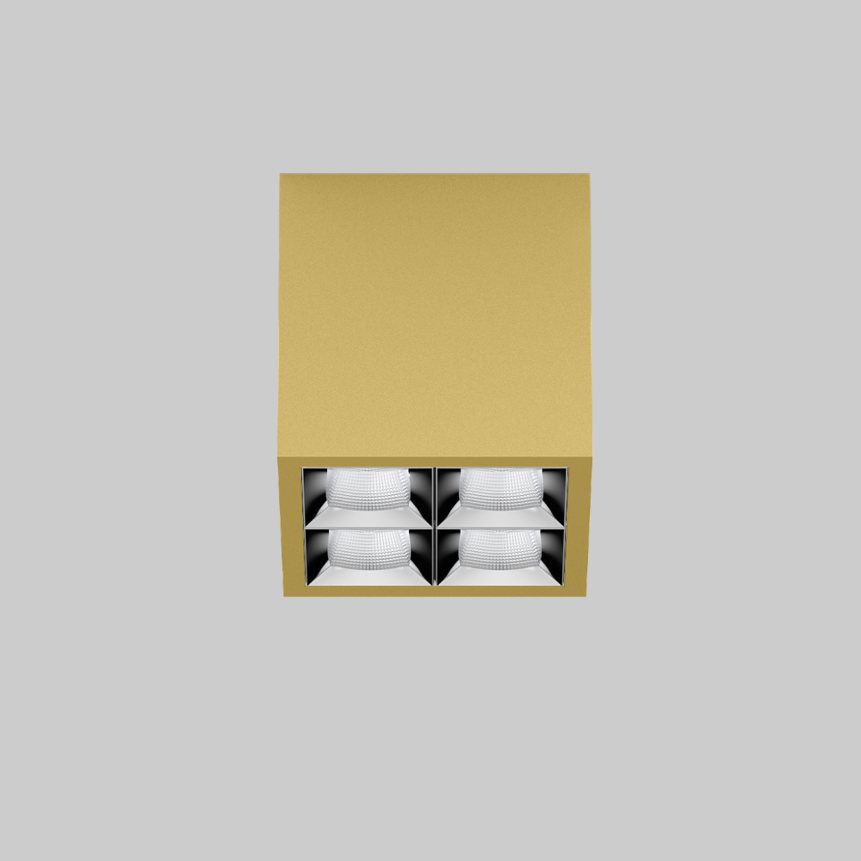

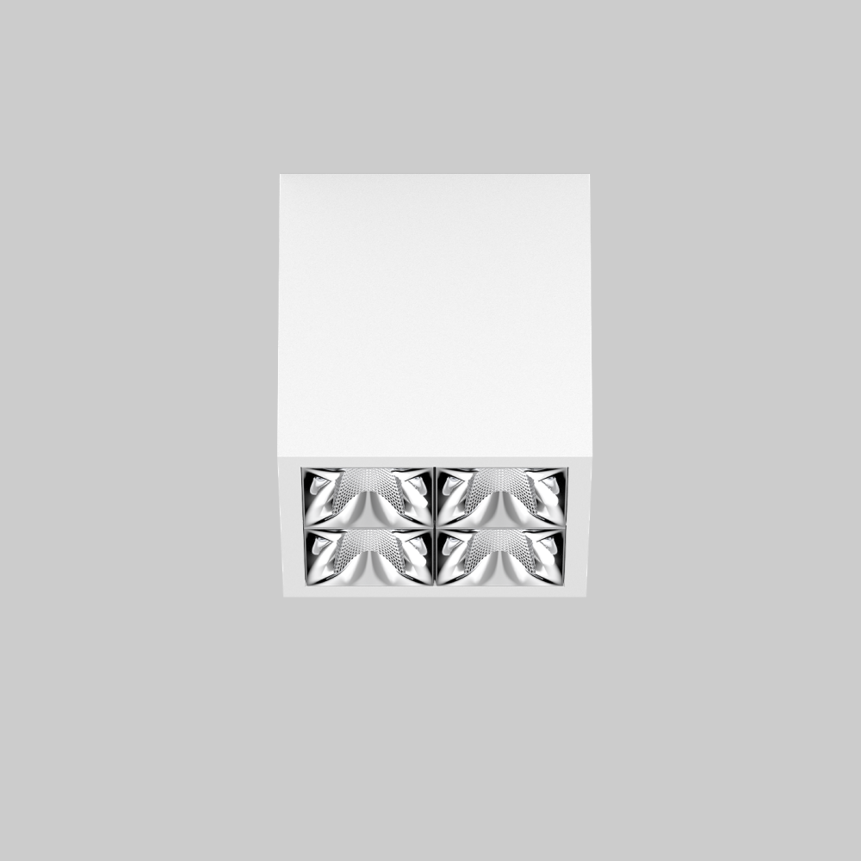

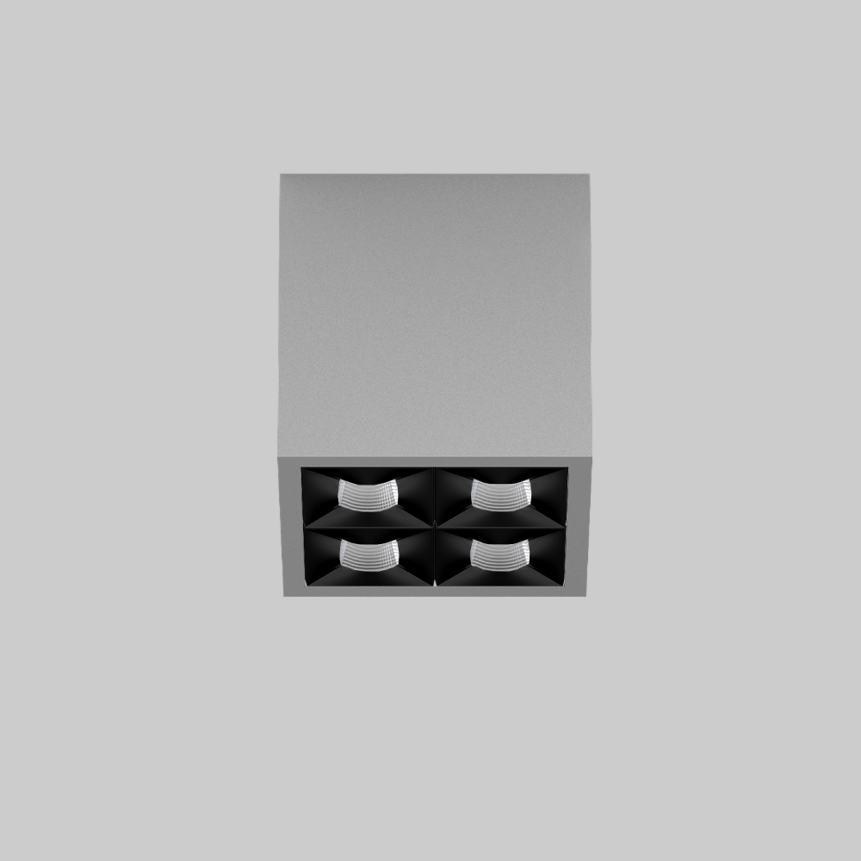

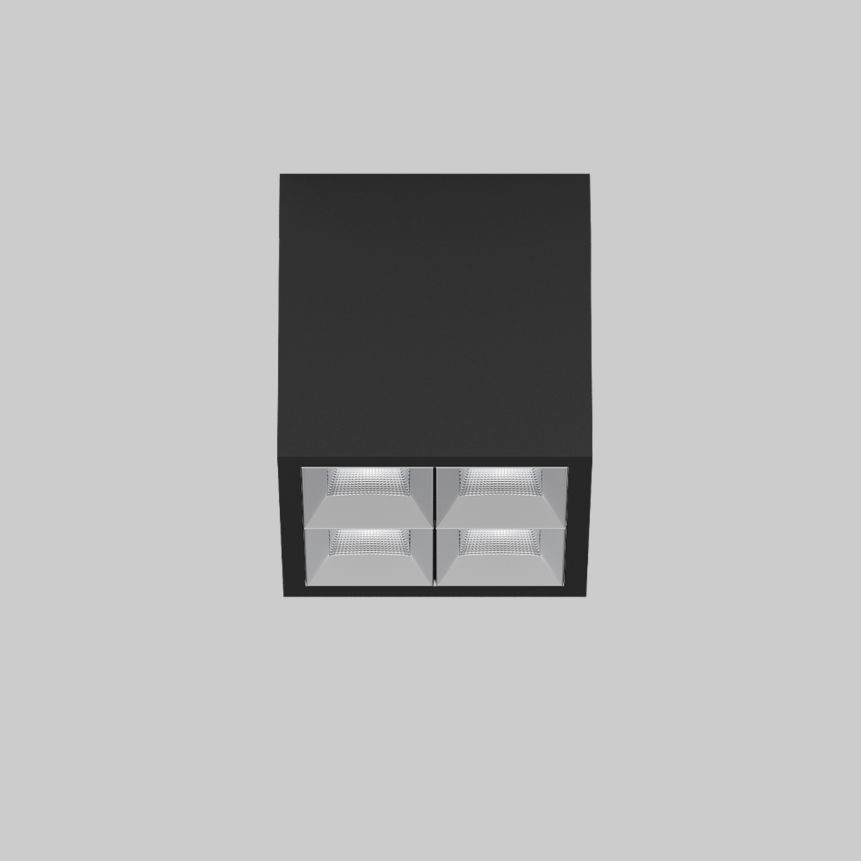

    Square surface mounted multi-downlight made of aluminium; equipped with one (Q1) / four (Q4) individually selectable or pre-specified, customised light element(s); luminaire housing can be attached to mounting plate without tools by interlock; converter integrated into luminaire housing; surface powder coated; high-quality reflector with micro-faceted, aluminum-vaporised surface; precise radiation characteristic with different symmetrical light distributions; or with asymmetric light distribution; energy-efficient high power LEDs with very good colour rendering; clank-free

    one luminaire multiple scenes

    black & gold reflector (optional)

    tunable white 2700 – 5000 K (optional)

    Dieser Bereich wird neu geladen sobald ein Eingabefeld geändert wird.

    Products and codes

    Filter
    49
    lm/W
    107
    lm/W
    278
    lm
    2060
    lm
    5.7
    W
    19.3
    W
    0.56
    0.81
    0.51
    0.74

    Colour

  • Reflector

  • UNICO Q1 basic ceiling

    UNICO Q1 basic ceiling medium

    UNICO Q1 basic ceiling medium

    Status
    Article number(s)
    Type
    Dimming
    black, Reflector black, 33° medium round, 2700 K, 5.7 W, 66 lm/W
    non DIM
    black, Reflector black, 33° medium round, 3000 K, 5.7 W, 72 lm/W
    non DIM
    black, Reflector black, 33° medium round, 4000 K, 5.7 W, 75 lm/W
    non DIM
    UNICO Q1 basic ceiling

    UNICO Q1 basic ceiling medium

    UNICO Q1 basic ceiling medium

    Status
    Article number(s)
    Type
    Dimming
    gold, Reflector black, 33° medium round, 2700 K, 5.7 W, 66 lm/W
    non DIM
    gold, Reflector black, 33° medium round, 3000 K, 5.7 W, 72 lm/W
    non DIM
    gold, Reflector black, 33° medium round, 4000 K, 5.7 W, 75 lm/W
    non DIM
    UNICO Q1 basic ceiling

    UNICO Q1 basic ceiling medium

    UNICO Q1 basic ceiling medium

    Status
    Article number(s)
    Type
    Dimming
    grey, Reflector black, 33° medium round, 2700 K, 5.7 W, 66 lm/W
    non DIM
    grey, Reflector black, 33° medium round, 3000 K, 5.7 W, 72 lm/W
    non DIM
    grey, Reflector black, 33° medium round, 4000 K, 5.7 W, 75 lm/W
    non DIM
    UNICO Q1 basic ceiling

    UNICO Q1 basic ceiling medium

    UNICO Q1 basic ceiling medium

    Status
    Article number(s)
    Type
    Dimming
    white, Reflector black, 33° medium round, 2700 K, 5.7 W, 66 lm/W
    non DIM
    white, Reflector black, 33° medium round, 3000 K, 5.7 W, 72 lm/W
    non DIM
    white, Reflector black, 33° medium round, 4000 K, 5.7 W, 75 lm/W
    non DIM
    UNICO Q1 basic ceiling

    UNICO Q1 basic ceiling

    UNICO Q1 basic ceiling

    Status
    Article number(s)
    Type
    Dimming
    black, Reflector black, 49° flood round, 2700 K, 5.7 W, 76 lm/W
    non DIM
    black, Reflector black, 72° wide flood round, 2700 K, 5.7 W, 75 lm/W
    non DIM
    black, Reflector black, 32° medium square, 2700 K, 5.7 W, 65 lm/W
    non DIM
    black, Reflector black, 56° flood square, 2700 K, 5.7 W, 77 lm/W
    non DIM
    black, Reflector black, 71° wide flood square, 2700 K, 5.7 W, 79 lm/W
    non DIM
    black, Reflector black, 49° flood round, 3000 K, 5.7 W, 83 lm/W
    non DIM
    black, Reflector black, 72° wide flood round, 3000 K, 5.7 W, 82 lm/W
    non DIM
    black, Reflector black, 32° medium square, 3000 K, 5.7 W, 71 lm/W
    non DIM
    black, Reflector black, 56° flood square, 3000 K, 5.7 W, 84 lm/W
    non DIM
    black, Reflector black, 71° wide flood square, 3000 K, 5.7 W, 86 lm/W
    non DIM
    black, Reflector black, 49° flood round, 4000 K, 5.7 W, 86 lm/W
    non DIM
    black, Reflector black, 72° wide flood round, 4000 K, 5.7 W, 85 lm/W
    non DIM
    black, Reflector black, 32° medium square, 4000 K, 5.7 W, 74 lm/W
    non DIM
    black, Reflector black, 56° flood square, 4000 K, 5.7 W, 87 lm/W
    non DIM
    black, Reflector black, 71° wide flood square, 4000 K, 5.7 W, 90 lm/W
    non DIM
    UNICO Q1 basic ceiling

    UNICO Q1 basic ceiling

    UNICO Q1 basic ceiling

    Status
    Article number(s)
    Type
    Dimming
    gold, Reflector black, 49° flood round, 2700 K, 5.7 W, 76 lm/W
    non DIM
    gold, Reflector black, 72° wide flood round, 2700 K, 5.7 W, 75 lm/W
    non DIM
    gold, Reflector black, 32° medium square, 2700 K, 5.7 W, 65 lm/W
    non DIM
    gold, Reflector black, 56° flood square, 2700 K, 5.7 W, 77 lm/W
    non DIM
    gold, Reflector black, 71° wide flood square, 2700 K, 5.7 W, 79 lm/W
    non DIM
    gold, Reflector black, 49° flood round, 3000 K, 5.7 W, 83 lm/W
    non DIM
