UNICO Q9 basic
ceiling
090-1Q963FB001
Quickinfo
4000 KCRI ≥ 90 / 3 SDCM
UGR ≤ 19 / 65° ≤ 3,000 cd/m²
110 lm/W
L90 / 50000 h
DALI-2
IP20
Colour
Reflector
General
- Ceiling
- Surface
- jet black
- Reflector chrome
- RAL 9005
- IP20
- 3730 lm
LED
- 4000 K
- CRI ≥ 90
- L90 / 50000 h
- initial MacAdam ≤ 3 SDCM
- Rg: 102
- Rf: 93
- R{1-15}: 92
- MR 0.81
- MDER 0.74
Optical
- flood square
- beam angle 56°
- UGR ≤ 19
- ≤ 1.0 1
- SVM ≤ 0.4 1
- ≥65° <3000 cd/m²
Electrical
- DALI-2
- 220-240 V
- system 34 W
- system 110 lm/W 2
- PC1
- 1 DALI Addr.
Physical
- length 126 mm
- width 126 mm
- height 90 mm
- 0.75 kg
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures

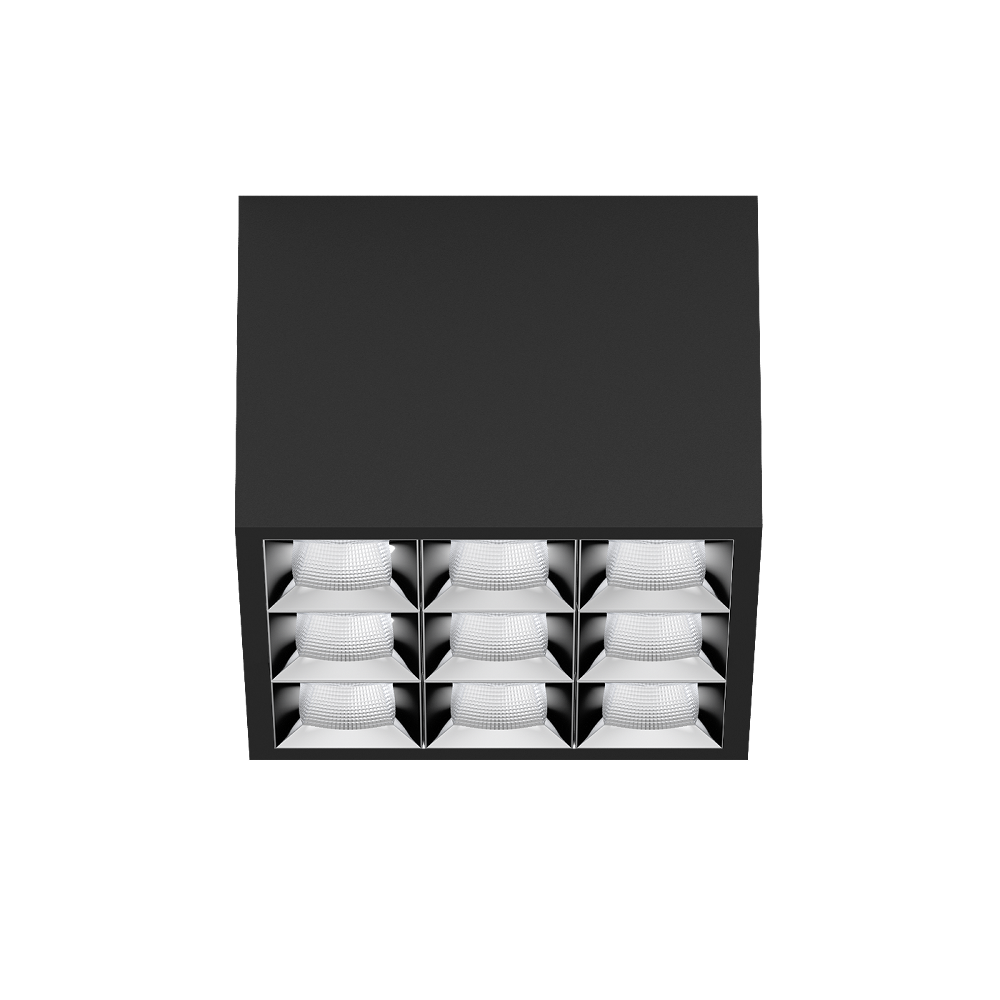

Square surface mounted multi-downlight made of aluminium; luminaire housing can be attached to mounting plate without tools by interlock; converter integrated into luminaire housing; surface jet black powder coated; equipped with nine flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 56°; high quality reflector with micro-faceted, aluminum-vaporised surface; Reflector chrome; UGR ≤ 19; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 4000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC1; 220-240 V; incl. DALI-2 converter; light source not replaceable; control gear replaceable by an authorized professional; clank-free;
