UNICO Q4 basic
trim
090-7Q451G0B21 090-7Q4020B
Quickinfo
3000 KCRI ≥ 90 / 3 SDCM
/ 65° ≤ 3,000 cd/m²
108 lm/W
L90 / 50000 h
non DIM
IP20
Colour
Mounting set
General
- Ceiling
- Recessed
- black reflector
- Mounting set jet black
- IP20
- 1420 lm
LED
- 3000 K
- CRI ≥ 90
- L90 / 50000 h
- initial MacAdam ≤ 3 SDCM
- Rg: 100
- Rf: 92
- R{1-15}: 91
- MR 0.64
- MDER 0.58
Optical
- wide flood square
- beam angle 71°
- ≤ 1.0 1
- SVM ≤ 0.4 1
- ≥65° <3000 cd/m²
Electrical
- non DIM
- 220-240 V
- system 13.1 W
- system 108 lm/W 2
- PC2
Physical
- trim
- length 101 mm
- width 101 mm
- height 51 mm
- 0.45 kg
Cutout
- length 90 mm
- width 90 mm
- min. ceiling thickness 2 mm
- max. ceiling thickness 25 mm
- recessed depth 110 mm
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures

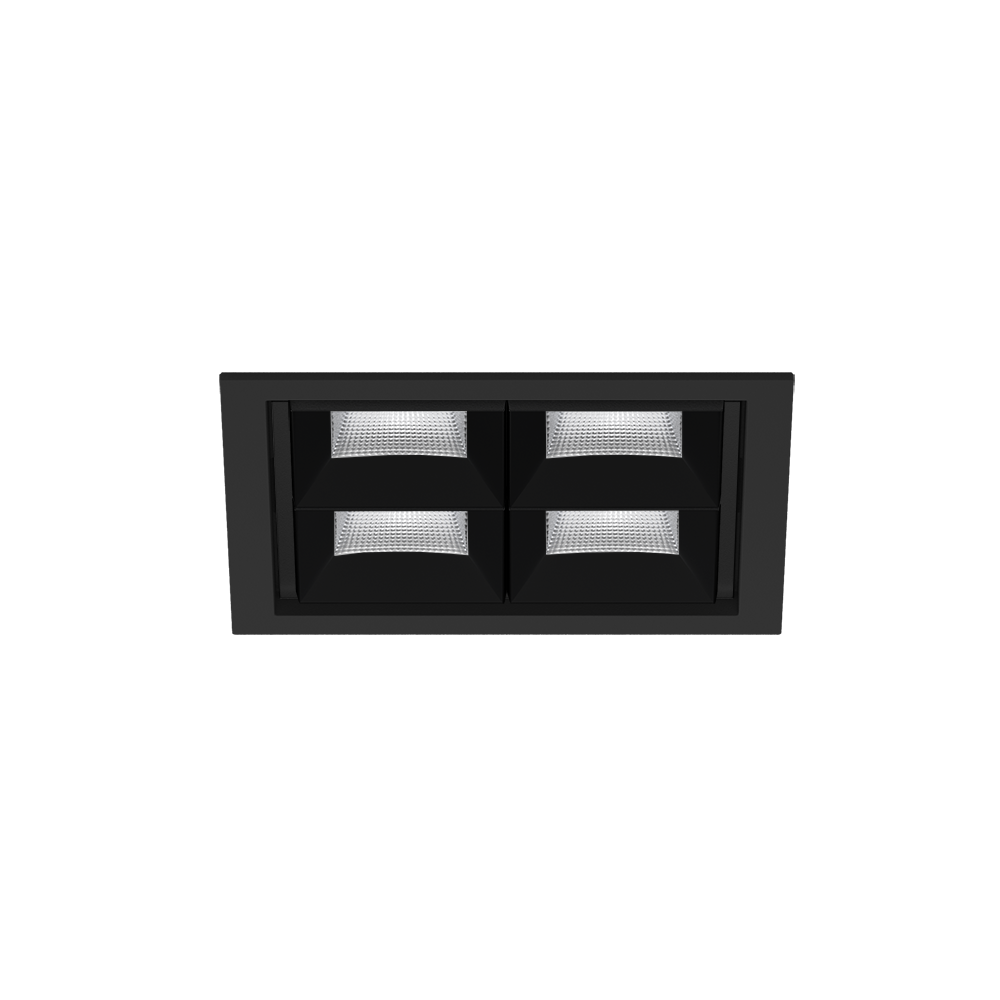

Square recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; square installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with four wide flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 71°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;
