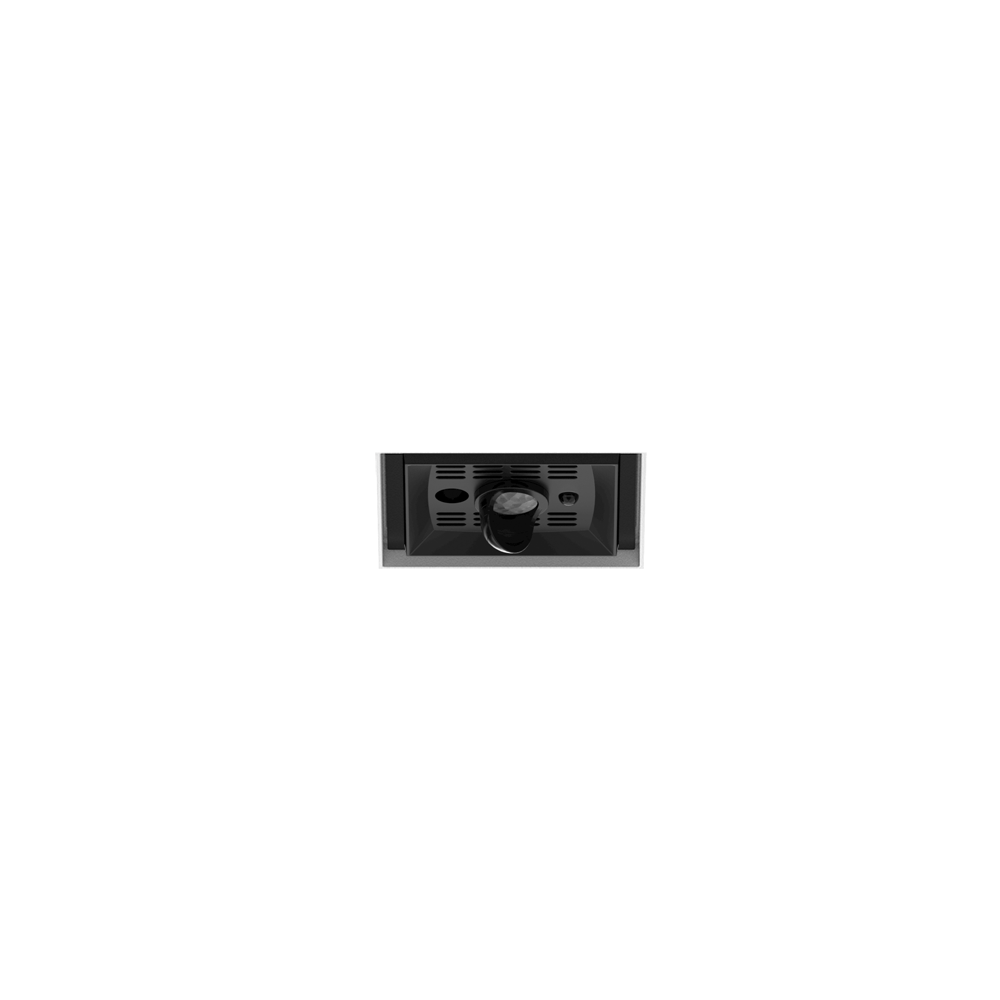

UNICO Q1 sensor essential
trimless
090-7Q10000 090-7Q10100
Quickinfo
DALI-2 ESSENTIAL sensorIP20
Colour
General
- Ceiling
- Recessed
- jet black
- RAL 9005
- IP20
Electrical
- DALI-2 ESSENTIAL sensor
- brightness & presence
- 220-240 V
- PC2
- 1 DALI Addr.
Physical
- trimless
- length 47 mm
- width 47 mm
- height 51 mm
- 0.3 kg
Cutout
- length 50 mm
- width 50 mm
- min. ceiling thickness 12.5 mm
- max. ceiling thickness 25 mm
- recessed depth 155 mm
UNICO Q1 sensor essential; installation without tools in mounting set due to patented ball catch system; square installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; degree of protection IP20; PC2; 220-240 V; DALI-2 control; clank-free;
Accessories
Mounting
article number
dimensions
cut out dimensions
MOUNTING SET trimless
090-7Q10100
length 47 mm
width 47 mm
height 47 mm
0.1 kg
length 50 mm
width 50 mm
