UNICO L6 basic

trim

090-7L663B0B21 090-7L6020B

Quickinfo

4000 K
CRI ≥ 90 / 3 SDCM
UGR ≤ 10 / 65° ≤ 3,000 cd/m²
98 lm/W
L90 / 50000 h
DALI-2
IP20

Colour

Mounting set

General

  • Ceiling
  • Recessed
  • black reflector
  • Mounting set jet black
  • IP20
  • 1820 lm

LED

  • 4000 K
  • CRI ≥ 90
  • L90 / 50000 h
  • initial MacAdam ≤ 3 SDCM
  • Rg: 102
  • Rf: 93
  • R{1-15}: 92
  • MR 0.81
  • MDER 0.74

Optical

  • medium round
  • beam angle 33°
  • UGR ≤ 10
  • PstLM ≤ 1.0 1
  • SVM ≤ 0.4 1
  • ≥65° <3000 cd/m²

Electrical

  • DALI-2
  • 220-240 V
  • system 18.6 W
  • system 98 lm/W 2
  • PC2
  • 1 DALI Addr.

Physical

  • trim
  • length 251 mm
  • width 63 mm
  • height 51 mm
  • 0.85 kg

Cutout

  • length 240 mm
  • width 50 mm
  • min. ceiling thickness 2 mm
  • max. ceiling thickness 25 mm
  • recessed depth 100 mm

Circuit Breaker Types

Automatic Circuit Breaker Type

B10
B16
C10
C16

Number of Fixtures

18
30
23
36
1 Value of containing product at full load (undimmed) 2 incl. consideration of optical losses, internal control unit losses & operating device efficiency

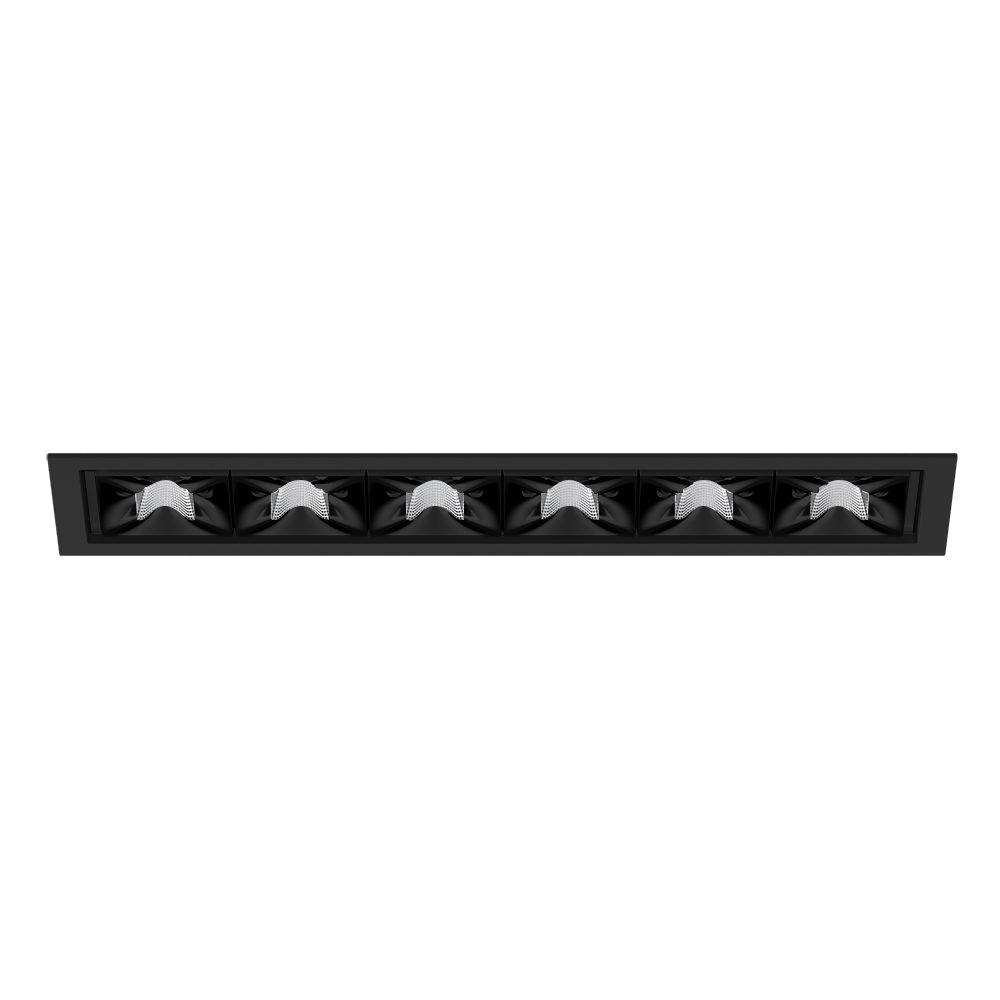

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; equipped with six medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 33°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 4000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; 220-240 V; incl. DALI-2 converter; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;

Product data & specification documents

Datasheets

Planing files & lighting data

Download all

Accessories

Mounting

article number
colour
dimensions
cut out dimensions
MOUNTING SET with trim
090-7L6020B
jet black
RAL 9005
length 251 mm
width 63 mm
height 30 mm
0.4 kg
length 240 mm
width 50 mm

Electrical mounting

article number
type
dimensions
THROUGH WIRING CONNECTION BOX
005-2551110
DALI cable ø 4 – 12 mm
length 105 mm
width 58 mm
height 30 mm
0.07 kg
