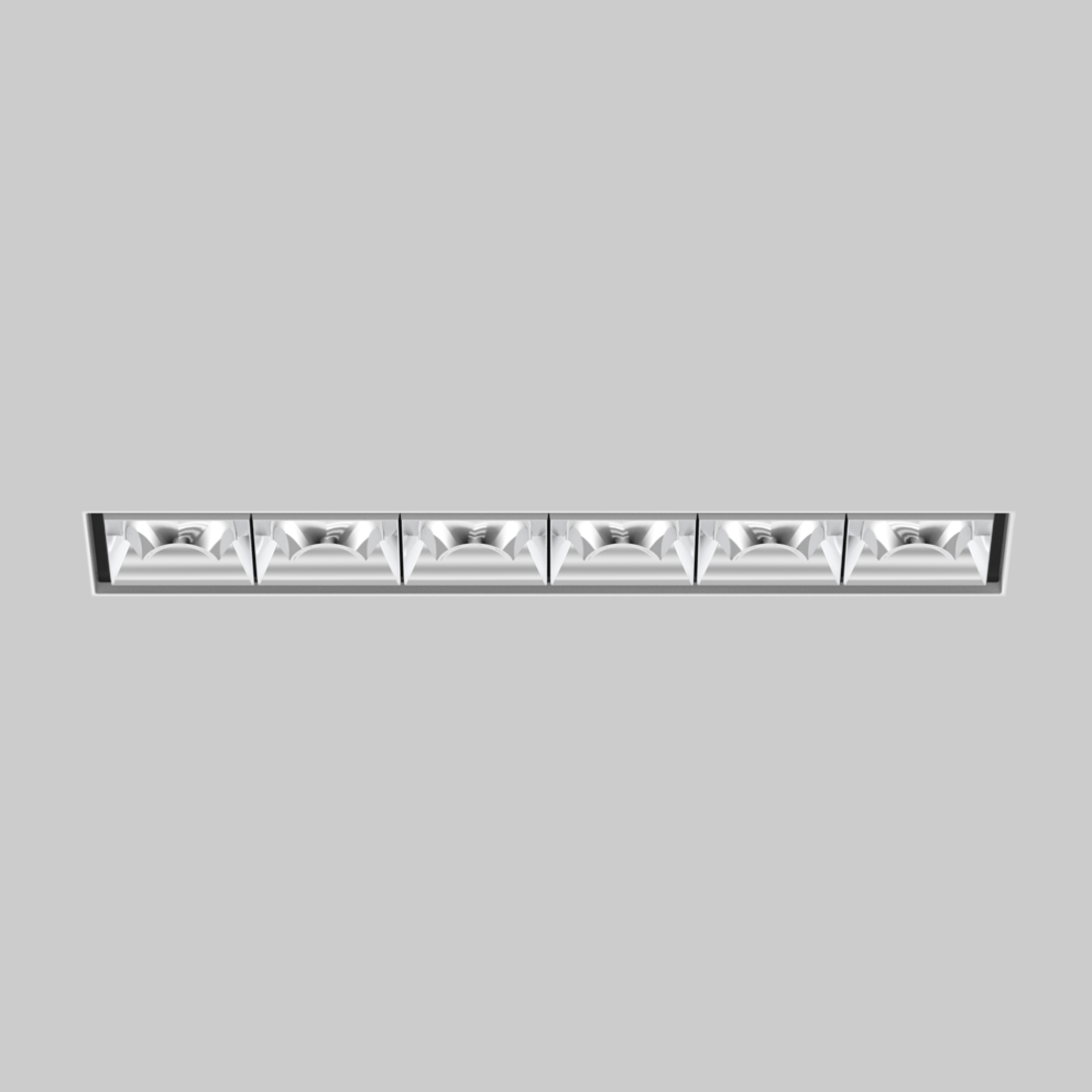

UNICO L4 / L6 basic

recessed

New colour

Quickinfo

2700 K, 3000 K, 3500 K, 4000 K
CRI ≥ 90 / 2 SDCM (initial MacAdam), 3 SDCM (initial MacAdam)
UGR ≤ 10, UGR ≤ 16, UGR ≤ 19
up to 134 lm/W
L80 / 75000 h, L90 / 50000 h
DALI-2, non DIM
front IP20

Colour

Mounting set

UNICO pro Configurator

Products and codes

Discover family

Simple drawing

Light distribution

Downloads & links

Product data & specification documents

Datasheet product line

DWG - 2D

Download all

Aggregated downloads

IES
LDT
GLDF

3DS
DWG - 3D
Revit BIM data

Description

Rectangular recessed multi-downlight made of die-cast aluminium; equipped with four (L4) / six (L6) individually selectable or pre-specified, customised light elements; installation without tools in mounting set with ball catch system; easy electrical installation by means of reverse polarity protected plug-in connections; suitable for ceiling thickness of 2-25 mm; surface powder coated; installation possible in different housings; high-quality reflector with micro-faceted, aluminum-vaporised surface; precise radiation characteristic with different symmetrical light distributions; or with asymmetric light distribution; energy-efficient high power LEDs with very good colour rendering; clank-free

one luminaire multiple scenes

plug / socket connector

tunable white 2700 – 5000 K (optional)

Products and codes

Filter

Colour

Mounting set

UNICO L4 basic high efficient trim

Status

Article number(s)

Type

Dimming

chrome reflector, Mounting set jet black, flood round, 3000 K, 115 lm/W

non DIM

chrome reflector, Mounting set jet black, wide flood round, 3000 K, 117 lm/W

non DIM

chrome reflector, Mounting set jet black, flood square, 3000 K, 120 lm/W

non DIM

chrome reflector, Mounting set jet black, wide flood square, 3000 K, 123 lm/W

non DIM

chrome reflector, Mounting set jet black, flood round, 3000 K, 115 lm/W

DALI-2

chrome reflector, Mounting set jet black, wide flood round, 3000 K, 117 lm/W

DALI-2

chrome reflector, Mounting set jet black, flood square, 3000 K, 120 lm/W

DALI-2

chrome reflector, Mounting set jet black, wide flood square, 3000 K, 123 lm/W

DALI-2

chrome reflector, Mounting set jet black, flood round, 4000 K, 122 lm/W

non DIM

chrome reflector, Mounting set jet black, wide flood round, 4000 K, 125 lm/W

non DIM

chrome reflector, Mounting set jet black, flood square, 4000 K, 128 lm/W

non DIM

chrome reflector, Mounting set jet black, wide flood square, 4000 K, 131 lm/W

non DIM

chrome reflector, Mounting set jet black, flood round, 4000 K, 122 lm/W

DALI-2

chrome reflector, Mounting set jet black, wide flood round, 4000 K, 125 lm/W

DALI-2

chrome reflector, Mounting set jet black, flood square, 4000 K, 128 lm/W

DALI-2

chrome reflector, Mounting set jet black, wide flood square, 4000 K, 131 lm/W

DALI-2

chrome reflector, Mounting set jet black, flood round, 3500 K, 119 lm/W

non DIM

chrome reflector, Mounting set jet black, wide flood round, 3500 K, 122 lm/W

non DIM

chrome reflector, Mounting set jet black, flood square, 3500 K, 125 lm/W

non DIM

chrome reflector, Mounting set jet black, wide flood square, 3500 K, 128 lm/W

non DIM

chrome reflector, Mounting set jet black, flood round, 3500 K, 119 lm/W

DALI-2

chrome reflector, Mounting set jet black, wide flood round, 3500 K, 122 lm/W

DALI-2

chrome reflector, Mounting set jet black, flood square, 3500 K, 125 lm/W

DALI-2

chrome reflector, Mounting set jet black, wide flood square, 3500 K, 128 lm/W

DALI-2

chrome reflector, Mounting set jet black, flood round, 2700 K, 115 lm/W

non DIM

chrome reflector, Mounting set jet black, wide flood round, 2700 K, 117 lm/W

non DIM

chrome reflector, Mounting set jet black, flood square, 2700 K, 120 lm/W

non DIM

chrome reflector, Mounting set jet black, wide flood square, 2700 K, 123 lm/W

non DIM

chrome reflector, Mounting set jet black, flood round, 2700 K, 115 lm/W

DALI-2

chrome reflector, Mounting set jet black, wide flood round, 2700 K, 117 lm/W

DALI-2

chrome reflector, Mounting set jet black, flood square, 2700 K, 120 lm/W

DALI-2

chrome reflector, Mounting set jet black, wide flood square, 2700 K, 123 lm/W

DALI-2

UNICO L4 basic high efficient trim

Status

Article number(s)

Type

Dimming

chrome reflector, Mounting set traffic white, flood round, 3000 K, 115 lm/W

non DIM

chrome reflector, Mounting set traffic white, wide flood round, 3000 K, 117 lm/W

non DIM

chrome reflector, Mounting set traffic white, flood square, 3000 K, 120 lm/W

non DIM

chrome reflector, Mounting set traffic white, wide flood square, 3000 K, 123 lm/W

non DIM

chrome reflector, Mounting set traffic white, flood round, 3000 K, 115 lm/W

DALI-2

chrome reflector, Mounting set traffic white, wide flood round, 3000 K, 117 lm/W

DALI-2

chrome reflector, Mounting set traffic white, flood square, 3000 K, 120 lm/W

DALI-2

chrome reflector, Mounting set traffic white, wide flood square, 3000 K, 123 lm/W

DALI-2

chrome reflector, Mounting set traffic white, flood round, 4000 K, 122 lm/W

non DIM

chrome reflector, Mounting set traffic white, wide flood round, 4000 K, 125 lm/W

non DIM

chrome reflector, Mounting set traffic white, flood square, 4000 K, 128 lm/W

non DIM

chrome reflector, Mounting set traffic white, wide flood square, 4000 K, 131 lm/W

non DIM

chrome reflector, Mounting set traffic white, flood round, 4000 K, 122 lm/W

DALI-2

chrome reflector, Mounting set traffic white, wide flood round, 4000 K, 125 lm/W

DALI-2

chrome reflector, Mounting set traffic white, flood square, 4000 K, 128 lm/W

DALI-2

chrome reflector, Mounting set traffic white, wide flood square, 4000 K, 131 lm/W

DALI-2

chrome reflector, Mounting set traffic white, flood round, 3500 K, 119 lm/W

non DIM

chrome reflector, Mounting set traffic white, wide flood round, 3500 K, 122 lm/W

non DIM

chrome reflector, Mounting set traffic white, flood square, 3500 K, 125 lm/W

non DIM

chrome reflector, Mounting set traffic white, wide flood square, 3500 K, 128 lm/W

non DIM

chrome reflector, Mounting set traffic white, flood round, 3500 K, 119 lm/W

DALI-2

chrome reflector, Mounting set traffic white, wide flood round, 3500 K, 122 lm/W

DALI-2

chrome reflector, Mounting set traffic white, flood square, 3500 K, 125 lm/W

DALI-2

chrome reflector, Mounting set traffic white, wide flood square, 3500 K, 128 lm/W

DALI-2

chrome reflector, Mounting set traffic white, flood round, 2700 K, 115 lm/W

non DIM

chrome reflector, Mounting set traffic white, wide flood round, 2700 K, 117 lm/W

non DIM

chrome reflector, Mounting set traffic white, flood square, 2700 K, 120 lm/W

non DIM

chrome reflector, Mounting set traffic white, wide flood square, 2700 K, 123 lm/W

non DIM

chrome reflector, Mounting set traffic white, flood round, 2700 K, 115 lm/W

DALI-2

chrome reflector, Mounting set traffic white, wide flood round, 2700 K, 117 lm/W

DALI-2

chrome reflector, Mounting set traffic white, flood square, 2700 K, 120 lm/W

DALI-2

chrome reflector, Mounting set traffic white, wide flood square, 2700 K, 123 lm/W

DALI-2

UNICO L4 basic high efficient trim

Status

Article number(s)

Type

Dimming

black reflector, Mounting set jet black, flood round, 3000 K, 115 lm/W

non DIM

black reflector, Mounting set jet black, wide flood round, 3000 K, 117 lm/W

non DIM

black reflector, Mounting set jet black, flood square, 3000 K, 120 lm/W

non DIM

black reflector, Mounting set jet black, wide flood square, 3000 K, 123 lm/W

non DIM

black reflector, Mounting set jet black, flood round, 3000 K, 115 lm/W

DALI-2

black reflector, Mounting set jet black, wide flood round, 3000 K, 117 lm/W

DALI-2

black reflector, Mounting set jet black, flood square, 3000 K, 120 lm/W

DALI-2

black reflector, Mounting set jet black, wide flood square, 3000 K, 123 lm/W

DALI-2

black reflector, Mounting set jet black, flood round, 4000 K, 122 lm/W

non DIM

black reflector, Mounting set jet black, wide flood round, 4000 K, 125 lm/W

non DIM

black reflector, Mounting set jet black, flood square, 4000 K, 128 lm/W

non DIM

black reflector, Mounting set jet black, wide flood square, 4000 K, 131 lm/W

non DIM

black reflector, Mounting set jet black, flood round, 4000 K, 122 lm/W

DALI-2

black reflector, Mounting set jet black, wide flood round, 4000 K, 125 lm/W

DALI-2

black reflector, Mounting set jet black, flood square, 4000 K, 128 lm/W

DALI-2

black reflector, Mounting set jet black, wide flood square, 4000 K, 131 lm/W

DALI-2

black reflector, Mounting set jet black, flood round, 3500 K, 119 lm/W

non DIM

black reflector, Mounting set jet black, wide flood round, 3500 K, 122 lm/W

non DIM

black reflector, Mounting set jet black, flood square, 3500 K, 125 lm/W

non DIM

black reflector, Mounting set jet black, wide flood square, 3500 K, 128 lm/W

non DIM

black reflector, Mounting set jet black, flood round, 3500 K, 119 lm/W

DALI-2

black reflector, Mounting set jet black, wide flood round, 3500 K, 122 lm/W

DALI-2

black reflector, Mounting set jet black, flood square, 3500 K, 125 lm/W

DALI-2

black reflector, Mounting set jet black, wide flood square, 3500 K, 128 lm/W

DALI-2

black reflector, Mounting set jet black, flood round, 2700 K, 115 lm/W

non DIM

black reflector, Mounting set jet black, wide flood round, 2700 K, 117 lm/W

non DIM

black reflector, Mounting set jet black, flood square, 2700 K, 120 lm/W

non DIM

black reflector, Mounting set jet black, wide flood square, 2700 K, 123 lm/W

non DIM

black reflector, Mounting set jet black, flood round, 2700 K, 115 lm/W

DALI-2

black reflector, Mounting set jet black, wide flood round, 2700 K, 117 lm/W

DALI-2

black reflector, Mounting set jet black, flood square, 2700 K, 120 lm/W

DALI-2

black reflector, Mounting set jet black, wide flood square, 2700 K, 123 lm/W

DALI-2

UNICO L4 basic high efficient trim

Status

Article number(s)

Type

Dimming

black reflector, Mounting set traffic white, flood round, 3000 K, 115 lm/W

non DIM

black reflector, Mounting set traffic white, wide flood round, 3000 K, 117 lm/W

non DIM

black reflector, Mounting set traffic white, flood square, 3000 K, 120 lm/W

non DIM

black reflector, Mounting set traffic white, wide flood square, 3000 K, 123 lm/W

non DIM

black reflector, Mounting set traffic white, flood round, 3000 K, 115 lm/W

DALI-2

black reflector, Mounting set traffic white, wide flood round, 3000 K, 117 lm/W

DALI-2

black reflector, Mounting set traffic white, flood square, 3000 K, 120 lm/W

DALI-2

black reflector, Mounting set traffic white, wide flood square, 3000 K, 123 lm/W

DALI-2

black reflector, Mounting set traffic white, flood round, 4000 K, 122 lm/W

non DIM

black reflector, Mounting set traffic white, wide flood round, 4000 K, 125 lm/W

non DIM

black reflector, Mounting set traffic white, flood square, 4000 K, 128 lm/W

non DIM

black reflector, Mounting set traffic white, wide flood square, 4000 K, 131 lm/W

non DIM

black reflector, Mounting set traffic white, flood round, 4000 K, 122 lm/W

DALI-2

black reflector, Mounting set traffic white, wide flood round, 4000 K, 125 lm/W

DALI-2

black reflector, Mounting set traffic white, flood square, 4000 K, 128 lm/W

DALI-2

black reflector, Mounting set traffic white, wide flood square, 4000 K, 131 lm/W

DALI-2

black reflector, Mounting set traffic white, flood round, 3500 K, 119 lm/W

non DIM

black reflector, Mounting set traffic white, wide flood round, 3500 K, 122 lm/W

non DIM

black reflector, Mounting set traffic white, flood square, 3500 K, 125 lm/W

non DIM

black reflector, Mounting set traffic white, wide flood square, 3500 K, 128 lm/W

non DIM

black reflector, Mounting set traffic white, flood round, 3500 K, 119 lm/W

DALI-2

black reflector, Mounting set traffic white, wide flood round, 3500 K, 122 lm/W

DALI-2

black reflector, Mounting set traffic white, flood square, 3500 K, 125 lm/W

DALI-2

black reflector, Mounting set traffic white, wide flood square, 3500 K, 128 lm/W

DALI-2

black reflector, Mounting set traffic white, flood round, 2700 K, 115 lm/W

non DIM

black reflector, Mounting set traffic white, wide flood round, 2700 K, 117 lm/W

non DIM

black reflector, Mounting set traffic white, flood square, 2700 K, 120 lm/W

non DIM

black reflector, Mounting set traffic white, wide flood square, 2700 K, 123 lm/W

non DIM

black reflector, Mounting set traffic white, flood round, 2700 K, 115 lm/W

DALI-2

black reflector, Mounting set traffic white, wide flood round, 2700 K, 117 lm/W

DALI-2

black reflector, Mounting set traffic white, flood square, 2700 K, 120 lm/W

DALI-2

black reflector, Mounting set traffic white, wide flood square, 2700 K, 123 lm/W

DALI-2

UNICO L4 basic high efficient trimless

Status

Article number(s)

Type

Dimming

chrome reflector, flood round, 3000 K, 115 lm/W

non DIM

chrome reflector, wide flood round, 3000 K, 117 lm/W

non DIM

chrome reflector, flood square, 3000 K, 120 lm/W

non DIM

chrome reflector, wide flood square, 3000 K, 123 lm/W

non DIM

chrome reflector, flood round, 3000 K, 115 lm/W

DALI-2

chrome reflector, wide flood round, 3000 K, 117 lm/W

DALI-2

chrome reflector, flood square, 3000 K, 120 lm/W

DALI-2

chrome reflector, wide flood square, 3000 K, 123 lm/W

DALI-2

chrome reflector, flood round, 4000 K, 122 lm/W

non DIM

chrome reflector, wide flood round, 4000 K, 125 lm/W

non DIM

chrome reflector, flood square, 4000 K, 128 lm/W

non DIM

chrome reflector, wide flood square, 4000 K, 131 lm/W

non DIM

chrome reflector, flood round, 4000 K, 122 lm/W

DALI-2

chrome reflector, wide flood round, 4000 K, 125 lm/W

DALI-2

chrome reflector, flood square, 4000 K, 128 lm/W

DALI-2

chrome reflector, wide flood square, 4000 K, 131 lm/W

DALI-2

chrome reflector, flood round, 3500 K, 119 lm/W

non DIM

chrome reflector, wide flood round, 3500 K, 122 lm/W

non DIM

chrome reflector, flood square, 3500 K, 125 lm/W

non DIM

chrome reflector, wide flood square, 3500 K, 128 lm/W

non DIM

chrome reflector, flood round, 3500 K, 119 lm/W

DALI-2

chrome reflector, wide flood round, 3500 K, 122 lm/W

DALI-2

chrome reflector, flood square, 3500 K, 125 lm/W

DALI-2

chrome reflector, wide flood square, 3500 K, 128 lm/W

DALI-2

chrome reflector, flood round, 2700 K, 115 lm/W

non DIM

chrome reflector, wide flood round, 2700 K, 117 lm/W

non DIM

chrome reflector, flood square, 2700 K, 120 lm/W

non DIM

chrome reflector, wide flood square, 2700 K, 123 lm/W

non DIM

chrome reflector, flood round, 2700 K, 115 lm/W

DALI-2

chrome reflector, wide flood round, 2700 K, 117 lm/W

DALI-2

chrome reflector, flood square, 2700 K, 120 lm/W

DALI-2

chrome reflector, wide flood square, 2700 K, 123 lm/W

DALI-2

UNICO L4 basic high efficient trimless

Status

Article number(s)

Type

Dimming

black reflector, flood round, 3000 K, 115 lm/W

non DIM

black reflector, wide flood round, 3000 K, 117 lm/W

non DIM

black reflector, flood square, 3000 K, 120 lm/W

non DIM

black reflector, wide flood square, 3000 K, 123 lm/W

non DIM

black reflector, flood round, 3000 K, 115 lm/W

DALI-2

black reflector, wide flood round, 3000 K, 117 lm/W

DALI-2

black reflector, flood square, 3000 K, 120 lm/W

DALI-2

black reflector, wide flood square, 3000 K, 123 lm/W

DALI-2

black reflector, flood round, 4000 K, 122 lm/W

non DIM

black reflector, wide flood round, 4000 K, 125 lm/W

non DIM

black reflector, flood square, 4000 K, 128 lm/W

non DIM

black reflector, wide flood square, 4000 K, 131 lm/W

non DIM

black reflector, flood round, 4000 K, 122 lm/W

DALI-2

black reflector, wide flood round, 4000 K, 125 lm/W

DALI-2

black reflector, flood square, 4000 K, 128 lm/W

DALI-2

black reflector, wide flood square, 4000 K, 131 lm/W

DALI-2

black reflector, flood round, 3500 K, 119 lm/W

non DIM

black reflector, wide flood round, 3500 K, 122 lm/W

non DIM

black reflector, flood square, 3500 K, 125 lm/W

non DIM

black reflector, wide flood square, 3500 K, 128 lm/W

non DIM

black reflector, flood round, 3500 K, 119 lm/W

DALI-2

black reflector, wide flood round, 3500 K, 122 lm/W

DALI-2

black reflector, flood square, 3500 K, 125 lm/W

DALI-2

black reflector, wide flood square, 3500 K, 128 lm/W

DALI-2

black reflector, flood round, 2700 K, 115 lm/W

non DIM

black reflector, wide flood round, 2700 K, 117 lm/W

non DIM

black reflector, flood square, 2700 K, 120 lm/W

non DIM

black reflector, wide flood square, 2700 K, 123 lm/W

non DIM

black reflector, flood round, 2700 K, 115 lm/W

DALI-2

black reflector, wide flood round, 2700 K, 117 lm/W

DALI-2

black reflector, flood square, 2700 K, 120 lm/W

DALI-2

black reflector, wide flood square, 2700 K, 123 lm/W

DALI-2

UNICO L4 basic trim

Status

Article number(s)

Type

Dimming

chrome reflector, Mounting set jet black, wallwasher, 2700 K, 86 lm/W

non DIM

chrome reflector, Mounting set jet black, medium round, 2700 K, 85 lm/W

non DIM

chrome reflector, Mounting set jet black, flood round, 2700 K, 98 lm/W

non DIM

chrome reflector, Mounting set jet black, wide flood round, 2700 K, 96 lm/W

non DIM

chrome reflector, Mounting set jet black, medium square, 2700 K, 83 lm/W

non DIM

chrome reflector, Mounting set jet black, flood square, 2700 K, 99 lm/W

non DIM

chrome reflector, Mounting set jet black, wide flood square, 2700 K, 102 lm/W

non DIM

chrome reflector, Mounting set jet black, spot round, 2700 K, 62 lm/W

non DIM

chrome reflector, Mounting set jet black, narrow medium round, 2700 K, 63 lm/W

non DIM

chrome reflector, Mounting set jet black, wallwasher floor, 2700 K, 90 lm/W

non DIM

chrome reflector, Mounting set jet black, wallwasher, 2700 K, 86 lm/W

DALI-2

chrome reflector, Mounting set jet black, medium round, 2700 K, 85 lm/W

DALI-2

chrome reflector, Mounting set jet black, flood round, 2700 K, 98 lm/W

DALI-2

chrome reflector, Mounting set jet black, wide flood round, 2700 K, 96 lm/W

DALI-2

chrome reflector, Mounting set jet black, medium square, 2700 K, 83 lm/W

DALI-2

chrome reflector, Mounting set jet black, flood square, 2700 K, 99 lm/W

DALI-2

chrome reflector, Mounting set jet black, spot round, 2700 K, 62 lm/W

DALI-2

chrome reflector, Mounting set jet black, narrow medium round, 2700 K, 63 lm/W

DALI-2

chrome reflector, Mounting set jet black, wallwasher, 3000 K, 92 lm/W

non DIM

chrome reflector, Mounting set jet black, medium round, 3000 K, 90 lm/W

non DIM

chrome reflector, Mounting set jet black, flood round, 3000 K, 104 lm/W

non DIM

chrome reflector, Mounting set jet black, wide flood round, 3000 K, 103 lm/W

non DIM

chrome reflector, Mounting set jet black, medium square, 3000 K, 89 lm/W

non DIM

chrome reflector, Mounting set jet black, flood square, 3000 K, 105 lm/W

non DIM

chrome reflector, Mounting set jet black, wide flood square, 3000 K, 108 lm/W

non DIM

chrome reflector, Mounting set jet black, spot round, 3000 K, 66 lm/W

non DIM

chrome reflector, Mounting set jet black, narrow medium round, 3000 K, 67 lm/W

non DIM

chrome reflector, Mounting set jet black, wallwasher floor, 3000 K, 95 lm/W

non DIM

chrome reflector, Mounting set jet black, wallwasher, 3000 K, 92 lm/W

DALI-2

chrome reflector, Mounting set jet black, medium round, 3000 K, 90 lm/W

DALI-2

chrome reflector, Mounting set jet black, flood round, 3000 K, 104 lm/W

DALI-2

chrome reflector, Mounting set jet black, wide flood round, 3000 K, 103 lm/W

DALI-2

chrome reflector, Mounting set jet black, medium square, 3000 K, 89 lm/W

DALI-2

chrome reflector, Mounting set jet black, flood square, 3000 K, 105 lm/W

DALI-2

chrome reflector, Mounting set jet black, wide flood square, 3000 K, 108 lm/W

DALI-2

chrome reflector, Mounting set jet black, spot round, 3000 K, 66 lm/W

DALI-2

chrome reflector, Mounting set jet black, narrow medium round, 3000 K, 67 lm/W

DALI-2

chrome reflector, Mounting set jet black, wallwasher floor, 3000 K, 95 lm/W

DALI-2

chrome reflector, Mounting set jet black, wallwasher, 4000 K, 98 lm/W

non DIM

chrome reflector, Mounting set jet black, medium round, 4000 K, 97 lm/W

non DIM

chrome reflector, Mounting set jet black, flood round, 4000 K, 111 lm/W

non DIM

chrome reflector, Mounting set jet black, wide flood round, 4000 K, 110 lm/W

non DIM

chrome reflector, Mounting set jet black, medium square, 4000 K, 95 lm/W

non DIM

chrome reflector, Mounting set jet black, flood square, 4000 K, 113 lm/W

non DIM

chrome reflector, Mounting set jet black, wide flood square, 4000 K, 116 lm/W

non DIM

chrome reflector, Mounting set jet black, spot round, 4000 K, 71 lm/W

non DIM

chrome reflector, Mounting set jet black, narrow medium round, 4000 K, 72 lm/W

non DIM

chrome reflector, Mounting set jet black, wallwasher floor, 4000 K, 102 lm/W

non DIM

chrome reflector, Mounting set jet black, wallwasher, 4000 K, 98 lm/W

DALI-2

chrome reflector, Mounting set jet black, medium round, 4000 K, 97 lm/W

DALI-2

chrome reflector, Mounting set jet black, flood round, 4000 K, 111 lm/W

DALI-2

chrome reflector, Mounting set jet black, wide flood round, 4000 K, 110 lm/W

DALI-2

chrome reflector, Mounting set jet black, medium square, 4000 K, 95 lm/W

DALI-2

chrome reflector, Mounting set jet black, flood square, 4000 K, 113 lm/W

DALI-2

chrome reflector, Mounting set jet black, wide flood square, 4000 K, 116 lm/W

DALI-2

chrome reflector, Mounting set jet black, spot round, 4000 K, 71 lm/W

DALI-2

chrome reflector, Mounting set jet black, narrow medium round, 4000 K, 72 lm/W

DALI-2

chrome reflector, Mounting set jet black, wallwasher floor, 4000 K, 102 lm/W

DALI-2

Accessories

Mounting

article number

type

colour

dimensions

cut out dimensions

ceiling thickness

plaster board thickness

MOUNTING SET trimless

090-7L40100

for plasterboard ceilings

length 160 mm

width 47 mm

height 47 mm

0.19 kg

length 165 mm

width 50 mm

12.5/15/20/25 mm

MOUNTING SET with trim

090-7L4020B

for intermediate ceilings

jet black

RAL 9005

length 176 mm

width 63 mm

height 30 mm

0.4 kg

length 165 mm

width 50 mm

min. ceiling thickness 2 mm

max. ceiling thickness 25 mm

MOUNTING SET with trim

090-7L4020W

for intermediate ceilings

traffic white

RAL 9016

length 176 mm

width 63 mm

height 30 mm

0.2 kg

length 165 mm

width 50 mm

min. ceiling thickness 2 mm

max. ceiling thickness 25 mm

MOUNTING SET trimless

090-7L60100

for plasterboard ceilings

length 235 mm

width 47 mm

height 47 mm

0.3 kg

length 240 mm

width 50 mm

12.5/15/20/25 mm

MOUNTING SET with trim

090-7L6020B

for intermediate ceilings

jet black

RAL 9005

length 251 mm

width 63 mm

height 30 mm

0.4 kg

length 240 mm

width 50 mm

min. ceiling thickness 2 mm

max. ceiling thickness 25 mm

MOUNTING SET with trim

090-7L6020W

for intermediate ceilings

traffic white

RAL 9016

length 251 mm

width 63 mm

height 30 mm

0.1 kg

length 240 mm

width 50 mm

min. ceiling thickness 2 mm

max. ceiling thickness 25 mm

Electrical mounting

article number

type

dimensions

THROUGH WIRING CONNECTION BOX

005-2531110

non DIM cable ø 4 – 12 mm

length 105 mm

width 58 mm

height 30 mm

0.06 kg

THROUGH WIRING CONNECTION BOX

005-2551110

DALI cable ø 4 – 12 mm

length 105 mm

width 58 mm

height 30 mm

0.07 kg

UNICO L4 / L6 basic

recessed

Quickinfo

Colour

Mounting set

Simple drawing

Light distribution

Product data & specification documents

Description

Products and codes

Colour

Mounting set

UNICO L4 basic high efficient trim

UNICO L4 basic high efficient trim

UNICO L4 basic high efficient trim

UNICO L4 basic high efficient trim

UNICO L4 basic high efficient trim

UNICO L4 basic high efficient trim

UNICO L4 basic high efficient trim

UNICO L4 basic high efficient trim

UNICO L4 basic high efficient trimless

UNICO L4 basic high efficient trimless

UNICO L4 basic high efficient trimless

UNICO L4 basic high efficient trimless

UNICO L4 basic trim

UNICO L4 basic trim

Accessories

Mounting

Electrical mounting

Related products

UNICO

UNICO L2 / L3

UNICO Q1 / Q4

UNICO Q9

UNICO L2 / L3

UNICO L4 / L6

UNICO Q1 / Q4

UNICO Q9

UNICO Q1

UNICO
