UNICO L4 basic
ceiling
090-1L461W9B01
Quickinfo
4000 KCRI ≥ 90 / 3 SDCM
94 lm/W
L90 / 50000 h
non DIM
IP20
Colour
Reflector
General
- Ceiling
- Surface
- gold dust
- Reflector black
- RAL 260-M
- IP20
- 1820 lm
LED
- 4000 K
- CRI ≥ 90
- L90 / 50000 h
- initial MacAdam ≤ 3 SDCM
- Rg: 102
- Rf: 93
- R{1-15}: 92
- MR 0.81
- MDER 0.74
Optical
- wallwasher floor
- ≤ 1.0 1
- SVM ≤ 0.4 1
Electrical
- non DIM
- 220-240 V
- system 19.3 W
- system 94 lm/W 2
- PC1
Physical
- length 164 mm
- width 51 mm
- height 90 mm
- 0.55 kg
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures

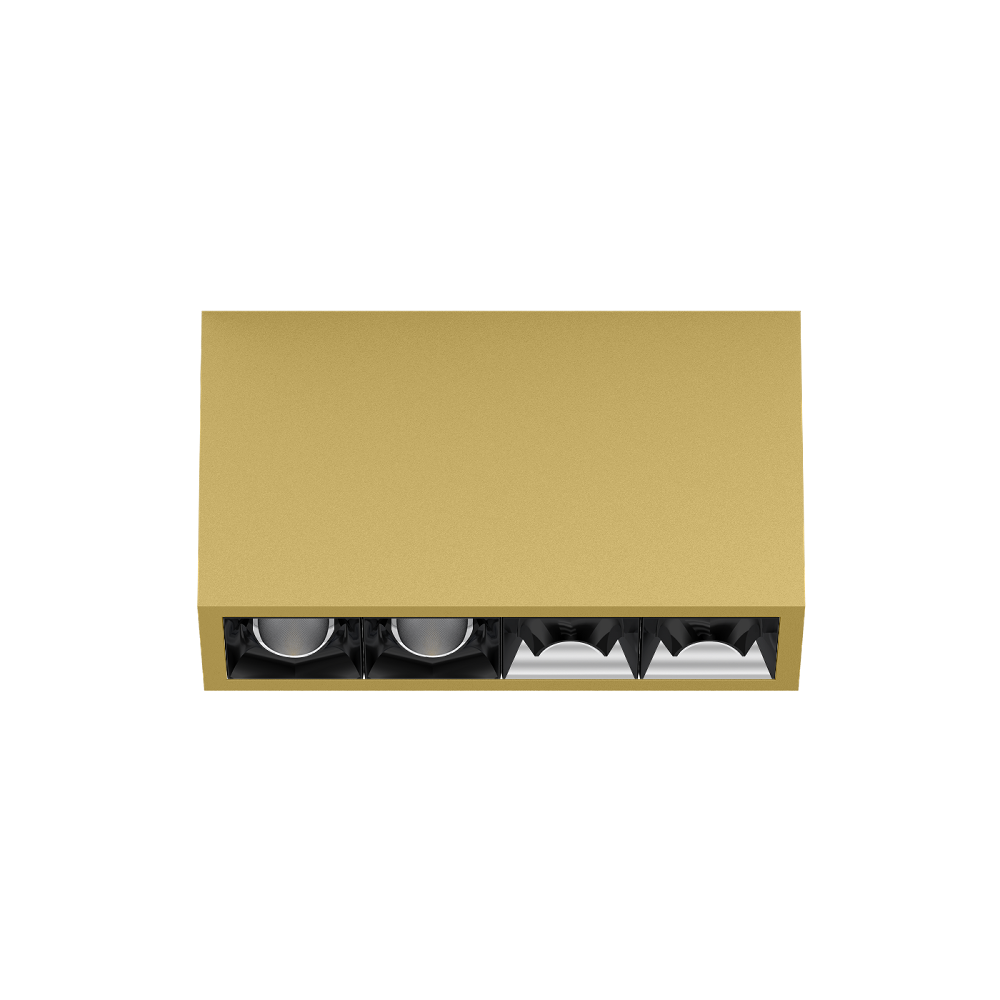

Rectangular surface mounted multi-downlight made of aluminium; luminaire housing can be attached to mounting plate without tools by interlock; converter integrated into luminaire housing; surface gold dust powder coated; equipped with two wallwasher floor light elements 180° + two wallwasher floor light elements 0°; asymmetrical light distribution with precise radiation characteristic; high quality reflector with micro-faceted, aluminum-vaporised surface; Reflector black; passive cooling of the LEDs through improved heat sink geometry; light colour 4000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC1; 220-240 V; incl. converter, non dimmable; light source not replaceable; control gear replaceable by an authorized professional; clank-free;
