UNICO L3 basic
ceiling
090-1L343KB001
Quickinfo
2700 KCRI ≥ 90 / 3 SDCM
UGR ≤ 10 / 65° ≤ 1,500 cd/m²
55 lm/W
L90 / 50000 h
DALI-2
IP20
Colour
Reflector
General
- Ceiling
- Surface
- jet black
- Reflector chrome
- RAL 9005
- IP20
- 993 lm
LED
- 2700 K
- CRI ≥ 90
- L90 / 50000 h
- initial MacAdam ≤ 3 SDCM
- Rg: 101
- Rf: 91
- R{1-15}: 89
- MR 0.56
- MDER 0.51
Optical
- spot round
- beam angle 15°
- UGR ≤ 10
- ≤ 1.0 1
- SVM ≤ 0.4 1
- ≥65° <1500 cd/m²
Electrical
- DALI-2
- 220-240 V
- system 17.9 W
- system 55 lm/W 2
- PC1
- 1 DALI Addr.
Physical
- length 126 mm
- width 51 mm
- height 90 mm
- 0.45 kg
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures

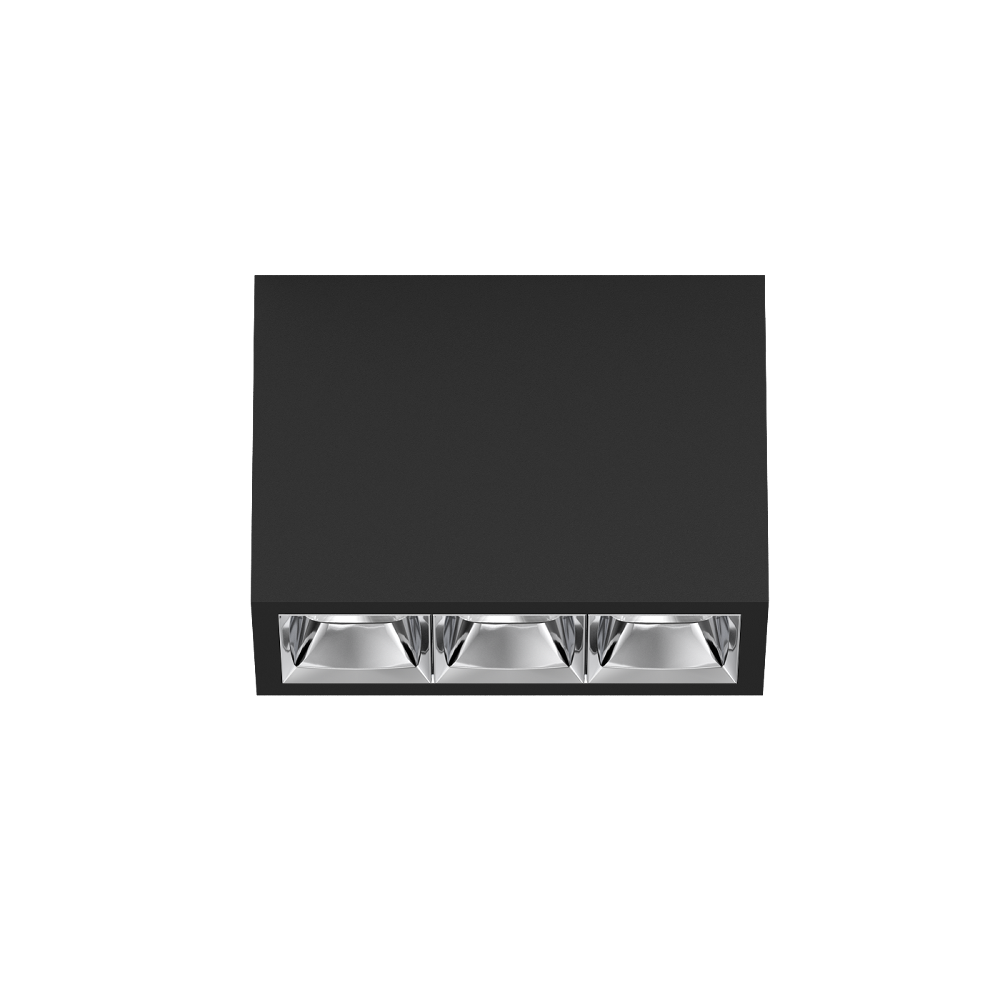

Rectangular surface mounted multi-downlight made of aluminium; luminaire housing can be attached to mounting plate without tools by interlock; converter integrated into luminaire housing; surface jet black powder coated; equipped with three spot round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 15°; high quality reflector with micro-faceted, aluminum-vaporised surface; Reflector chrome; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 1500 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 2700 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC1; 220-240 V; incl. DALI-2 converter; light source not replaceable; control gear replaceable by an authorized professional; clank-free;
