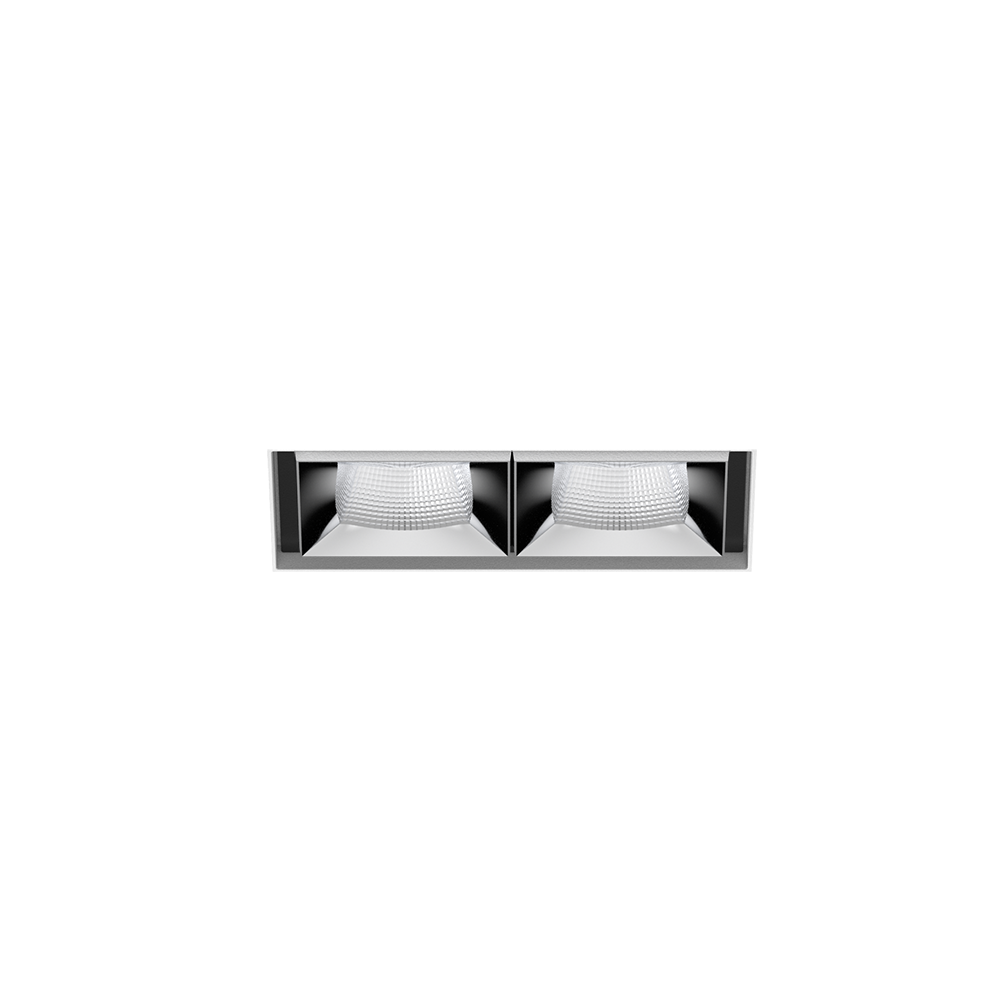

UNICO L2 basic
trimless
090-7L263F0021 090-7L20100
Quickinfo
4000 KCRI ≥ 90 / 3 SDCM
UGR ≤ 19 / 65° ≤ 3,000 cd/m²
102 lm/W
L90 / 50000 h
DALI-2
IP20
Colour
General
- Ceiling
- Recessed
- chrome reflector
- IP20
- 741 lm
LED
- 4000 K
- CRI ≥ 90
- L90 / 50000 h
- initial MacAdam ≤ 3 SDCM
- Rg: 102
- Rf: 93
- R{1-15}: 92
- MR 0.81
- MDER 0.74
Optical
- flood square
- beam angle 56°
- UGR ≤ 19
- ≤ 1.0 1
- SVM ≤ 0.4 1
- ≥65° <3000 cd/m²
Electrical
- DALI-2
- 220-240 V
- system 7.3 W
- system 102 lm/W 2
- PC2
- 1 DALI Addr.
Physical
- trimless
- length 85 mm
- width 47 mm
- height 51 mm
- 0.55 kg
Cutout
- length 90 mm
- width 50 mm
- min. ceiling thickness 12.5 mm
- max. ceiling thickness 25 mm
- recessed depth 140 mm
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures

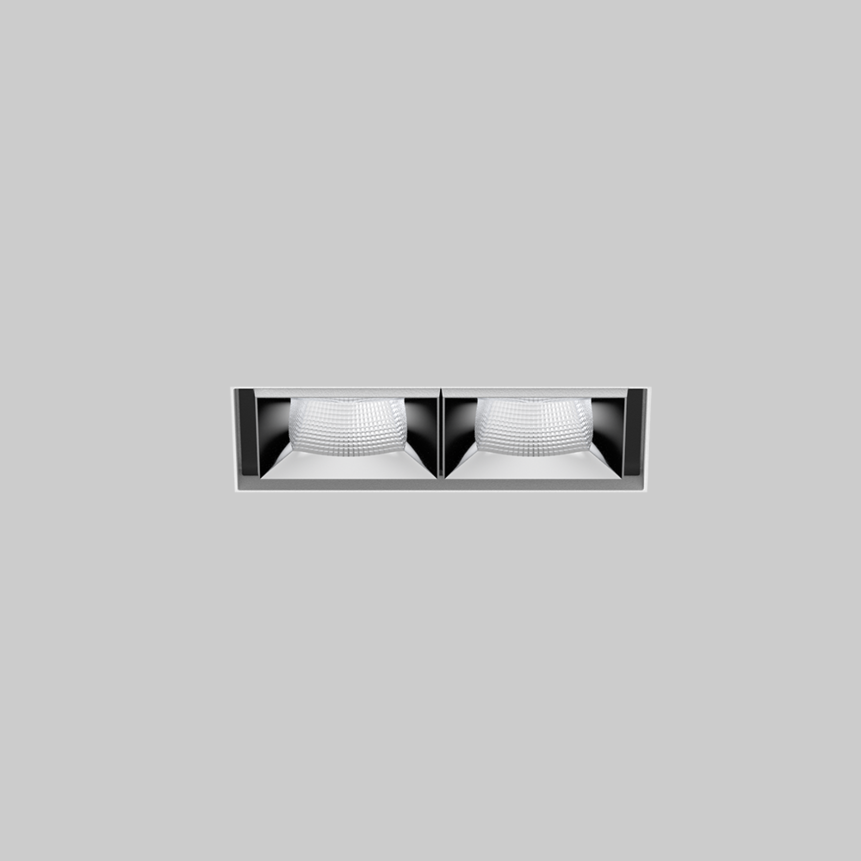

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with two flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 56°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 19; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 4000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; 220-240 V; incl. DALI-2 converter; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;
