UNICO L2 basic
ceiling
090-1L253E9B01
Quickinfo
3000 KCRI ≥ 90 / 3 SDCM
UGR ≤ 10
75 lm/W
L90 / 50000 h
DALI-2
IP20
Colour
Reflector
General
- Ceiling
- Surface
- gold dust
- Reflector black
- RAL 260-M
- IP20
- 942 lm
LED
- 3000 K
- CRI ≥ 90
- L90 / 50000 h
- initial MacAdam ≤ 3 SDCM
- Rg: 100
- Rf: 92
- R{1-15}: 91
- MR 0.64
- MDER 0.58
Optical
- medium square
- beam angle 32°
- UGR ≤ 10
- ≤ 1.0 1
- SVM ≤ 0.4 1
Electrical
- DALI-2
- 220-240 V
- system 12.6 W
- system 75 lm/W 2
- PC1
- 1 DALI Addr.
Physical
- length 88 mm
- width 51 mm
- height 90 mm
- 0.35 kg
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures

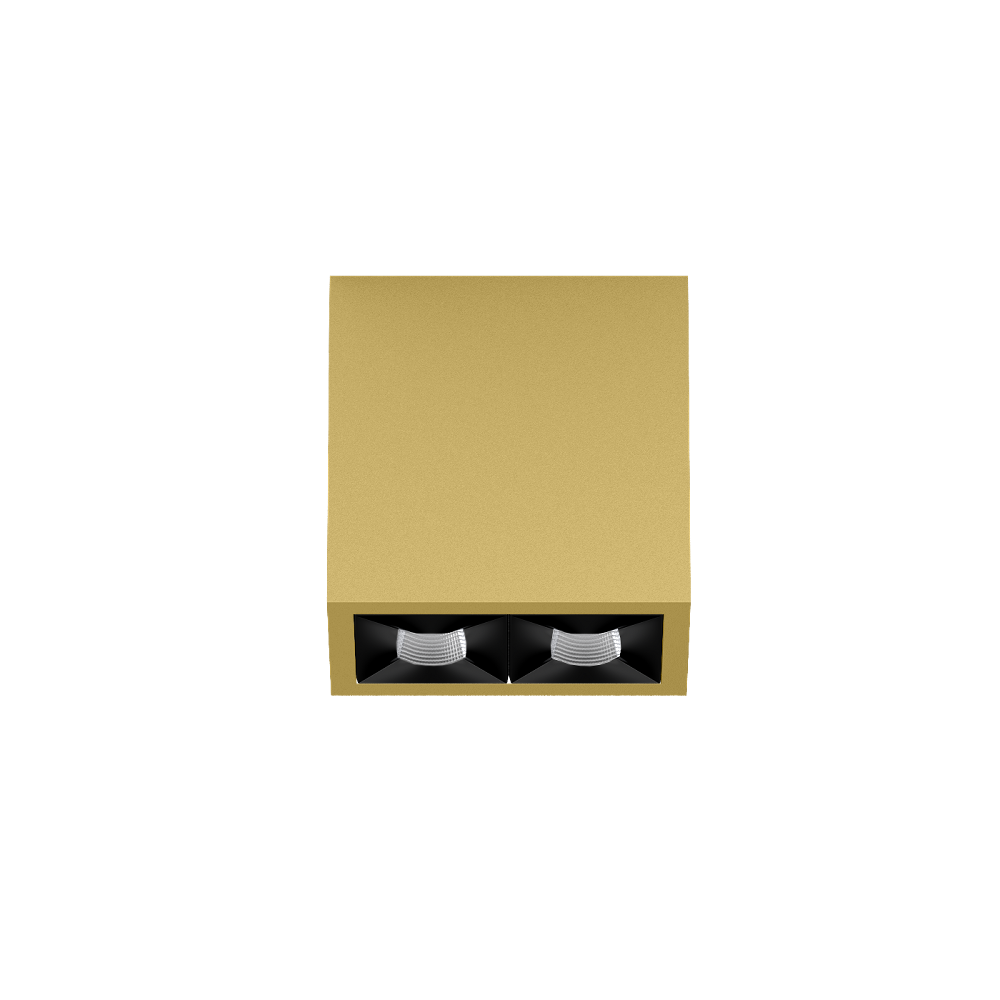

Rectangular surface mounted multi-downlight made of aluminium; luminaire housing can be attached to mounting plate without tools by interlock; converter integrated into luminaire housing; surface gold dust powder coated; equipped with two medium square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 32°; high quality reflector with micro-faceted, aluminum-vaporised surface; Reflector black; UGR ≤ 10; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC1; 220-240 V; incl. DALI-2 converter; light source not replaceable; control gear replaceable by an authorized professional; clank-free;
