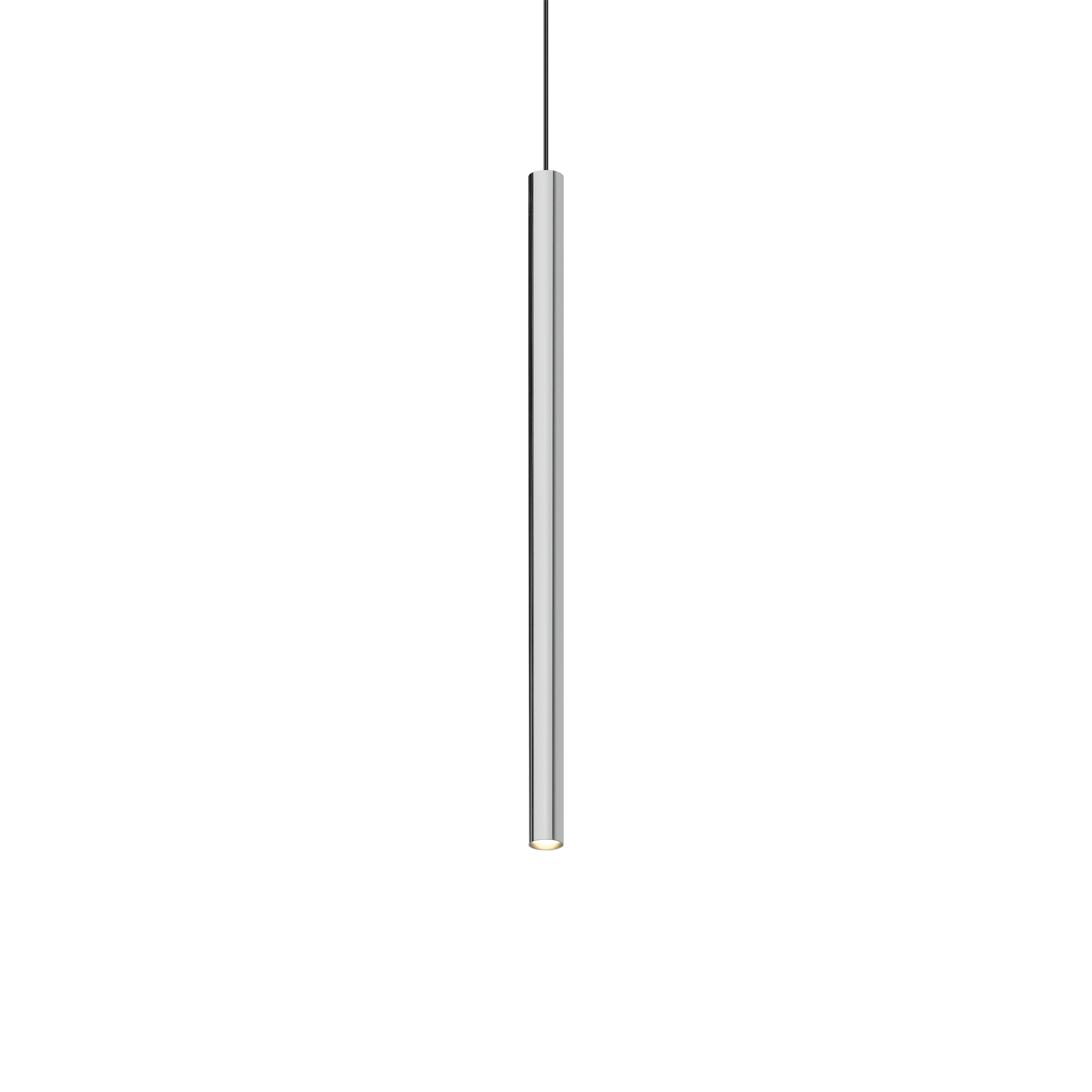

TULA nano suspended
canopy trimless
049-5710514M 005-3511017 002-90733
Quickinfo
3000 KCRI ≥ 90 / 2 SDCM
92 lm/W
DALI-2
IP20
Colour
Canopy
General
- Ceiling
- Suspended
- chrome
- Canopy traffic white
- IP20
- 816 lm
- fixture 92 lm/W 1
LED
- 3000 K
- CRI ≥ 90
- initial MacAdam ≤ 2 SDCM
- Rg: 99
- Rf: 90
- R{1-15}: 87
- MR 0.6
- MDER 0.54
Optical
- medium
- beam angle 25°
- ≤ 1.0 2
- SVM ≤ 0.4 2
Electrical
- DALI-2
- 220-240 V
- system 11.8 W
- fixture 8.9 W
- 500 mA
- 18 Vf
- PC2
- 1 DALI Addr.
Physical
- diameter 26 mm
- height 500 mm
- 0.73 kg
Cutout
- diameter 65 mm
- min. ceiling thickness 9 mm
- max. ceiling thickness 25 mm
- recessed depth 130 mm
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures
Decorative suspended luminaire in aluminium; surface polished chrome; pendant fitting with 1500mm suspension; incl. feed (black), can be individually shortened; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 3000 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; energy efficient LEDs with high CRI; good glare control through recessed light point level; incl. high quality lens system; precise radiation characteristic with 25° beam; degree of protection IP20; PC2; 220-240 V; canopy for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 9-25 mm; special mounting tool for easy installation of the trimless housing available as an accessory; accessories are listed separately; incl. DALI-2 converter; external converter for ceiling insertion; light source not replaceable; control gear replaceable by an authorized professional;
