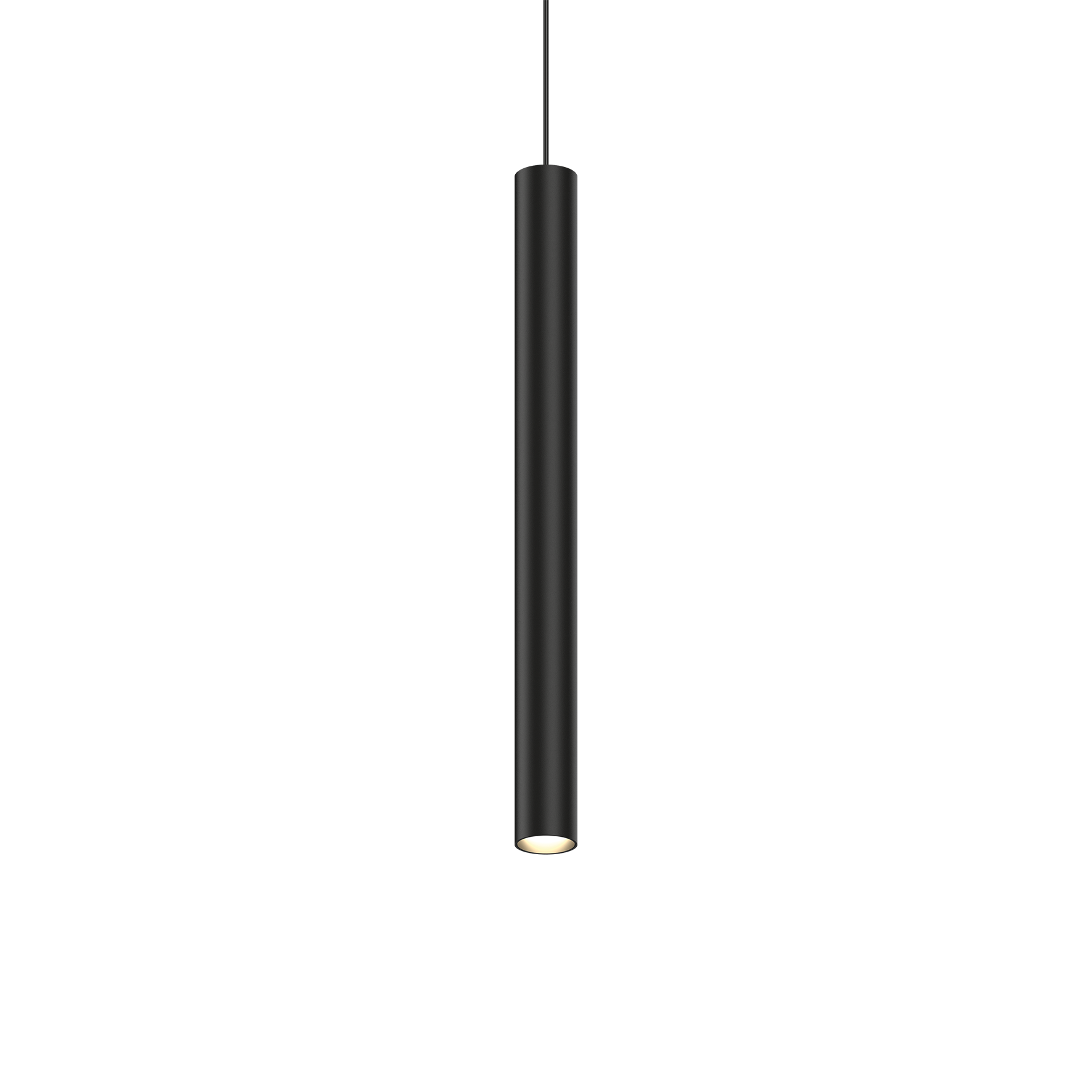

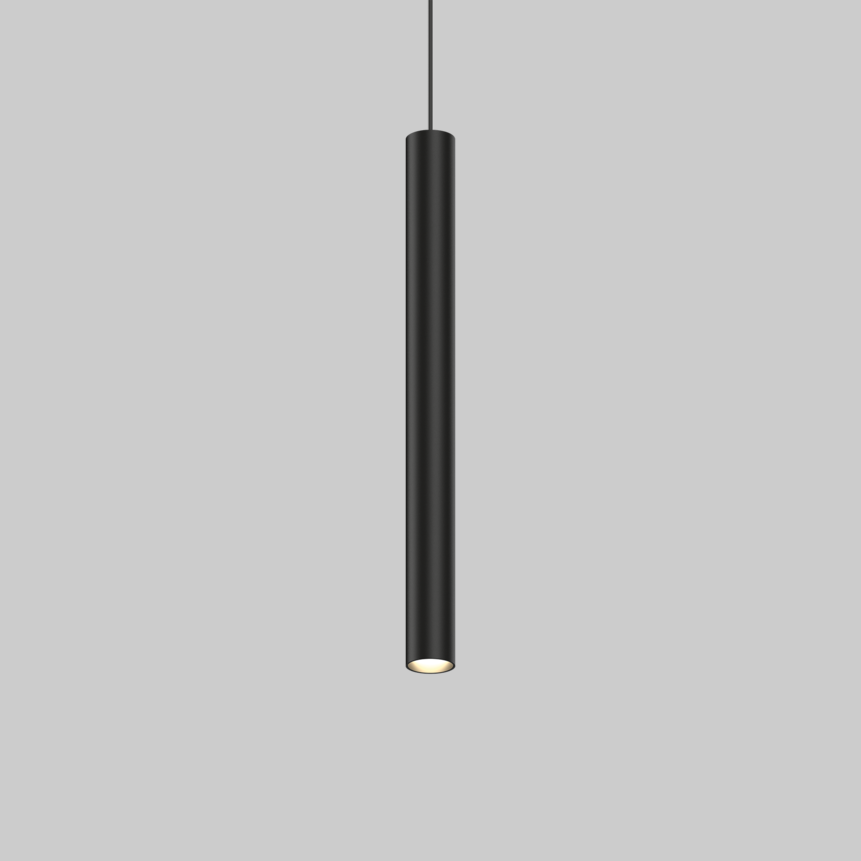

TULA micro suspended
canopy surface
049-5715418F 005-2602138
Quickinfo
2700 KCRI ≥ 90 / 3 SDCM
82 lm/W
L90 / 50000 h
DALI-2
IP20
Colour
Canopy
General
- Ceiling
- Suspended
- jet black
- Canopy jet black
- RAL 9005
- IP20
- 694 lm
LED
- 2700 K
- CRI ≥ 90
- L90 / 50000 h
- initial MacAdam ≤ 3 SDCM
- Rg: 99
- Rf: 91
- R{1-15}: 89
- MR 0.54
- MDER 0.49
Optical
- flood
- beam angle 44°
- ≤ 1.01 2 3 4
- SVM ≤ 0.41 2 3 4
Electrical
- DALI-2
- 220-240 V
- system 11.3 W
- fixture 8.4 W
- fixture 82 lm/W 5
- 500 mA
- 18 Vf
- PC2
- 1 DALI Addr.
Physical
- diameter 47 mm
- height 500 mm
- 1.18 kg
Decorative suspended luminaire in aluminium; surface jet black powder coated; pendant fitting with 1500mm suspension; incl. feed (black), can be individually shortened; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 2700 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; good glare control through recessed light point level; incl. high quality lens system; precise radiation characteristic with 44° beam; degree of protection IP20; PC2; 220-240 V; surface canopy in jet black; DALI-2 converter included in canopy; flicker-free visual comfort through analogue current control (minimum value 1%); canopy for through wiring; light source not replaceable; control gear replaceable by an authorized professional;
Accessories
Electrical mounting
Converter
Optical
Mounting
