TULA micro suspended
canopy surface
049-551551XM 005-2602117
Quickinfo
3000 KCRI ≥ 90 / 3 SDCM (initial MacAd
88 lm/W
L90 / 50000 h
non DIM
IP20
General
- Ceiling
- Suspended
- special colours
- Canopy traffic white
- IP20
- 746 lm
LED
- 3000 K
- CRI ≥ 90
- L90 / 50000 h
- ≤ 3 SDCM (initial MacAdam)
- Rg: 100
- Rf: 90
- R{1-15}: 87
- MR 0.59
- MDER 0.54
Optical
- medium
- beam angle 25°
Electrical
- non DIM
- 220-240 V
- system 10.3 W
- fixture 8.4 W
- fixture 88 lm/W 1
- 500 mA
- 18 Vf
- PC2
Physical
- diameter 47 mm
- height 300 mm
- 0.54 kg

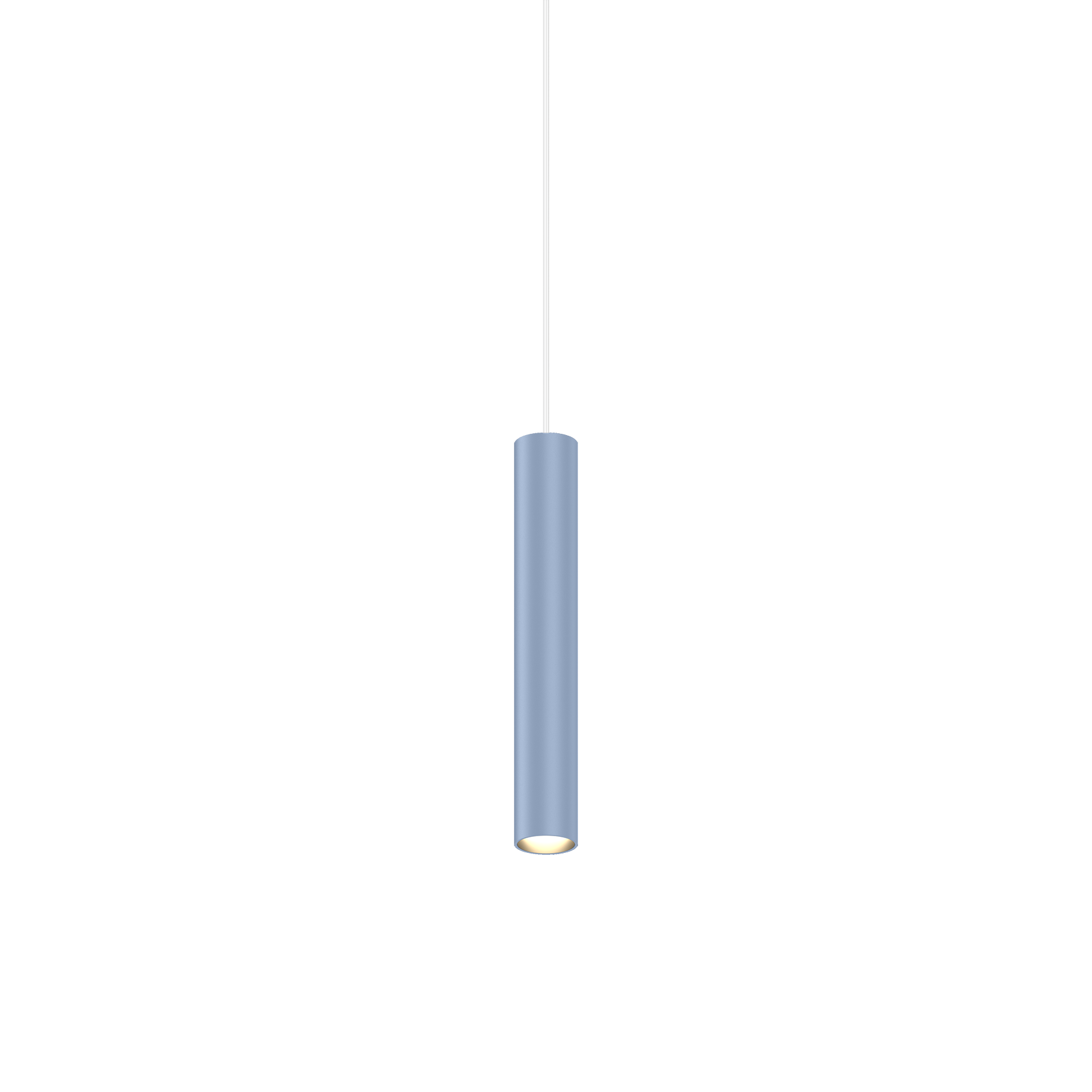

Decorative suspended luminaire in aluminium; surface special colours powder coated; pendant fitting with 1500mm suspension; incl. feed (white), can be individually shortened; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; good glare control through recessed light point level; incl. high quality lens system; precise radiation characteristic with 25° beam; degree of protection IP20; PC2; 220-240 V; surface canopy in traffic white; converter, non dimmable, included in canopy; canopy for through wiring; light source not replaceable; control gear replaceable by an authorized professional;
