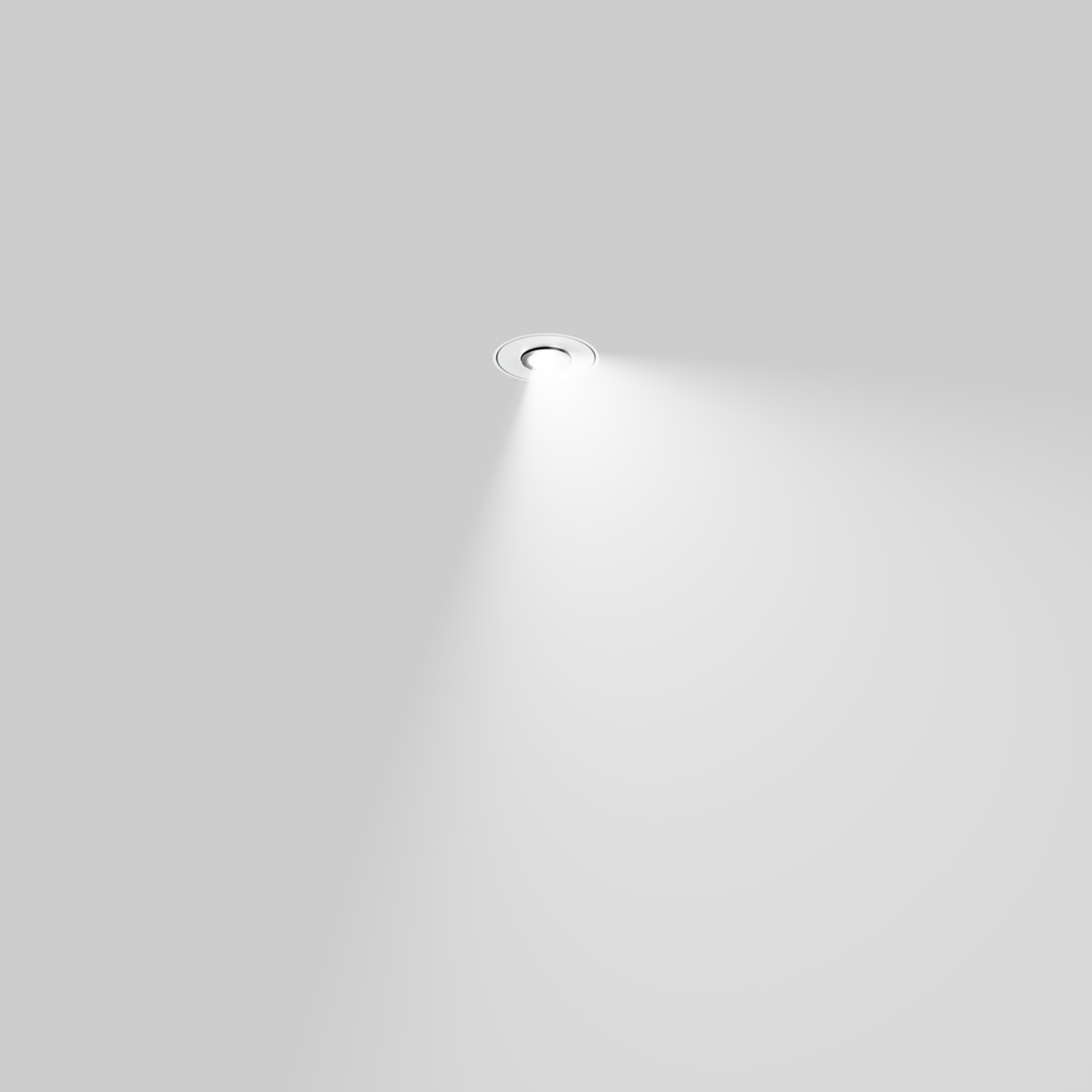

SPIO 20 wallwasher/floor trimless

SPIO 20 wallwasher/floor

trimless

048-17305108W 048-1698107 002-90788

Quickinfo

3000 K
CRI ≥ 90 / 3 SDCM (initial MacAd
69 lm/W
L95 / 50000 h
DALI-2
IP20

Colour

Acoustic colour

General

  • Ceiling
  • Recessed
  • rotation 360°
  • traffic white
  • traffic white
  • RAL 9016
  • IP20
  • 409 lm
  • fixture 69 lm/W 1

LED

  • 3000 K
  • CRI ≥ 90
  • L95 / 50000 h
  • ≤ 3 SDCM (initial MacAdam)
  • Rg: 104
  • Rf: 91
  • R{1-15}: 93
  • MR 0.59
  • MDER 0.54

Optical

  • wallwasher floor
  • PstLM ≤ 1.0 2
  • SVM ≤ 0.4 2

Electrical

  • DALI-2
  • 220-240 V
  • system 7.9 W
  • fixture 5.9 W
  • 1050 mA
  • 5.6 Vf
  • PC2
  • 1 DALI Addr.

Physical

  • trimless
  • diameter 26 mm
  • height 51 mm
  • 0.34 kg

Cutout

  • diameter 48 mm
  • min. ceiling thickness 9 mm
  • max. ceiling thickness 25 mm
  • recessed depth 80 mm

Circuit Breaker Types

Automatic Circuit Breaker Type

B10
B16
C10
C16

Number of Fixtures

37
60
37
60
1 incl. consideration of optical losses & internal control unit losses 2 Value of containing product at full load (undimmed)

Round recessed spotlight in aluminium; surface traffic white powder coated; installation without tools in mounting set due to patented ball catch system; for trimless installation in plasterboard ceilings, specially designed trim with grooves for better adhesion of smoothing compound; suitable for ceiling thickness of 9-25 mm; special mounting tool for easy installation of the trimless housing available as an accessory; paintable light inset; shadow joint between light inset and mounting set optionally fillable; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 95% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; with specially computed, asymmetrical reflector for homogeneous lighting intensity; high quality reflector with micro-faceted, aluminum-vaporised surface; no multiple shadows; uncluttered ceiling look through recessed lighting level; reduced light-emitting surface (only ø 13 mm); degree of protection IP20; PC2; 220-240 V; incl. DALI-2 converter; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;

Product data & specification documents

Datasheets

Planing files & lighting data

Certificates

Download all

Accessories

Converter

article number
power
voltage / frequency
protection class
constant current
control
POWER SUPPLY
002-90788
44 W
min 50 Hz
max 60 Hz
PC2
1,050 mA
DALI-2

Mounting

article number
colour
dimensions
cut out dimensions
MOUNTING SET trimless
048-1698107
traffic white
RAL 9016
diameter 56 mm
height 48 mm
0.05 kg
diameter 48 mm

Converter

article number
control
DIN RAIL LED DRIVER
005-6121030
DALI-2 DT6 1 - 2 addresses

Mounting

article number
