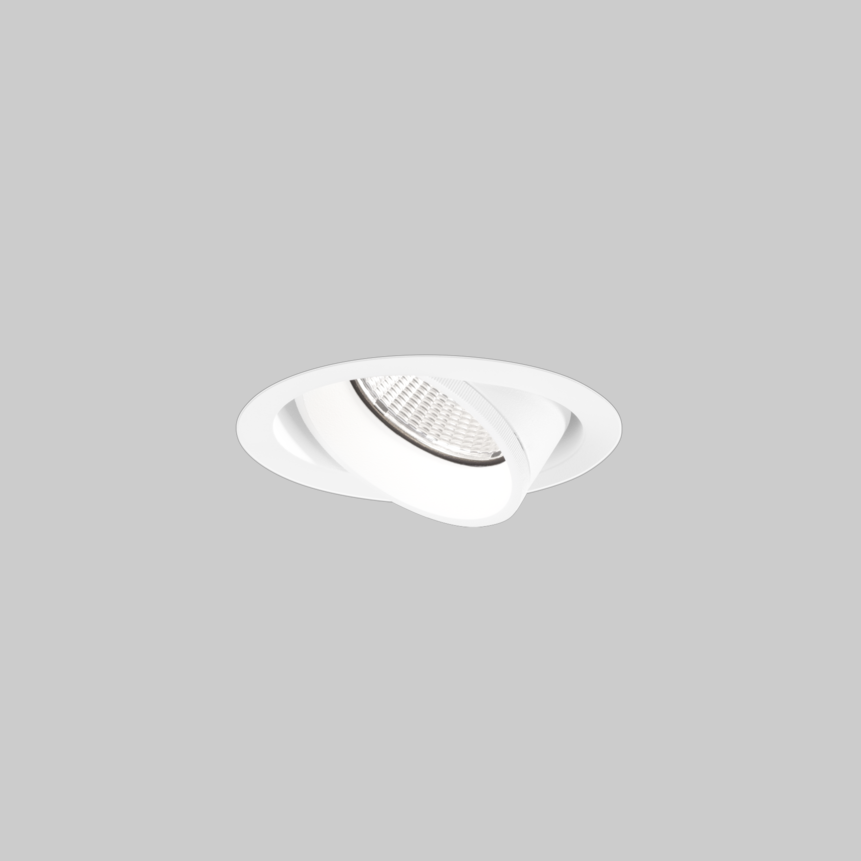

SASSO PRO 80 adjustable
trimless exposed concrete
048-2312637F 060-00080
Quickinfo
4000 KCRI ≥ 90 / 3 SDCM
93 lm/W
L90 / 50000 h
DALI-2
IP20
Colour
General
- Ceiling
- Recessed
- tilt max 35°
- rotation 360°
- traffic white
- RAL 9016
- IP20
- 1130 lm
LED
- 4000 K
- CRI ≥ 90
- L90 / 50000 h
- initial MacAdam ≤ 3 SDCM
- Rg: 97
- Rf: 89
- R{1-15}: 91
- MR 0.85
- MDER 0.77
Optical
- flood
- beam angle 37°
- ≤ 1.0 1
- SVM ≤ 0.4 1
Electrical
- DALI-2
- 220-240 V
- system 12.2 W
- system 93 lm/W 2
- PC2
- 1 DALI Addr.
Physical
- trimless for exposed concrete ceiling
- length 229 mm
- width 227 mm
- height 160 mm
- 2.15 kg
Cutout
- recessed depth 158 mm
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures
Round recessed spotlight in die-cast aluminium; surface traffic white powder coated; 360° rotatable and 35° tiltable; installation without tools in mounting set due to patented ball catch system; concrete housings for exposed concrete ceilings; for trimless installation; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 4000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; including high quality reflector made of plastic with spherical reflector; aluminium, vapour deposition coated; neutral colour reflection through absolute freedom from interference colour; for brilliant object staging; precise radiation characteristic with 37° beam; installed and exchanged without tools; optical attachments available as accessories; accessories are listed separately; degree of protection IP20; PC2; 220-240 V; incl. DALI-2 converter; converter wired secondary side; through wiring connection box, 3-pole or 5-pole, available as an accessory; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
Accessories
Mounting
Electrical mounting
Optical
