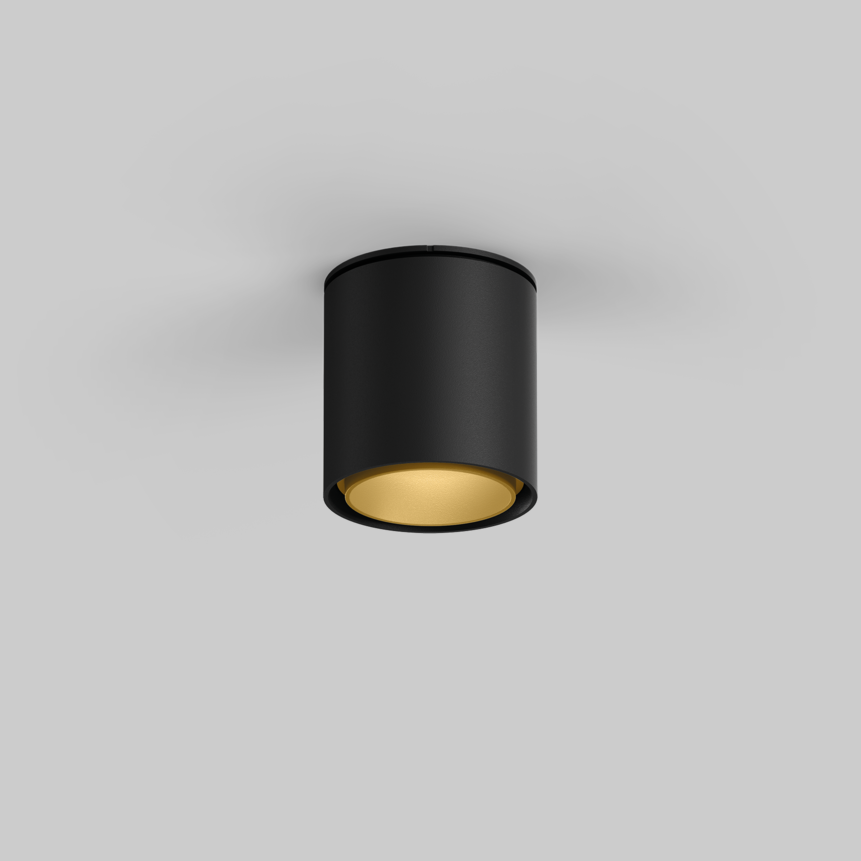

SASSO 60 round adjustable semi-recessed

Technical data

General

Ceiling
Semi-Recessed
tilt max 30°
rotation 360°
black
Inner colour gold
RAL9005/gold
IP20
862 lm

LED

2700 K
CRI ≥ 90
L80 / 50000 h
initial MacAdam ≤ 2 SDCM
R_g: 97
R_f: 91
R_{1-15}: 87
MR 0.52
MDER 0.47

Optical

wide flood
beam angle 54°
≥65° <3000 cd/m²
$P_{st}^{LM}$ ≤ 1.0 ¹
SVM ≤ 0.4 ¹

Electrical

DALI-2
10.2 W
inset 8.7 W
36 Vf
250 mA
PC2 220-240V
85 lm/W ²
inset 99 lm/W ³
1 DALI Addr.

Physical

diameter 72 mm
height 75 mm
0.12 kg

Cutout

recessed depth 120 mm

Circuit Breaker Types

Automatic Circuit Breaker Type

B10

B16

C10

C16

Number of Fixtures

18

30

23

36

^¹ Value of containing product at full load (undimmed) ^² incl. consideration of optical losses, internal control unit losses & operating device efficiency ^³ incl. consideration of optical losses & internal control unit losses

Specification text

Cylindrical semi-recessed spotlight made of aluminium; surface black (housing/light inset); 360° rotatable and 30° tiltable; luminaire housing can be attached to mounting plate without tools by interlock; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 2700 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; incl. high quality lens system; precise radiation characteristic with 54° beam; degree of protection IP20; PC2 220-240V; incl. DALI-2 converter; flicker-free visual comfort through analogue current control (minimum value 1%); external converter for ceiling insertion, through-wiring suitable; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
