SASSO 100 round downlight
trimless
048-2700414S 048-2796117 002-90779
Quickinfo
2700 KCRI ≥ 90 / 2
UGR < 13 / 65° ≤ 3,000 cd/m²
69 lm/W
L80 / 50000 h
DALI-2
IP44, back IP20
Colour
Mounting set
General
- Ceiling
- Recessed
- matt silver
- Mounting set traffic white
- front IP44
- back IP20
- 1390 lm
LED
- 2700 K
- CRI ≥ 90
- L80 / 50000 h
- initial MacAdam ≤ 2 SDCM
- Rg: 99
- Rf: 91
- R{1-15}: 89
- MR 0.53
- MDER 0.48
Optical
- spot
- beam angle 19°
- UGR < 13
- ≥65° <3000 cd/m²
- ≤ 1.0 1
- SVM ≤ 0.4 1
Electrical
- DALI-2
- 20.2 W
- inset 17.2 W
- 36 Vf
- 500 mA
- PC2 220-240V
- 69 lm/W 2
- inset 81 lm/W 3
- 1 DALI Addr.
Physical
- trimless
- diameter 105 mm
- height 75 mm
- 0.53 kg
Cutout
- diameter 106 mm
- min. ceiling thickness 12.5 mm
- max. ceiling thickness 25 mm
- recessed depth 80 mm
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures

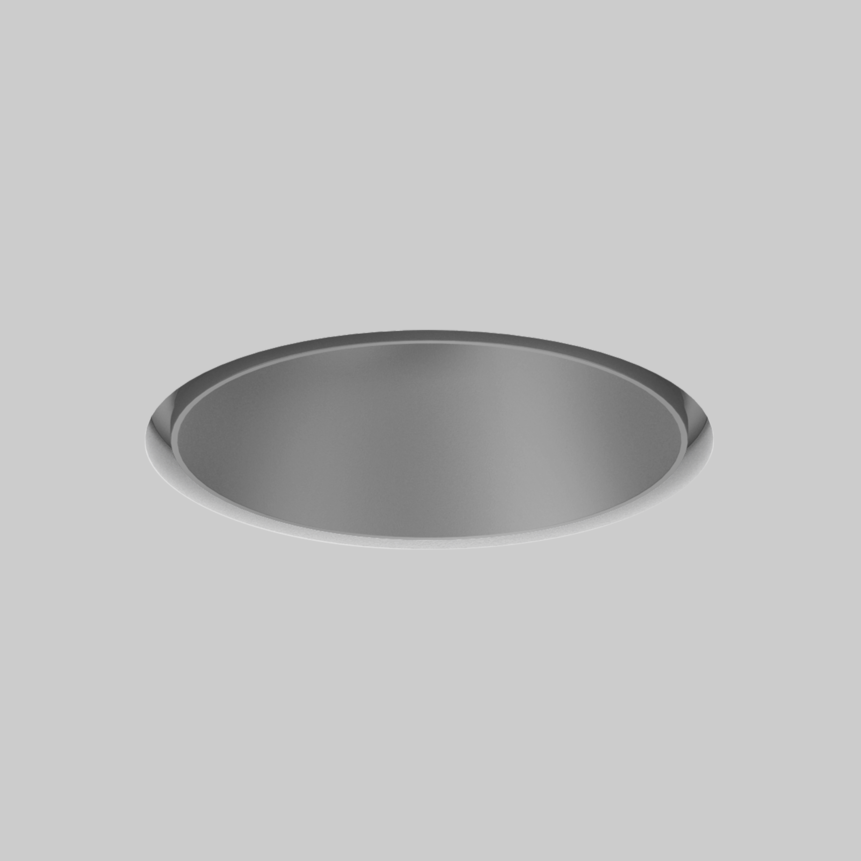

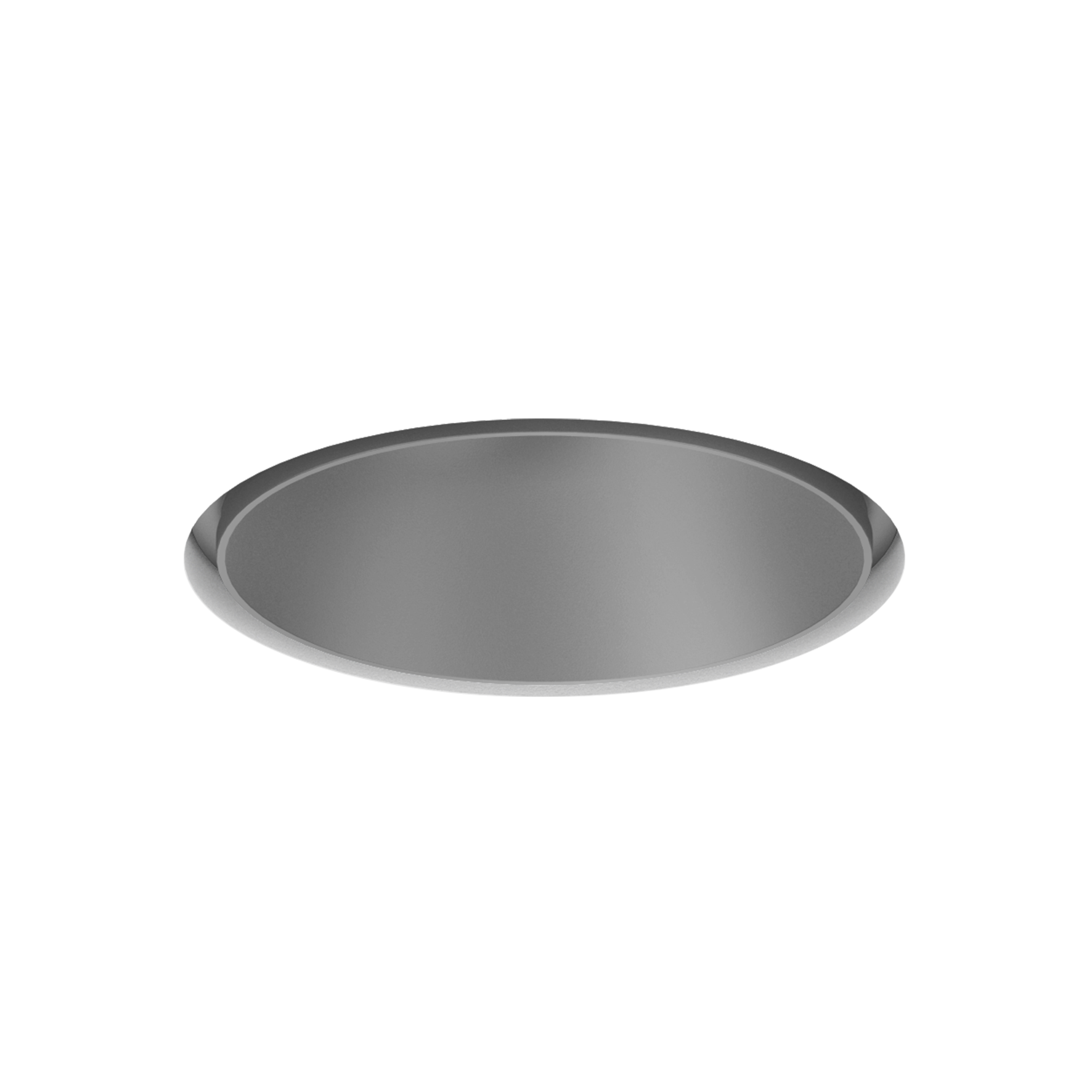

Round recessed spotlight in die-cast aluminium; 1 lamp; surface matt silver; installation without tools in mounting set due to patented ball catch system; round installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 2700 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; incl. high quality lens system; precise radiation characteristic with 19° beam; UGR ≤ 13; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; degree of protection from below IP44 (from above IP20); PC2 220-240V; incl. DALI-2 converter; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
