BO 45 semi-recessed
049-6130717V 002-90727
Quickinfo
3500 KCRI ≥ 90 / 3
L85 / 50000 h
DALI-2
Colour
General
- Ceiling
- Semi-Recessed
- tilt max 90°
- rotation 350°
- white
- RAL9016
- IP20
- 346 lm
LED
- 3500 K
- CRI ≥ 90
- L85 / 50000 h
- initial MacAdam ≤ 3 SDCM
- Rg: 97
- Rf: 90
- R{1-15}: 87
- MR 0.68
- MDER 0.62
Optical
- super spot
- beam angle 8°
- ≤ 1.0 1
- SVM ≤ 0.4 1
Electrical
- DALI-2
- 9.2 W
- inset 6.9 W
- PC2 220-240V
- 38 lm/W 2
- 1 DALI Addr.
Physical
- diameter 45 mm
- height 149 mm
- 0.04 kg
Cutout
- min. ceiling thickness 2 mm
- max. ceiling thickness 25 mm
- recessed depth 190 mm

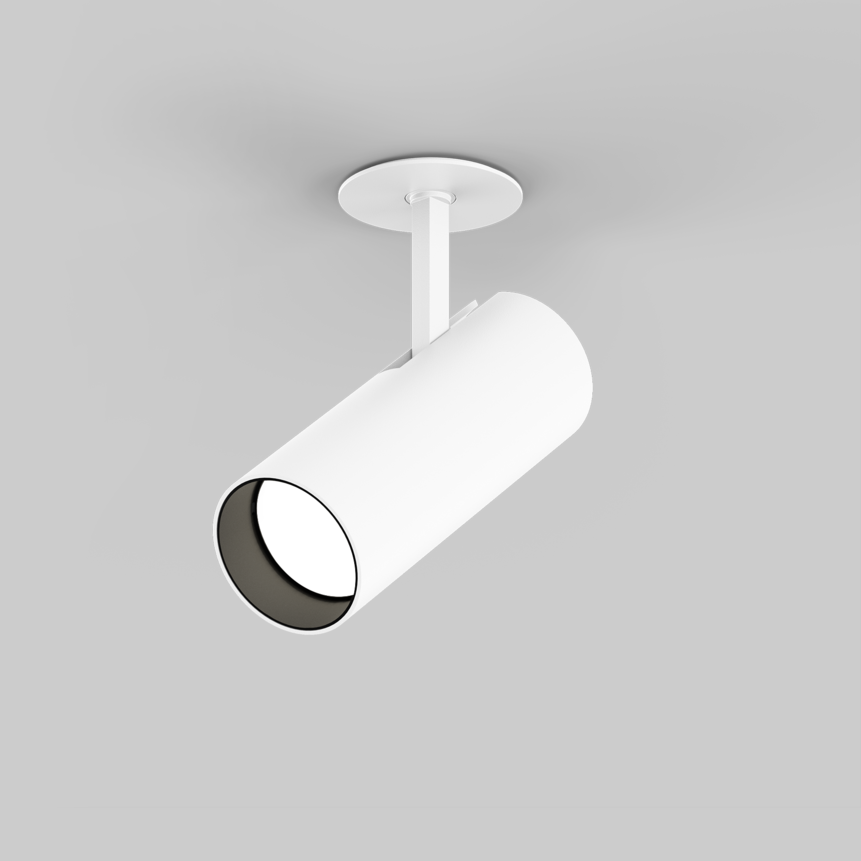

Cylindrical spotlight in aluminium; surface white powder coated; 350° rotatable and 90° tiltable; recessed version with trim; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with high power LED for maximum efficiency; no appearance of multiple shadows; light colour 3500 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 85% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; incl. high quality lens system; precise radiation characteristic with 8° beam; good glare control through recessed light point level; optical attachment available as accessory; accessories are listed separately; degree of protection IP20; PC2 220-240V; incl. DALI-2 converter; flicker-free visual comfort through analogue current control (minimum value 1%); external converter for ceiling insertion, through-wiring suitable; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
Accessories
Converter
Optical
