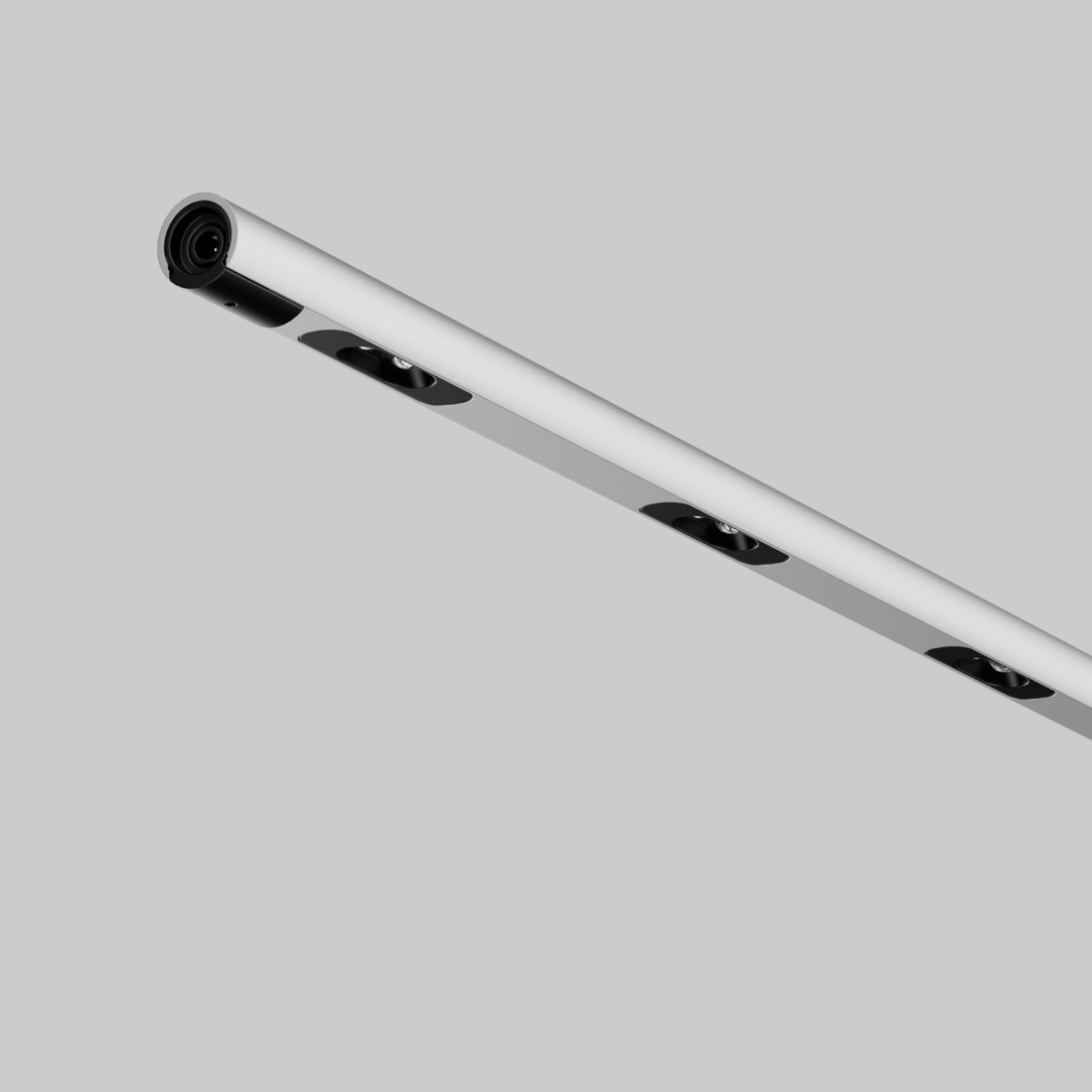

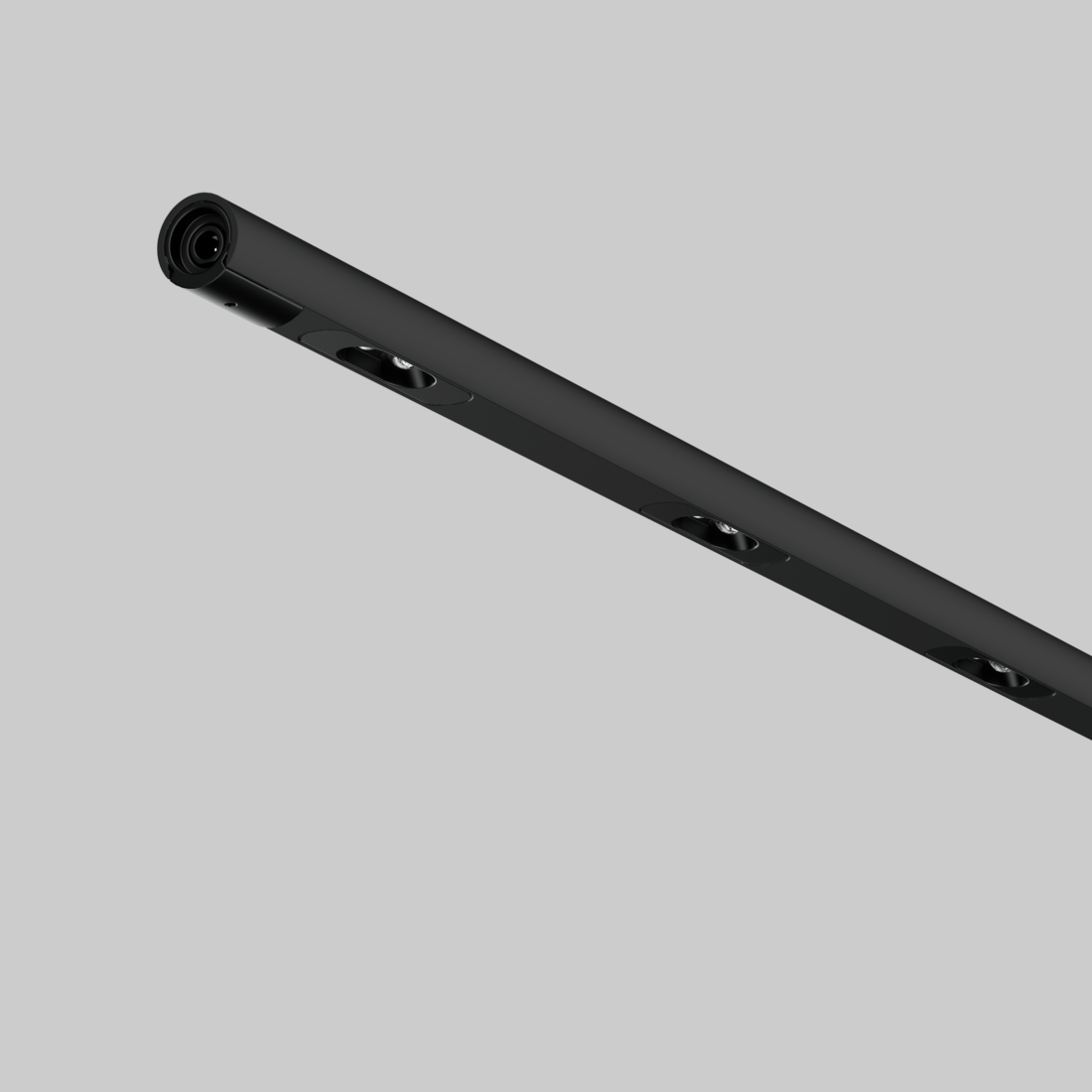

FINA spot line
FINA spot line

FINA spotline

system

New

Quickinfo

3000 K, 3500 K, 4000 K
CRI ≥ 95 / 3 SDCM (initial MacAdam)
up to 88 lm/W
L80 / 50000 h
excl. driver
IP20

Colour

Products and codes
Discover family

Simple drawing

Light distribution

Product data & specification documents

Download all
Download all
  • ROLF
  • ULD

Description

Miniature linear light inset made of aluminium; tubular design; optionally for recessed or surface mounting (available as an accessory); surface lacquered; plug and play electrical connector system for toolless mounting; different connectors for mechanical and electrical connection available; for flexible system design; fitted with LED light points; precise radiation characteristic with different symmetrical light distributions; or with asymmetric light distribution; light inset rotatable; energy-efficient LEDs with very good colour rendering; converter plug and play; converter separately available

CRI ≥ 95, R9 ≥ 90

plug & play

brilliance effect

fine adjustments possible

Products and codes

Filter
64
lm/W
88
lm/W
77
lm
1550
lm
1.4
W
28.6
W
0.61
0.76
0.55
0.69

Colour

FINA spot line

FINA spotline

FINA spotline

Status
Article number(s)
Type
Dimming
tar black, asymmetric, 3000 K, 70 lm/W, length 66 mm
excl. driver
tar black, medium, 3000 K, 79 lm/W, length 66 mm
excl. driver
tar black, asymmetric, 4000 K, 78 lm/W, length 66 mm
excl. driver
tar black, medium, 4000 K, 88 lm/W, length 66 mm
excl. driver
tar black, asymmetric, 3500 K, 70 lm/W, length 66 mm
excl. driver
tar black, medium, 3500 K, 79 lm/W, length 66 mm
excl. driver
tar black, asymmetric, 3000 K, 70 lm/W, length 100 mm
excl. driver
tar black, medium, 3000 K, 79 lm/W, length 100 mm
excl. driver
tar black, asymmetric, 4000 K, 78 lm/W, length 100 mm
excl. driver
tar black, medium, 4000 K, 88 lm/W, length 100 mm
excl. driver
tar black, asymmetric, 3500 K, 70 lm/W, length 100 mm
excl. driver
tar black, medium, 3500 K, 79 lm/W, length 100 mm
excl. driver
tar black, asymmetric, 3000 K, 64 lm/W, length 200 mm
excl. driver
tar black, medium, 3000 K, 73 lm/W, length 200 mm
excl. driver
tar black, asymmetric, 4000 K, 72 lm/W, length 200 mm
excl. driver
tar black, medium, 4000 K, 81 lm/W, length 200 mm
excl. driver
tar black, asymmetric, 3500 K, 64 lm/W, length 200 mm
excl. driver
tar black, medium, 3500 K, 73 lm/W, length 200 mm
excl. driver
tar black, asymmetric, 3000 K, 64 lm/W, length 400 mm
excl. driver
tar black, medium, 3000 K, 73 lm/W, length 400 mm
excl. driver
tar black, asymmetric, 4000 K, 72 lm/W, length 400 mm
excl. driver
tar black, medium, 4000 K, 81 lm/W, length 400 mm
excl. driver
tar black, asymmetric, 3500 K, 64 lm/W, length 400 mm
excl. driver
tar black, medium, 3500 K, 73 lm/W, length 400 mm
excl. driver
tar black, asymmetric, 3000 K, 64 lm/W, length 600 mm
excl. driver
tar black, medium, 3000 K, 73 lm/W, length 600 mm
excl. driver
tar black, asymmetric, 4000 K, 72 lm/W, length 600 mm
excl. driver
tar black, medium, 4000 K, 81 lm/W, length 600 mm
excl. driver
tar black, asymmetric, 3500 K, 64 lm/W, length 600 mm
excl. driver
tar black, medium, 3500 K, 73 lm/W, length 600 mm
excl. driver
tar black, asymmetric, 3000 K, 64 lm/W, length 800 mm
excl. driver
tar black, medium, 3000 K, 73 lm/W, length 800 mm
excl. driver
tar black, asymmetric, 4000 K, 72 lm/W, length 800 mm
excl. driver
tar black, medium, 4000 K, 81 lm/W, length 800 mm
excl. driver
tar black, asymmetric, 3500 K, 64 lm/W, length 800 mm
excl. driver
tar black, medium, 3500 K, 73 lm/W, length 800 mm
excl. driver
tar black, asymmetric, 3000 K, 64 lm/W, length 1,000 mm
excl. driver
tar black, medium, 3000 K, 72 lm/W, length 1,000 mm
excl. driver
tar black, asymmetric, 4000 K, 72 lm/W, length 1,000 mm
excl. driver
tar black, medium, 4000 K, 81 lm/W, length 1,000 mm
excl. driver
tar black, asymmetric, 3500 K, 64 lm/W, length 1,000 mm
excl. driver
tar black, medium, 3500 K, 72 lm/W, length 1,000 mm
excl. driver
tar black, asymmetric, 3000 K, 64 lm/W, length 1,200 mm
excl. driver
tar black, medium, 3000 K, 73 lm/W, length 1,200 mm
excl. driver
tar black, asymmetric, 4000 K, 71 lm/W, length 1,200 mm
excl. driver
tar black, medium, 4000 K, 81 lm/W, length 1,200 mm
excl. driver
tar black, asymmetric, 3500 K, 64 lm/W, length 1,200 mm
excl. driver
tar black, medium, 3500 K, 73 lm/W, length 1,200 mm
excl. driver
tar black, asymmetric, 3000 K, 64 lm/W, length 260 mm
excl. driver
tar black, medium, 3000 K, 73 lm/W, length 260 mm
excl. driver
tar black, asymmetric, 4000 K, 72 lm/W, length 260 mm
excl. driver
tar black, medium, 4000 K, 81 lm/W, length 260 mm
excl. driver
tar black, asymmetric, 3500 K, 64 lm/W, length 260 mm
excl. driver
tar black, medium, 3500 K, 73 lm/W, length 260 mm
excl. driver
tar black, asymmetric, 3000 K, 64 lm/W, length 320 mm
excl. driver
tar black, medium, 3000 K, 73 lm/W, length 320 mm
excl. driver
tar black, asymmetric, 4000 K, 72 lm/W, length 320 mm
excl. driver
tar black, medium, 4000 K, 81 lm/W, length 320 mm
excl. driver
tar black, asymmetric, 3500 K, 64 lm/W, length 320 mm
excl. driver
tar black, medium, 3500 K, 73 lm/W, length 320 mm
excl. driver
tar black, asymmetric, 3000 K, 64 lm/W, length 380 mm
excl. driver
tar black, medium, 3000 K, 73 lm/W, length 380 mm
excl. driver
tar black, asymmetric, 4000 K, 72 lm/W, length 380 mm
excl. driver
tar black, medium, 4000 K, 81 lm/W, length 380 mm
excl. driver
tar black, asymmetric, 3500 K, 64 lm/W, length 380 mm
excl. driver
tar black, medium, 3500 K, 73 lm/W, length 380 mm
excl. driver
tar black, asymmetric, 3000 K, 64 lm/W, length 460 mm
excl. driver
tar black, medium, 3000 K, 73 lm/W, length 460 mm
excl. driver
tar black, asymmetric, 4000 K, 72 lm/W, length 460 mm
excl. driver
tar black, medium, 4000 K, 81 lm/W, length 460 mm
excl. driver
tar black, asymmetric, 3500 K, 64 lm/W, length 460 mm
excl. driver
tar black, medium, 3500 K, 73 lm/W, length 460 mm
excl. driver
tar black, asymmetric, 3000 K, 64 lm/W, length 520 mm
excl. driver
tar black, medium, 3000 K, 73 lm/W, length 520 mm
excl. driver
tar black, asymmetric, 4000 K, 72 lm/W, length 520 mm
excl. driver
tar black, medium, 4000 K, 81 lm/W, length 520 mm
excl. driver
tar black, asymmetric, 3500 K, 64 lm/W, length 520 mm
excl. driver
tar black, medium, 3500 K, 73 lm/W, length 520 mm
excl. driver
tar black, asymmetric, 3000 K, 64 lm/W, length 580 mm
excl. driver
tar black, medium, 3000 K, 73 lm/W, length 580 mm
excl. driver
tar black, asymmetric, 4000 K, 72 lm/W, length 580 mm
excl. driver
tar black, medium, 4000 K, 81 lm/W, length 580 mm
excl. driver
tar black, asymmetric, 3500 K, 64 lm/W, length 580 mm
excl. driver
tar black, medium, 3500 K, 73 lm/W, length 580 mm
excl. driver
tar black, asymmetric, 3000 K, 64 lm/W, length 660 mm
excl. driver
tar black, medium, 3000 K, 73 lm/W, length 660 mm
excl. driver
tar black, asymmetric, 4000 K, 72 lm/W, length 660 mm
excl. driver
tar black, medium, 4000 K, 81 lm/W, length 660 mm
excl. driver
tar black, asymmetric, 3500 K, 64 lm/W, length 660 mm
excl. driver
tar black, medium, 3500 K, 73 lm/W, length 660 mm
excl. driver
tar black, asymmetric, 3000 K, 64 lm/W, length 720 mm
excl. driver
tar black, medium, 3000 K, 73 lm/W, length 720 mm
excl. driver
tar black, asymmetric, 4000 K, 72 lm/W, length 720 mm
excl. driver
tar black, medium, 4000 K, 81 lm/W, length 720 mm
excl. driver
tar black, asymmetric, 3500 K, 64 lm/W, length 720 mm
excl. driver
tar black, medium, 3500 K, 73 lm/W, length 720 mm
excl. driver
tar black, asymmetric, 3000 K, 64 lm/W, length 780 mm
excl. driver
tar black, medium, 3000 K, 73 lm/W, length 780 mm
excl. driver
tar black, asymmetric, 4000 K, 72 lm/W, length 780 mm
excl. driver
tar black, medium, 4000 K, 81 lm/W, length 780 mm
excl. driver
tar black, asymmetric, 3500 K, 64 lm/W, length 780 mm
excl. driver
tar black, medium, 3500 K, 73 lm/W, length 780 mm
excl. driver
tar black, asymmetric, 3000 K, 64 lm/W, length 860 mm
excl. driver
tar black, medium, 3000 K, 73 lm/W, length 860 mm
excl. driver
tar black, asymmetric, 4000 K, 72 lm/W, length 860 mm
excl. driver
tar black, medium, 4000 K, 81 lm/W, length 860 mm
excl. driver
tar black, asymmetric, 3500 K, 64 lm/W, length 860 mm
excl. driver
tar black, medium, 3500 K, 73 lm/W, length 860 mm
excl. driver
tar black, asymmetric, 3000 K, 64 lm/W, length 920 mm
excl. driver
tar black, medium, 3000 K, 73 lm/W, length 920 mm
excl. driver
tar black, asymmetric, 4000 K, 72 lm/W, length 920 mm
excl. driver
tar black, medium, 4000 K, 81 lm/W, length 920 mm
excl. driver
tar black, asymmetric, 3500 K, 64 lm/W, length 920 mm
excl. driver
tar black, medium, 3500 K, 73 lm/W, length 920 mm
excl. driver
tar black, asymmetric, 3000 K, 64 lm/W, length 980 mm
excl. driver
tar black, medium, 3000 K, 73 lm/W, length 980 mm
excl. driver
tar black, asymmetric, 4000 K, 72 lm/W, length 980 mm
excl. driver
tar black, medium, 4000 K, 81 lm/W, length 980 mm
excl. driver
tar black, asymmetric, 3500 K, 64 lm/W, length 980 mm
excl. driver
tar black, medium, 3500 K, 73 lm/W, length 980 mm
excl. driver
tar black, asymmetric, 3000 K, 64 lm/W, length 1,060 mm
excl. driver
tar black, medium, 3000 K, 72 lm/W, length 1,060 mm
excl. driver
tar black, asymmetric, 4000 K, 72 lm/W, length 1,060 mm
excl. driver
tar black, medium, 4000 K, 81 lm/W, length 1,060 mm
excl. driver
tar black, asymmetric, 3500 K, 64 lm/W, length 1,060 mm
excl. driver
tar black, medium, 3500 K, 72 lm/W, length 1,060 mm
excl. driver
tar black, asymmetric, 3000 K, 64 lm/W, length 1,120 mm
excl. driver
tar black, medium, 3000 K, 72 lm/W, length 1,120 mm
excl. driver
tar black, asymmetric, 4000 K, 72 lm/W, length 1,120 mm
excl. driver
tar black, medium, 4000 K, 81 lm/W, length 1,120 mm
excl. driver
tar black, asymmetric, 3500 K, 64 lm/W, length 1,120 mm
excl. driver
tar black, medium, 3500 K, 72 lm/W, length 1,120 mm
excl. driver
tar black, asymmetric, 3000 K, 64 lm/W, length 1,180 mm
excl. driver
tar black, medium, 3000 K, 72 lm/W, length 1,180 mm
excl. driver
tar black, asymmetric, 4000 K, 72 lm/W, length 1,180 mm
excl. driver
tar black, medium, 4000 K, 81 lm/W, length 1,180 mm
excl. driver
tar black, asymmetric, 3500 K, 64 lm/W, length 1,180 mm
excl. driver
tar black, medium, 3500 K, 72 lm/W, length 1,180 mm
excl. driver
FINA spot line

FINA spotline

FINA spotline

Status
Article number(s)
Type
Dimming
white aluminium, asymmetric, 3000 K, 70 lm/W, length 66 mm
excl. driver
white aluminium, medium, 3000 K, 79 lm/W, length 66 mm
excl. driver
white aluminium, asymmetric, 4000 K, 78 lm/W, length 66 mm
excl. driver
white aluminium, medium, 4000 K, 88 lm/W, length 66 mm
excl. driver
white aluminium, asymmetric, 3500 K, 70 lm/W, length 66 mm
excl. driver
white aluminium, medium, 3500 K, 79 lm/W, length 66 mm
excl. driver
white aluminium, asymmetric, 3000 K, 70 lm/W, length 100 mm
excl. driver
white aluminium, medium, 3000 K, 79 lm/W, length 100 mm
excl. driver
white aluminium, asymmetric, 4000 K, 78 lm/W, length 100 mm
excl. driver
white aluminium, medium, 4000 K, 88 lm/W, length 100 mm
excl. driver
white aluminium, asymmetric, 3500 K, 70 lm/W, length 100 mm
excl. driver
white aluminium, medium, 3500 K, 79 lm/W, length 100 mm
excl. driver
white aluminium, asymmetric, 4000 K, 72 lm/W, length 200 mm
excl. driver
white aluminium, medium, 4000 K, 81 lm/W, length 200 mm
excl. driver
white aluminium, asymmetric, 3500 K, 64 lm/W, length 200 mm
excl. driver
white aluminium, medium, 3500 K, 73 lm/W, length 200 mm
excl. driver
white aluminium, asymmetric, 3000 K, 64 lm/W, length 400 mm
excl. driver
white aluminium, medium, 3000 K, 73 lm/W, length 400 mm
excl. driver
white aluminium, asymmetric, 4000 K, 72 lm/W, length 400 mm
excl. driver
white aluminium, medium, 4000 K, 81 lm/W, length 400 mm
excl. driver
white aluminium, asymmetric, 3500 K, 64 lm/W, length 400 mm
excl. driver
white aluminium, medium, 3500 K, 73 lm/W, length 400 mm
excl. driver
white aluminium, asymmetric, 3000 K, 64 lm/W, length 600 mm
excl. driver
white aluminium, medium, 3000 K, 73 lm/W, length 600 mm
excl. driver
white aluminium, asymmetric, 4000 K, 72 lm/W, length 600 mm
excl. driver
white aluminium, medium, 4000 K, 81 lm/W, length 600 mm
excl. driver
white aluminium, asymmetric, 3500 K, 64 lm/W, length 600 mm
excl. driver
white aluminium, medium, 3500 K, 73 lm/W, length 600 mm
excl. driver
white aluminium, asymmetric, 3000 K, 64 lm/W, length 800 mm
excl. driver
white aluminium, medium, 3000 K, 73 lm/W, length 800 mm
excl. driver
white aluminium, asymmetric, 4000 K, 72 lm/W, length 800 mm
excl. driver
white aluminium, medium, 4000 K, 81 lm/W, length 800 mm
excl. driver
white aluminium, asymmetric, 3500 K, 64 lm/W, length 800 mm
excl. driver
white aluminium, medium, 3500 K, 73 lm/W, length 800 mm
excl. driver
white aluminium, asymmetric, 3000 K, 64 lm/W, length 1,000 mm
excl. driver
white aluminium, medium, 3000 K, 72 lm/W, length 1,000 mm
excl. driver
white aluminium, asymmetric, 4000 K, 72 lm/W, length 1,000 mm
excl. driver
white aluminium, medium, 4000 K, 81 lm/W, length 1,000 mm
excl. driver
white aluminium, asymmetric, 3500 K, 64 lm/W, length 1,000 mm
excl. driver
white aluminium, medium, 3500 K, 72 lm/W, length 1,000 mm
excl. driver
white aluminium, asymmetric, 3000 K, 64 lm/W, length 1,200 mm
excl. driver
white aluminium, asymmetric, 3500 K, 64 lm/W, length 1,200 mm
excl. driver
white aluminium, medium, 3500 K, 73 lm/W, length 1,200 mm
excl. driver
white aluminium, asymmetric, 4000 K, 72 lm/W, length 260 mm
excl. driver
white aluminium, medium, 4000 K, 81 lm/W, length 260 mm
excl. driver
white aluminium, asymmetric, 3500 K, 64 lm/W, length 260 mm
excl. driver
white aluminium, medium, 3500 K, 73 lm/W, length 260 mm
excl. driver
white aluminium, asymmetric, 3000 K, 64 lm/W, length 320 mm
excl. driver
white aluminium, medium, 3000 K, 73 lm/W, length 320 mm
excl. driver
white aluminium, asymmetric, 4000 K, 72 lm/W, length 320 mm
excl. driver
white aluminium, medium, 4000 K, 81 lm/W, length 320 mm
excl. driver
white aluminium, asymmetric, 3500 K, 64 lm/W, length 320 mm
excl. driver
white aluminium, medium, 3500 K, 73 lm/W, length 320 mm
excl. driver
white aluminium, asymmetric, 3000 K, 64 lm/W, length 380 mm
excl. driver
white aluminium, medium, 3000 K, 73 lm/W, length 380 mm
excl. driver
white aluminium, asymmetric, 4000 K, 72 lm/W, length 380 mm
excl. driver
white aluminium, medium, 4000 K, 81 lm/W, length 380 mm
excl. driver
white aluminium, asymmetric, 3500 K, 64 lm/W, length 380 mm
excl. driver
white aluminium, medium, 3500 K, 73 lm/W, length 380 mm
excl. driver
white aluminium, asymmetric, 3000 K, 64 lm/W, length 460 mm
excl. driver
white aluminium, medium, 3000 K, 73 lm/W, length 460 mm
excl. driver
white aluminium, asymmetric, 4000 K, 72 lm/W, length 460 mm
excl. driver
white aluminium, medium, 4000 K, 81 lm/W, length 460 mm
excl. driver
white aluminium, asymmetric, 3500 K, 64 lm/W, length 460 mm
excl. driver
white aluminium, medium, 3500 K, 73 lm/W, length 460 mm
excl. driver
white aluminium, asymmetric, 3000 K, 64 lm/W, length 520 mm
excl. driver
white aluminium, medium, 3000 K, 73 lm/W, length 520 mm
excl. driver
white aluminium, asymmetric, 4000 K, 72 lm/W, length 520 mm
excl. driver
white aluminium, medium, 4000 K, 81 lm/W, length 520 mm
excl. driver
white aluminium, medium, 4000 K, 81 lm/W, length 660 mm
excl. driver
white aluminium, asymmetric, 3500 K, 64 lm/W, length 660 mm
excl. driver
white aluminium, medium, 3500 K, 73 lm/W, length 660 mm
excl. driver
white aluminium, asymmetric, 3000 K, 64 lm/W, length 720 mm
excl. driver
white aluminium, medium, 3000 K, 73 lm/W, length 720 mm
excl. driver
white aluminium, asymmetric, 4000 K, 72 lm/W, length 720 mm
excl. driver
white aluminium, medium, 4000 K, 81 lm/W, length 720 mm
excl. driver
white aluminium, asymmetric, 3500 K, 64 lm/W, length 720 mm
excl. driver
white aluminium, medium, 3500 K, 73 lm/W, length 720 mm
excl. driver
white aluminium, asymmetric, 3000 K, 64 lm/W, length 780 mm
excl. driver
white aluminium, medium, 3000 K, 73 lm/W, length 780 mm
excl. driver
white aluminium, asymmetric, 4000 K, 72 lm/W, length 780 mm
excl. driver
white aluminium, medium, 4000 K, 81 lm/W, length 780 mm
excl. driver
white aluminium, asymmetric, 3500 K, 64 lm/W, length 780 mm
excl. driver
white aluminium, medium, 3500 K, 73 lm/W, length 780 mm
excl. driver
white aluminium, asymmetric, 3000 K, 64 lm/W, length 860 mm
excl. driver
white aluminium, medium, 3000 K, 73 lm/W, length 860 mm
excl. driver
white aluminium, asymmetric, 4000 K, 72 lm/W, length 860 mm
excl. driver
white aluminium, medium, 4000 K, 81 lm/W, length 860 mm
excl. driver
white aluminium, asymmetric, 3500 K, 64 lm/W, length 860 mm
excl. driver
white aluminium, medium, 3500 K, 73 lm/W, length 860 mm
excl. driver
white aluminium, asymmetric, 3000 K, 64 lm/W, length 920 mm
excl. driver
white aluminium, medium, 3000 K, 73 lm/W, length 920 mm
excl. driver
white aluminium, asymmetric, 4000 K, 72 lm/W, length 920 mm
excl. driver
white aluminium, medium, 4000 K, 81 lm/W, length 920 mm
excl. driver
white aluminium, asymmetric, 3500 K, 64 lm/W, length 920 mm
excl. driver
white aluminium, medium, 3500 K, 73 lm/W, length 920 mm
excl. driver
white aluminium, asymmetric, 3000 K, 64 lm/W, length 980 mm
excl. driver
white aluminium, medium, 3000 K, 73 lm/W, length 980 mm
excl. driver
white aluminium, asymmetric, 4000 K, 72 lm/W, length 980 mm
excl. driver
white aluminium, medium, 4000 K, 81 lm/W, length 980 mm
excl. driver
white aluminium, asymmetric, 3500 K, 64 lm/W, length 980 mm
excl. driver
white aluminium, medium, 3500 K, 73 lm/W, length 980 mm
excl. driver
white aluminium, asymmetric, 3000 K, 64 lm/W, length 1,060 mm
excl. driver
white aluminium, medium, 3000 K, 72 lm/W, length 1,060 mm
excl. driver
white aluminium, asymmetric, 4000 K, 72 lm/W, length 1,060 mm
excl. driver
white aluminium, medium, 4000 K, 81 lm/W, length 1,060 mm
excl. driver
white aluminium, asymmetric, 3500 K, 64 lm/W, length 1,060 mm
excl. driver
white aluminium, medium, 3500 K, 72 lm/W, length 1,060 mm
excl. driver
white aluminium, asymmetric, 3000 K, 64 lm/W, length 1,120 mm
excl. driver
white aluminium, medium, 3000 K, 72 lm/W, length 1,120 mm
excl. driver
white aluminium, asymmetric, 4000 K, 72 lm/W, length 1,120 mm
excl. driver
white aluminium, medium, 4000 K, 81 lm/W, length 1,120 mm
excl. driver

Accessories

Mounting

article number
colour
dimensions
MOUNTING CLIP 90 surface
011-9100008
tar black
RAL 9021
0.03 kg
MOUNTING CHANNEL 90
011-9100206
white aluminium
RAL 9006
length 230 mm
width 17 mm
height 11 mm
0.01 kg
MOUNTING CHANNEL 90
011-9100208
tar black
RAL 9021
length 230 mm
width 17 mm
height 11 mm
0.02 kg
MOUNTING CHANNEL 90
011-9100306
white aluminium
RAL 9006
length 430 mm
width 17 mm
height 11 mm
0.06 kg
MOUNTING CHANNEL 90
011-9100308
tar black
RAL 9021
length 430 mm
width 17 mm
height 11 mm
0.02 kg
MOUNTING CHANNEL 90
011-9100406
white aluminium
RAL 9006
length 630 mm
width 17 mm
height 11 mm
0.5 kg
MOUNTING CHANNEL 90
011-9100408
tar black
RAL 9021
length 630 mm
width 17 mm
height 11 mm
0.03 kg
MOUNTING CHANNEL 90
011-9100506
white aluminium
RAL 9006
length 830 mm
width 17 mm
height 11 mm
0.02 kg
MOUNTING CHANNEL 90
011-9100508
tar black
RAL 9021
length 830 mm
width 17 mm
height 11 mm
0.06 kg
MOUNTING CHANNEL 90
011-9100606
white aluminium
RAL 9006
length 1,030 mm
width 17 mm
height 11 mm
0.08 kg
MOUNTING CHANNEL 90
011-9100608
tar black
RAL 9021
length 1,030 mm
width 17 mm
height 11 mm
0.08 kg
MOUNTING CHANNEL 90
011-9100706
white aluminium
RAL 9006
length 1,230 mm
width 17 mm
height 11 mm
0.08 kg
MOUNTING CHANNEL 90
011-9100708
tar black
RAL 9021
length 1,230 mm
width 17 mm
height 11 mm
0.06 kg
MOUNTING CHANNEL 90 ANTI-GLARE
011-9101206
white aluminium
RAL 9006
length 230 mm
width 17 mm
height 15 mm
0.03 kg
MOUNTING CHANNEL 90 ANTI-GLARE
011-9101208
tar black
RAL 9021
length 230 mm
width 17 mm
height 15 mm
0.01 kg
MOUNTING CHANNEL 90 ANTI-GLARE
011-9101306
white aluminium
RAL 9006
length 430 mm
width 17 mm
height 15 mm
0.06 kg
MOUNTING CHANNEL 90 ANTI-GLARE
011-9101308
tar black
RAL 9021
length 430 mm
width 17 mm
height 15 mm
0.02 kg
MOUNTING CHANNEL 90 ANTI-GLARE
011-9101406
white aluminium
RAL 9006
length 630 mm
width 17 mm
height 15 mm
0.03 kg
MOUNTING CHANNEL 90 ANTI-GLARE
011-9101408
tar black
RAL 9021
length 630 mm
width 17 mm
height 15 mm
0.01 kg
MOUNTING CHANNEL 90 ANTI-GLARE
011-9101506
white aluminium
RAL 9006
length 830 mm
width 17 mm
height 15 mm
0.06 kg
MOUNTING CHANNEL 90 ANTI-GLARE
011-9101508
tar black
RAL 9021
length 830 mm
width 17 mm
height 15 mm
0.06 kg
MOUNTING CHANNEL 90 ANTI-GLARE
011-9101606
white aluminium
RAL 9006
length 1,030 mm
width 17 mm
height 15 mm
0.08 kg
MOUNTING CHANNEL 90 ANTI-GLARE
011-9101608
tar black
RAL 9021
length 1,030 mm
width 17 mm
height 15 mm
0.08 kg
MOUNTING CHANNEL 90 ANTI-GLARE
011-9101706
white aluminium
RAL 9006
length 1,230 mm
width 17 mm
height 15 mm
MOUNTING CHANNEL 90 ANTI-GLARE
011-9101708
tar black
RAL 9021
length 1,230 mm
width 17 mm
height 15 mm
0.06 kg
MOUNTING CLIP 60 surface
011-9102008
tar black
RAL 9021
0.03 kg
MOUNTING CHANNEL 60
011-9102206
white aluminium
RAL 9006
length 230 mm
width 40 mm
height 11 mm
MOUNTING CHANNEL 60
011-9102208
tar black
RAL 9021
length 230 mm
width 40 mm
height 11 mm
0.02 kg
MOUNTING CHANNEL 60
011-9102306
white aluminium
RAL 9006
length 430 mm
width 40 mm
height 11 mm
0.04 kg
MOUNTING CHANNEL 60
011-9102308
tar black
RAL 9021
length 430 mm
width 40 mm
height 11 mm
0.05 kg
MOUNTING CHANNEL 60
011-9102406
white aluminium
RAL 9006
length 630 mm
width 40 mm
height 11 mm
0.04 kg
MOUNTING CHANNEL 60
011-9102408
tar black
RAL 9021
length 630 mm
width 40 mm
height 11 mm
0.06 kg
MOUNTING CHANNEL 60
011-9102506
white aluminium
RAL 9006
length 830 mm
width 40 mm
height 11 mm
MOUNTING CHANNEL 60
011-9102508
tar black
RAL 9021
length 830 mm
width 40 mm
height 11 mm
0.07 kg
MOUNTING CHANNEL 60
011-9102606
white aluminium
RAL 9006
length 1,030 mm
width 40 mm
height 11 mm
0.1 kg
MOUNTING CHANNEL 60
011-9102608
tar black
RAL 9021
length 1,030 mm
width 40 mm
height 11 mm
0.1 kg
MOUNTING CHANNEL 60
011-9102706
white aluminium
RAL 9006
length 1,230 mm
width 40 mm
height 11 mm
MOUNTING CHANNEL 60
011-9102708
tar black
RAL 9021
length 1,230 mm
width 40 mm
height 11 mm
0.14 kg
MOUNTING CLIP 45 surface
011-9103008
tar black
RAL 9021
0.03 kg
MOUNTING CHANNEL 45
011-9103206
white aluminium
RAL 9006
length 230 mm
width 29 mm
height 11 mm
0.03 kg
MOUNTING CHANNEL 45
011-9103208
tar black
RAL 9021
length 230 mm
width 29 mm
height 11 mm
0.01 kg
MOUNTING CHANNEL 45
011-9103306
white aluminium
RAL 9006
length 430 mm
width 29 mm
height 11 mm
0.03 kg
MOUNTING CHANNEL 45
011-9103308
tar black
RAL 9021
length 430 mm
width 29 mm
height 11 mm
0.02 kg
MOUNTING CHANNEL 45
011-9103406
white aluminium
RAL 9006
length 630 mm
width 29 mm
height 11 mm
0.06 kg
MOUNTING CHANNEL 45
011-9103408
tar black
RAL 9021
length 630 mm
width 29 mm
height 11 mm
0.05 kg
MOUNTING CHANNEL 45
011-9103506
white aluminium
RAL 9006
length 830 mm
width 29 mm
height 11 mm
0.06 kg
MOUNTING CHANNEL 45
011-9103508
tar black
RAL 9021
length 830 mm
width 29 mm
height 11 mm
0.08 kg
MOUNTING CHANNEL 45
011-9103606
white aluminium
RAL 9006
length 1,030 mm
width 29 mm
height 11 mm
0.09 kg
MOUNTING CHANNEL 45
011-9103608
tar black
RAL 9021
length 1,030 mm
width 29 mm
height 11 mm
0.1 kg
MOUNTING CHANNEL 45
011-9103706
white aluminium
RAL 9006
length 1,230 mm
width 29 mm
height 11 mm
0.12 kg
MOUNTING CHANNEL 45
011-9103708
tar black
RAL 9021
length 1,230 mm
width 29 mm
height 11 mm
7 kg
MOUNTING CHANNEL 45 JUT-OUT
011-9104206
white aluminium
RAL 9006
length 230 mm
width 17 mm
height 18 mm
MOUNTING CHANNEL 45 JUT-OUT
011-9104208
tar black
RAL 9021
length 230 mm
width 17 mm
height 18 mm
0.02 kg
MOUNTING CHANNEL 45 JUT-OUT
011-9104306
white aluminium
RAL 9006
length 430 mm
width 17 mm
height 18 mm
0.03 kg
MOUNTING CHANNEL 45 JUT-OUT
011-9104308
tar black
RAL 9021
length 430 mm
width 17 mm
height 18 mm
0.04 kg
MOUNTING CHANNEL 45 JUT-OUT
011-9104406
white aluminium
RAL 9006
length 630 mm
width 17 mm
height 18 mm
0.05 kg
MOUNTING CHANNEL 45 JUT-OUT
011-9104408
tar black
RAL 9021
length 630 mm
width 17 mm
height 18 mm
MOUNTING CHANNEL 45 JUT-OUT
011-9104506
white aluminium
RAL 9006
length 830 mm
width 17 mm
height 18 mm
0.06 kg
MOUNTING CHANNEL 45 JUT-OUT
011-9104508
tar black
RAL 9021
length 830 mm
width 17 mm
height 18 mm
0.5 kg
MOUNTING CHANNEL 45 JUT-OUT
011-9104606
white aluminium
RAL 9006
length 1,030 mm
width 17 mm
height 18 mm
0.06 kg
MOUNTING CHANNEL 45 JUT-OUT
011-9104608
tar black
RAL 9021
length 1,030 mm
width 17 mm
height 18 mm
0.08 kg
MOUNTING CHANNEL 45 JUT-OUT
011-9104706
white aluminium
RAL 9006
length 1,230 mm
width 17 mm
height 18 mm
MOUNTING CHANNEL 45 JUT-OUT
011-9104708
tar black
RAL 9021
length 1,230 mm
width 17 mm
height 18 mm
MOUNTING CHANNEL 90
E84800....6
white aluminium
RAL 9006
custom cut
width 17 mm
height 11 mm
MOUNTING CHANNEL 90
E84800....8
tar black
RAL 9021
custom cut
width 17 mm
height 11 mm
MOUNTING CHANNEL 90 ANTI-GLARE
E84810....6
white aluminium
RAL 9006
custom cut
width 17 mm
height 15 mm
MOUNTING CHANNEL 90 ANTI-GLARE
E84810....8
tar black
RAL 9021
custom cut
width 17 mm
height 15 mm
MOUNTING CHANNEL 60
E84820....6
white aluminium
RAL 9006
custom cut
width 40 mm
height 11 mm
MOUNTING CHANNEL 60
E84820....8
tar black
RAL 9021
custom cut
width 40 mm
height 11 mm
MOUNTING CHANNEL 45
E84830....6
white aluminium
RAL 9006
custom cut
width 29 mm
height 11 mm
MOUNTING CHANNEL 45
E84830....8
tar black
RAL 9021
custom cut
width 29 mm
height 11 mm
MOUNTING CHANNEL 45 JUT-OUT
E84840....6
white aluminium
RAL 9006
custom cut
width 17 mm
height 18 mm
MOUNTING CHANNEL 45 JUT-OUT
E84840....8
tar black
RAL 9021
custom cut
width 17 mm
height 18 mm

Optical

article number
colour
dimensions
BLIND INSET
011-9109006
white aluminium
RAL 9006
length 50 mm
width 9 mm
height 6 mm

Mounting tools

article number
type
dimensions
MOUNTING TOOL
011-9190000
for inset adjustment
0.01 kg

Converter

article number
power
voltage / frequency
protection class
control
POWER SUPPLY 24V EU
011-9212110
18 W
min 50 Hz
max 60 Hz
PC2
non DIM
POWER SUPPLY 24V EU
011-9212130
18 W
min 50 Hz
max 60 Hz
PC2
DALI-2
POWER SUPPLY 24V EU
011-9212210
35 W
min 50 Hz
max 60 Hz
PC2
non DIM
POWER SUPPLY 24V EU
011-9212230
35 W
min 50 Hz
max 60 Hz
PC2
DALI-2
POWER SUPPLY 24V EU
011-9212310
100 W
min 50 Hz
max 60 Hz
PC2
non DIM
POWER SUPPLY 24V EU
011-9212330
60 W
min 50 Hz
max 60 Hz
PC2
DALI-2
POWER SUPPLY 24V UL
011-9272110
25 W
min 47 Hz
max 63 Hz
PC2
non DIM
POWER SUPPLY 24V UL
011-9272210
40 W
min 47 Hz
max 63 Hz
PC2
non DIM
POWER SUPPLY 24V UL
011-9272310
60 W
min 47 Hz
max 63 Hz
PC2
non DIM
POWER SUPPLY 24V UL incl. metalbox
011-9292110
25 W
min 47 Hz
max 63 Hz
PC2
non DIM
POWER SUPPLY 24V UL incl. metalbox
011-9292210
40 W
min 47 Hz
max 63 Hz
PC2
non DIM
POWER SUPPLY 24V UL incl. metalbox
011-9292310
60 W
min 47 Hz
max 63 Hz
PC2
non DIM

Electrical mounting

article number
type
constant current
dimensions
EXTENSION CABLE
011-9222120
1 × socket / 1 × plug
350 mA
0.04 kg
EXTENSION CABLE
011-9222140
1 × socket / 1 × plug
350 mA
0.07 kg
EXTENSION CABLE
011-9222180
1 × socket / 1 × plug
350 mA
0.13 kg
EXTENSION CABLE
011-9222220
1 × socket / 1 × plug 90°
350 mA
0.04 kg
EXTENSION CABLE
011-9222240
1 × socket / 1 × plug 90°
350 mA
0.34 kg
EXTENSION CABLE
011-9222280
1 × socket / 1 × plug 90°
350 mA
0.13 kg
CONNECTION CABLE
011-9222620
1 × open / 1 × DC plug
FLEX CONNECTOR
011-9225100
electrical
length 100 mm
width 9 mm
0.01 kg
FLEX CONNECTOR 90°
011-9225200
electrical
length 39 mm
width 39 mm
height 9 mm
LINEAR CONNECTOR
011-9225300
electrical
length 18 mm
width 6 mm
0.02 kg
FLEX CONNECTOR 0-83°
011-9225400
electrical
length 33 mm
width 6 mm

Feeder

article number
type
SYSTEM SPLITTER
011-9238300
3 way
SYSTEM SPLITTER
011-9238600
6 way

Related products

FINA

opal system

FINA

lead system

FINA

stadio system

FINA SUPPORT

stadio standing system
New

FINA SUPPORT

spotline standing system

FINA SUPPORT

opal standing system

FINA SUPPORT

lead standing system
