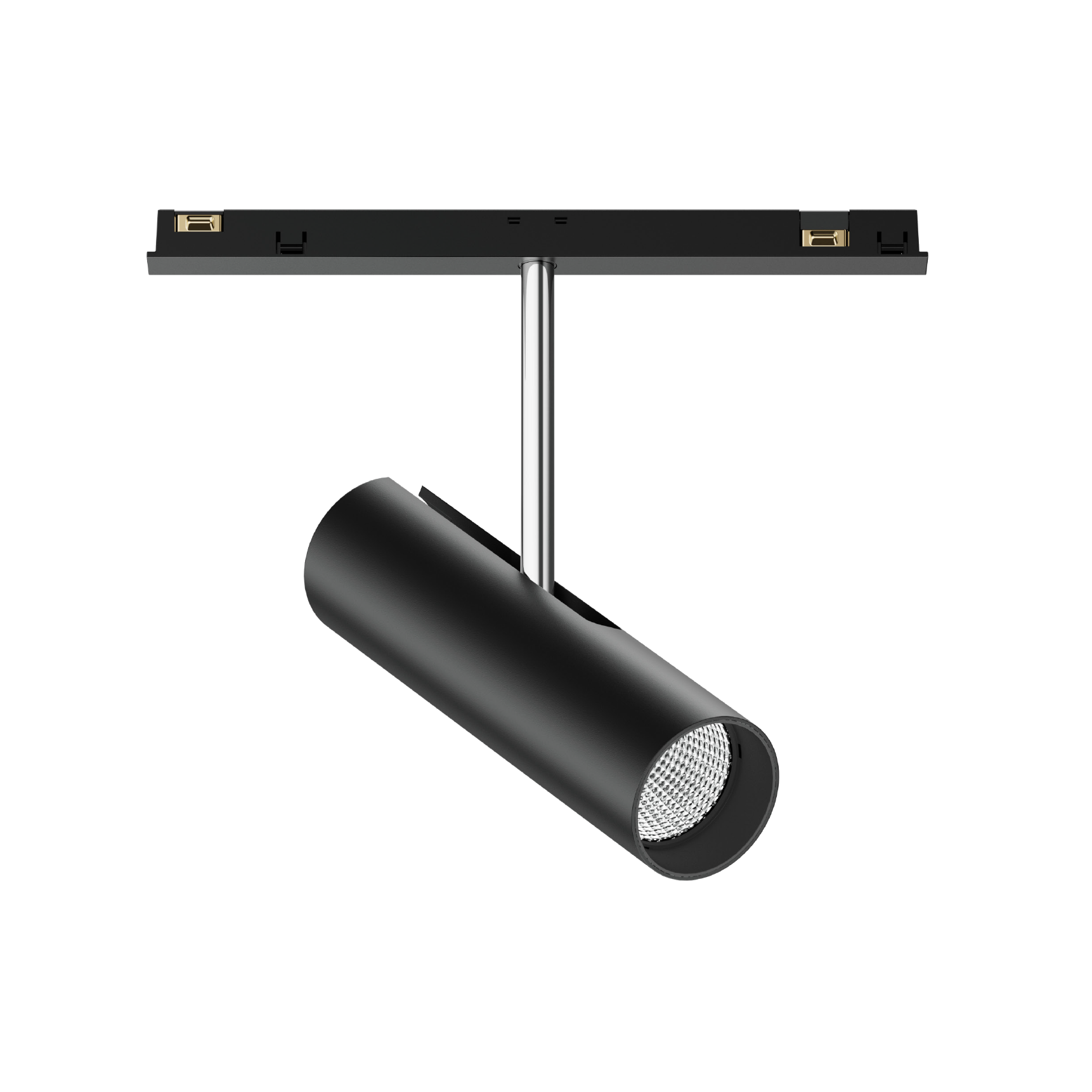

TILA 32 adjustable MOVE IT 10 | Profile & system luminaires

Technical data

General

Ceiling / Wall
Track
tilt max 135°
rotation 365°
jet black
RAL9005 ¹
IP20
798 lm

LED

3000 K
CRI ≥ 90
L80 / 50000 h
initial MacAdam ≤ 2 SDCM
R_g: 100
R_f: 91
R_{1-15}: 88
MR 0.59
MDER 0.53

Optical

flood
beam angle 34°
$P_{st}^{LM}$ ≤ 1.0 ²
SVM ≤ 0.4 ²

Electrical

DALI-2
system 9.7 W
PC3
system 82 lm/W³
1 DALI Addr.

Physical

diameter 32 mm
height 120 mm

^¹ RAL code ^² Value of containing product at full load (undimmed) ^³ incl. optical losses and the efficiency of the operating device (converter)

Specification text

Decorative spotlight inset made of aluminium; surface jet black powder coated; 365° rotatable and 135° tiltable; light inset can be installed and moved without tools by means of clip mount; power supplied via MOVE IT system track profile; hot plug protection; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; good glare control through recessed light point level; high quality reflector; precise radiation characteristic with 34° beam; no multiple shadows; optical attachment available as accessory; accessories are listed separately; degree of protection IP20; PC3; DALI-2 control; flicker-free visual comfort through analogue current control (minimum value 1%); light source replaceable by an authorized professional;
