TILA 16 adjustable MOVE IT 10

TILA 16 adjustable

MOVE IT 10

030-6500433M

Quickinfo

2700 K
CRI ≥ 90 / 3 SDCM
45 lm/W
L85 / 50000 h
DALI-2
IP20 / PC3

Colour

General

  • Ceiling / Wall
  • Track
  • tilt max 135°
  • rotation 365°
  • brushed brass
  • IP20
  • 150 lm

LED

  • 2700 K
  • CRI ≥ 90
  • L85 / 50000 h
  • initial MacAdam ≤ 3 SDCM
  • Rg: 99
  • Rf: 91
  • R{1-15}: 89
  • MR 0.54
  • MDER 0.49

Optical

  • medium
  • beam angle 23°
  • PstLM ≤ 1.0 1
  • SVM ≤ 0.4 1

Electrical

  • DALI-2
  • inset 3.3 W
  • 240 mA
  • PC3
  • system 45 lm/W2
  • 1 DALI Addr.

Physical

  • diameter 16 mm
  • height 80 mm
1 Value of containing product at full load (undimmed) 2 incl. optical losses and the efficiency of the operating device (converter)

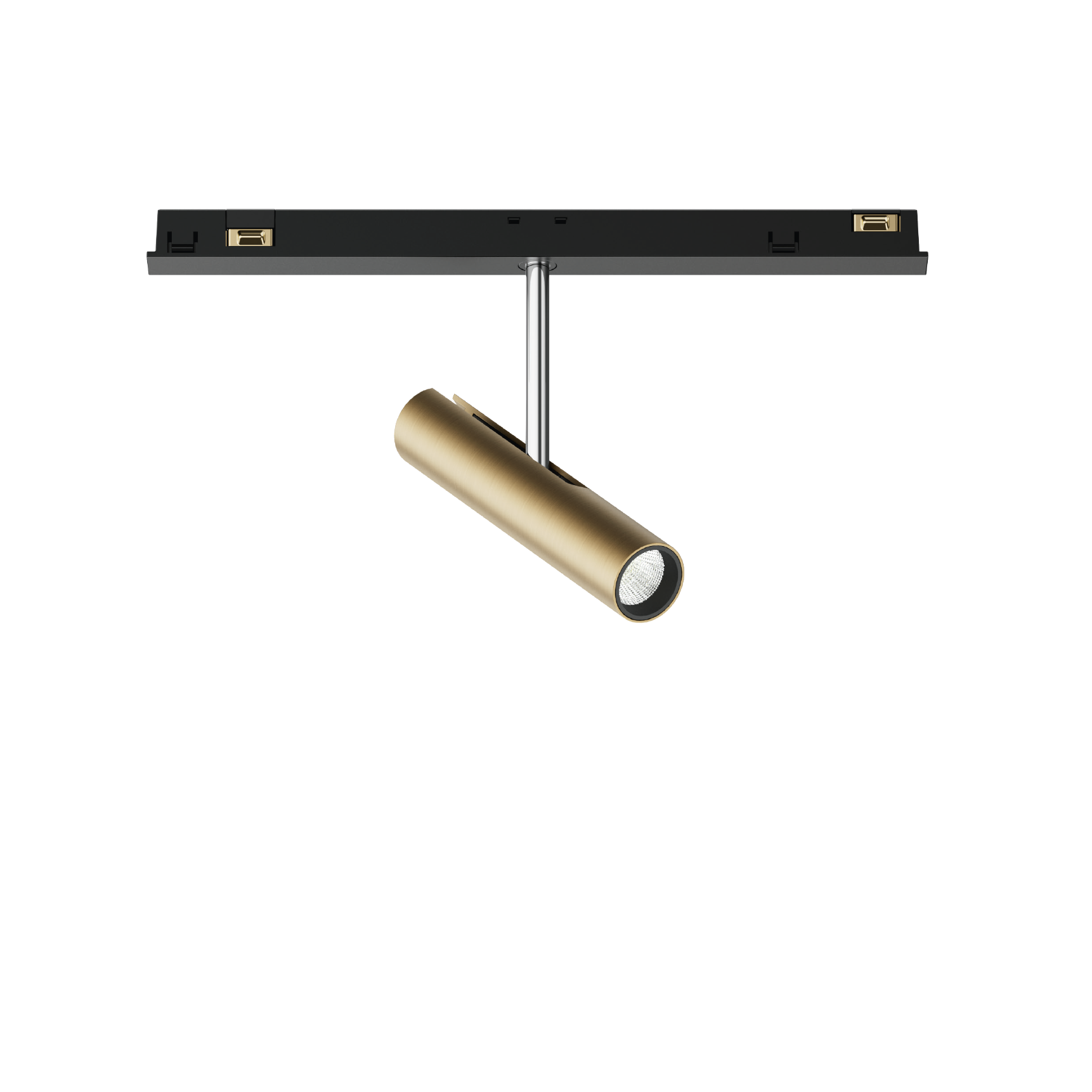

Decorative spotlight inset made of aluminium; surface lacquered in brushed brass; 365° rotatable and 135° tiltable; light inset can be installed and moved without tools by means of clip mount; power supplied via MOVE IT system track profile; hot plug protection; passive cooling of the LEDs through improved heat sink geometry; light colour 2700 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 85% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; good glare control through recessed light point level; high quality reflector; precise radiation characteristic with 23° beam; no multiple shadows; degree of protection IP20; PC3; DALI-2 control; flicker-free visual comfort through analogue current control (minimum value 1%); light source replaceable by an authorized professional;
