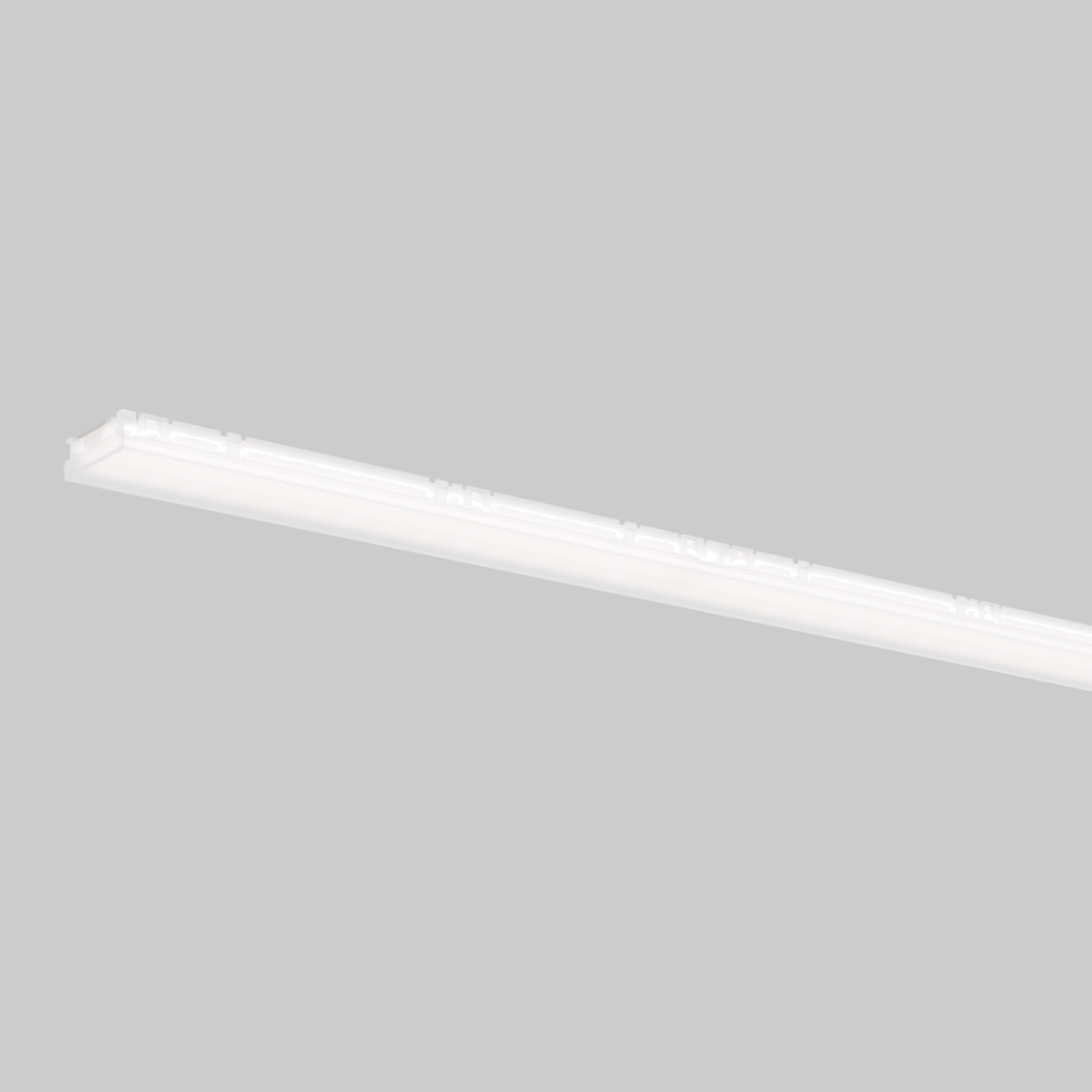

OPAL MOVE IT PRO

OPAL

MOVE IT PRO 45

Quickinfo

2700 K, 3000 K, 3500 K, 4000 K
CRI ≥ 80, CRI ≥ 90 / 3 SDCM (initial MacAdam)
up to 152 lm/W
L90 / 100000 h, L90 / 50000 h
DALI-2
Opal
IP20 / PC2 / 220-240 V
Products and codes
Discover family

Simple drawing

Light distribution

Product data & specification documents

Download all
Download all
  • DWG - 3D
  • Revit BIM data
  • EPD

Description

Linear light inset made of plastic; light inset, incl. high power adapter + converter can be installed flexibly and without tools; flush with profile system; equipped with specially computed lenses; homogeneously illuminated, satinised PMMA cover; energy-efficient LEDs with very good colour rendering

flush/jut-out version available

continuous cover

up to 150 lm/W (high efficiency)

Products and codes

Filter
97
lm/W
152
lm/W
1760
lm
6980
lm
18.2
W
46
W
0.48
0.81
0.44
0.74
OPAL MOVE IT PRO

OPAL MOVE IT PRO 45

OPAL MOVE IT PRO 45

Status
Article number(s)
Type
Dimming
3000 K, CRI ≥ 90, 104 lm/W, length 1,000 mm
DALI-2
4000 K, CRI ≥ 90, 104 lm/W, length 1,000 mm
DALI-2
3500 K, CRI ≥ 90, 97 lm/W, length 1,000 mm
DALI-2
2700 K, CRI ≥ 80, 113 lm/W, length 1,000 mm
DALI-2
3000 K, CRI ≥ 80, 120 lm/W, length 1,000 mm
DALI-2
4000 K, CRI ≥ 80, 128 lm/W, length 1,000 mm
DALI-2
3500 K, CRI ≥ 80, 120 lm/W, length 1,000 mm
DALI-2
2700 K, CRI ≥ 90, 97 lm/W, length 1,000 mm
DALI-2
3000 K, CRI ≥ 90, 108 lm/W, length 1,500 mm
DALI-2
4000 K, CRI ≥ 90, 108 lm/W, length 1,500 mm
DALI-2
3500 K, CRI ≥ 90, 100 lm/W, length 1,500 mm
DALI-2
2700 K, CRI ≥ 80, 116 lm/W, length 1,500 mm
DALI-2
3000 K, CRI ≥ 80, 124 lm/W, length 1,500 mm
DALI-2
4000 K, CRI ≥ 80, 132 lm/W, length 1,500 mm
DALI-2
3500 K, CRI ≥ 80, 124 lm/W, length 1,500 mm
DALI-2
2700 K, CRI ≥ 90, 100 lm/W, length 1,500 mm
DALI-2
3000 K, CRI ≥ 90, 115 lm/W, length 2,000 mm
DALI-2
4000 K, CRI ≥ 90, 115 lm/W, length 2,000 mm
DALI-2
3500 K, CRI ≥ 90, 107 lm/W, length 2,000 mm
DALI-2
2700 K, CRI ≥ 80, 124 lm/W, length 2,000 mm
DALI-2
3000 K, CRI ≥ 80, 132 lm/W, length 2,000 mm
DALI-2
4000 K, CRI ≥ 80, 141 lm/W, length 2,000 mm
DALI-2
3500 K, CRI ≥ 80, 132 lm/W, length 2,000 mm
DALI-2
2700 K, CRI ≥ 90, 107 lm/W, length 2,000 mm
DALI-2
3000 K, CRI ≥ 90, 116 lm/W, length 2,500 mm
DALI-2
4000 K, CRI ≥ 90, 116 lm/W, length 2,500 mm
DALI-2
3500 K, CRI ≥ 90, 108 lm/W, length 2,500 mm
DALI-2
2700 K, CRI ≥ 80, 125 lm/W, length 2,500 mm
DALI-2
3000 K, CRI ≥ 80, 133 lm/W, length 2,500 mm
DALI-2
4000 K, CRI ≥ 80, 142 lm/W, length 2,500 mm
DALI-2
3500 K, CRI ≥ 80, 133 lm/W, length 2,500 mm
DALI-2
2700 K, CRI ≥ 90, 108 lm/W, length 2,500 mm
DALI-2
3000 K, CRI ≥ 90, 124 lm/W, length 3,000 mm
DALI-2
4000 K, CRI ≥ 90, 124 lm/W, length 3,000 mm
DALI-2
3500 K, CRI ≥ 90, 115 lm/W, length 3,000 mm
DALI-2
2700 K, CRI ≥ 80, 133 lm/W, length 3,000 mm
DALI-2
3000 K, CRI ≥ 80, 143 lm/W, length 3,000 mm
DALI-2
4000 K, CRI ≥ 80, 152 lm/W, length 3,000 mm
DALI-2
3500 K, CRI ≥ 80, 143 lm/W, length 3,000 mm
DALI-2
2700 K, CRI ≥ 90, 115 lm/W, length 3,000 mm
DALI-2

Accessories

Optical

article number
dimensions
OPAL COVER
086-6010000O
length 999 mm
width 43 mm
height 5 mm
0.07 kg
OPAL COVER
086-6020000O
length 1,499 mm
width 43 mm
height 5 mm
0.12 kg
OPAL COVER
086-6030000O
length 1,999 mm
width 43 mm
height 5 mm
0.11 kg
OPAL COVER
086-6040000O
length 2,498 mm
width 43 mm
height 5 mm
0.14 kg
OPAL COVER
086-6050000O
length 2,998 mm
width 43 mm
height 5 mm
0.18 kg

Optical

article number
dimensions
CONTINUOUS OPAL COVER
086-6080600O
length 6,000 mm
width 43 mm
height 5 mm
0.85 kg
CONTINUOUS OPAL COVER
086-6082500O
length 25,000 mm
width 43 mm
height 5 mm
1.98 kg

Mounting

article number
type
colour
END CAPS
086-6091117
1 pair for opal and microprismatic
traffic white
RAL 9016
END CAPS
086-6091118
1 pair for opal and microprismatic
jet black
RAL 9005
