NOBA 50 suspended MOVE IT 10 | Profile & system luminaires

Technical data

General

Ceiling
Track Suspended
jet black
RAL 9005
IP20
819 lm
optical inset 128 lm/W ¹

LED

2700 K
CRI ≥ 90
L80 / 50000 h
≤ 2 SDCM (initial MacAdam)
R_g: 97
R_f: 91
R_{1-15}: 87
MR 0.52
MDER 0.47

Optical

wide flood
beam angle 67°
$P_{st}^{LM}$ ≤ 1.0 ²
SVM ≤ 0.4 ²

Electrical

DALI-2
48 V
fixture 7.1 W
optical inset 6.4 W
PC3
1 DALI Addr.

Physical

diameter 50 mm
height 50 mm
0.22 kg
1500 mm

^¹ incl. consideration of optical losses ^² Value of containing product at full load (undimmed)

Specification text

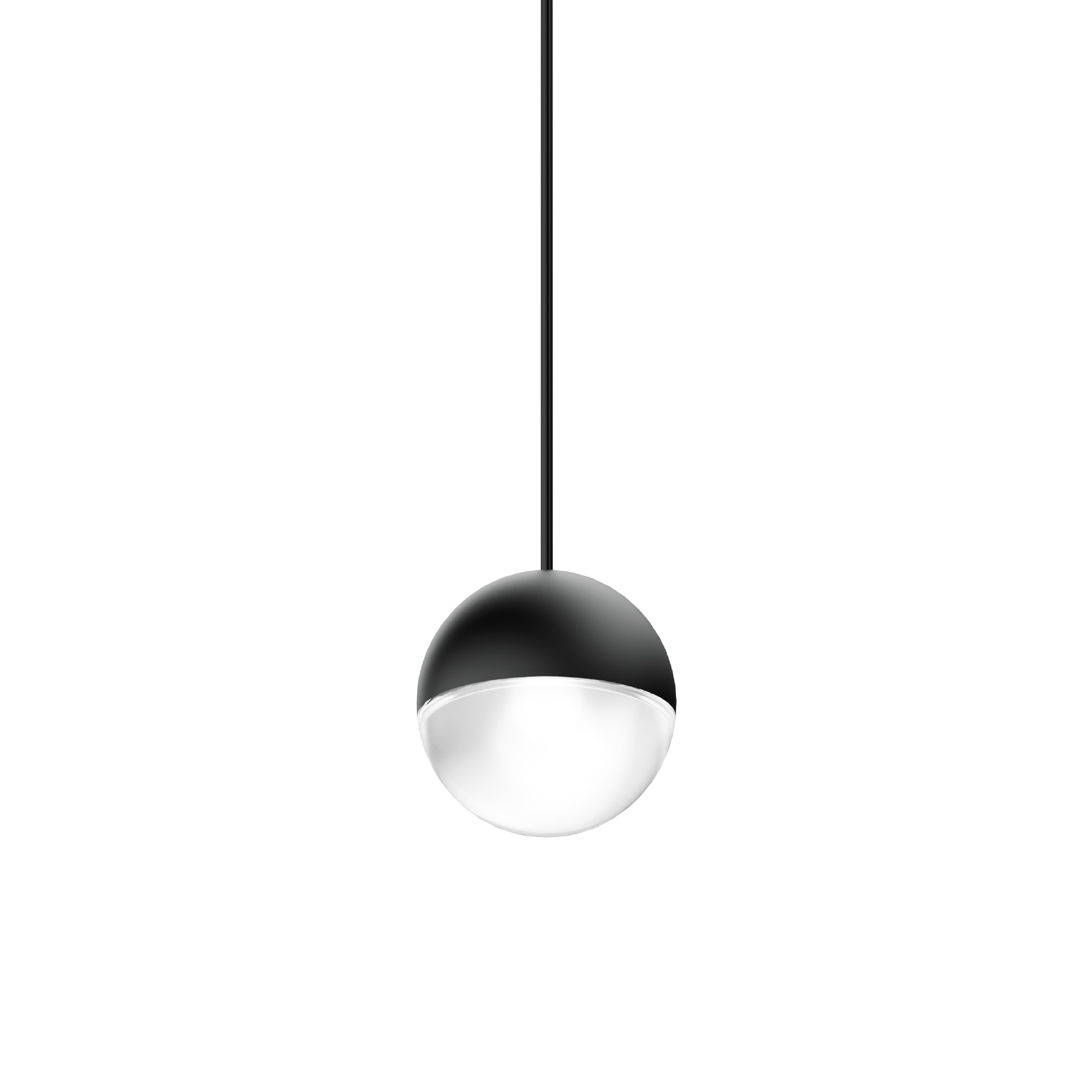

Decorative pendant light inset made of aluminium; surface jet black powder coated; light inset can be installed and moved without tools by means of clip mount; power supplied via MOVE IT system track profile; hot plug protection; pendant fitting with 1500mm suspension, incl. feed (black), can be individually shortened; passive cooling of the LEDs through improved heat sink geometry; light colour 2700 K; binning initial MacAdam ≤ 2 SDCM; CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; high quality plano-convex glass lens; beam angle 67°; no multiple shadows; degree of protection IP20; PC3; 48 V; DALI-2 control; flicker-free visual comfort through analogue current control (minimum value 1%); light source replaceable by an authorized professional;
