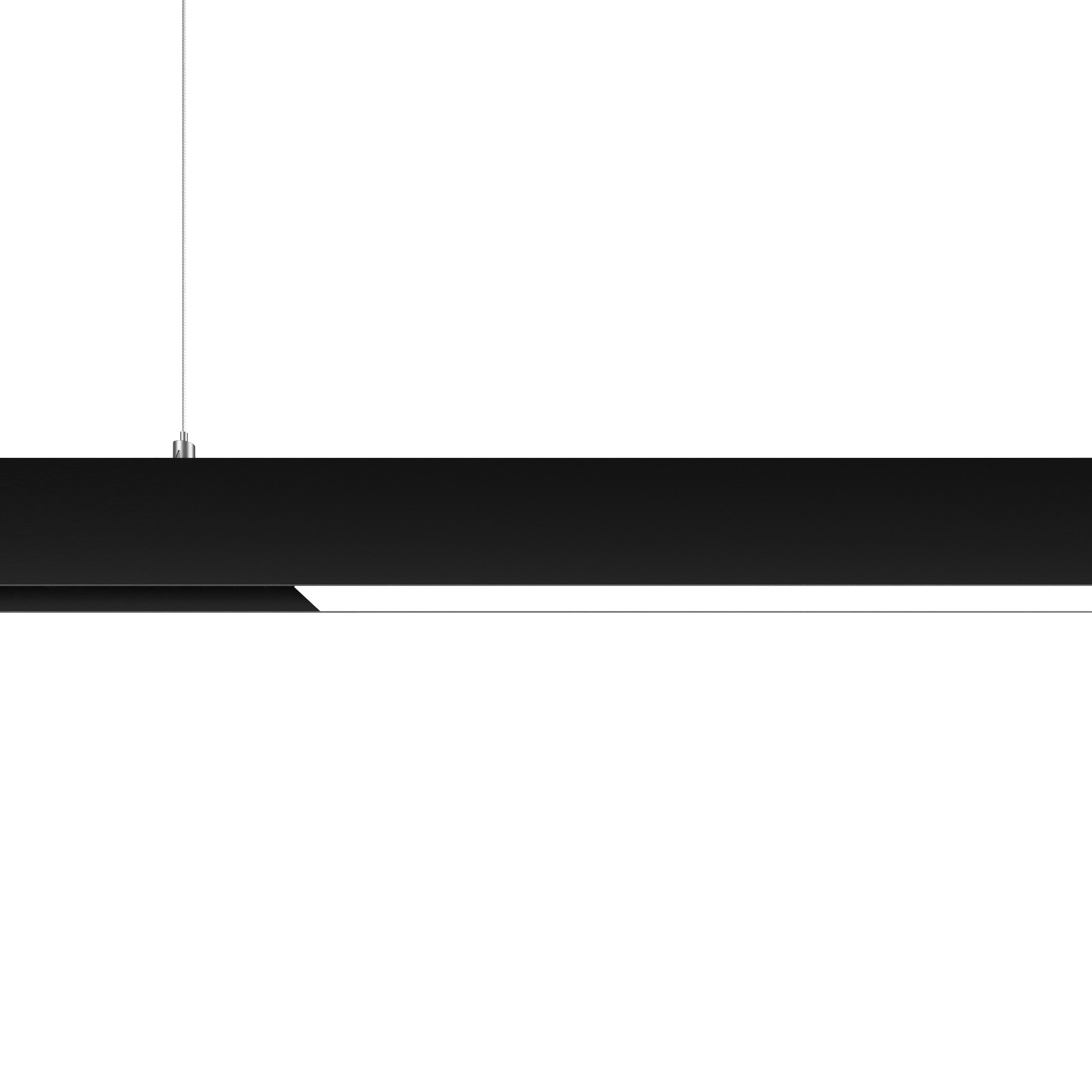

MOVE IT 25 track
Curve connector
Node connector (up to 6 channels)

MOVE IT 25 track

050-7302018

Quickinfo

non DIM
IP20 / PC3 / 48 V
620 mm,

Colour

Datasheet

General

  • Ceiling
  • Suspended
  • jet black
  • RAL 9005
  • IP20

Electrical

  • non DIM
  • 48 V
  • PC3
  • max 6.67 A

Physical

  • length 620 mm
  • width 31 mm
  • height 60 mm
  • 0.65 kg

Extruded aluminium profile with 28mm width groove; for wall-/ceiling surface mounting or suspended mounting (1500 mm cable suspension as an accessory); height adjustment without tools; with integrated power rail profile for supply voltage feed; surface anodised jet black; light insets can be installed and moved without tools by means of magnetic holders+locking; degree of protection IP20; PC3; 48 V; accessories are listed separately;

Product data & specification documents

Download all

Datasheets

Download all

Planning files & lighting data

Download all

Certificates

Download all
Download all
mainDrawing

System products

JUST 32

FOCUS MOVE IT 25

JUST 45

MOVE IT 25 / 25 S / 45

JUST 55

MOVE IT 25 / 25 S / 45

Accessories

Converter

article number
power
voltage / frequency
protection class
constant voltage
control
POWER SUPPLY external
002-62132
320 W
min 50 Hz
max 60 Hz
PC2
48 V
POWER SUPPLY external
002-62133
60 W
min 47 Hz
max 63 Hz
PC2
48 V
POWER SUPPLY external
002-62134
100 W
min 50 Hz
max 60 Hz
PC2
48 V
POWER SUPPLY external
002-62135
150 W
min 50 Hz
max 60 Hz
PC2
48 V
POWER SUPPLY external
002-62138
200 W
min 50 Hz
max 60 Hz
PC2
48 V
DIN RAIL POWER SUPPLY PRO
005-6220110
240 W
min 50 Hz
max 60 Hz
PC2
DIN RAIL POWER SUPPLY PRO
005-6220210
480 W
min 50 Hz
max 60 Hz
PC2
DIN RAIL POWER SUPPLY BASIC
005-6520210
160 W
min 50 Hz
max 60 Hz
PC2
48 V
POWER SUPPLY surface
050-2055117
60 W
min 47 Hz
max 63 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055118
60 W
min 47 Hz
max 63 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055137
60 W
min 47 Hz
max 63 Hz
PC2
48 V
DALI-2
POWER SUPPLY surface
050-2055138
60 W
min 47 Hz
max 63 Hz
PC2
48 V
DALI-2
POWER SUPPLY surface
050-2055217
150 W
min 50 Hz
max 60 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055218
150 W
min 50 Hz
max 60 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055237
150 W
min 50 Hz
max 60 Hz
PC2
48 V
DALI-2
POWER SUPPLY surface
050-2055238
150 W
min 50 Hz
max 60 Hz
PC2
48 V
DALI-2
POWER SUPPLY surface
050-2055317
320 W
min 47 Hz
max 63 Hz
PC1
48 V
non DIM
POWER SUPPLY surface
050-2055318
320 W
min 47 Hz
max 63 Hz
PC1
48 V
non DIM
POWER SUPPLY surface
050-2055337
320 W
min 47 Hz
max 63 Hz
PC1
48 V
DALI-2
POWER SUPPLY surface
050-2055338
320 W
min 47 Hz
max 63 Hz
PC1
48 V
DALI-2
POWER SUPPLY surface
050-2055417
100 W
min 50 Hz
max 60 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055418
100 W
min 50 Hz
max 60 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055437
100 W
min 50 Hz
max 60 Hz
PC2
48 V
DALI-2
POWER SUPPLY surface
050-2055438
100 W
min 50 Hz
max 60 Hz
PC2
48 V
DALI-2
POWER SUPPLY surface
050-2055517
250 W
min 50 Hz
max 60 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055518
250 W
min 50 Hz
max 60 Hz
PC2
48 V
non DIM
POWER SUPPLY surface
050-2055537
250 W
min 50 Hz
max 60 Hz
PC2
48 V
DALI-2
POWER SUPPLY surface
050-2055538
250 W
min 50 Hz
max 60 Hz
PC2
48 V
DALI-2
POWER SUPPLY intrack
050-2071038
100 W
min 50 Hz
max 60 Hz
PC2
POWER SUPPLY intrack
050-2071138
150 W
min 50 Hz
max 60 Hz
PC2

Mounting

article number
type
colour
dimensions
CABLE SUSPENSION
005-2152110
chrome
width 46 mm
0.05 kg
CABLE SUSPENSION
005-2152118
black
width 46 mm
0.05 kg
LINEAR CONNECTOR mechanical
050-2011310
suspended
chrome
length 120 mm
width 28 mm
0.09 kg
LINEAR CONNECTOR mechanical
050-2011318
suspended
black
length 120 mm
width 28 mm
0.06 kg
LINEAR CONNECTOR mechanical
050-2011410
surface
length 120 mm
width 28 mm
0.06 kg
CEILING FASTENER
050-2041117
traffic white
RAL 9016
length 67 mm
width 31 mm
height 8 mm
0.01 kg
CEILING FASTENER
050-2041118
jet black
RAL 9005
length 67 mm
width 31 mm
height 8 mm
0.03 kg
WALL MOUNTING ACCESSORY mechanical
050-2044118
length 28 mm
width 10 mm
height 5 mm
0.01 kg
END CAPS
050-7300008
1 pair
jet black
RAL 9005
length 60 mm
width 31 mm
height 3 mm
0.3 kg
END CAPS
050-730000G
1 pair
gold dust
RAL 260-M
length 60 mm
width 31 mm
height 3 mm
0.04 kg
END CAPS
050-730000P
1 pair
traffic white
RAL 9016
length 60 mm
width 31 mm
height 3 mm
0.04 kg
END CAPS
050-730000X
1 pair
special colours
length 60 mm
width 31 mm
height 3 mm
0.04 kg

Electrical components

article number
type
dimensions
colour
CANOPY square
005-2311717
length 90 mm
width 90 mm
height 22 mm
0.1 kg
traffic white
RAL 9016
CANOPY square
005-2311718
length 90 mm
width 90 mm
height 22 mm
0.1 kg
jet black
RAL 9005
DIN RAIL DALI-2 SELV DEVICE
005-6620030
length 107 mm
width 37 mm
height 58 mm
0.08 kg
DALI-2 SELV DEVICE
050-2061130
control unit
length 212 mm
width 37 mm
height 26 mm
0.1 kg
ESSENTIAL SENSOR
050-2063178
brightness & presence
length 125 mm
width 28 mm
height 45 mm
0.09 kg
WIRELESS TO DALI-2 CONTROL DEVICE
050-2065230
length 111 mm
width 25 mm
height 45 mm
0.07 kg
WIRELESS TO DALI-2 REPEATER
050-2066230
length 111 mm
width 25 mm
height 45 mm
0.11 kg

Feeder

article number
dimensions
feeder cable length
POWER FEEDER UNIT
050-2020110
length 78 mm
width 28 mm
height 6 mm
0.2 kg
500 mm
POWER FEEDER UNIT
050-2020130
length 78 mm
width 28 mm
height 6 mm
0.07 kg
500 mm
MIDDLE FEED
050-2038130
length 120 mm
width 28 mm
height 6 mm
0.24 kg
2,000 mm

Electrical mounting

article number
colour
type
dimensions
NODE CONNECTOR incl. cable suspension
050-2022237
traffic white
RAL 9016
incl. feeder | chrome cable
diameter 64 mm
height 60 mm
0.68 kg
NODE CONNECTOR incl. cable suspension
050-2022238
jet black
RAL 9005
incl. feeder | chrome cable
diameter 64 mm
height 60 mm
0.45 kg
NODE CONNECTOR incl. cable suspension
050-202223X
special colours
incl. feeder | chrome cable
diameter 64 mm
height 60 mm
0.65 kg
NODE CONNECTOR incl. cable suspension
050-2022247
traffic white
RAL 9016
incl. feeder | black cable
diameter 64 mm
height 60 mm
0.61 kg
NODE CONNECTOR incl. cable suspension
050-2022248
jet black
RAL 9005
incl. feeder | black cable
diameter 64 mm
height 60 mm
0.45 kg
NODE CONNECTOR incl. cable suspension
050-202224X
special colours
incl. feeder | black cable
diameter 64 mm
height 60 mm
0.65 kg
LINEAR CONNECTOR mechanical & electrical
050-2031230
length 120 mm
width 27 mm
0.2 kg
NODE CONNECTOR incl. cable suspension
050-2033137
traffic white
RAL 9016
excl. feeder | chrome cable
diameter 64 mm
height 60 mm
0.43 kg
NODE CONNECTOR incl. cable suspension
050-2033138
jet black
RAL 9005
excl. feeder | chrome cable
diameter 64 mm
height 60 mm
0.44 kg
NODE CONNECTOR incl. cable suspension
050-203313X
special colours
excl. feeder | chrome cable
diameter 64 mm
height 60 mm
0.45 kg
NODE CONNECTOR incl. cable suspension
050-2033147
traffic white
RAL 9016
excl. feeder | black cable
diameter 64 mm
height 60 mm
0.45 kg
NODE CONNECTOR incl. cable suspension
050-2033148
jet black
RAL 9005
excl. feeder | black cable
diameter 64 mm
height 60 mm
0.44 kg
NODE CONNECTOR incl. cable suspension
050-203314X
special colours
excl. feeder | black cable
diameter 64 mm
height 60 mm
0.45 kg
NODE END CAP
050-7300108
jet black
RAL 9005
incl. electrical connector
0.09 kg
NODE END CAP
050-730010P
traffic white
RAL 9016
incl. electrical connector
0.09 kg
NODE END CAP
050-730010X
special colours
incl. electrical connector
0.1 kg
CURVE CONNECTOR
050-7303038
jet black
RAL 9005
mechanical & electrical R 300 mm
length 416 mm
width 31 mm
height 60 mm
0.7 kg
CURVE CONNECTOR
050-730303G
gold dust
RAL 260-M
mechanical & electrical R 300 mm
length 416 mm
width 31 mm
height 60 mm
0.7 kg
CURVE CONNECTOR
050-730303P
traffic white
RAL 9016
mechanical & electrical R 300 mm
length 416 mm
width 31 mm
height 60 mm
0.7 kg
CURVE CONNECTOR
050-730303X
special colours
mechanical & electrical R 300 mm
length 416 mm
width 31 mm
height 60 mm
0.7 kg
CURVE CONNECTOR
050-7303118
jet black
RAL 9005
mechanical R 300 mm
length 416 mm
width 31 mm
height 60 mm
0.45 kg
CURVE CONNECTOR
050-730311G
gold dust
RAL 260-M
mechanical R 300 mm
length 416 mm
width 31 mm
height 60 mm
0.45 kg
CURVE CONNECTOR
050-730311P
traffic white
RAL 9016
mechanical R 300 mm
length 416 mm
width 31 mm
height 60 mm
0.45 kg
CURVE CONNECTOR
050-730311X
special colours
mechanical R 300 mm
length 416 mm
width 31 mm
height 60 mm
0.45 kg

Optical

article number
colour
dimensions
BLIND COVER
050-7004008
jet black
RAL 9005
length 1,217 mm
width 28 mm
0.11 kg
BLIND COVER
050-7008008
jet black
RAL 9005
length 2,417 mm
width 28 mm
0.18 kg
BLIND COVER
050-7009008
jet black
RAL 9005
length 3,622 mm
width 28 mm
0.28 kg
