MOVE IT 10 track square direct suspended
MOVE IT 10 track square curve direct suspended
MOVE IT 10 track round suspended / pole
MOVE IT 10 track round curve suspended
MOVE IT 10 track square direct suspended
MOVE IT 10 track square curve direct suspended
MOVE IT 10 track round suspended / pole
MOVE IT 10 track round curve suspended
Showroom Gartner Interiors
Visualisation Retail
Visualisation Retail
Visualisation Retail

MOVE IT 10 square / round

suspended system

Quickinfo

DALI-2
IP20 / PC3 / 48 V

Colour

    • Inner colour

    • Products and codes
    Discover family

    Simple drawing

    Product data & specification documents

    Download all
    Download all
    • 3DS
    • DWG - 3D
    • Revit BIM data

    Description

    Thin extruded aluminium profile with 10 mm width groove; choice of angular (24 mm height) or tubular (26 mm height) design; for suspended mounting (cable suspension, height adjustment without tools, incl. black feed); with integrated power track profile on both sides for take off of supply voltage and DALI-2 signal; power supply and DALI-2 signal for both power tracks with only one feed by means of PASS THROUGH connector; designed for continuous lighting systems; flexible system design through L, T or X connectors or by means of LEVEL connectors; surface anodised or powder coated; insets can be installed flexibly and without tools by means of clip mount

    custom cut on building site

    System components

    Click to see components

    MOVE IT 10 square / round suspended system

    DALI-2
    IP20 / PC3 / 48 V
    Go to product
    LINEAR CONNECTOR

    MOVE IT 10 CONNECTOR ELECTRICAL

    electrical, mechanical & electrical
    CANOPY

    MOVE IT SYSTEM CANOPY

    CABLE SUSPENSION

    MOVE IT 10 SUSPENSION

    Products and codes

    Filter

    Colour

    • Inner colour

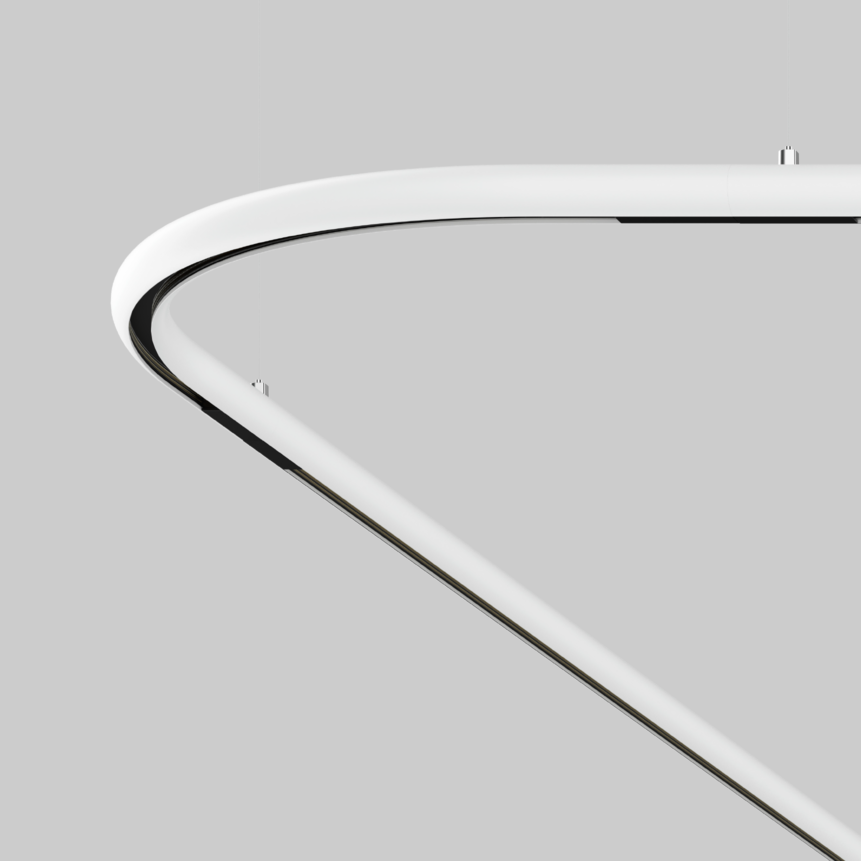

    • MOVE IT 10 track round curve suspended

    MOVE IT 10 track round curve suspended

    MOVE IT 10 track round curve suspended

    Status
    Article number(s)
    Type
    Dimming
    white, centerline radius 300 mm
    DALI-2
    white, centerline radius 500 mm
    DALI-2

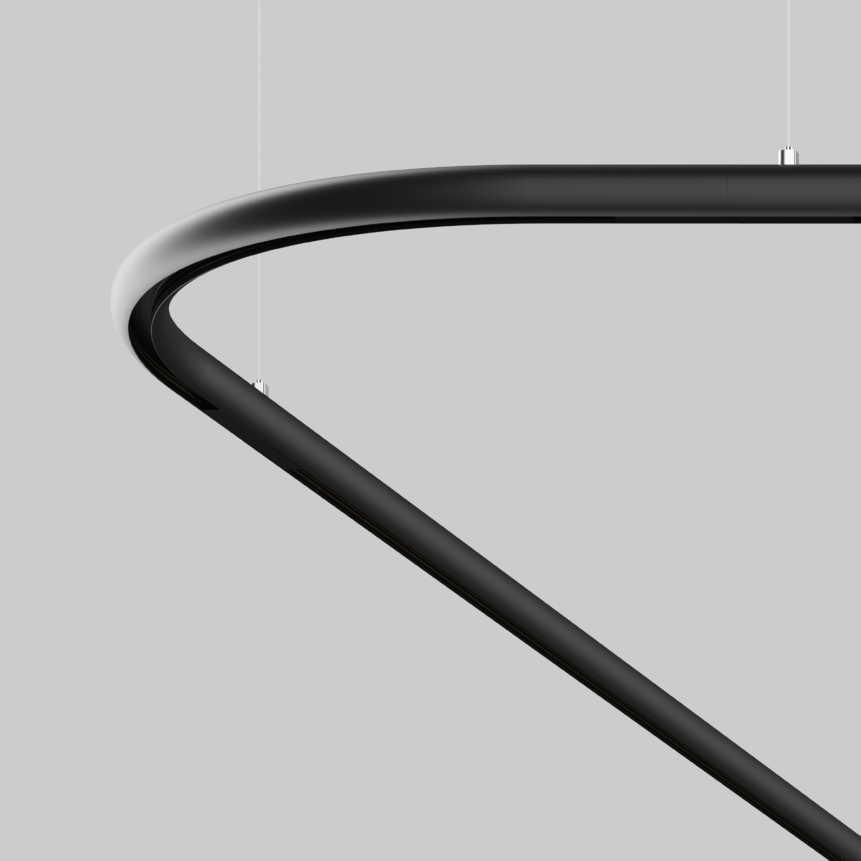

    MOVE IT 10 track round curve suspended

    MOVE IT 10 track round curve suspended

    MOVE IT 10 track round curve suspended

    Status
    Article number(s)
    Type
    Dimming
    jet black, centerline radius 300 mm
    DALI-2
    jet black, centerline radius 500 mm
    DALI-2

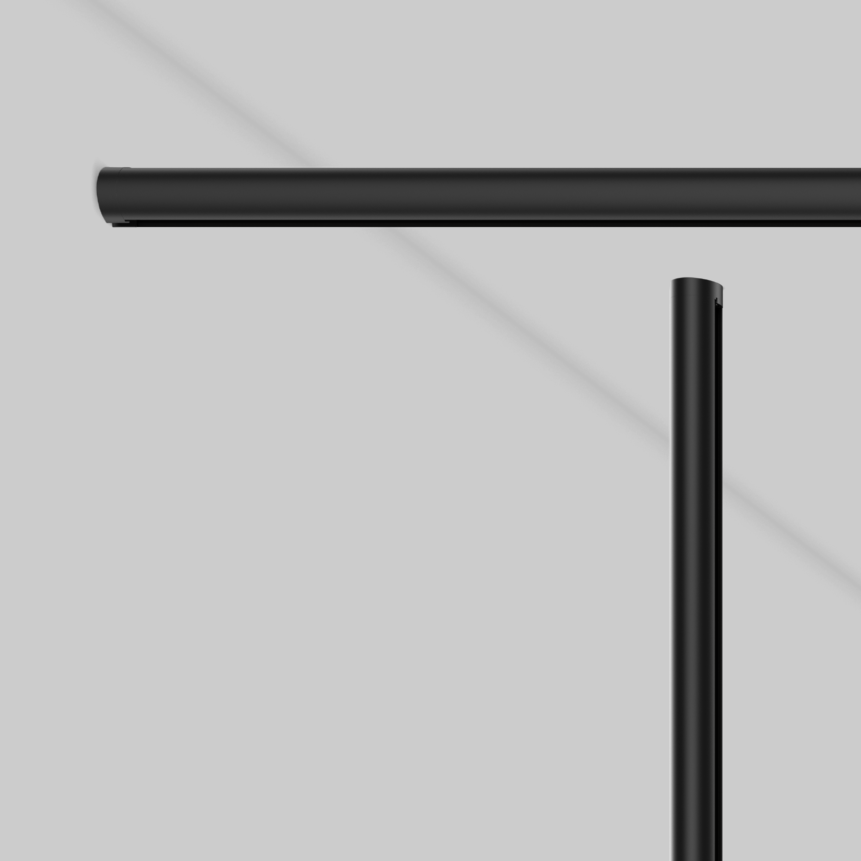

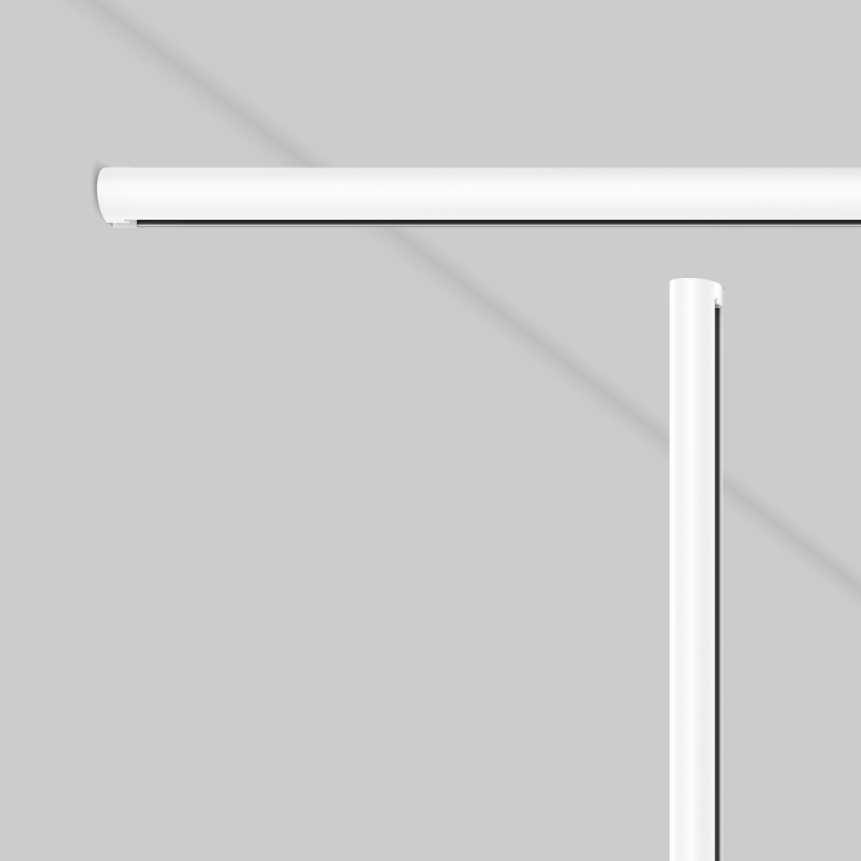

    MOVE IT 10 track round suspended / pole

    MOVE IT 10 track round suspended / pole

    MOVE IT 10 track round suspended / pole

    Status
    Article number(s)
    Type
    Dimming
    white, length 1,100 mm
    DALI-2
    white, length 2,100 mm
    DALI-2
    white, length 3,100 mm
    DALI-2
    MOVE IT 10 track round suspended / pole

    MOVE IT 10 track round suspended / pole

    MOVE IT 10 track round suspended / pole

    Status
    Article number(s)
    Type
    Dimming
    jet black, length 1,100 mm
    DALI-2
    jet black, length 2,100 mm
    DALI-2
    jet black, length 3,100 mm
    DALI-2

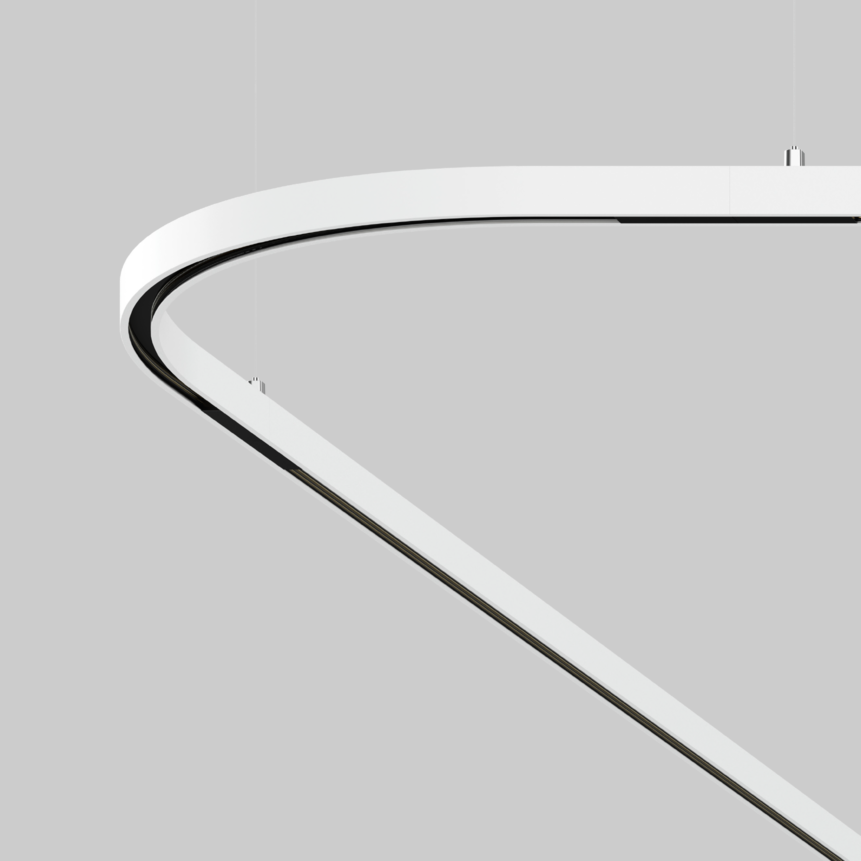

    MOVE IT 10 track square curve direct suspended

    MOVE IT 10 track square curve suspended

    MOVE IT 10 track square curve suspended

    Status
    Article number(s)
    Type
    Dimming
    white, centerline radius 300 mm
    DALI-2
    white, centerline radius 500 mm
    DALI-2

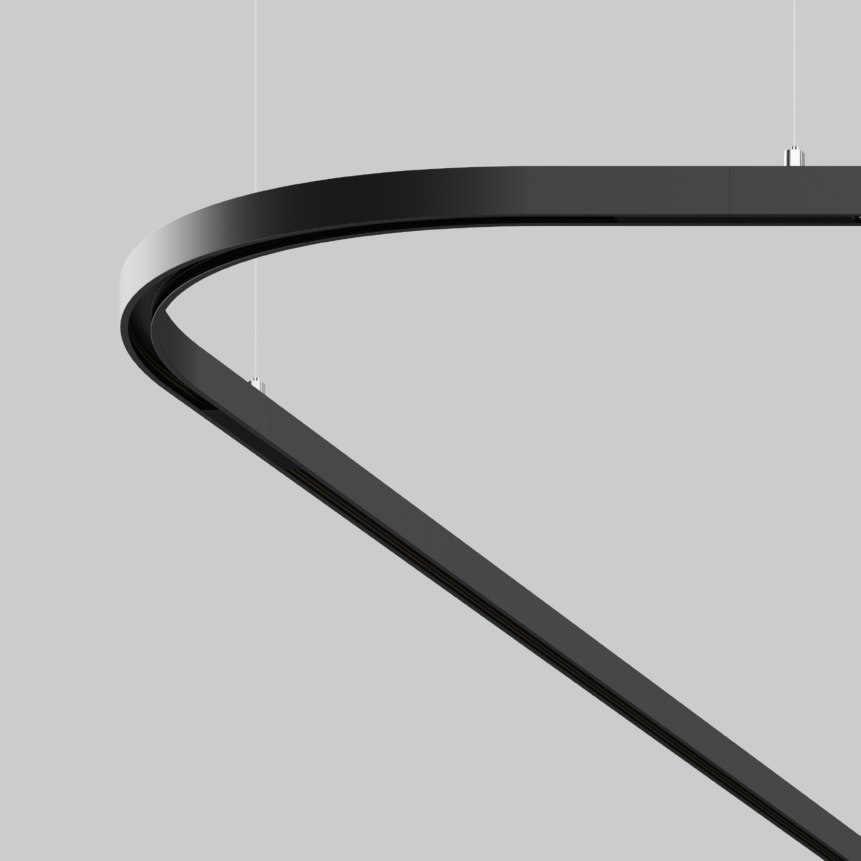

    MOVE IT 10 track square curve direct suspended

    MOVE IT 10 track square curve suspended

    MOVE IT 10 track square curve suspended

    Status
    Article number(s)
    Type
    Dimming
    jet black, centerline radius 300 mm
    DALI-2
    jet black, centerline radius 500 mm
    DALI-2

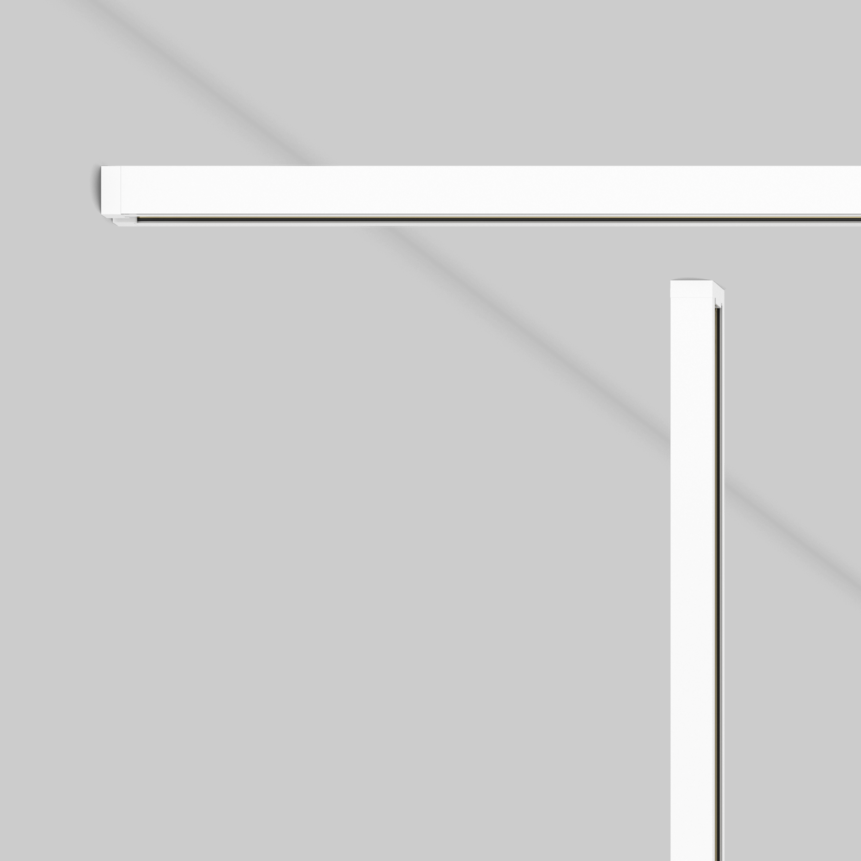

    MOVE IT 10 track square direct suspended

    MOVE IT 10 track square suspended / pole

    MOVE IT 10 track square suspended / pole

    Status
    Article number(s)
    Type
    Dimming
    white, length 1,100 mm
    DALI-2
    white, length 2,100 mm
    DALI-2
    white, length 3,100 mm
    DALI-2
    MOVE IT 10 track square direct suspended

    MOVE IT 10 track square suspended / pole

    MOVE IT 10 track square suspended / pole

    Status
    Article number(s)
    Type
    Dimming
    jet black, length 1,100 mm
    DALI-2
    jet black, length 2,100 mm
    DALI-2
    jet black, length 3,100 mm
    DALI-2

    Accessories

    Converter

    article number
    power
    voltage / frequency
    protection class
    constant voltage
    POWER SUPPLY EXTERNAL
    002-62133
    60 W
    min 47 Hz
    max 63 Hz
    PC21
    48 V
    POWER SUPPLY EXTERNAL
    002-62135
    150 W
    min 50 Hz
    max 60 Hz
    PC21
    48 V
    POWER SUPPLY EXTERNAL
    002-62139
    250 W
    min 50 Hz
    max 60 Hz
    PC21
    48 V
    DIN RAIL POWER SUPPLY PRO
    005-6220110
    240 W
    min 50 Hz
    max 60 Hz
    PC21
    DIN RAIL POWER SUPPLY PRO
    005-6220210
    480 W
    min 50 Hz
    max 60 Hz
    PC21
    DIN RAIL POWER SUPPLY
    005-6520210
    160 W
    min 50 Hz
    max 60 Hz
    PC21
    48 V

    Mounting

    article number
    colour
    dimensions
    CANOPY square
    005-2311717
    traffic white
    RAL 9016
    length 90 mm
    width 90 mm
    height 22 mm
    0.1 kg
    CANOPY square
    005-2311718
    jet black
    RAL 9005
    length 90 mm
    width 90 mm
    height 22 mm
    0.1 kg
    CANOPY round
    005-2600737
    traffic white
    RAL 9016
    diameter 90 mm
    height 22 mm
    0.08 kg
    CANOPY round
    005-2600738
    jet black
    RAL 9005
    diameter 90 mm
    height 22 mm
    0.08 kg
    END CAPS
    030-1320017
    traffic white
    RAL 9016
    length 19 mm
    width 24 mm
    height 16 mm
    0.01 kg
    END CAPS
    030-1320018
    jet black
    RAL 9005
    length 19 mm
    width 24 mm
    height 16 mm
    0.09 kg
    L CONNECTOR
    030-1335017
    traffic white
    RAL 9016
    length 21 mm
    width 21 mm
    0.02 kg
    L CONNECTOR
    030-1335018
    jet black
    RAL 9005
    length 21 mm
    width 21 mm
    0.1 kg
    T CONNECTOR
    030-1336017
    traffic white
    RAL 9016
    length 21 mm
    width 23 mm
    T CONNECTOR
    030-1336018
    jet black
    RAL 9005
    length 21 mm
    width 23 mm
    0.1 kg
    X CONNECTOR
    030-1337017
    traffic white
    RAL 9016
    length 23 mm
    width 23 mm
    0.1 kg
    X CONNECTOR
    030-1337018
    jet black
    RAL 9005
    length 23 mm
    width 23 mm
    0.1 kg
    POLE MOUNTING SET
    030-1341017
    traffic white
    RAL 9016
    1.15 kg
    POLE MOUNTING SET
    030-1341018
    jet black
    RAL 9005
    0.1 kg
    POLE MOUNTING SET
    030-1342017
    traffic white
    RAL 9016
    0.33 kg
    POLE MOUNTING SET
    030-1342018
    jet black
    RAL 9005
    0.3 kg
    MOUNTING SET ceiling
    030-1343017
    traffic white
    RAL 9016
    MOUNTING SET ceiling
    030-1343018
    jet black
    RAL 9005
    0.1 kg
    END CAPS
    030-1420017
    traffic white
    RAL 9016
    length 29 mm
    width 26 mm
    height 10 mm
    0.01 kg
    END CAPS
    030-1420018
    jet black
    RAL 9005
    length 29 mm
    width 26 mm
    height 10 mm
    0.01 kg
    L CONNECTOR
    030-1435017
    traffic white
    RAL 9016
    length 31 mm
    width 31 mm
    0.2 kg
    L CONNECTOR
    030-1435018
    jet black
    RAL 9005
    length 31 mm
    width 31 mm
    0.1 kg
    T CONNECTOR
    030-1436017
    traffic white
    RAL 9016
    length 31 mm
    width 33 mm
    0.2 kg
    T CONNECTOR
    030-1436018
    jet black
    RAL 9005
    length 31 mm
    width 33 mm
    0.05 kg
    X CONNECTOR
    030-1437017
    traffic white
    RAL 9016
    length 33 mm
    width 33 mm
    0.2 kg
    X CONNECTOR
    030-1437018
    jet black
    RAL 9005
    length 33 mm
    width 33 mm
    POLE MOUNTING SET
    030-1441017
    traffic white
    RAL 9016
    0.2 kg
    POLE MOUNTING SET
    030-1441018
    jet black
    RAL 9005
    0.04 kg
    POLE MOUNTING SET
    030-1442017
    traffic white
    RAL 9016
    0.44 kg
    POLE MOUNTING SET
    030-1442018
    jet black
    RAL 9005
    0.4 kg
    MOUNTING SET ceiling
    030-1443017
    traffic white
    RAL 9016
    MOUNTING SET ceiling
    030-1443018
    jet black
    RAL 9005
    0.1 kg
    LINEAR CONNECTOR
    030-2300018
    length 50 mm
    width 16 mm
    height 13 mm
    0.02 kg
    LEVEL CONNECTOR
    030-2351118
    jet black
    RAL 9005
    length 141 mm
    width 11 mm
    height 27 mm
    0.02 kg
    3-in-1 mounting tool
    030-2611000
    length 96 mm
    width 11 mm
    0.04 kg

    Optical

    article number
    colour
    type
    dimensions
    BLIND COVER
    030-1003017
    traffic white
    RAL 9016
    length 1,100 mm
    width 12 mm
    height 10 mm
    0.06 kg
    BLIND COVER
    030-1003018
    jet black
    RAL 9005
    length 1,100 mm
    width 12 mm
    height 10 mm
    0.05 kg
    BLIND COVER
    030-1005017
    traffic white
    RAL 9016
    length 2,100 mm
    width 12 mm
    height 10 mm
    0.12 kg
    BLIND COVER
    030-1005018
    jet black
    RAL 9005
    length 2,100 mm
    width 12 mm
    height 10 mm
    0.15 kg
    BLIND COVER
    030-1007017
    traffic white
    RAL 9016
    length 3,100 mm
    width 12 mm
    height 10 mm
    0.08 kg
    BLIND COVER
    030-1007018
    jet black
    RAL 9005
    length 3,100 mm
    width 12 mm
    height 10 mm
    0.38 kg
    BLIND COVER
    E83600....7
    traffic white
    RAL 9016
    custom cut
    width 12 mm
    height 10 mm
    BLIND COVER
    E83600....8
    jet black
    RAL 9005
    custom cut
    width 12 mm
    height 10 mm

    Electrical components

    article number
    colour
    type
    dimensions
    LINEAR CONNECTOR
    030-2101138
    jet black
    RAL 9005
    electrical
    length 120 mm
    width 10 mm
    0.2 kg
    L CONNECTOR
    030-2111138
    jet black
    RAL 9005
    electrical
    length 85 mm
    width 10 mm
    height 85 mm
    0.02 kg
    T CONNECTOR
    030-2121138
    jet black
    RAL 9005
    electrical
    length 160 mm
    width 10 mm
    height 75 mm
    0.02 kg
    X CONNECTOR
    030-2131138
    jet black
    RAL 9005
    electrical
    length 160 mm
    width 10 mm
    height 160 mm
    0.05 kg
    FLEX CONNECTOR
    030-2141138
    jet black
    RAL 9005
    electrical
    length 304 mm
    width 10 mm
    0.03 kg
    LEVEL CONNECTOR
    030-2151138
    jet black
    RAL 9005
    electrical
    length 141 mm
    width 11 mm
    height 27 mm
    0.3 kg
    CONNECTOR CEILING TO WALL
    030-2161138
    jet black
    RAL 9005
    electrical
    length 84 mm
    width 10 mm
    0.02 kg
    PASS THROUGH CONNECTOR
    030-2171138
    jet black
    RAL 9005
    electrical | 1 pair
    length 85 mm
    width 21 mm
    0.05 kg
    LINEAR CONNECTOR
    030-2301038
    mechanical & electrical
    length 140 mm
    width 16 mm
    height 13 mm
    0.04 kg
    WIRELESS TO DALI-2 CONTROL DEVICE
    030-2531030
    length 150 mm
    width 11 mm
    height 23 mm
    0.02 kg
    DALI-2 SELV DEVICE
    050-2061130
    control unit
    length 212 mm
    width 37 mm
    height 26 mm
    0.1 kg

    Suspensions

    article number
    colour
    dimensions
    cable length
    CABLE SUSPENSION LINEAR CONNECTOR
    030-2210014
    chrome
    0.05 kg
    cable length 1500 mm
    CABLE SUSPENSION LINEAR CONNECTOR
    030-2210017
    white
    RAL 9016
    0.06 kg
    cable length 1500 mm
    CABLE SUSPENSION LINEAR CONNECTOR
    030-2210018
    jet black
    RAL 9005
    0.05 kg
    cable length 1500 mm
    CABLE SUSPENSION LINEAR CONNECTOR ELECTRICAL
    030-2220014
    chrome
    0.06 kg
    cable length 1500 mm
    CABLE SUSPENSION LINEAR CONNECTOR ELECTRICAL
    030-2220017
    white
    RAL 9016
    0.07 kg
    cable length 1500 mm
    CABLE SUSPENSION LINEAR CONNECTOR ELECTRICAL
    030-2220018
    jet black
    RAL 9005
    0.08 kg
    cable length 1500 mm
    CABLE SUSPENSION
    030-2230014
    chrome
    0.04 kg
    cable length 1500 mm
    CABLE SUSPENSION
    030-2230017
    white
    RAL 9016
    0.5 kg
    cable length 1500 mm
    CABLE SUSPENSION
    030-2230018
    jet black
    RAL 9005
    0.04 kg
    cable length 1500 mm

    Feeder

    article number
    colour
    dimensions
    INTERNAL POWER FEEDER
    030-2525038
    jet black
    RAL 9005
    length 115 mm
    width 11 mm
    height 10 mm
    0.15 kg
