DOC 360
surface
088-272051D
Quickinfo
3000 KCRI ≥ 80 / 3 SDCM (initial MacAdam)
104 lm/W
L90 / 50000 h
non DIM
IP54, IK09
Colour
General
- Ceiling
- Surface
- grey aluminium
- RAL 9007
- IP54
- IK09
- 2890 lm
LED
- 3000 K
- CRI ≥ 80
- L90 / 50000 h
- ≤ 3 SDCM (initial MacAdam)
- MR 0.54
- MDER 0.49
Optical
- opal (lambertsch)
- ≤ 1.0 1
- SVM ≤ 0.4 1
Electrical
- non DIM
- 220-240 V
- no emergency light
- system 27.8 W
- system 104 lm/W 2
- PC1
Physical
- diameter 360 mm
- height 46 mm
- 2.8 kg
Circuit Breaker Types
Automatic Circuit Breaker Type
B10
B13
B16
B20
C10
C13
C16
C20
Number of Fixtures
11
14
17
21
18
23
28
35
1 Value of containing product at full load (undimmed)
2 incl. consideration of optical losses, internal control unit losses & operating device efficiency

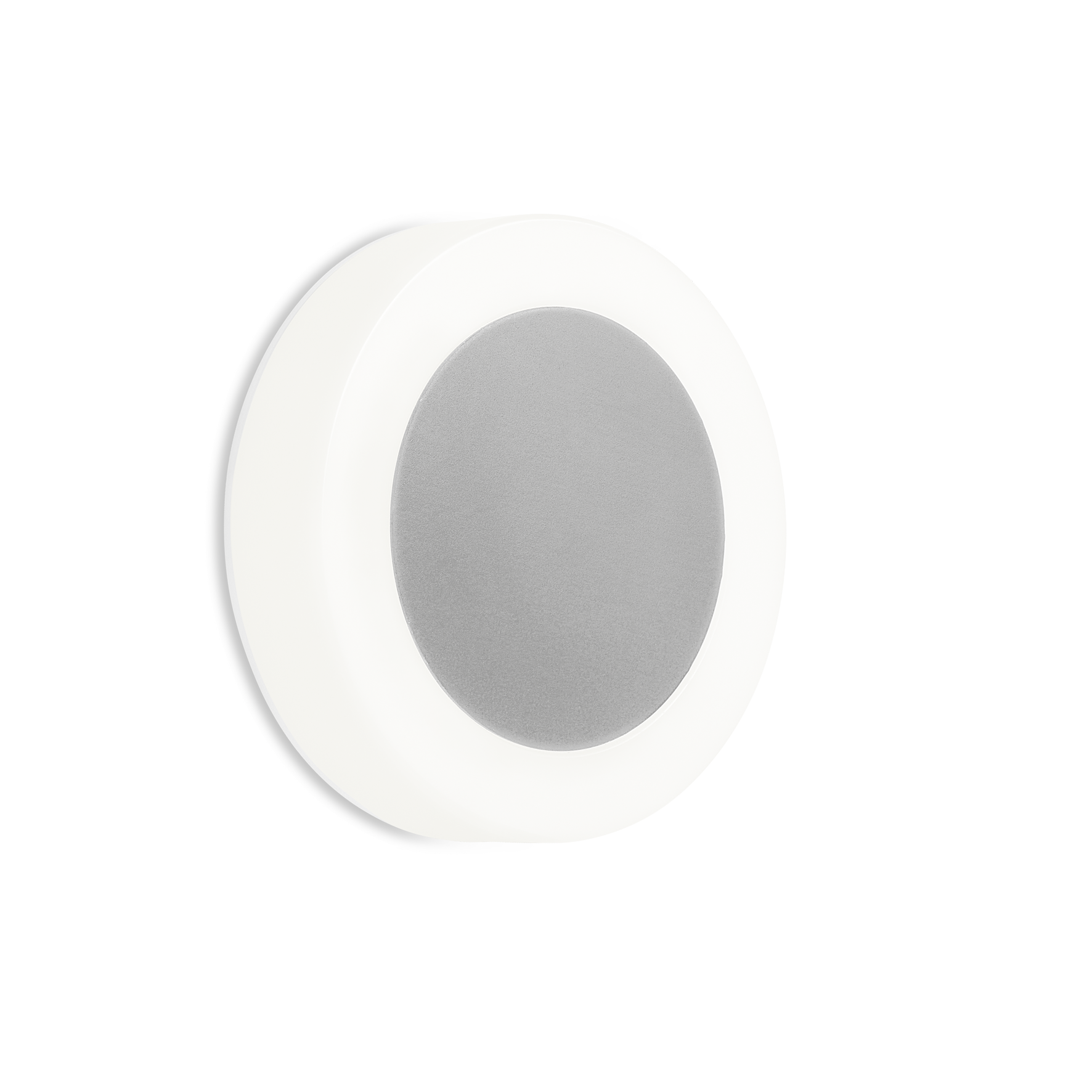

Round light fitting in die-cast aluminium; central decorative disc made of galvanized sheet steel attached by magnet; surface grey aluminium powder coated; suitable for wall or ceiling mounting; opal cover for completely homogeneous illumination; with increased transmission and diffusion; light colour 3000 K; ≤ 3 SDCM (initial MacAdam); CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; degree of protection IP54; with pressure equalisation valve; PC1; 220-240 V; shock resistance IK09; ambient temperatures from -20°C to + 50°C; incl. converter, non dimmable; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
