VITA direct light inset
Visualisation Patientroom
Visualisation Patientroom
Visualisation Patientroom
Visualisation Patientroom
Visualisation Patientroom

VITA direct

light inset

099-9316037A

Quickinfo

3000 K
CRI ≥ 90 / 3 SDCM (initial MacAd
115 lm/W
L80 / 50000 h
DALI-2
Linear Prismatic
IP20

Colour

Datasheet

General

  • Wall
  • Surface
  • pure white
  • RAL 9010
  • IP20
  • 7240 lm

LED

  • 3000 K
  • CRI ≥ 90
  • L80 / 50000 h
  • ≤ 3 SDCM (initial MacAdam)
  • Rg: 99
  • Rf: 91
  • R{1-15}: 89
  • MR 0.61
  • MDER 0.55

Optical

  • Linear Prismatic
  • asymmetric
  • PstLM ≤ 1.0 1
  • SVM ≤ 0.4 1

Electrical

  • DALI-2
  • 220-240 V
  • system 63 W
  • system 115 lm/W 2
  • PC1
  • 1 DALI Addr.

Physical

  • length 1006 mm
  • width 45 mm
  • height 22 mm
  • 0.87 kg

Circuit Breaker Types

Automatic Circuit Breaker Type

B10
B13
B16
B20
C10
C13
C16
C20

Number of Fixtures

12
16
20
25
20
27
34
41
1 Value of containing product at full load (undimmed) 2 incl. consideration of optical losses, internal control unit losses & operating device efficiency

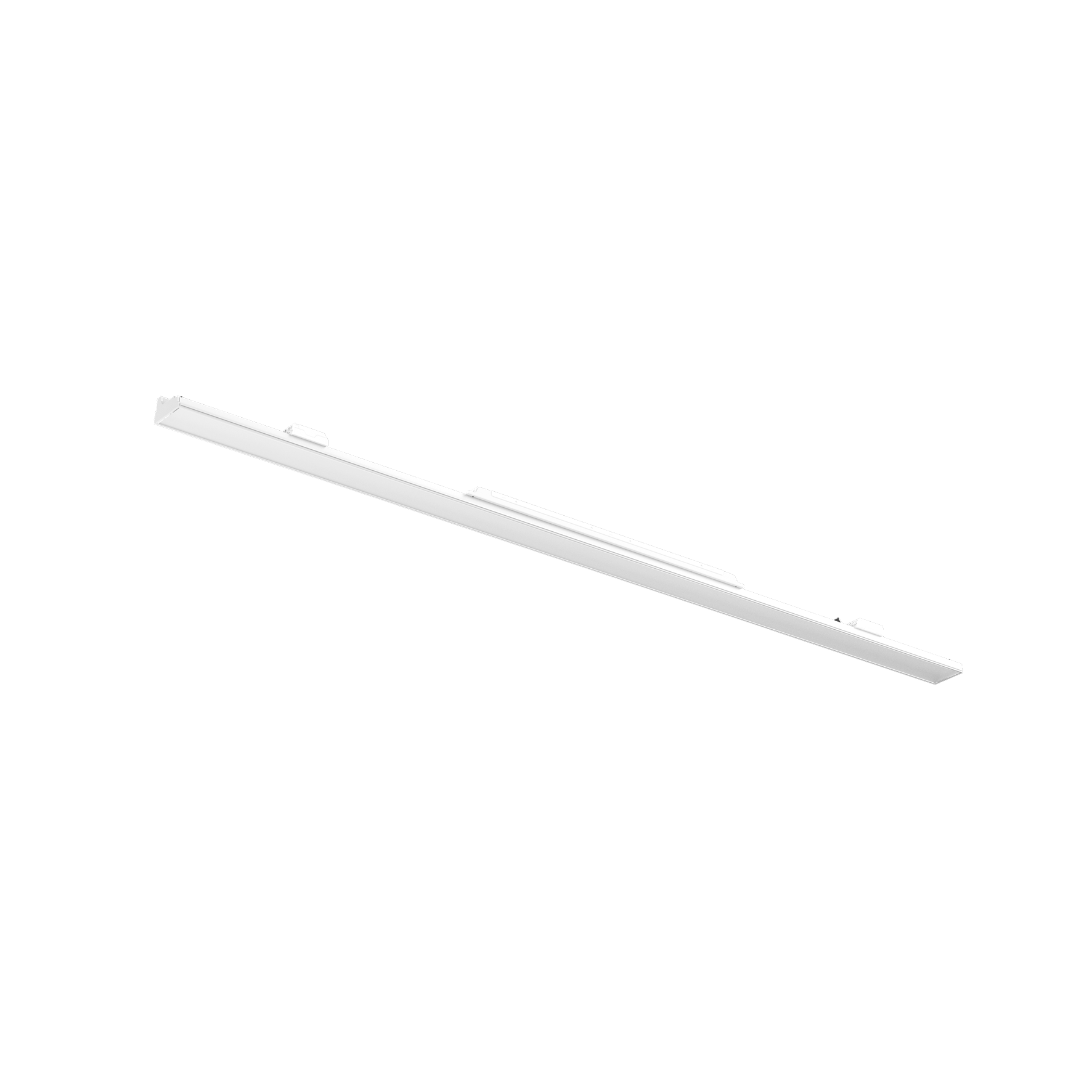

Linear light inset made of aluminium; surface pure white powder coated; for VITA system module; lighting module with specially computed, asymmetrical high gloss reflector, linear prismatic cover incl. foil; designed for use as direct light component; light colour 3000 K; ≤ 3 SDCM (initial MacAdam); CRI ≥ 90; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; degree of protection IP20; PC1; with 2 plug-in terminals for through wiring; incl. DALI-2 converter; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;

Product data & specification documents

Download all

Datasheets

Download all

Planing files & lighting data

Download all
Download all
lightDistribution Download
mainDrawing

System products

VITA

system

Accessories

Electrical components

article number
type
dimensions
DALI MODULE
002-54026
for control of 4 scenes / 2 groups
length
width
height
DALI LIGHT SENSOR
002-54051
recessed ceiling mounted
diameter
height
DALI LIGHT SENSOR
002-54053
socket mounted
diameter
height
DALI LIGHT SENSOR
002-54058
surface mounted
diameter
height
MASTER UNIT
099-2291137
single patient room
length
width
height
MASTER UNIT
099-2291237
double patient room
length
width
height

Mounting

article number
type
colour
dimensions
INSTALLATION HOUSING
099-2290000
length
width
height
SAFETY FRAME FOR MASTER UNIT
099-2298007
mandatory for MASTER UNIT
length
width
height
END CAP
099-9911016
left for indirect module
anodised aluminium
length
width
height
END CAP
099-9911116
right for indirect module
anodised aluminium
length
width
height
INDIRECT MODULE
099-9911616
anodised aluminium
length
width
height
INDIRECT MODULE
099-9911716
anodised aluminium
length
width
height
INDIRECT MODULE
099-9911816
custom cut on building site
anodised aluminium
length
width
height
END CAP
099-9912016
left for direct / indirect module
anodised aluminium
length
width
height
END CAP
099-9912116
right for direct / indirect module
anodised aluminium
length
width
height
DIRECT / INDIRECT MODULE
099-9912616
anodised aluminium
length
width
height
DIRECT / INDIRECT MODULE
099-9912716
anodised aluminium
length
width
height
DIRECT / INDIRECT MODULE
099-9912816
custom cut on building site
anodised aluminium
length
width
height
MOUNTING CHANNEL
099-9921616
anodised aluminium
length
width
height
MOUNTING CHANNEL
099-9921716
anodised aluminium
length
width
height
MOUNTING CHANNEL
099-9921816
anodised aluminium
length
width
height
END CAPS
099-9931016
1 pair | for mounting channel 50 mm
anodised aluminium
length
width
height
END CAPS
099-9932016
1 pair | for mounting channel 55 mm
anodised aluminium
length
width
height
END CAPS
099-9933016
1 pair | for mounting channel 75 mm
anodised aluminium
length
width
height
LINEAR CONNECTOR SET
099-9941116
for mounting channel
anodised aluminium
LINEAR CONNECTOR SET
099-9942116
for direct / indirect module
anodised aluminium
length
width
LINEAR CONNECTOR SET
099-9943116
for indirect module
anodised aluminium
length
width
LINEAR CONNECTOR SET
099-9944116
for D/I module to I channel L
anodised aluminium
length
width
LINEAR CONNECTOR SET
099-9945116
for D/I module to I channel R
anodised aluminium
length
width
END CAP
099-9951016
left for standard rail
anodised aluminium
END CAP
099-9951116
right for standard rail
anodised aluminium
STANDARD RAIL
099-9951616
anodised aluminium
length
width
height
STANDARD RAIL
099-9951716
anodised aluminium
length
width
height
STANDARD RAIL
099-9951816
anodised aluminium
length
width
height
INDIRECT MODULE
E87210....6
anodised aluminium
custom cut
width 75 mm
height 25 mm
DIRECT / INDIRECT MODULE
E87220....6
anodised aluminium
custom cut
width 130 mm
height 25 mm
MOUNTING CHANNEL
E87240....6
anodised aluminium
custom cut
width 120 mm
height 43 mm
STANDARD RAIL
E87280....6
anodised aluminium
custom cut
width 130 mm
height 29 mm

Optical

article number
colour
type
dimensions
BLIND COVER
099-9913616
anodised aluminium
length
width
height
BLIND COVER
099-9913716
anodised aluminium
length
width
height
BLIND COVER
099-9913816
anodised aluminium
custom cut on building site
length
width
height
COVER SMALL
099-9931616
anodised aluminium
length
width
height
COVER SMALL
099-9931716
anodised aluminium
length
width
height
COVER SMALL
099-9931816
anodised aluminium
length
width
height
COVER MEDIUM
099-9932616
anodised aluminium
length
width
height
COVER MEDIUM
099-9932716
anodised aluminium
length
width
height
COVER MEDIUM
099-9932816
anodised aluminium
length
width
height
COVER BIG
099-9933616
anodised aluminium
length
width
height
COVER BIG
099-9933716
anodised aluminium
length
width
height
COVER BIG
099-9933816
anodised aluminium
length
width
height
BLIND COVER
E87230....6
anodised aluminium
custom cut
width 45 mm
height 22 mm
COVER SMALL
E87250....6
anodised aluminium
custom cut
width 120 mm
height 50 mm
COVER MEDIUM
E87260....6
anodised aluminium
custom cut
width 120 mm
height 55 mm
COVER BIG
E87270....6
anodised aluminium
custom cut
width 120 mm
height 75 mm

Electrical cable

article number
type
THROUGH WIRE
099-9940110
4 × 1,5mm² + 1 × 2,5mm² | 10 pieces
