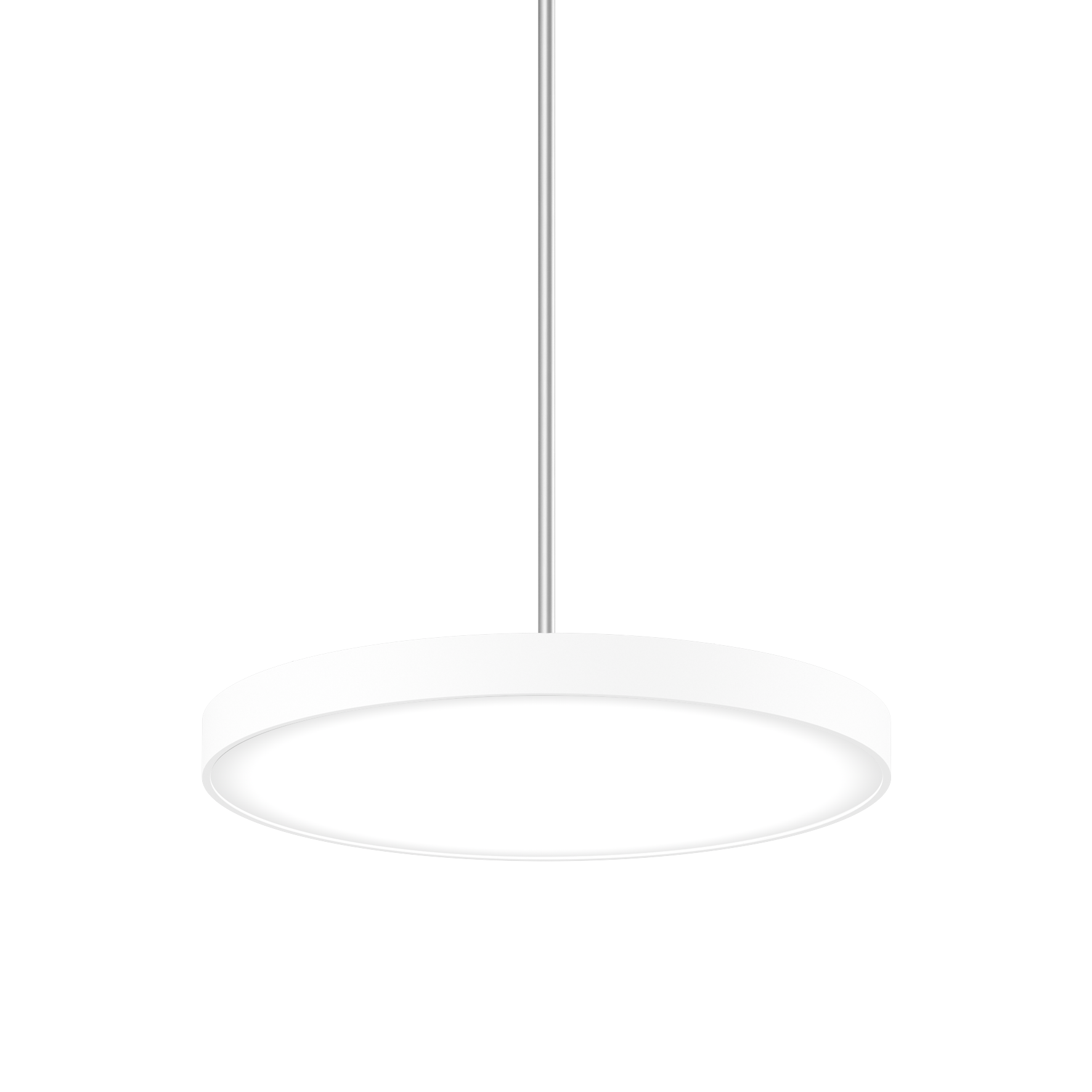

VELA 600 direct
suspended
073-1451617K
Quickinfo
4000 KCRI ≥ 80 / 3 SDCM (initial MacAd
UGR ≤ 19 / 65° ≤ 3,000 cd/m²
143 lm/W
L90 / 50000 h
non DIM
Microprismatic
IP40
Colour
General
- Ceiling
- Suspended
- pure white
- RAL 9010
- IP40
- 4300 lm
LED
- 4000 K
- CRI ≥ 80
- L90 / 50000 h
- ≤ 3 SDCM (initial MacAdam)
- MR 0.72
- MDER 0.66
Optical
- Microprismatic
- microprismatic
- UGR ≤ 19
- ≤ 1.0 1
- SVM ≤ 0.4 1
- ≥65° <3000 cd/m²
Electrical
- non DIM
- 220-240 V
- system 30 W
- system 143 lm/W 2
- PC1
Physical
- rod 1000 mm
- diameter 600 mm
- height 87 mm
- 5.8 kg
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures
Round luminaire housing in aluminium, rolled profile, seamlessly welded; surface pure white powder coated; highly reflective coating for improved efficiency; suspended luminaire with adjustable pendant rod mounting (chrome) 1000mm, feed in rod; microprismatic PMMA cover; completely homogeneous illumination; UGR ≤ 19; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; light colour 4000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; canopy with 2 cable openings and plug-in terminal for through wiring; degree of protection IP40; PC1; 220-240 V; internal wiring in light halogen free; incl. converter, non dimmable; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
