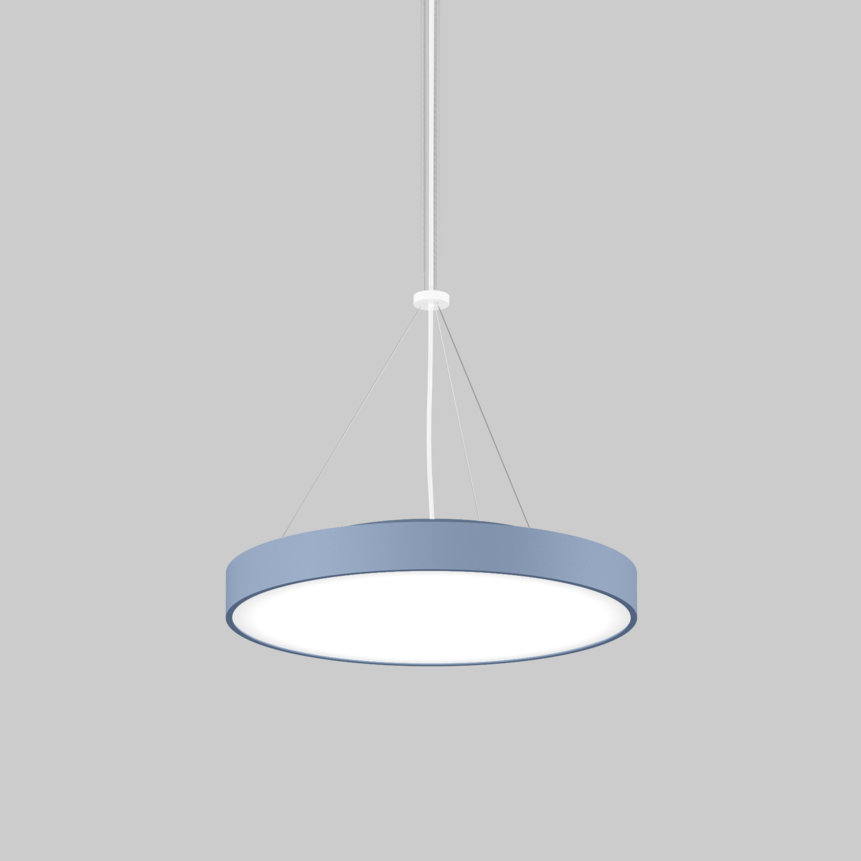

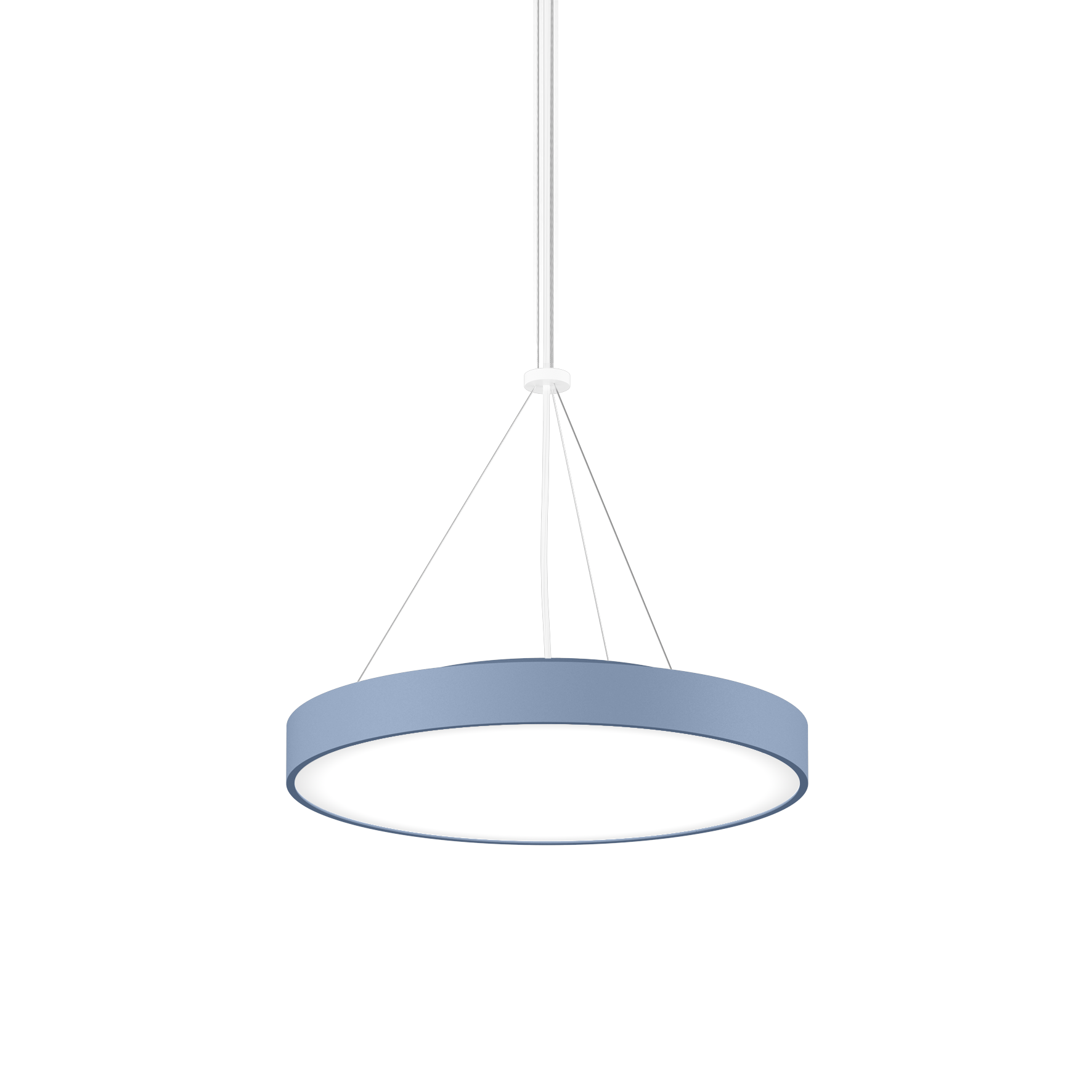

VELA 450 direct / indirect power
suspended
073-124453XK
Quickinfo
3000 KCRI ≥ 80 / 3 SDCM (initial MacAd
UGR ≤ 16 / 65° ≤ 3,000 cd/m²
1,960 lm / ↑ 767 lm
129 lm/W
L90 / 50000 h
DALI-2
Microprismatic
IP40
Colour
General
- Ceiling
- Suspended
- special colours
- IP40
- indirect 767 lm
- direct 1960 lm
- total 2730 lm
LED
- 3000 K
- CRI ≥ 80
- L90 / 50000 h
- ≤ 3 SDCM (initial MacAdam)
- MR 0.54
- MDER 0.49
Optical
- Microprismatic
- microprismatic
- UGR ≤ 16
- ≤ 1.0 1
- SVM ≤ 0.4 1
- ≥65° <3000 cd/m²
Electrical
- DALI-2
- 220-240 V
- system 21.1 W
- system 129 lm/W 2
- PC1
- 1 DALI Addr.
Physical
- cable 1500 mm
- diameter 450 mm
- height 87 mm
- 3.8 kg
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures
Round luminaire housing in aluminium, rolled profile, seamlessly welded; surface special colours powder coated; highly reflective coating for improved efficiency; suspended luminaire with 1500mm cable suspension; with integrated toolless suspension height adjustment on the luminaire; incl. feed (white); microprismatic PMMA cover; completely homogeneous illumination; UGR ≤ 16; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; direct / indirect radiation characteristic for additional accentuation of the ceiling; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; canopy with 2 cable openings and plug-in terminal for through wiring; degree of protection IP40; PC1; 220-240 V; internal wiring in light halogen free; incl. DALI-2 converter; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
