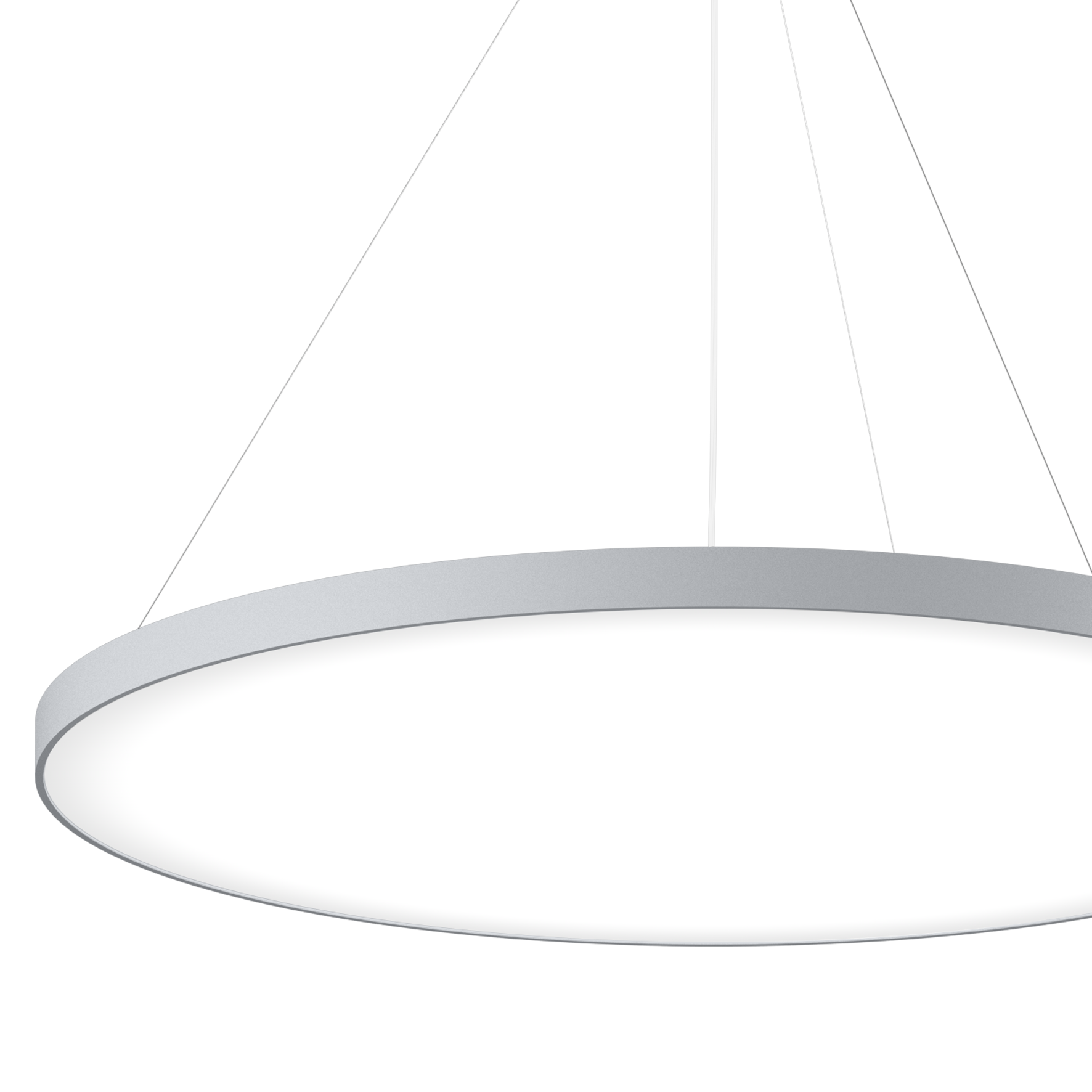

VELA 1200 direct / indirect power suspended

Technical data

General

Ceiling
Suspended
white aluminium
RAL 9006
IP40
indirect 6060 lm
direct 20600 lm
total 26700 lm

LED

4000 K
CRI ≥ 80
L90 / 50000 h
≤ 3 SDCM (initial MacAdam)
MR 0.72
MDER 0.66

Optical

Opal
opal (lambertsch)
$P_{st}^{LM}$ ≤ 1.0 ¹
SVM ≤ 0.4 ¹

Electrical

DALI-2
220-240 V
system 185 W
system 144 lm/W ²
PC1
4 DALI Addr.

Physical

cable 1500 mm
diameter 1200 mm
height 87 mm
19 kg

Circuit Breaker Types

Automatic Circuit Breaker Type

B10

B13

B16

B20

C10

C13

C16

C20

Number of Fixtures

2

3

4

6

7

9

^¹ Value of containing product at full load (undimmed) ^² incl. consideration of optical losses, internal control unit losses & operating device efficiency

Specification text

Round luminaire housing in aluminium, rolled profile, seamlessly welded; surface white aluminium powder coated; highly reflective coating for improved efficiency; suspended luminaire with 1500mm cable suspension; with integrated toolless suspension height adjustment on the luminaire; incl. feed (white); completely homogeneously illuminated, satinised PMMA cover; direct / indirect radiation characteristic for additional accentuation of the ceiling; light colour 4000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; canopy with 2 cable openings and plug-in terminal for through wiring; degree of protection IP40; PC1; 220-240 V; internal wiring in light halogen free; incl. DALI-2 converter; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
