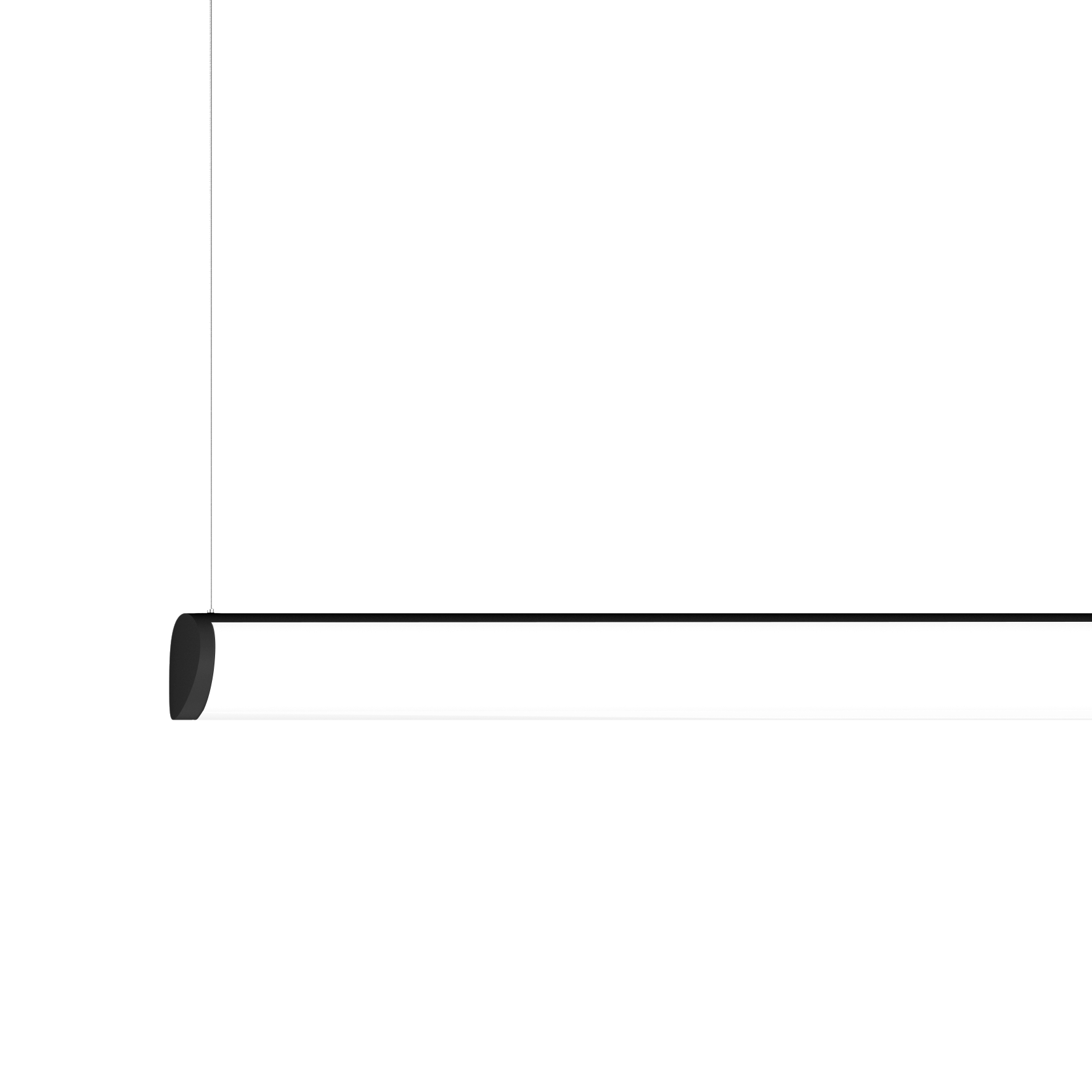

TUBO 60
suspended
058-3215638O
Quickinfo
4000 KCRI ≥ 80 / 3 SDCM
3,040 lm/m
132 lm/W
L90 / 50000 h
DALI-2
High Performance Opal
IP20
Colour
General
- Ceiling
- Suspended
- jet black
- RAL 9005
- IP20
- 4490 lm
- 3040 lm/m
LED
- 4000 K
- CRI ≥ 80
- L90 / 50000 h
- initial MacAdam ≤ 3 SDCM
- MR 0.72
- MDER 0.65
Optical
- High Performance Opal
- opal (lambertsch)
- ≤ 1.0 1
- SVM ≤ 0.4 1
Electrical
- DALI-2
- 220-240 V
- system 34 W
- system 132 lm/W 2
- PC1
- 1 DALI Addr.
- 23 W/m
Physical
- cable 1500 mm
- length 1500 mm
- width 60 mm
- height 60 mm
- 1.96 kg
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures
Carrier profile made of extruded aluminium profile; light-tight end caps in aluminium; converter integrated into luminaire housing; surface jet black powder coated; suspended luminaire with 1500mm cable suspension; with integrated toolless suspension height adjustment on the luminaire; freely positioned attachment to the luminaire; incl. feed (black); canopy for through wiring; light control via high quality lens system for maximum, homogeneous illumination; light colour 4000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; cylindrical cover made of satin PMMA for uniform illumination; with gentle ceiling illumination; degree of protection IP20; PC1; incl. DALI-2 converter; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
