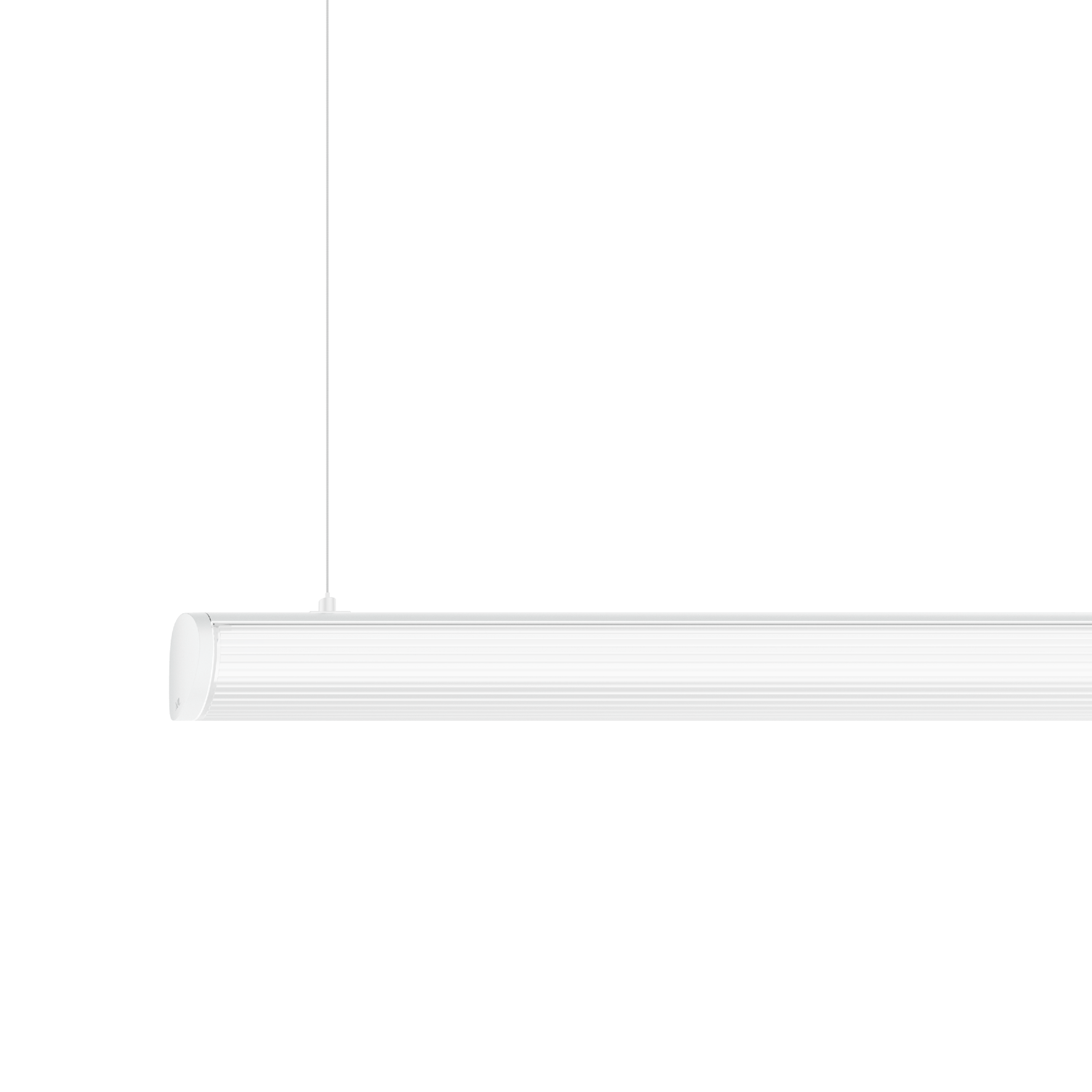

TUBO 60 ribbed
suspended
058-5218537C
Quickinfo
3000 KCRI ≥ 80 / 3 SDCM (initial MacAdam)
2,870 lm/m
125 lm/W
L90 / 50000 h
DALI-2
Clear Cover
IP20
Colour
General
- Ceiling
- Suspended
- pure white
- RAL 9010
- IP20
- 6750 lm
- 2870 lm/m
LED
- 3000 K
- CRI ≥ 80
- L90 / 50000 h
- ≤ 3 SDCM (initial MacAdam)
- MR 0.56
- MDER 0.51
Optical
- Clear Cover
- opal (lambertsch)
- ≤ 1.0 1
- SVM ≤ 0.4 1
Electrical
- DALI-2
- 220-240 V
- system 54 W
- system 125 lm/W 2
- PC1
- 1 DALI Addr.
- 23 W/m
Physical
- length 2375 mm
- width 60 mm
- height 60 mm
- 3.7 kg
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures
Carrier profile made of extruded aluminium profile; light-tight end caps in aluminium; converter integrated into luminaire housing; surface pure white powder coated; suspended luminaire with 1500mm cable suspension; with integrated toolless suspension height adjustment on the luminaire; freely positioned attachment to the luminaire; incl. feed (white); canopy for through wiring; light control via high quality lens system for maximum, homogeneous illumination; light colour 3000 K; ≤ 3 SDCM (initial MacAdam); CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; clear, cylindrical cover with linear prismatic optic; with gentle ceiling illumination; degree of protection IP20; PC1; 220-240 V; incl. DALI-2 converter; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
