MINO 100

suspended

Phase-out

Quickinfo

3000 K, 4000 K
CRI ≥ 80 / 3 SDCM
UGR ≤ 19
up to 140 lm/W
L90 / 50000 h
DALI-2, non DIM
High Performance Opal, Microprismatic
IP20

Colour

white

black

grey

Products and codes

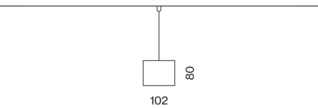

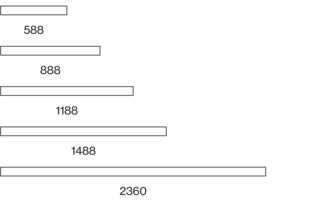

Simple drawing

Light distribution

Downloads & links

Product data & specification documents

CataloguePage(s)

DWG - 2D

Download all

Aggregated downloads

ROLF
ULD

Description

Luminaire housing from extruded aluminium profile, angular design; no visible screws; surface powder coated; luminaire profile for mounting available in advance; remaining luminaire components mounted without tools; pendant fitting with cable suspension; with integrated tool-less suspension height adjustment; spring clip attachment to the luminaire; freely positionable; incl. transparent feed; light inset consisting of highly reflective coated extruded profile for improved thermal management; HPO (High Performance Opal) cover for uniform illumination; micro prismatic PMMA diffuser incl. diffuser film for homogeneous illumination and reduced luminance; energy-efficient LEDs with very good colour rendering

DiiA^® standards 251, 252, 253

system solution

DIN EN 12464-1 UGR ≤ 19

tunable white 2700 – 6500 K (optional)

CRI ≥ 98 XPECTRUM (optional)

Products and codes

Filter

Colour

white

black

grey

MINO 100 high lumen suspended

Status

Article number(s)

Type

Dimming

black, Microprismatic, 3000 K, 20.6 W, 109 lm/W, 888 mm

non DIM

black, High Performance Opal, 3000 K, 20.6 W, 122 lm/W, 888 mm

non DIM

black, Microprismatic, 3000 K, 20.6 W, 112 lm/W, 888 mm

non DIM

black, Microprismatic, 3000 K, 20.6 W, 109 lm/W, 888 mm

DALI-2

black, High Performance Opal, 3000 K, 20.6 W, 122 lm/W, 888 mm

DALI-2

black, Microprismatic, 3000 K, 20.6 W, 112 lm/W, 888 mm

DALI-2

black, Microprismatic, 4000 K, 20.6 W, 116 lm/W, 888 mm

non DIM

black, High Performance Opal, 4000 K, 20.6 W, 129 lm/W, 888 mm

non DIM

black, Microprismatic, 4000 K, 20.6 W, 119 lm/W, 888 mm

non DIM

black, Microprismatic, 4000 K, 20.6 W, 116 lm/W, 888 mm

DALI-2

black, High Performance Opal, 4000 K, 20.6 W, 129 lm/W, 888 mm

DALI-2

black, Microprismatic, 4000 K, 20.6 W, 119 lm/W, 888 mm

DALI-2

black, Microprismatic, 3000 K, 27.5 W, 109 lm/W, 1,188 mm

non DIM

black, High Performance Opal, 3000 K, 27.5 W, 121 lm/W, 1,188 mm

non DIM

black, Microprismatic, 3000 K, 27.5 W, 112 lm/W, 1,188 mm

non DIM

black, Microprismatic, 3000 K, 27.5 W, 109 lm/W, 1,188 mm

DALI-2

black, High Performance Opal, 3000 K, 27.5 W, 121 lm/W, 1,188 mm

DALI-2

black, Microprismatic, 3000 K, 27.5 W, 112 lm/W, 1,188 mm

DALI-2

black, Microprismatic, 4000 K, 27.5 W, 115 lm/W, 1,188 mm

non DIM

black, High Performance Opal, 4000 K, 27.5 W, 129 lm/W, 1,188 mm

non DIM

black, Microprismatic, 4000 K, 27.5 W, 119 lm/W, 1,188 mm

non DIM

black, Microprismatic, 4000 K, 27.5 W, 115 lm/W, 1,188 mm

DALI-2

black, High Performance Opal, 4000 K, 27.5 W, 129 lm/W, 1,188 mm

DALI-2

black, Microprismatic, 4000 K, 27.5 W, 119 lm/W, 1,188 mm

DALI-2

black, Microprismatic, 3000 K, 34 W, 110 lm/W, 1,488 mm

non DIM

black, High Performance Opal, 3000 K, 34 W, 123 lm/W, 1,488 mm

non DIM

black, Microprismatic, 3000 K, 34 W, 113 lm/W, 1,488 mm

non DIM

black, Microprismatic, 3000 K, 34 W, 110 lm/W, 1,488 mm

DALI-2

black, High Performance Opal, 3000 K, 34 W, 123 lm/W, 1,488 mm

DALI-2

black, Microprismatic, 3000 K, 34 W, 113 lm/W, 1,488 mm

DALI-2

black, Microprismatic, 4000 K, 34 W, 117 lm/W, 1,488 mm

non DIM

black, High Performance Opal, 4000 K, 34 W, 130 lm/W, 1,488 mm

non DIM

black, Microprismatic, 4000 K, 34 W, 120 lm/W, 1,488 mm

non DIM

black, Microprismatic, 4000 K, 34 W, 117 lm/W, 1,488 mm

DALI-2

black, High Performance Opal, 4000 K, 34 W, 130 lm/W, 1,488 mm

DALI-2

black, Microprismatic, 4000 K, 34 W, 120 lm/W, 1,488 mm

DALI-2

black, Microprismatic, 3000 K, 55 W, 109 lm/W, 2,360 mm

non DIM

black, High Performance Opal, 3000 K, 55 W, 121 lm/W, 2,360 mm

non DIM

black, Microprismatic, 3000 K, 55 W, 112 lm/W, 2,360 mm

non DIM

black, Microprismatic, 3000 K, 55 W, 109 lm/W, 2,360 mm

DALI-2

black, High Performance Opal, 3000 K, 55 W, 121 lm/W, 2,360 mm

DALI-2

black, Microprismatic, 3000 K, 55 W, 112 lm/W, 2,360 mm

DALI-2

black, Microprismatic, 4000 K, 55 W, 115 lm/W, 2,360 mm

non DIM

black, High Performance Opal, 4000 K, 55 W, 129 lm/W, 2,360 mm

non DIM

black, Microprismatic, 4000 K, 55 W, 119 lm/W, 2,360 mm

non DIM

black, Microprismatic, 4000 K, 55 W, 115 lm/W, 2,360 mm

DALI-2

black, High Performance Opal, 4000 K, 55 W, 129 lm/W, 2,360 mm

DALI-2

black, Microprismatic, 4000 K, 55 W, 119 lm/W, 2,360 mm

DALI-2

MINO 100 high lumen suspended

Status

Article number(s)

Type

Dimming

grey, Microprismatic, 3000 K, 20.6 W, 109 lm/W, 888 mm

non DIM

grey, High Performance Opal, 3000 K, 20.6 W, 122 lm/W, 888 mm

non DIM

grey, Microprismatic, 3000 K, 20.6 W, 112 lm/W, 888 mm

non DIM

grey, Microprismatic, 3000 K, 20.6 W, 109 lm/W, 888 mm

DALI-2

grey, High Performance Opal, 3000 K, 20.6 W, 122 lm/W, 888 mm

DALI-2

grey, Microprismatic, 3000 K, 20.6 W, 112 lm/W, 888 mm

DALI-2

grey, Microprismatic, 4000 K, 20.6 W, 116 lm/W, 888 mm

non DIM

grey, High Performance Opal, 4000 K, 20.6 W, 129 lm/W, 888 mm

non DIM

grey, Microprismatic, 4000 K, 20.6 W, 119 lm/W, 888 mm

non DIM

grey, Microprismatic, 4000 K, 20.6 W, 116 lm/W, 888 mm

DALI-2

grey, High Performance Opal, 4000 K, 20.6 W, 129 lm/W, 888 mm

DALI-2

grey, Microprismatic, 4000 K, 20.6 W, 119 lm/W, 888 mm

DALI-2

grey, Microprismatic, 3000 K, 27.5 W, 109 lm/W, 1,188 mm

non DIM

grey, High Performance Opal, 3000 K, 27.5 W, 121 lm/W, 1,188 mm

non DIM

grey, Microprismatic, 3000 K, 27.5 W, 112 lm/W, 1,188 mm

non DIM

grey, Microprismatic, 3000 K, 27.5 W, 109 lm/W, 1,188 mm

DALI-2

grey, High Performance Opal, 3000 K, 27.5 W, 121 lm/W, 1,188 mm

DALI-2

grey, Microprismatic, 3000 K, 27.5 W, 112 lm/W, 1,188 mm

DALI-2

grey, Microprismatic, 4000 K, 27.5 W, 115 lm/W, 1,188 mm

non DIM

grey, High Performance Opal, 4000 K, 27.5 W, 129 lm/W, 1,188 mm

non DIM

grey, Microprismatic, 4000 K, 27.5 W, 119 lm/W, 1,188 mm

non DIM

grey, Microprismatic, 4000 K, 27.5 W, 115 lm/W, 1,188 mm

DALI-2

grey, High Performance Opal, 4000 K, 27.5 W, 129 lm/W, 1,188 mm

DALI-2

grey, Microprismatic, 4000 K, 27.5 W, 119 lm/W, 1,188 mm

DALI-2

grey, Microprismatic, 3000 K, 34 W, 110 lm/W, 1,488 mm

non DIM

grey, High Performance Opal, 3000 K, 34 W, 123 lm/W, 1,488 mm

non DIM

grey, Microprismatic, 3000 K, 34 W, 113 lm/W, 1,488 mm

non DIM

grey, Microprismatic, 3000 K, 34 W, 110 lm/W, 1,488 mm

DALI-2

grey, High Performance Opal, 3000 K, 34 W, 123 lm/W, 1,488 mm

DALI-2

grey, Microprismatic, 3000 K, 34 W, 113 lm/W, 1,488 mm

DALI-2

grey, Microprismatic, 4000 K, 34 W, 117 lm/W, 1,488 mm

non DIM

grey, High Performance Opal, 4000 K, 34 W, 130 lm/W, 1,488 mm

non DIM

grey, Microprismatic, 4000 K, 34 W, 120 lm/W, 1,488 mm

non DIM

grey, Microprismatic, 4000 K, 34 W, 117 lm/W, 1,488 mm

DALI-2

grey, High Performance Opal, 4000 K, 34 W, 130 lm/W, 1,488 mm

DALI-2

grey, Microprismatic, 4000 K, 34 W, 120 lm/W, 1,488 mm

DALI-2

grey, Microprismatic, 3000 K, 55 W, 109 lm/W, 2,360 mm

non DIM

grey, High Performance Opal, 3000 K, 55 W, 121 lm/W, 2,360 mm

non DIM

grey, Microprismatic, 3000 K, 55 W, 112 lm/W, 2,360 mm

non DIM

grey, Microprismatic, 3000 K, 55 W, 109 lm/W, 2,360 mm

DALI-2

grey, High Performance Opal, 3000 K, 55 W, 121 lm/W, 2,360 mm

DALI-2

grey, Microprismatic, 3000 K, 55 W, 112 lm/W, 2,360 mm

DALI-2

grey, Microprismatic, 4000 K, 55 W, 115 lm/W, 2,360 mm

non DIM

grey, High Performance Opal, 4000 K, 55 W, 129 lm/W, 2,360 mm

non DIM

grey, Microprismatic, 4000 K, 55 W, 119 lm/W, 2,360 mm

non DIM

grey, Microprismatic, 4000 K, 55 W, 115 lm/W, 2,360 mm

DALI-2

grey, High Performance Opal, 4000 K, 55 W, 129 lm/W, 2,360 mm

DALI-2

grey, Microprismatic, 4000 K, 55 W, 119 lm/W, 2,360 mm

DALI-2

MINO 100 high lumen suspended

Status

Article number(s)

Type

Dimming

white, Microprismatic, 3000 K, 20.6 W, 109 lm/W, 888 mm

non DIM

white, High Performance Opal, 3000 K, 20.6 W, 122 lm/W, 888 mm

non DIM
