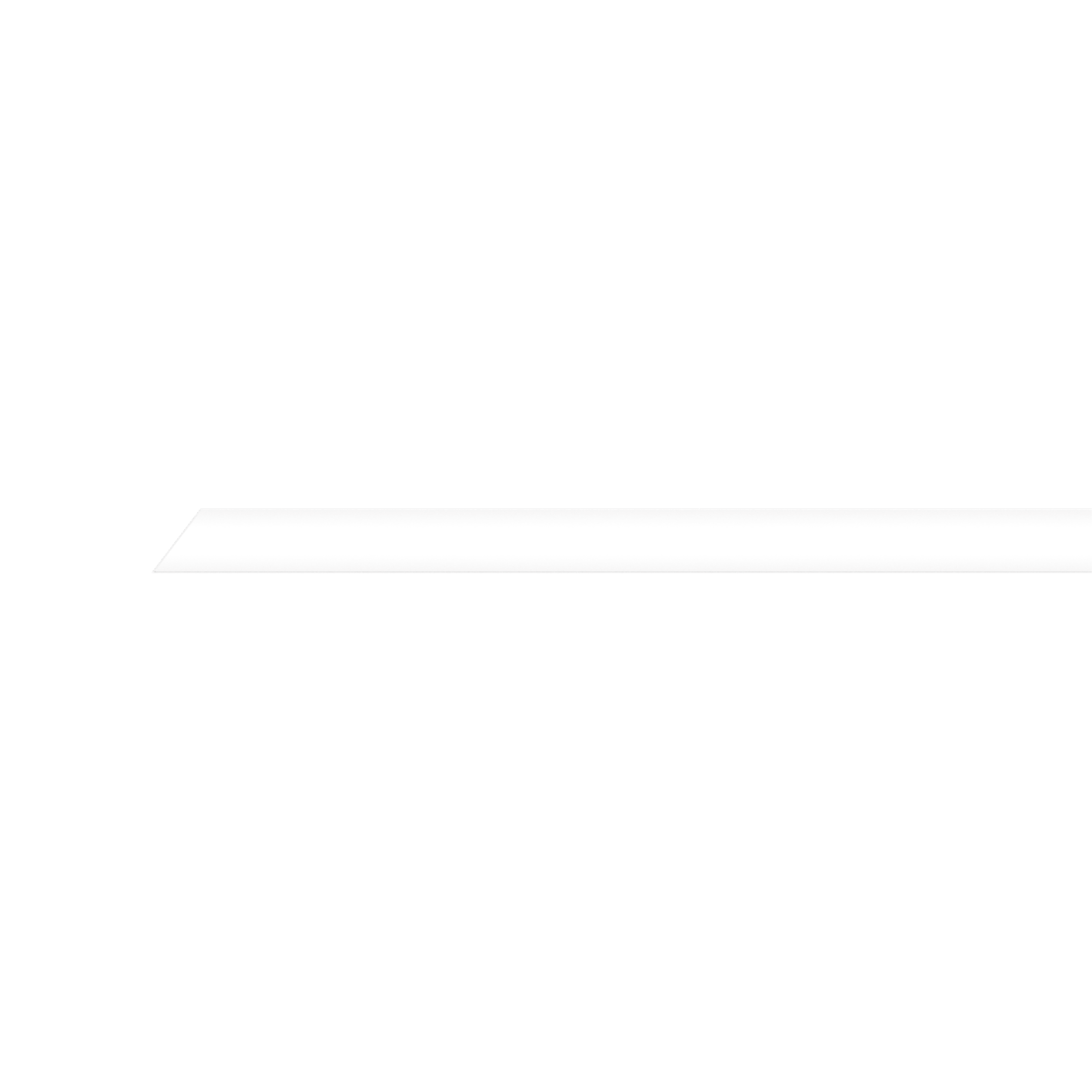

MINIMAL 100 mid lumen
trimless
052-33L8517Z
Quickinfo
3000 KCRI ≥ 80 / 3 SDCM
UGR ≤ 19
1,590 lm/m
120 lm/W
L90 / 50000 h
non DIM
Microprismatic
IP20
Colour
General
- Ceiling
- Recessed
- traffic white
- RAL 9016
- IP20
- 3730 lm
- 1590 lm/m
LED
- 3000 K
- CRI ≥ 80
- L90 / 50000 h
- initial MacAdam ≤ 3 SDCM
- MR 0.54
- MDER 0.49
Optical
- Microprismatic
- microprismatic
- UGR ≤ 19
Electrical
- non DIM
- 220-240 V
- system 31 W
- system 120 lm/W 1
- PC1
- 13 W/m
Physical
- trimless
- length 2348 mm
- width 102 mm
- height 82 mm
- 8.2 kg
Cutout
- length 2351 mm
- width 106 mm
- min. ceiling thickness 8 mm
- max. ceiling thickness 25 mm
- recessed depth 106 mm
Circuit Breaker Types
Automatic Circuit Breaker Type
Number of Fixtures
Luminaire housing made of extruded aluminium profile; suitable for rimless installation in plasterboard ceilings; specially designed trim with grooves for better adhesion of smoothing compound; suitable for ceiling thickness of 8-25 mm; surface traffic white powder coated; lighting profile (end cover and mounting bracket pre-assembled) available in advance for installation; remaining lamp components mounted without tools; LED light inset consisting of highly reflective lacquered aluminium for improved thermal management; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; micro prismatic PMMA diffuser incl. diffuser film for homogeneous illumination and reduced luminance; UGR ≤ 19; degree of protection IP20; PC1; 220-240 V; internal wiring in light halogen free; incl. converter, non dimmable; light source replaceable by an authorized professional; control gear replaceable by an authorized professional;
