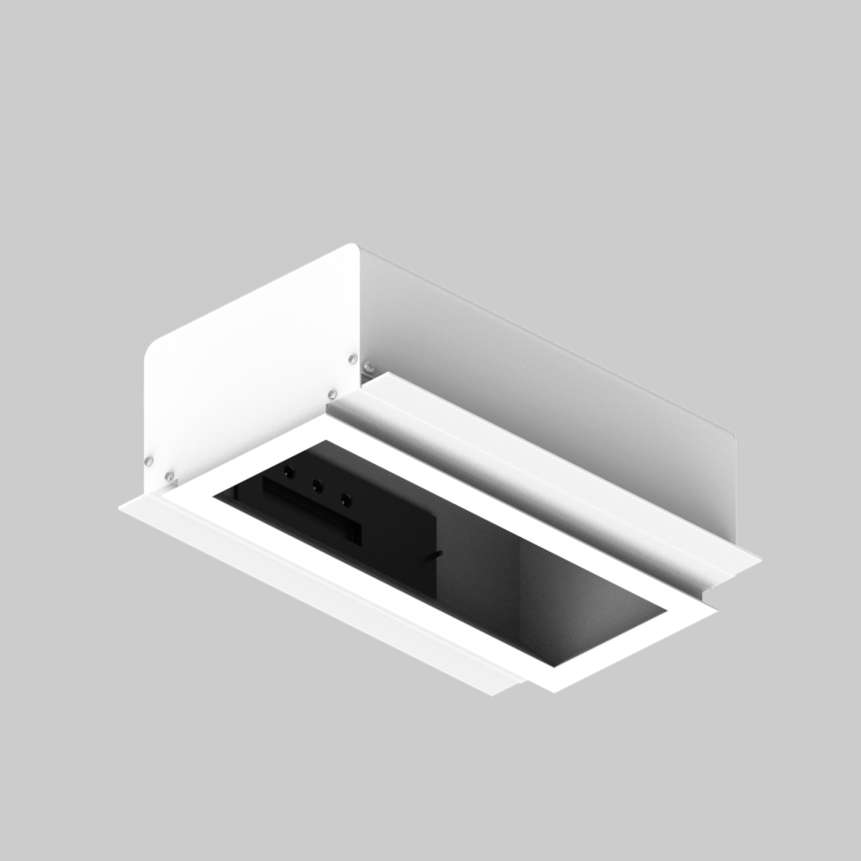

MOUNTING HOUSING 300 trimless linear

Technical data

General

Ceiling
Recessed
traffic white
RAL 9016 ¹
IP20

Electrical

DALI-2
PC1 220-240V
1 DALI Addr.

Physical

length 308 mm
width 252 mm
height 120 mm
2.4 kg

Cutout

length 308 mm
width 136 mm
min. ceiling thickness 12.5 mm
max. ceiling thickness 12.5 mm
recessed depth 175 mm

^¹ RAL code

Specification text

Installation housing in pressed steel sheet with rectangular cut-out; for trimless installation in plasterboard ceilings; special edge design with perforations for better adhesion of filler; suitable for ceiling thickness of 12.5 mm; 3 non-reversible plug and play connector sockets for power supply to the spotlights; spotlight can be installed and moved without tools by means of magnetic holders; hot plug protection; surface traffic white powder coated; degree of protection IP20; PC1 220-240V; incl. DALI-2 converter; all spotlights together DALI dimmable; control gear replaceable by an authorized professional;
